Product Type	Car Stereo Installation Kit (Dash Kit)
Brand	Metra
Model	99-7368HG
Compatible Vehicles	Select Honda and Acura models (e.g., Civic, Accord, Integra, RSX) with factory radio
Material	High-grade ABS plastic, painted to match factory finish
Color	Black or Dark Gray (charcoal)
Dimensions (approx.)	7 x 4.5 x 1.5 inches
Weight (approx.)	0.4 lbs
Power Supply	Not required (passive mounting component)
Primary Function	Enables installation of an aftermarket single-DIN or double-DIN stereo into the factory dashboard opening
Included Components	Dash panel, mounting brackets, screws, and installation instructions
ISO/DIN Compatibility	Single-DIN and some double-DIN (with additional adapter, may vary by vehicle)
Finish	Textured matte black to match OEM interior
Installation Difficulty	Moderate, requires basic tools (screwdriver, trim removal tools)
Safety Features	No moving parts; secure fit to prevent rattling or gaps
Cleaning & Maintenance	Wipe with a soft, dry cloth; avoid harsh chemicals
Durability	Designed to withstand normal vehicle temperature and vibration
Spare Parts & Repairability	Not user-repairable; replace entire kit if damaged. Individual brackets may be available from Metra
Certification	Manufactured to meet or exceed OEM specifications

Frequently Asked Questions - 99-7368HG Metra

What vehicles is the Metra 99-7368HG compatible with?

This dash kit is designed for select Honda and Acura models, including the Honda Civic (2006-2011), Accord (2008-2012), and Acura RSX (2002-2006), Integra (1994-2001), and others. Always verify your vehicle's specific model and trim before installation.

Does this kit fit single-DIN or double-DIN radios?

The Metra 99-7368HG typically accommodates a single-DIN aftermarket radio by default. For double-DIN installation, you may need an additional adapter or modification depending on your vehicle's dash depth.

What tools are required for installation?

You will need basic hand tools: a panel removal tool or flathead screwdriver, a Phillips screwdriver, and possibly a socket set for the factory radio removal. No special tools are required.

Does the kit include the installation instructions?

Yes, the kit includes a printed installation manual with step-by-step directions and a wiring harness adapter reference. You can also download the manual in PDF from the manufacturer's support site.

Is the Metra 99-7368HG painted or color-matched?

The kit comes in a textured matte black finish that closely matches the factory OEM interior color of most Honda and Acura vehicles. It may not be an exact match for every trim, but it blends well.

Can I use this kit without modifying the vehicle?

In most cases, no modification is necessary. The kit is designed to fit directly into the existing dash opening and snap into place. Some vehicles may require removal of the factory radio brackets or installation of the included brackets.

How do I clean the dash kit?

Clean the kit with a soft, dry microfiber cloth. Avoid using abrasive cleaners or solvents, as they may damage the finish. For stubborn dirt, slightly dampen the cloth with water.

Does the kit include a wiring harness?

No, the kit does not include a wiring harness. You will need a separate vehicle-specific wiring harness adapter (e.g., Metra 70-1721) to connect the aftermarket radio to the car's electrical system.

Is the Metra 99-7368HG a genuine OEM part?

No, it is an aftermarket replacement dash kit manufactured by Metra. However, it is designed to match the OEM look and quality, and is widely used by professional installers.

What should I do if the kit does not fit my vehicle?

First, double-check compatibility using Metra's online fitment guide. If it still does not fit, contact Metra customer support or your retailer for return or exchange. Do not force the kit, as it may damage the dashboard.

USER MANUAL 99-7368HG Metra

Installation instructions for part 99-7368

Kia Rio 2016-up

(without factory push to start)

99-7368

KIT FEATURES

• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• 99-7368B - Painted matte black
• 99-7368HG - Painted gloss black

KIT COMPONENTS

• A) Radio housing trim panel • B) Radio brackets • C) Vent trim ring • D) Pocket • E) (2) #8 x 3/8" Phillips screws

A

B DC E

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • 70-7304

Antenna Adapter: • Not required

TOOLS REQUIRED

- Panel removal tool - Phillips screwdriver

Table of Contents

Dash Disassembly 2-3

Kit Preparation......4

Kit Assembly

• ISO DIN radio provision with pocket 5
• ISO DDIN radio provision 6

CAUTION! All accessories, switches, climate controls panels, and especially air bag indicator lights must be connected before cycling the ignition. Also, do not remove the factory radio with the key in the on position, or while the vehicle is running.

99-7368

Dash Disassembly

1. Unclip and remove the factory radio trim panel including the a/c vents. (Figure A)

Note: Remove the (8) retaining clips to be reused in Kit Assembly.

1. Remove (4) Phillips screws securing the radio in the dash.

Continued on the next page

(Figure A)

99-7368

Dash Disassembly

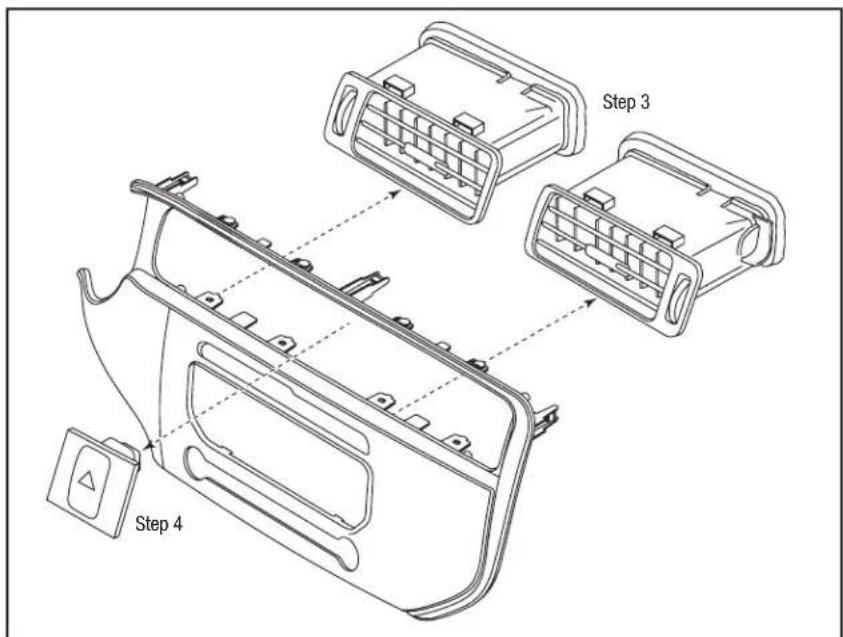

1. Remove the (6) Phillips screws securing the a/c vents then unclip and remove them from the radio trim panel. (Figure B)
2. Unclip and remove the hazard switch. (Figure B)

Continue to kit preparation

(Figure B)

99-7368

Kit Preparation

1. Place the vent trim ring into the radio housing trim panel and mount the vents using the factory screws removed in disassembly. Attach the hazard switch into the completed assembly. (Figure A)
2. Install the (8) panel clips removed in disassembly onto the radio housing trim panel.

Continue to kit assembly

(Figure A)

99-7368

Kit Assembly

ISO DIN radio provision with pocket

1. Mount the pocket to the radio brackets with the (2) #8 x 3/8" Phillips screws supplied. (Figure A)
2. Remove the metal DIN sleeve and trim ring from the aftermarket radio.

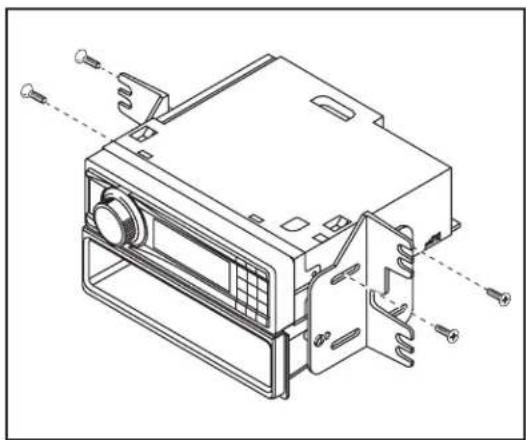

3. Slide the radio between the radio brackets and secure with screws supplied with the radio. (Figure B)
4. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the radio for proper operation.
5. Reassemble the dash in reverse order of disassembly.

(Figure A) (Figure B)

99-7368

Kit Assembly

ISO DDIN radio provision

1. Mount the radio brackets to the radio with the screws supplied with the radio. (Figure A)
2. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the radio for proper operation.
3. Reassemble the dash in reverse order of disassembly.

(Figure A)

Metra

99-7368

Installation instructions for part 99-7368

IMPORTANT

If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated. Please have the vehicle apart and ready to perform troubleshooting steps before calling.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians
