Product Type	LED Tube Light
Model	SI-L8T17212CEU
Brand	Samsung
Power	16.5W
Length	1213.6 mm
Diameter	28 mm
Color Temperature	4000K (Cool White)
Base Type	G13 (Double-ended)
Replaces	36W Fluorescent Lamp
Compatible Ballast	Magnetic Ballast only
Included Accessories	LED tube, LED starter, user manual
Location	Indoor, dry locations only
Safety	Switch off power before installation; use qualified electrician
Warranty	3 years
Installation Notes	Not for series connection; not for totally enclosed fixtures

Frequently Asked Questions - SI-L8T17212CEU SAMSUNG

How do I install the Samsung SI-L8T17212CEU LED tube?

First, switch off the power. Remove the old fluorescent lamp and replace the starter with the included LED starter. Insert the LED tube into the lamp holder and rotate it 90° to secure it. Finally, switch on the power. Always have a qualified electrician perform electrical work.

Can I use this LED tube with an electronic ballast?

No, this LED tube is compatible only with magnetic ballasts. Do not use with electronic ballasts or direct AC connection.

Is the tube suitable for outdoor use?

No, this product is for dry indoor locations only. Do not use outdoors or in areas exposed to weather.

What is the color temperature of this lamp?

The model SI-L8T17212CEU has a color temperature of 4000K (cool white).

Does this LED tube require a starter?

Yes, the included LED starter must replace the old fluorescent starter during installation. Do not use a glow starter.

Can I use this tube in a fixture with two lamps?

No, this product is designed for single lamp use only. Do not install in a double-lamp fixture or connect lamps in series.

What is the power consumption of this LED tube?

The power consumption is 16.5W, replacing a 36W fluorescent lamp.

Is the Samsung SI-L8T17212CEU dimmable?

The manual does not specify dimming capability. It is likely non-dimmable as it is designed for direct replacement of fluorescent lamps.

What safety precautions should I take before installation?

Always turn off the power supply before installing or replacing the lamp. Do not touch with wet hands, look directly at the lit lamp, or modify the fitting. Use only as intended.

What is the warranty period for this product?

Samsung offers a 3-year warranty from the purchase date (or production date if no receipt). The warranty does not cover abnormal use.

USER MANUAL SI-L8T17212CEU SAMSUNG

Always have a qualified electrician to do your electrical work!

Switch off power before starting the installation!

Instructions for mounting:

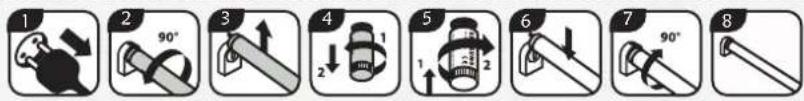

Schematic steps for removing a fluorescent lamp and inserting a double-capped LED lamp

• Installation instructions

(1) Switch off electricity.
(2) and (3) Remove the conventional lamp.
(4) and (5) Replace the old starter with the LED tube starter.
(6) Insert the LED lamp into the lamp holder.
(7) Secure it in position by turning the lamp 90°.
(8) Switch on electricity.

※ The overall energy efficiency and light distribution of installed lamps are determined by the design of the installation.

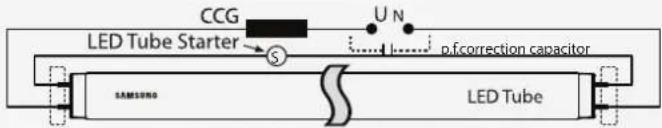

※ Existing power factor compensation capacitors worsen the power factor, but can remain within the light fitting.

1200mm L-Tube suitable for G13 Base Socket

Replacement: 1200mm 16.5W/19.0W replace fluorescent lamp 36.0W

Packing details: LED tube, LED Starter, User manual

Notice:

This lamp is designed for general lighting service (excluding eg.explosive atmospheres)

This LED tube is compatible with Magnetic ballast only.

This lamp is not suitable for use in emergency light fittings designed for double-capped fluorescent lamps.

Do not use this product in outdoor areas.

For dry locations only - not for use where exposed to the weather.

Warning:

Any modification of the light fitting when installing the LED lamps is not permitted.

Please do not install this Magnetic ballast compatible LED tube using a glow starter.

Please do not install this Magnetic ballast compatible LED tube using a direct connection to an AC source.

Please do not install this Magnetic ballast compatible LED tube using another independent LED driver.

Please do not replace with a different type of LED tube! Risk of electrical shock!

Please use only for a single lamp (do not install over a double lamp and above).

Series connection is not permitted when installing this product.

Do not use this product in outdoor areas.

For dry locations only - not for use where exposed to the weather.

Turn off power before installing or replacing lamp.

Do not touch this product with wet hands.

Do not look directly at the lamp when being used.

Do not use in totally enclosed fixtures.

Do not disassemble, repair or alter in any way.

	Power consumption	Size CCTModel Name
SI-L8R17212Cxy	16.5W	D28 x L1213.6mm max	5000K
SI-L8T17212Cxy	16.5W	D28 x L1213.6mm max	4000K
SI-L8V17212Cxy	16.5W	D28 x L1213.6mm max	3000K
SI-L8R19112Cxy	19.0W	D28 x L1213.6mm max	5000K
SI-L8T19112Cxy	19.0W	D28 x L1213.6mm max	4000K
SI-L8V19112Cxy	19.0W	D28 x L1213.6mm max	3000K

xy denotation : xy can be A-Z, standing for national/regional abbreviations eg. EU, CN, etc.

EU – European Union

Ballast Information:(One lamp)

Maker Model Name
Helvar	L36TL4
Helvar	L36A-K
Helvar	L36A-T
ABB	VVG 36-120 CF-30
ABB	36-120 CF-55
Vossloh & Schwabe	L36l.342
TRIDONIC	EC 36-1 C501K
Simens	VVG 5LZ 363

Warranty:

The installation date must be documented to make a warranty claim.

The Samsung Electronics guarantees a product life-time of 3 years after the purchase date.

If you do not have a receipt (or invoice) the warranty starts from the production date.

The Samsung Electronics guarantee does not apply to failures caused by abnormal use.

In such circumstances all service and repair costs must be paid for by the customer.

The LED tube starter is a consumable, which can be purchased from your dealer.
