Product Type	LED Tube Light
Model	SI-L8T19112CEU
Power Consumption	19.0W
Color Temperature	4000K
Dimensions	Diameter 28mm x Length 1213.6mm
Base Type	G13
Replacement For	36W Fluorescent Lamp
Input Voltage	220-240V AC (via magnetic ballast)
Compatible Ballast	Magnetic ballast only
Includes	LED tube, LED starter, user manual
Installation	Switch off power, remove old lamp, replace starter, insert LED tube, turn 90° to lock
Safety Warnings	For dry locations only; not for outdoor use; do not use in totally enclosed fixtures; do not modify
Warranty	3 years from purchase date (requires receipt)
Usage Restrictions	Not for emergency light fittings; single lamp only; no series connection; not for direct AC connection
Starter Type	LED tube starter (glow starter not allowed)
Disposal	Dispose according to local regulations for electronic waste

Frequently Asked Questions - SI-L8T19112CEU SAMSUNG

Can I use this LED tube with an electronic ballast?

No, this LED tube is designed for magnetic ballast only. Using it with an electronic ballast may cause malfunction or damage.

Can I install this LED tube outdoors?

No, this product is for dry locations only and should not be exposed to weather or moisture.

Do I need to remove the existing magnetic ballast?

No, the LED tube is compatible with the existing magnetic ballast. Just replace the old starter with the included LED starter.

What is the purpose of the included LED starter?

The LED starter replaces the old fluorescent starter and is required for proper operation with the magnetic ballast. Do not use a glow starter.

Can I install multiple LED tubes in series?

No, series connection is not permitted. Each tube must be wired in parallel according to the installation instructions.

How do I install the LED tube?

First, switch off power. Remove the old fluorescent lamp. Replace the old starter with the provided LED starter. Insert the LED tube into the lamp holder and rotate 90° to lock in place. Finally, switch on power.

What should I do if the LED tube does not light up?

Check that the power is on, the magnetic ballast is compatible, the LED starter is correctly installed, and the tube is securely locked. If it still doesn't work, consult a qualified electrician.

Is this LED tube dimmable?

No, this LED tube is not dimmable and should only be used on/off with a compatible magnetic ballast.

What is the warranty period?

Samsung offers a 3-year warranty from the purchase date. Keep your receipt or invoice as proof of purchase.

Can I use this LED tube in an enclosed light fixture?

No, do not use in totally enclosed fixtures as it may cause overheating. Ensure adequate ventilation.

USER MANUAL SI-L8T19112CEU SAMSUNG

Always have a qualified electrician to do your electrical work!

Switch off power before starting the installation!

Instructions for mounting:

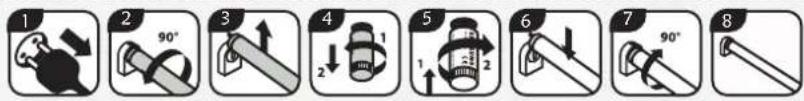

Schematic steps for removing a fluorescent lamp and inserting a double-capped LED lamp

• Installation instructions

(1) Switch off electricity.
(2) and (3) Remove the conventional lamp.
(4) and (5) Replace the old starter with the LED tube starter.
(6) Insert the LED lamp into the lamp holder.
(7) Secure it in position by turning the lamp 90°.
(8) Switch on electricity.

※ The overall energy efficiency and light distribution of installed lamps are determined by the design of the installation.

※ Existing power factor compensation capacitors worsen the power factor, but can remain within the light fitting.

1200mm L-Tube suitable for G13 Base Socket

Replacement: 1200mm 16.5W/19.0W replace fluorescent lamp 36.0W

Packing details: LED tube, LED Starter, User manual

Notice:

This lamp is designed for general lighting service (excluding eg.explosive atmospheres)

This LED tube is compatible with Magnetic ballast only.

This lamp is not suitable for use in emergency light fittings designed for double-capped fluorescent lamps.

Do not use this product in outdoor areas.

For dry locations only - not for use where exposed to the weather.

Warning:

Any modification of the light fitting when installing the LED lamps is not permitted.

Please do not install this Magnetic ballast compatible LED tube using a glow starter.

Please do not install this Magnetic ballast compatible LED tube using a direct connection to an AC source.

Please do not install this Magnetic ballast compatible LED tube using another independent LED driver.

Please do not replace with a different type of LED tube! Risk of electrical shock!

Please use only for a single lamp (do not install over a double lamp and above).

Series connection is not permitted when installing this product.

Do not use this product in outdoor areas.

For dry locations only - not for use where exposed to the weather.

Turn off power before installing or replacing lamp.

Do not touch this product with wet hands.

Do not look directly at the lamp when being used.

Do not use in totally enclosed fixtures.

Do not disassemble, repair or alter in any way.

	Power consumption	Size CCTModel Name
SI-L8R17212Cxy	16.5W	D28 x L1213.6mm max	5000K
SI-L8T17212Cxy	16.5W	D28 x L1213.6mm max	4000K
SI-L8V17212Cxy	16.5W	D28 x L1213.6mm max	3000K
SI-L8R19112Cxy	19.0W	D28 x L1213.6mm max	5000K
SI-L8T19112Cxy	19.0W	D28 x L1213.6mm max	4000K
SI-L8V19112Cxy	19.0W	D28 x L1213.6mm max	3000K

xy denotation : xy can be A-Z, standing for national/regional abbreviations eg. EU, CN, etc.

EU – European Union

Ballast Information:(One lamp)

Maker Model Name
Helvar	L36TL4
Helvar	L36A-K
Helvar	L36A-T
ABB	VVG 36-120 CF-30
ABB	36-120 CF-55
Vossloh & Schwabe	L36I.342
TRIDONIC	EC 36-1 C501K
Simens	VVG 5LZ 363

Warranty:

The installation date must be documented to make a warranty claim.

The Samsung Electronics guarantees a product life-time of 3 years after the purchase date.

If you do not have a receipt (or invoice) the warranty starts from the production date.

The Samsung Electronics guarantee does not apply to failures caused by abnormal use.

In such circumstances all service and repair costs must be paid for by the customer.

The LED tube starter is a consumable, which can be purchased from your dealer.
