| Product Type | Electrical Enclosure |
| Brand | Hoffman |
| Model | A16148CHFL |
| Material | Steel |
| Color | Gray (RAL 7035) |
| IP Rating | IP66 |
| Dimensions (H x W x D) | 400 mm x 300 mm x 200 mm |
| Weight | 5.0 kg |
| Mounting Type | Wall-mounted |
| Door Type | Single door with lock |
| Finish | Powder-coated |
| Protection | Dust and water resistant |
| Temperature Range | -40°C to +80°C |
| Standards Compliance | UL, CSA, IEC |
| Gasket | Seamless foam-in-place |
| Maintenance | Clean with a damp cloth |
| Warranty | 5 years |
| Accessories | Mounting brackets, panels sold separately |
Frequently Asked Questions - A16148CHFL Hoffman
What are the dimensions of the Hoffman A16148CHFL enclosure?
The enclosure measures 400 mm in height, 300 mm in width, and 200 mm in depth.
Is the A16148CHFL suitable for outdoor use?
Yes, it has an IP66 rating, making it dust-tight and protected against powerful water jets.
What material is the enclosure made of?
It is constructed from steel with a powder-coated finish for durability.
Can I mount the enclosure on a wall?
Yes, it is designed for wall mounting and includes pre-drilled holes for easy installation.
Does the enclosure come with a lock?
Yes, the single door features a lock to secure the contents.
What is the weight of the A16148CHFL?
The enclosure weighs approximately 5.0 kg.
How do I clean the enclosure?
Wipe the exterior with a damp cloth. Avoid abrasive cleaners to maintain the finish.
What operating temperature is supported?
The enclosure can withstand temperatures from -40°C to +80°C.
Are replacement gaskets available?
Yes, replacement gaskets can be purchased from Hoffman or authorized dealers.
What standards does the A16148CHFL comply with?
It complies with UL, CSA, and IEC standards for electrical enclosures.
User questions about A16148CHFL Hoffman
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Electrical accessory in PDF format for free! Find your manual A16148CHFL - Hoffman and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. A16148CHFL by Hoffman.
USER MANUAL A16148CHFL Hoffman

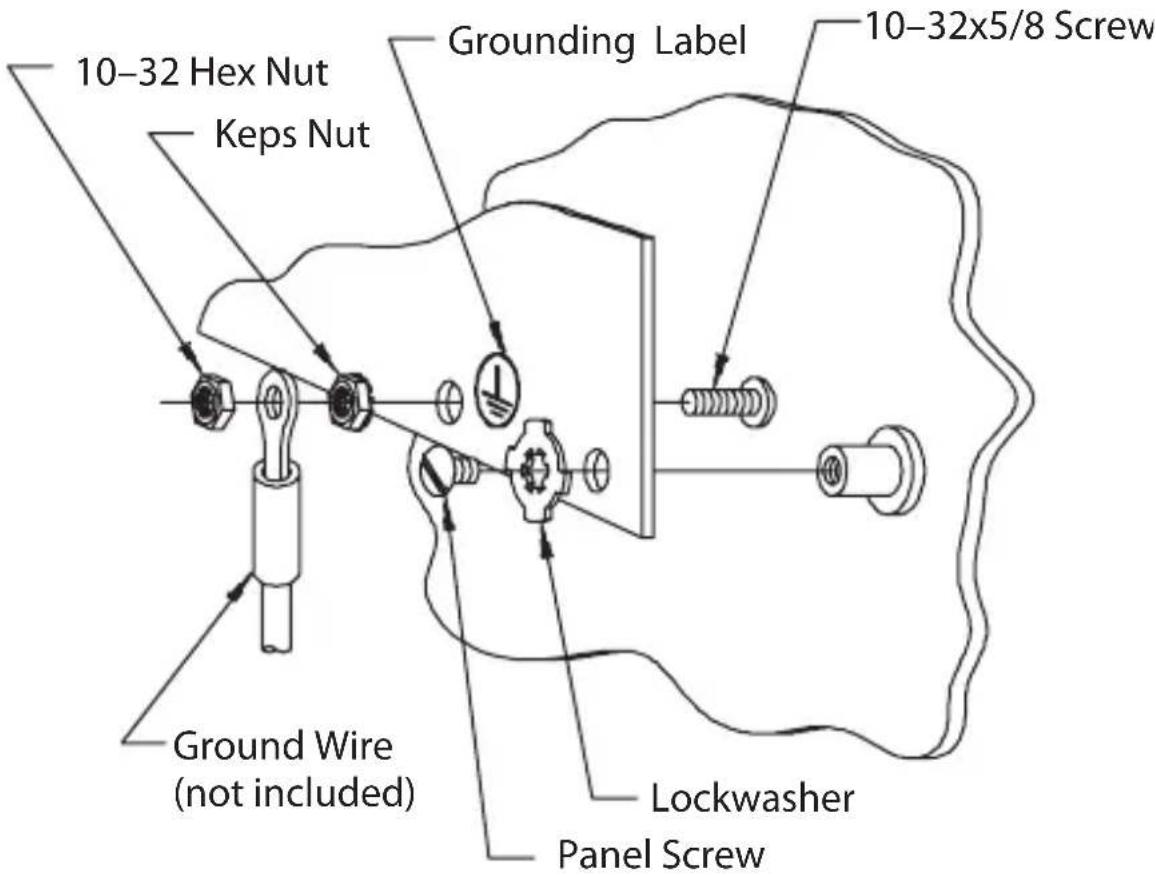

Panel Screws Enclosed
- Insert the 10-32x5/8 screw through the hole in the panel as shown.
- Secure screw with keps nut. The keps nuts must penetrate into the paint to ensure electrical continuity.
- Attach the ground wire and secure with 10-32 hex nut as shown.
- Install the lockwasher under one of the screws securing the panel to ensure grounding between the panel and the enclosure. Recommended torque for grounding washer not to exceed 30 in-lbs.
- Attach included grounding label adjacent to the bolt as shown.
