Product type	Folding umbrella stroller
Recommended age	From 6 months to 3 years (up to 15 kg)
Unfolded dimensions (L x W x H)	Approximately 95 x 52 x 105 cm
Folded dimensions (L x W x H)	Approximately 30 x 25 x 100 cm
Stroller weight	Approximately 6.5 kg
Maximum supported weight	15 kg
Materials	Aluminum frame, polyester fabric
Folding type	One-hand compact folding with locking system
Safety harness	Adjustable 5-point harness
Brake	Foot parking brake
Wheels	4 swivel wheels with suspension, 2 lockable
Reclining backrest	Yes, multiple positions up to 170°
Canopy	Canopy with UV protection (UPF 50+) and visibility window
Storage basket	Lower basket with 5 kg capacity
Included accessories	Stroller handle, leg rest, protective net
Care and cleaning	Clean frame with a damp cloth; textiles are machine washable at 30°C
Safety	Compliant with European standards EN 1888-1 and EN 1888-2
Spare parts and repairability	Spare parts available on Joycare website (wheels, harness, canopy); repairability index: 7.5/10
Warranty	2 years

Frequently Asked Questions - Burlone Pixel JC-1251 Joycare

How to fold the Burlone Pixel JC-1251 stroller?

To fold the stroller, activate the parking brake then pull the folding handle located on the handlebar. The stroller folds automatically. Lock the safety latch once folded. Refer to the manual for more details.

What is the maximum weight supported by the stroller?

The maximum child weight is 15 kg, which corresponds to about 3 years old. The storage basket supports up to 5 kg.

How to clean the stroller textiles?

The covers and harness are removable. They can be machine washed at 30°C on delicate cycle. The aluminum frame is cleaned with a damp cloth and mild soap. Avoid abrasive products.

What is the recommended age for this stroller?

The Burlone Pixel JC-1251 stroller is recommended for children from 6 months up to 3 years (15 kg). For newborns, a car seat accessory (not included) is required.

How to install the 5-point safety harness?

Place the child in the seat, pass the straps over the shoulders, between the legs and fasten the central buckle. Adjust the straps to be snug but not too tight. Check that the harness is properly engaged.

Are the wheels suitable for all terrains?

The wheels are equipped with suspension and are suitable for urban use on sidewalks and smooth paths. For rough terrain, we recommend an all-terrain stroller.

How to activate the parking brake?

The parking brake is located on the rear axle. Press the red pedal with your foot to lock the rear wheels. To release, lift the pedal.

Is the stroller compatible with a carrycot or car seat?

Yes, the Burlone Pixel JC-1251 stroller is compatible with Joycare accessories (carrycot and car seat) via adapters sold separately. Check compatibility on the Joycare website.

How to adjust the backrest recline?

The backrest reclines to multiple positions up to 170°. To adjust, pull the strap at the back of the seat and recline the backrest to the desired angle. Release the strap to lock.

Where to find spare parts for the stroller?

Spare parts (wheels, harness, canopy, etc.) are available on the Joycare online shop. Visit the official website or contact customer service to order.

USER MANUAL Burlone Pixel JC-1251 Joycare

JC-1203 / JC-1204 / JC-1205 / JC-1206

JC-1230 / JC-1231 / JC-1232

JC-1244 / JC-1245 / JC-1246

JC-1251 / JC-1252 / JC-1253 / JC-1254

BURLONE

Manuale d'uso

Passeggino

User manual

Baby Stroller

1A.

1B

JOYCARE®

3

3a

3b

4

4b

7b.

7c.

Thank you for purchasing the stroller JOYCARE.

WARNING

IMPORTANT: keep these instructions for future reference.

WARNING: BEFORE USE, REMOVE AND DISPOSE OF ALL PLASTIC BAGS AND PACKAGING MATERIALS AND KEEP THEM OUT OF REA-CH OF CHILDREN.

• This item is designed to carry one (1) child in the seat.
- Do not use this item for more occupants than the number established by the manufacturer.
- Never leave your child unattended.
- Pay attention to the child's presence when performing adjustments to the mechanism (handle, backrest).
• Always use the brake when you stop and during loading and unloading of the child.
- Assembly operations, item arrangement, cleaning and maintenance should be performed only by adults.
- Do not use this item if there are parts missing or broken.
- Ensure that all the locking devices are engaged before use.
- Do not put fingers in the mechanism.
- Do not use the item in the vicinity of stairs or steps, do not use near heat, open flames or dangerous objects within reach of the child's arms.
- Do not use accessories not approved by the manufacturer.
- Load the basket at a maximum of 3 kg.
• Take care to avoid absolutely that the child does not rise up on the stroller and on the safety bar.
• To avoid injury ensure that your child is kept away when unfolding and folding this product
- Do not let your child play with this product
• This product is not suitable for baby under 6 months of age
• Always use the restraint system
- Ensure that all the locking devices of the seat are correctly engaged before use
• This product is not suitable for running or skating
- Any load attached to the handle and or on the backrest and or the sides of the vehicle will affect the stability of the C
- Check periodically, or before use, the status of the product
- Use replacement parts supplied or approved by the manufacturer/distributor

NOTICE: do not add any pillows and/or mats

ITEM FEATURES

Stroller suitable for carrying children from 6 months to 36 months of age. The maximum weight that it can carry is 15 kg. When used for baby aged under 6 months, please adjust backrest to lowest position

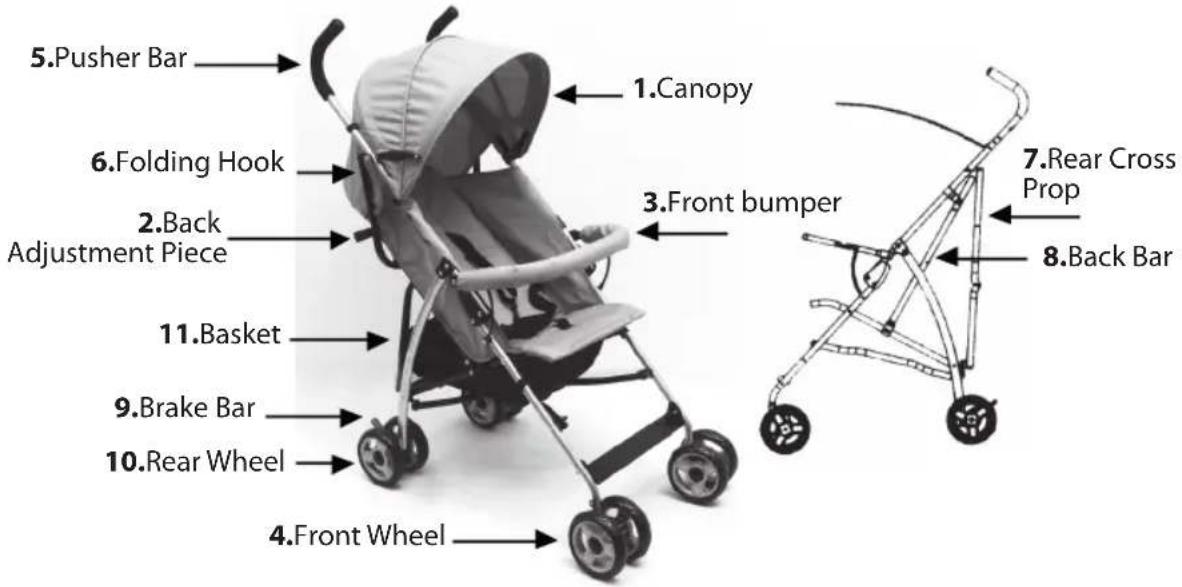

ITEM COMPONENTS

HOW TO USE

Unpack the stroller

1 - Unfolding and Assembly: Unpack the folded baby stroller. Release the buckle to unfold the baby stroller. (Hold the pusher bar in one hand while hold the front wheel support in another hand and exert your strength to pull it upward to unfold it. Then use your foot to step down the lock-in prop.). (Fig.1 - 1A - 1B)

1. (Folding hook 6)

1A.

1B

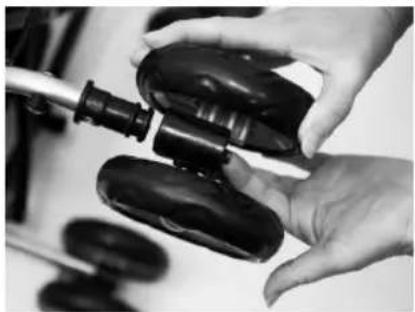

2 - Assembly of Front Wheel: As shown, insert the front wheel shaft bush into to the wheel connector till it is clicked to confirm the assembly well. (Fig. 2)

2.

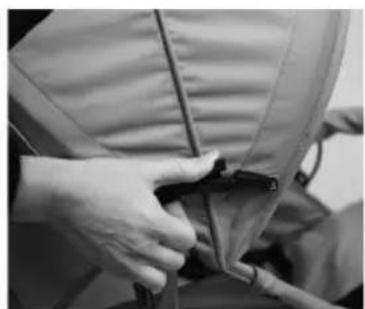

3 - Assembly of Canopy: As shown, it is simple to turn the canopy forward or backward. (Fig. 3 - 3a - 3b)

3

3a

3b

OPERATING INSTRUCTIONS

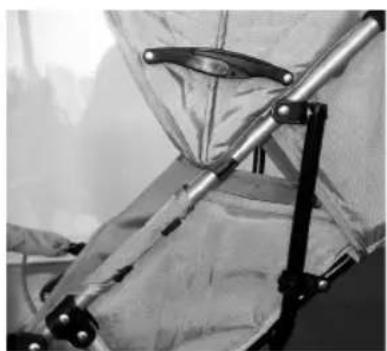

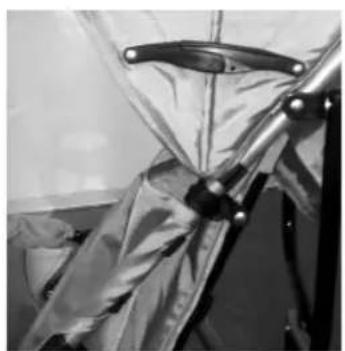

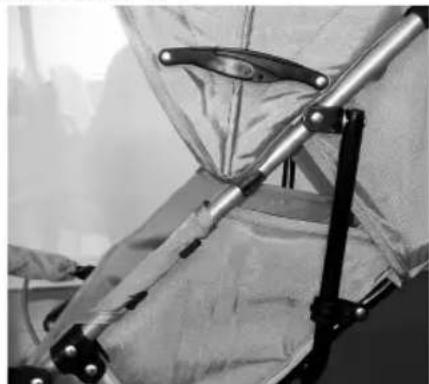

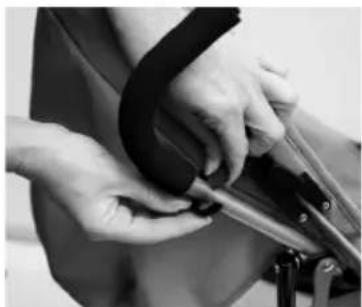

4 - Adjustment of Back Bar:

Seat position angle 95°: (Fig.4) Hold the back adjustment pieces on the main front bars. Reclined position angle 110°: (Fig.4b) Hold the back adjustment pieces on the back bars

4

4b

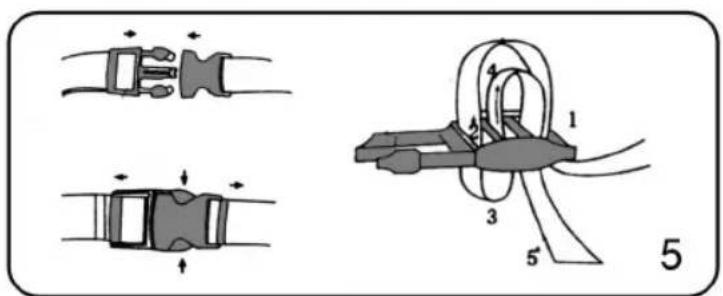

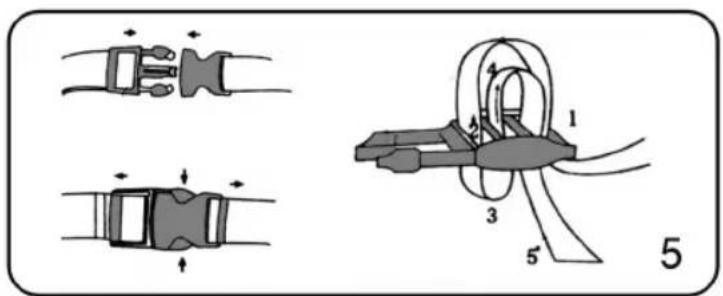

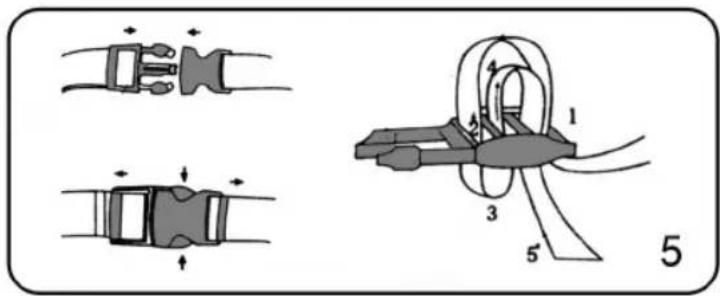

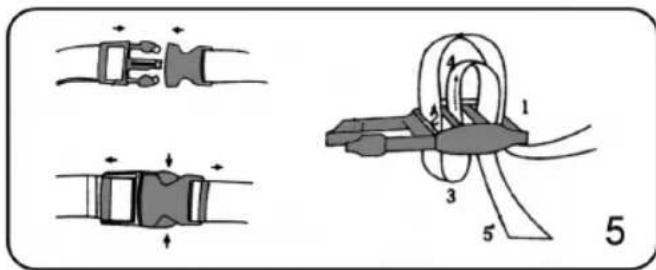

5 - Adjustment of Safety belt: As shown, insert the buckle plug into the buckle receptacle till it is clicked to be buckled up. Unbuckle: Just push the buckle plug inward and then outward to unbuckle it. For Shorter: Pull the top ring belt longer, then pull the tail belt longer and lock it. For Longer: Pull the top ring belt longer, then shorten the tail belt and lock it. (Fig. 5)

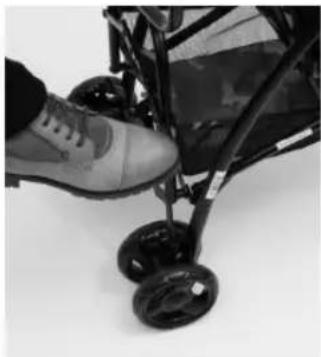

6 - Braking: As shown, to stop the baby stroller, just use your foot to step down the rear wheel brake bar. To push the baby stroller, just lift the brake bar. (Fig. 6)

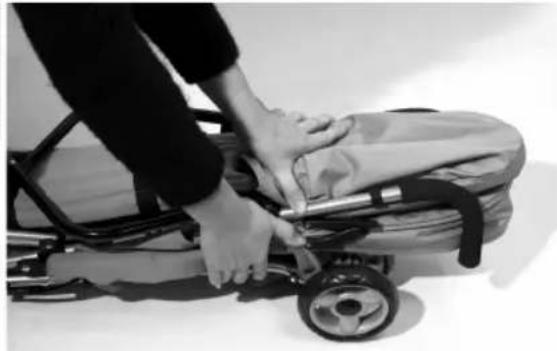

7 - Closing the stroller: Close the hood and take hold of the handles. Release the lock at the centre of the bar by pressing it gently towards yourself, and then pull upwards (fig. 7), using your foot to release the pedal positioned on the right-hand side of the stroller (Fig. 7b).

To complete the operation, push the handles forward and lock the stroller in the folded position using the safety lever on the side, which will ensure that the stroller does not open accidentally (Fig. 7c).

7.

7b.

7c.

CLEANING AND MAINTENANCE

ITEM MAINTENANCE: protecting it against the weather: water, rain or snow; continued and prolonged exposure to sunlight could cause colour changes in many materials, keep this article in a dry place.

CLEANING THE FRAME: periodically clean the plastic parts with a damp cloth without using solvents or other similar products; keep all metal parts dry to prevent rust; keep all moving parts clean (regulatory mechanisms, the fitting parts, wheels ...) from dirt and sand and if necessary, lubricate them with light oil.

CLEANING THE FABRIC PARTS: brush the fabric parts to remove dust and wash it by hand at a maximum temperature of 30° ; do not wring dry; do not use bleach; do not iron; do not dry clean; do not remove stains with solvents and do not tumble dry.

Wash by hand in cold water

Do not tumble dry

Do not dry clean

Do not iron

Do not bleach

All the instructions and drawings are based on the latest information available at the time of going to print and may be subject to change.

ES

1A.

1B

3

3a

3b

4

4b

7b.

7c.

LIMPIEZA Y MANTENIMIENTO

1

1A.

1B

JOYCARE®

F

3

3a

3b

4

4b

3

3a

3b

4

4b

7.

7b.

7c.

1A.

1B

2 - Nameščanje sprednjih koles: Sprednji kolesi namestite tako, da njun zatič vstavite v cev vozička in pritisnite, dokler ne slišite, da se zaskoči (to pomeni, da sta kolesi pravilno nameščeni). (Sl. 2)

2.

3

3a

3b

4 - Nastavljanje naslonjala: S kavlji (2) nameščenimi na glavni okvir (Sl. 4) dobimo položaj za »sedenje« pod kotom 95°. S kavlji (2) nameščenimi na zadnji okvir (7) (Sl. 4b) dobimo naklon pod kotom 110°.

4

4b

ČIŠČENJE IN VZDRŽEVANJE
