PUCVCBAT48 - Vacuum Cleaner Pyle - Free user manual and instructions

Product Type	Rechargeable Stick Vacuum Cleaner
Brand	Pyle
Model	PUCVCBAT48
Color	Black and Red
Power Source	Rechargeable Battery
Battery Type	Removable Lithium-Ion (approximate)
Charging Voltage	110-240V AC (via included charger)
Filtration System	Washable HV Cotton Sponge with HEPA Filter
Dust Cup Capacity	Approximately 0.5 L
Attachments Included	Air Turbo Brush, Aluminum Tube, Multi Crevice Nozzle, Transformation Joint, Charging Seat
Cleaning Method	Cyclonic and filter separation
Weight	Approximately 3.5 kg
Dimensions (L x W x H)	Approximately 250 x 200 x 1100 mm (with tube)
Noise Level	Moderate (typical stick vacuum)
Warranty	Contact manufacturer for details

Frequently Asked Questions - PUCVCBAT48 Pyle

How do I charge the vacuum cleaner?

Charge the vacuum indoors using the included charger and charging seat. Connect the charger to the unit and a wall outlet. The indicator light shows charging status.

How do I clean or replace the filters?

First remove the dust cup. Then rotate the dust cup cover counter-clockwise, take out the filter assembly. Separate the sponge and HEPA filter. Rinse them in lukewarm water, dry completely before reassembling. All filters are washable.

What should I do if suction power is weak?

Weak suction may be due to a full dust cup or low battery. Empty the dust cup and recharge the battery. Also check for blockages in the hose or brush.

Can I use the vacuum to pick up water or wet debris?

No, this vacuum is intended for dry indoor surfaces only. Do not use it outdoors or on wet surfaces. Avoid picking up liquids.

How do I assemble the vacuum for floor cleaning?

Insert the main brush into the main frame. Connect the aluminum tube to the brush and the handle. Attach desired accessories using the transformation joint if needed.

How do I empty the dust cup?

Press the dust cup release button to remove it from the body. Then press the dust cup bottom release button to open the bottom door and empty the dust.

Is the battery removable?

Yes, the battery pack can be removed by pressing the release button and sliding it out. To install, slide it back in until it clicks.

What attachments are included with the PUCVCBAT48?

The vacuum comes with an Air Turbo Brush, Aluminum Tube, Multi Crevice Nozzle, Transformation Joint, and a Charging Seat.

How should I store the vacuum?

Store the vacuum indoors in a dry place. Keep it away from heat sources and out of reach of children. After use, place it in a safe corner to prevent tripping.

Can I use the vacuum on stairs?

Yes, but exercise extra care. The vacuum is lightweight and can be used with the hose or tube. However, always keep the unit stable to avoid falls.

USER MANUAL PUCVCBAT48 Pyle

Exterior view of a black and red vacuum cleaner with attached hose (no text or symbols visible)

PUCVCBAT48

Rechargeable Vacuum

User Manual

Pure Clean

IMPORTANT SAFE GUARDS

When using an electrical appliance, basic safety precautions observed, including following Read all Instructions Before Using your Vacuum Cleaner

Warning: To reduce the risk of fire, electrical shock, or injury

1. This product is intended for household use only. Do not use outdoors or on wet surface.
2. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
3. Use only as described in this manual. Use only manufacturer's recommended attachments.

4. Do not use vacuum if it has been dropped, damaged, left outdoors, or dropped in water. Contact customer services for advice.

5. Do not handle plug or appliance with wet hands.

6. Do not put any objects into openings. Do not use with any opening blocked, keep free of dust, lint, hair and anything that may reduce air flow.

7. Keep hair, clothing, fingers, and all parts of the body clear of moving parts.

8. Do not pick up anything that is flammable, burning or smoking.

9. Use extra care when cleaning on the stairs

10. Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.

11. Do not operate this appliance for anything other than its intended use.

12. Keep end of hose, wands and other openings away from your face and body.

13. Do. not use the vacuum cleaner without dust cup filter in place.

14. Always unplug this appliance before connecting or disconnecting vacuum hose.

15. Store the vacuum indoors. Put the vacuum away after using to prevent tripping accidents.

16. Using incorrect battery will damage motor. Please use the recommended batteries.

17. Use only on dry indoor surfaces

18. Use only as described and for the uses described in this manual

19. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

VACUUM CLEANER
PUCVCBAT48

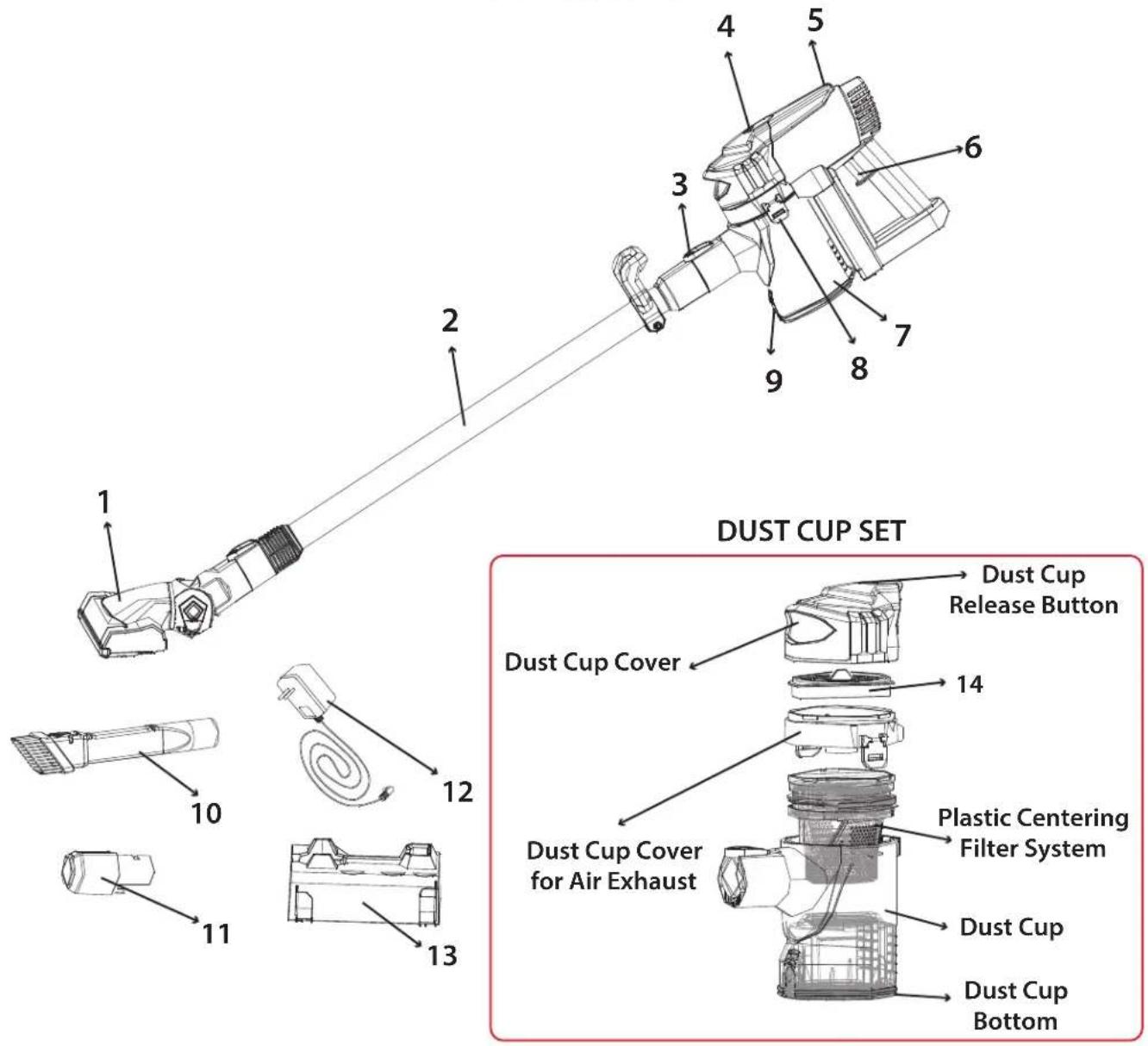

1. AIR TURBO BRUSH
2. ALUMINUM TUBE
3. TUBE RELEASE BUTTON
4. BODY RELEASE BUTTON
5. INDICATOR LIGHT
6. POWER SWITCH

7. DUST CUP

8. DUST TANK UPPER PART RELEASE BUTTON

9. DUST TANK BOTTON RELEASE BUTTON
10. MULTI CREVICE NOZZLE
11. TRANSFORMATION JOINT
12. CHARGER
13. CHARGING SEAT
14. HV COTTON SPONGE W/ HEPA FILTER

PRECAUTIONARY MEASURES

If the opening that suck in the air, the brush or extension tubes are blocked, you should switch off the vacuum cleaner at once. First clear the blocked substance before you attempt to start the vacuum cleaner again.

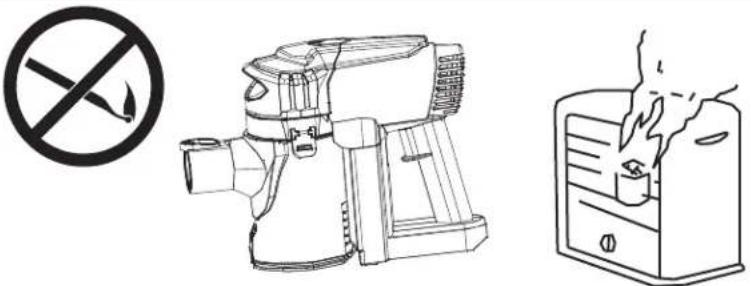

1. Do not operate the vacuum cleaner too close to heaters, radiators, cigarette butts etc.

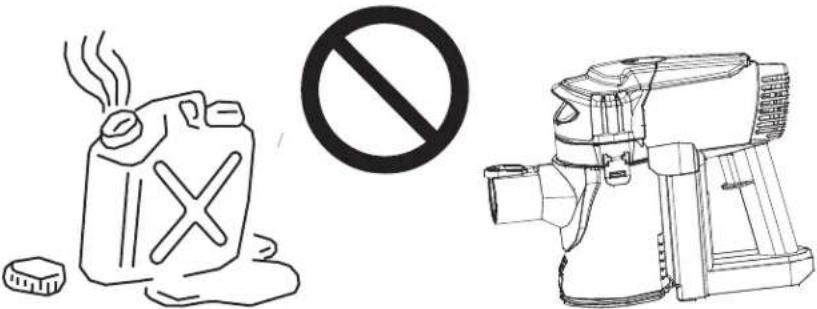

2. Before you start using the vacuum cleaner, please remove large or sharp objects from the floor in order to prevent damage on filter. Do not use the vacuum to clean anything that is flammable such as gas and cigarettes.

ASSEMBLING VACUUM CLEANER

Installing the Main BrushInsert the main brush intothe main frame as shownon the diagram

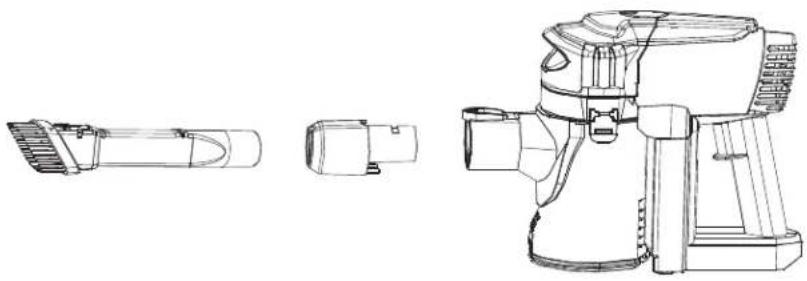

Installing the Conversion ConnectorUse the Conversion joint to connect the body accessories
Install Extended Aluminum TubeUse the aluminum tube for a longer head of connection machine and then the other side of the pipe to connect accessories (right), to use it as vertical vacuum cleaner:* connect the tube to shangdi brush to use directly to clean the floor or carpet.* connect the tube to the brush or flat after absorption, can be used to clean the ceiling, curtains, or any higher place hard to reach spaces.
Remove and install the Dust Cup(a) Remove dust cup from body: push the release button of dust cup. Then take out the dust cup from body. (fig. A)(b) Install dust cup on body: connect the underside of dust cup to the body. (pls pay attention to the fitting position and direction). Then push the dust cup to attach with the body. The dust cup will be locked after a voice of "kata".(fig.B).

Installation and Removing the Battery pack

* Removing the battery pack: Push down to remove battery pack (FIG. A)

* Installing the battery pack: Push the battery pack upside. You will hear a crack sound to confirm the battery pack is attached. (FIG. B)

CLEAN UP THE CHARGING CLEANER AND CLEANER

A.How to drop dust and clean the dust cup

1. Remove the dust cup from body.
2. Press the dust cup bottom to release the dust to fall down automatically. (fig. A)
3. If the plastic filter system is too dirty, please press the dust cup cover (for air exhaust) release button, take out the filter assembly out of the dust cup, then clean with soft brush or wash with water. You should dry them completely before using it again. (fig.B).

B.Changing or Cleaning the HV Cotton Sponge w/ HEPA Filter1. Remove the dust cup from body.2. Rotate the dust cup cover counter clockwise from "close" to "open", take out the dust cup cover. Draw out the sponge and HEPA filter set. (fig. A)3. Pull up the knob of the filter frame, and pull out the sponge filter and HEPA filter from the case box. Clean the Sponge and HEPA filter by a soft brush or rinse in lukewarm water and dry them completely before using again. All the filters are washable. (we recommend you to clean the filters when feeling the suction power if becoming weak.) (fig.B) Note: The above filters should be attached in correct places before using the vacuum machine

C. Charging the product1. Charge the appliance indoors and connect it to the outlet.2. Charge the unit and place it in a safe corner to prevent accident

Note: It is necessary to clean the filters regularly with frequent use in order to maintain suction performance and prolong the life span of your cleaner.

TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE REASON POSSIBLE SOLUTION
Machine doesn't work	The battery may be drained or low batt	Charge the battery or replace it with a full charged battery.
The machine can't suck or suction the is very weak	1. The DUST CUP may be full2. Lack of battery power	1. Empty dust cup2. Connect the charger.
Dust escaping from vacuum	1. Dust cup is full.2. The dust filter dust cup and cup bottom may not be attached properly	1. Empty the dust cup2. Check and see if the dust at the bottom of the cup is locked
Vacuum brush wont pickup	1. Dust cup is full.	1. Empty and clean dust cup container.
