CXS-GT2116F - Car Radio SONY - Free user manual and instructions

Brand	Sony
Model	CXS-GT2116F
Product Type	16 cm Coaxial 2-Way Car Speaker
Woofer Size	16 cm (6.3 in)
Tweeter Size	4 cm (1.6 in)
Peak Power Handling	190 W
Rated Power Handling	40 W
Impedance	4 Ω
Sensitivity	90 dB/W/m
Frequency Response	35 Hz – 22,000 Hz
Weight (per speaker)	Approx. 560 g (1 lb 4 oz)
Mounting Depth Required	At least 44 mm (1 3/4 in)
Cone Material (Woofer)	HOP (Hollow Optimized Profile) cone
Cone Material (Tweeter)	Aluminum cone
Speaker Type	Coaxial 2-way
Supplied Accessories	Installation parts
Safety Precautions	Do not exceed peak power; keep magnetic cards away from magnets
Maintenance	Clean with dry cloth; avoid liquids
Repairability	No user-serviceable parts; refer to authorized service

Frequently Asked Questions - CXS-GT2116F SONY

What is the power handling of the Sony CXS-GT2116F speakers?

The peak power handling is 190 W, and the rated power handling is 40 W.

What is the impedance of these speakers?

The impedance is 4 ohms.

What is the frequency response range?

The frequency response is 35 Hz to 22,000 Hz.

What is the sensitivity of the CXS-GT2116F?

The sensitivity is 90 dB/W/m.

What are the speaker sizes?

The woofer is 16 cm (6.3 in) and the tweeter is 4 cm (1.6 in).

What mounting depth is required?

A minimum mounting depth of 44 mm (1 3/4 in) is required for flush mounting.

Are these speakers compatible with any car?

They are generally universal, but check that the mounting depth and location do not interfere with window mechanisms or other components.

How should I clean the speakers?

Use a dry cloth to clean the speakers. Avoid using liquids or abrasive cleaners.

What materials are the cones made of?

The woofer cone uses HOP (Hollow Optimized Profile) material, and the tweeter cone is aluminum.

Can I install these speakers in the doors?

Yes, they can be installed in doors, but ensure the mounting depth is sufficient and that the speaker does not obstruct window operation.

USER MANUAL CXS-GT2116F SONY

• Do not continuously use the speaker system beyond the peak power handling capacity.
• Keep recorded tapes, watches, and personal credit cards using magnetic coding away from the speaker system to protect them from damage caused by the magnets in the speakers.

If you cannot find an appropriate mounting location, consult your car dealer or your nearest Sony dealer before mounting.

Precauciones

16cm Coaxial 2-way Speaker

Instructions

Instrucciones

CXS-GT2116F

© 2006 Sony Corporation Printed in China

Specifications

Speaker Coaxial 2-way:

Woofer 16 cm (2 ^1 /x in), HOP,

cone type

Tweeter 4 cm (/in), Al,

cone type

Peak power 190 W

Rated power 40 W

Impedance 4 Ω

Sensitivity 90 dB/W/m

Frequency response 35 - 22,000 Hz

Mass Approx. 560 g (1 lb 4 oz) per

speaker

Supplied accessories Parts for installation

Design and specifications are subject to change without notice.

Especificaciones

The CX5-GT2116F package includes the following:

•Car audio unit CDX-GT210
See the supplied CIDX-G1210 manual.
•Speaker XS-GF1622X ^®
* See this manual.

Bienvenido!

Mounting/Montaje

Before mounting

A depth of at least 44 mm (1 ^3/_4 in) is required for flush mounting. Measure the depth of the area where you are to mount the speaker, and ensure that the speaker is not obstructing any other components of the car. Keep the following in mind when choosing a mounting location:

• Make sure that nothing is obstructing around the mounting location of the door (front or rear) where you are to mount the speaker.
• A hole for mounting may already be cut out of the inner panel of the door (front or rear). In this case, you need to modify the board only.
• If you are to mount this speaker system in the door (front or rear), make sure that the speaker terminals, frame or magnet do not interfere with any inner parts, such as the window mechanism in the door (when you open or close the window), etc.

Also make sure that the speaker grille does not touch any inner fittings, such as the window cranks, door handles, arm rests, door pockets, lamps or seats etc.

Antes del montaje

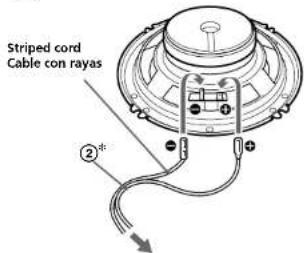

Mounting from the car interior/

3

5

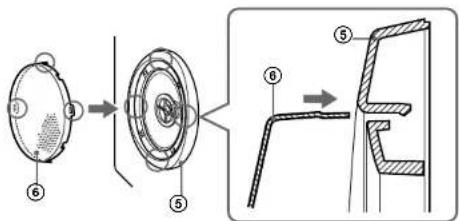

Press and insert the edges of the grille net. Presione e inserte los extremos de la red de la rejilla.

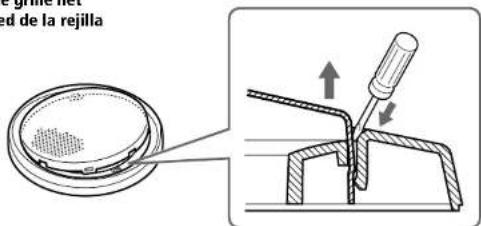

How to remove the grille net Cómo extraer la red de la rejilla
