Product Type	Smartphone
Brand	Mediacom
Model	PhonePad Duo S470
Display Size	5.0 inches
Display Resolution	480 x 854 pixels
Operating System	Android 6.0 (Marshmallow)
Processor	Quad-core 1.2 GHz
RAM	1 GB
Internal Storage	8 GB
Expandable Storage	microSD up to 64 GB
Rear Camera	8 MP
Front Camera	2 MP
Battery Capacity	2000 mAh (removable)
Dimensions	145 x 72 x 9 mm
Weight	150 g
SIM Card Slots	Dual SIM (micro-SIM, standby)
Connectivity	3G, Wi-Fi 802.11 b/g/n, Bluetooth 4.0, GPS, FM radio
Sensors	Accelerometer, proximity
Security	Screen lock via pattern, PIN, or password
Cleaning Instructions	Wipe with a soft dry cloth; avoid liquids and abrasives
Spare Parts Availability	Battery, charger, USB cable (contact service center)
Repairability	Moderate; some parts may require professional service

Frequently Asked Questions - PhonePad Duo S470 Mediacom

What is the screen size and resolution of the Mediacom PhonePad Duo S470?

The device features a 5.0-inch IPS LCD display with a resolution of 480 x 854 pixels, offering decent clarity for everyday use.

Does the PhonePad Duo S470 support dual SIM?

Yes, it supports dual micro-SIM cards in standby mode, allowing you to use two numbers simultaneously.

What is the battery capacity and is it removable?

The smartphone is powered by a 2000 mAh Li-Ion battery that is removable, so you can replace it if needed.

How much internal storage does the PhonePad Duo S470 have and can it be expanded?

It comes with 8 GB of internal storage, expandable via a microSD card up to 64 GB.

What Android version does the PhonePad Duo S470 run?

It runs Android 6.0 (Marshmallow) out of the box.

How do I perform a factory reset on the PhonePad Duo S470?

Go to Settings > Backup & reset > Factory data reset, or use the hardware keys: power off, then press and hold Volume Up + Power until the menu appears, select 'wipe data/factory reset'.

What are the camera specifications?

It has an 8 MP rear camera with autofocus and a 2 MP front camera, suitable for basic photography and video calls.

Can I use 4G/LTE on this device?

No, the PhonePad Duo S470 only supports 3G networks (HSPA+), not 4G/LTE.

What sensors are available?

It includes an accelerometer (for auto-rotation) and a proximity sensor (to turn off the screen during calls).

How do I clean and maintain the PhonePad Duo S470?

Use a soft, lint-free dry cloth to wipe the screen and body. Avoid water, solvents, and abrasive cleaners. Keep away from extreme temperatures and moisture.

USER MANUAL PhonePad Duo S470 Mediacom

Picture 3

Phone PAD

Quick Start Guide Safety precautions

For safe and efficient operation of your device please observe the following rules:

• Keep the phone away from extreme heat, cold, moisture and dust.
• Do not spill any liquids on the device as it may damage the device or cause a fire.
• Do not use liquids and chemical cleaners for cleaning the device.
• Do not insert any objects in the phone air vents or other slots.
• Do not keep the device near magnetic sources, heaters, microwave ovens, heating up kitchen appliances, or in high pressure containers, as it may cause the battery leaking, the device overheating and inflammation.
• Do not disassemble the device, only a certified service technician should perform repairs on your computer.
• Use only the AC adapters, power cords and batteries that are approved for use with this device. Use of another type of battery or AC adapter may cause fire or explosion.

Note: The device pictures, as well as data on the device appearance, color and design features are given in the manual for reference only. Mediacom reserves the right to change the appearance and technical parameters of its products without prior notice.

About your device (Picture 1)

1. Power button
2. Volume button
3. USB port/charging
4. SIM 1 slot
5. SIM 2 slot

6. Micro-SD card slot

7. Speaker

8. Headset port
9. "Reset" (if available)
10. Rear camera 13.0 Mpixel (by software interpolation)
11. Front camera 5.0 Mpixel
12. Microphone
13. Flash light

Switching on/off

To switch on the device, press and hold the Power button. When startup window appears, release the button. The system initialization may take several minutes. Please wait patiently.

To switch off the device, press and hold the Power button. When "Power off" message appears, release the button. Touch the message, then press OK.

Recommendation: To save the battery charge, the device is set to sleep mode: the screen is locked and sensor functions become inactive (in accordance with the settings of screen lock time). To "wake up" the device, short press the power button.

Unlocking the screen (Picture 2)

If you do not use the screen during certain period of time, the screen will be locked. To unlock the screen, press the power button once and drag "Lock" image right.

Main screen (Picture 3)

1. Voice search
2. Application menu
3. Battery indicator
4. Time
5. SIM 1 - SIM 2
6. Submenu
7. Home/Recent used applications
8. Back
9. Google search

Restarting the device

If the screen does not response to key press or tap, restart your device by keeping power button depressed for long time.

Factory reset

To delete all data and restore your device to factory defaults, touch Settings > > Recovery and reset; touch menu item Reset > Reset to factory defaults.

Contents

Phone, USB Cable, Power adapter AC / DC, Quick Guide, Headset

Charging the battery

Device is provided with built in rechargeable battery.

Important: The battery must be charged before using it for the first time. When related Icon or warning message alerts you please charge the battery using porper adapter (do not use diefferent adapter from original one).

Opening of the phone

To open the phone insert your fingernail into the slot (Fig. 1) and then slide to the rest of Corver (fig. 2), remove the entire cover to insert the SIM (Fig. 3)

Close-up of hands holding a small electronic device (no visible text or symbols)

(fig. 1)

Close-up of hands holding a smartphone (no visible text or symbols)

(fig. 2)

Close-up of a hand holding a white flip phone case (no visible text or symbols)

(fig. 3)

3G networks

Note that your device will only have signal if you are in an area covered by your 3G provider's 3G or EDGE network.

Before inserting a SIM card, you must turn off the device.

A Pin number may be requested. Enter the SIM card pin number.

Your device will attempt to connect to the 3G network of your provider.

This screen will appear when turning on device with new SIM.

Please confirm selection or make your change if required.

NOTE: If your device does not connect to your 3G provider's network

1. Contact your 3G provider to obtain the connection parameters.

2. On your device, tap the Menu icon, then settings.

3. Select Wireless & networks > Mobile networks > Select your operator.

In Access Point Names, select the correct access point name and enter the exact connection parameters.

Wireless networks

Prior to starting an Internet-application, activate Wi-Fi connection and set up Wi-Fi network.

1. Touch the icon "Applications" > "Settings" > "Wireless connections". Select Wi-Fi item and set the switch to On position.

2. The device will automatically start searching for available networks and will display them on the right panel.

3. Select any network from the list and press "Connect". If the network you selected is protected by WEP-protocol, type the security key, then press "Connect" button.

When the connection is successfully created, "Connected to" (Network name) message will appear on the screen.

Bluetooth

Tap "Settings" > Select "Wireless connections/Bluetooth" > Tap "On" to switch on the Bluetooth function. The device will automatically search for available Bluetooth device.

Select the Bluetooth device and start data transmission.

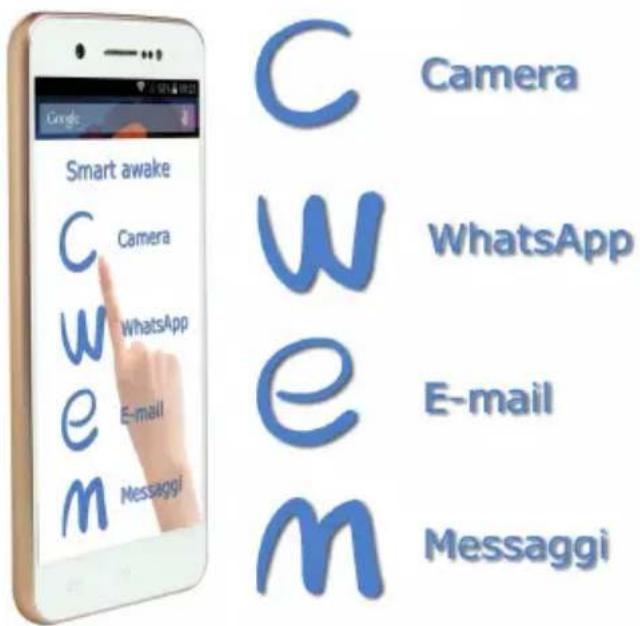

Smart awake:

direct access to main programmable functions. ust a simple gesture on the screen is required for activating.

Select settings for access to Smart awake

Multi-gesture:

direct access to 5 primary functions by sliding two or three fingers on the screen

Select settings for access to Multi-gesture

Phone PAD

Close-up of hands holding a smartphone (no visible text or symbols)

(fig. 1)

Close-up of hands holding a metallic cylindrical object (no visible text or symbols)

(fig. 2)

Close-up of a hand holding a white flip phone with a closed lid (no visible text or symbols)

(fig. 3)

Redes 3G

Close-up of hands holding a smartphone (no visible text or symbols)

(слика 1)

Close-up of hands holding a metallic object (no visible text or symbols)

(слика 2)

Close-up of a hand holding a white plastic device with open lid (no visible text or symbols)

(слика 3)

ЗГ мреже

Close-up of hands holding a smartphone (no visible text or symbols)

(fig. 1)

Close-up of hands holding a metallic object (no visible text or symbols)

(fig. 2)

Close-up of a hand holding a white smartphone case with visible internal components (no text or symbols)

(fig. 3)

Reti 3G
