PhonePad Duo X520U - Smartphone Mediacom - Free user manual and instructions

Product Type	Smartphone
Brand	Mediacom
Model	PhonePad Duo X520U
Dimensions	153 x 76 x 8.5 mm
Weight	165 g
Display Size	5.5 inches
Display Resolution	1280 x 720 pixels (HD)
Operating System	Android 8.1 (Oreo)
Processor	Quad-core 1.3 GHz
RAM	2 GB
Internal Storage	16 GB
Battery Capacity	2500 mAh (removable)
Power Input	5V / 1A
Main Camera	8 MP with flash
Front Camera	5 MP
SIM Type	Dual SIM (Micro-SIM)
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0, GPS
Ports	Micro USB, 3.5 mm headphone jack
Sensors	Accelerometer, proximity, light
Maintenance	Clean with a soft, dry cloth. Do not use liquid cleaners.
Safety	Keep away from water and extreme temperatures. Use original charger.
Spare Parts & Reparability	Battery is user-replaceable. Other repairs should be done by authorized service.
General Information	Supports GSM/HSPA networks. Available in black and white.

Frequently Asked Questions - PhonePad Duo X520U Mediacom

How to insert SIM and microSD cards?

Turn off the phone, remove the back cover, and insert SIM cards into the slots (micro-SIM). The microSD card slot is located next to the SIM slots.

What is the maximum supported microSD capacity?

The PhonePad Duo X520U supports microSD cards up to 32 GB.

How to take a screenshot?

Press and hold the Power button and Volume Down button simultaneously for a few seconds until the screen flashes.

How to extend battery life?

Reduce screen brightness, turn off Wi-Fi/Bluetooth when not in use, close background apps, and enable battery saver mode in Settings.

Is the battery removable?

Yes, the battery is removable. To replace, turn off the phone, remove the back cover, and lift the battery out.

How to reset the phone to factory settings?

Go to Settings > Backup & reset > Factory data reset. Alternatively, from recovery mode: power off, then press Volume Up + Power button to enter recovery, and select wipe data/factory reset.

Does it support 4G/LTE?

No, the PhonePad Duo X520U supports only 3G/HSPA networks. It does not have LTE support.

How to transfer files to a computer?

Connect the phone to a computer via the micro USB cable. On the phone, swipe down the notification bar and select File Transfer (MTP) mode.

What to do if the phone freezes?

Perform a soft reset by pressing and holding the Power button for 10-15 seconds until the device restarts.

How to update the Android version?

Go to Settings > About phone > System updates. If an update is available, download and install it. Note that major OS updates may not be available for this device.

USER MANUAL PhonePad Duo X520U Mediacom

Picture 1

Picture 2

Picture 3

Phone PAD Quick Start Guide Safety precautions

For safe and efficient operation of your device please observe the following rules:

• Keep the phone away from extreme heat, cold, moisture and dust.
• Do not spill any liquids on the device as it may damage the device or cause a fire.
• Do not use liquids and chemical cleaners for cleaning the device.
• Do not insert any objects in the phone air vents or other slots.
• Do not keep the device near magnetic sources, heaters, microwave ovens, heating up kitchen appliances, or in high pressure containers, as it may cause the battery leaking, the device overheating and inflammation.
• Do not disassemble the device, only a certified service technician should perform repairs on your computer.
• Use only the AC adapters, power cords and batteries that are approved for use with this device. Use of another type of battery or AC adapter may cause fire or explosion.

Note: The device pictures, as well as data on the device appearance, color and design features are given in the manual for reference only. Mediacom reserves the right to change the appearance and technical parameters of its products without prior notice.

About your device (Picture 1)

1. Power button
2. Volume button
3. USB port/charging
4. SIM 1 slot
5. SIM 2 slot

6. Micro-SD card slot

7. Speaker

8. Headset port
9. "Reset" (if available)
10. Rear camera 13.0 Mpixel (by software interpolation)
11. Front camera 5.0 Mpixel
12. Microphone
13. Flash light

Switching on/off

To switch on the device, press and hold the Power button. When startup window appears, release the button. The system initialization may take several minutes. Please wait patiently.

To switch off the device, press and hold the Power button. When "Power off" message appears, release the button. Touch the message, then press OK.

Recommendation: To save the battery charge, the device is set to sleep mode: the screen is locked and sensor functions become inactive (in accordance with the settings of screen lock time). To "wake up" the device, short press the power button.

Unlocking the screen (Picture 2)

If you do not use the screen during certain period of time, the screen will be locked. To unlock the screen, press the power button once and drag "Lock" image right.

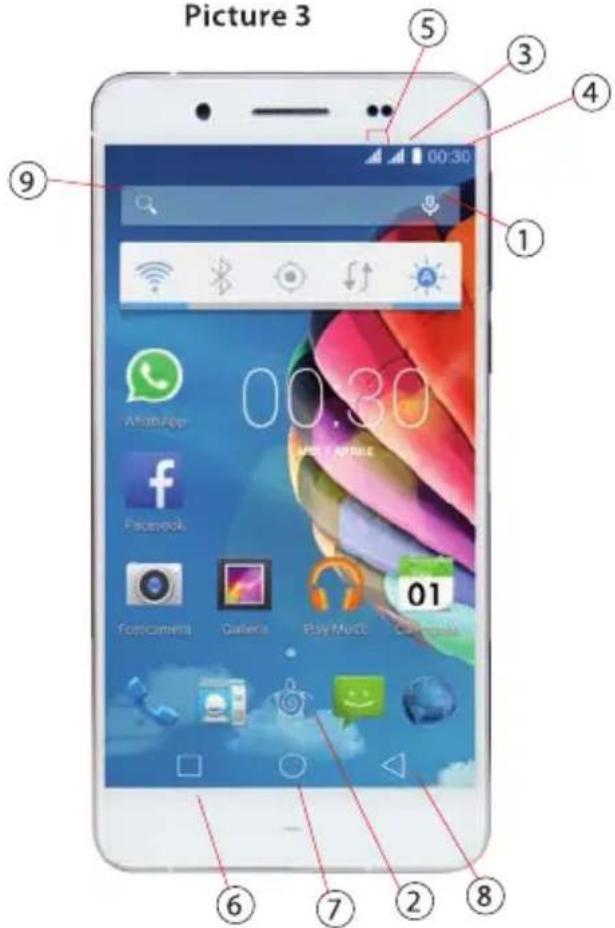

Main screen (Picture 3)

1. Voice search
2. Application menu
3. Battery indicator
4. Time
5. SIM 1 - SIM 2
6. Submenu
7. Home/Recent used applications
8. Back
9. Google search

Restarting the device

If the screen does not response to key press or tap, restart your device by keeping power button depressed for long time.

Factory reset

To delete all data and restore your device to factory defaults, touch Settings > > Recovery and reset; touch menu item Reset > Reset to factory defaults.

Contents

Phone, USB Cable, Power adapter AC / DC, Quick Guide, Headset

Charging the battery

Device is provided with built in rechargeable battery.

Important: The battery must be charged before using it for the first time. When related Icon or warning message alerts you please charge the battery using porper adapter (do not use diefferent adapter from original one).

Opening of the phone

To open the phone insert your fingernail into the slot (Fig. 1) and then slide to the rest of Corver (fig. 2), remove the entire cover to insert the SIM (Fig. 3)

(fig. 1)

(fig. 2)

(fig. 3)

3G networks

Note that your device will only have signal if you are in an area covered by your 3G provider's 3G or EDGE network.

Before inserting a SIM card, you must turn off the device.

A Pin number may be requested. Enter the SIM card pin number.

Your device will attempt to connect to the 3G network of your provider.

This screen will appear when turning on device with new SIM.

Please confirm selection or make your change if required.

NOTE: If your device does not connect to your 3G provider's network

1. Contact your 3G provider to obtain the connection parameters.

2. On your device, tap the Menu icon, then settings.

3. Select Wireless & networks > Mobile networks > Select your operator.

In Access Point Names, select the correct access point name and enter the exact connection parameters.

Wireless networks

Prior to starting an Internet-application, activate Wi-Fi connection and set up Wi-Fi network.

1. Touch the icon "Applications" > "Settings" > "Wireless connections". Select Wi-Fi item and set the switch to On position.

2. The device will automatically start searching for available networks and will display them on the right panel.

3. Select any network from the list and press "Connect". If the network you selected is protected by WEP-protocol, type the security key, then press "Connect" button.

When the connection is successfully created, "Connected to" (Network name) message will appear on the screen.

Bluetooth

Tap "Settings" > Select "Wireless connections/Bluetooth" > Tap "On" to switch on the Bluetooth function. The device will automatically search for available Bluetooth device.

Select the Bluetooth device and start data transmission.

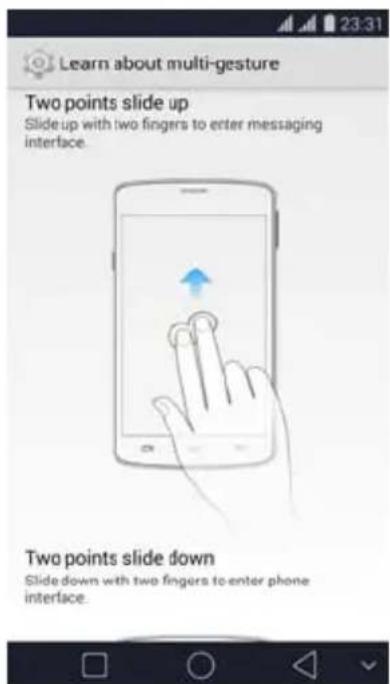

Multi-gesture:

Direct access to 5 primary functions by sliding two or three fingers on the screen. Select settings for access to Multi-gesture and check for gesture tutorial.

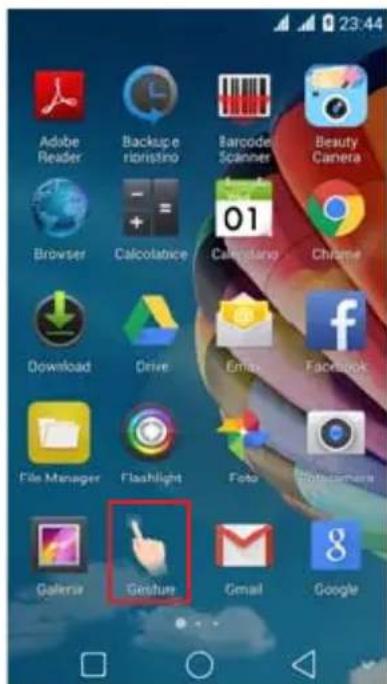

Gesture:

By selecting the Gesture app, you can customize/add Gesture of your choice to simplify access and use of any installed app. To enable/disable use the ON/OFF scrolling switch inside the app Gesture. Once activated and created a symbol, the icon will appear on the desktop. Tap it to use the function.

Phone PAD

(fig. 1)

(fig. 2)

(fig. 3)

Redes 3G

Gesture:

Phone PAD

Кратко упутство Мере опреза / Безбедност

(слика 1)

(слика 2)

(слика 3)

ЗГ мреже

Rect:

Phone PAD

(fig. 1)

(fig. 2)

(fig. 3)

Reti 3G

Gesture:

NORMATIVA PER LO SMALTIMENTO

Tel. [phone] - Fax [phone]

Imported and distributed by Datamatic S.p.A.

Via Agordat, 34 - 20127 - Milano - Italy

www.mediacomeurope.it
