BV8975B - Car Radio BOSS - Free user manual and instructions

Product Type	In-Dash Motorized Double-DIN DVD/MP3/CD AM/FM Receiver with 8" Widescreen Touch Screen TFT Monitor
Brand	Boss
Model	BV8975B
Display	8" TFT Touchscreen (16:9 aspect ratio)
Dimensions (W x D x H)	155 x 182 x 53 mm (6.1 x 7.2 x 2.1 inches)
Power Supply	DC 12V (10.8-16.0V), Negative Ground, Max Current 10A
RMS Power Output	80 Watts x 4 Channels (total 320W)
Radio Tuner	AM/FM with RDS, 30 Preset Stations (18 FM, 12 AM)
Disc Compatibility	DVD, VCD, SVCD, CD, CD-R/RW, MP3, WMA, JPEG
Media Inputs	SD Card Slot, Mini USB Port, Front Panel AUX Input, RCA Video Input (Backup Camera)
Bluetooth	Hands-Free Calling, A2DP Music Streaming, AVRCP, Voice Dial, Supports Phonebook Sync
Backup Camera	RCA Video Input with Automatic Display When Reversing (Requires CCD Camera)
Motorized Face	Auto-Open/Close Motorized Panel with 8" Widescreen TFT
Audio Controls	Bass, Treble, Balance, Fader, EQ Presets (ROCK/POP/CLASSIC/OFF), Loudness, DBAS, MBP
Remote Control	Full-Function IR Remote Control Included
Safety Features	Parking Brake Interlock (Disables Video While Driving), Reset Button
Accessories Included	User Manual, Wiring Harness, USB Cable, 2 Keys, Mounting Metal Bar, Remote Control, 2 Warranty Cards
Warranty	2-Year Limited Warranty (via Warranty Cards)

Frequently Asked Questions - BV8975B BOSS

How do I pair my phone via Bluetooth?

Go to the Bluetooth interface from the main menu. On your phone, enable Bluetooth and search for devices. Select the unit (appears as 'BOSS' or similar). Enter the default passcode 0000. Confirm pairing on both devices. The screen will show 'OK LINK' when connected.

Can I watch videos while driving?

No. The unit has a safety feature that prevents video playback when the vehicle is moving. The parking brake wire (pink) must be connected to the parking brake system. Only when the brake is engaged will video display. If not connected, a 'PARKING BRAKE' message appears.

What disc formats are supported?

The unit supports DVD, VCD, SVCD, CD, CD-R/RW, MP3, WMA, JPEG. It also plays MP4 (AVI/5.X) files. Discs must be 12cm. The unit automatically recognizes the disc type.

How do I reset the unit?

Press the RESET button (located on the front panel) with a pen tip or similar object. This restores factory defaults and may resolve operation issues. Note: All settings will be lost.

How many radio presets can I store?

You can store up to 30 preset stations: 18 FM and 12 AM. FM has 3 bands (FM1, FM2, FM3) and AM has 2 bands (AM1, AM2), each with 6 presets.

Does the unit support a backup camera?

Yes. The unit has a dedicated RCA video input for a backup camera (CCD). When reverse gear is engaged, the screen automatically displays the camera image. You can adjust mirror/normal view in the OSD setup.

What power supply is required?

The unit requires DC 12V (operating range 10.8–16.0V) with a negative ground system. Maximum operating current is 10A. Use the provided wiring harness: red (ACC), yellow (constant 12V), black (ground).

How do I adjust sound settings like bass and treble?

Press the SEL button on the remote control repeatedly to cycle through Bass, Treble, Balance, and Fader. Use the VOL+/VOL- buttons to adjust each setting. The adjust mode can also be accessed via the touchscreen (ADJUST MODE). EQ presets (ROCK, POP, CLASSIC, OFF) are selectable.

Can I play music from a USB drive?

Yes. Insert a USB drive into the Mini USB port on the front panel. The unit supports MP3, WMA, and other music files. Navigate via touchscreen to select songs. SD cards are also supported.

How do I set the clock?

From the main menu, enter OSD SETUP (GENERAL SETUP). Select CLOCK SET. Use the +/- buttons to adjust hour and minute. Note: If RDS is active and receiving a station, the time may be set automatically based on RDS data.

USER MANUAL BV8975B BOSS

Black and white photo of a car with visible headlights and grille, no text or symbols present.

BOSS®

AUDIO SYSTEMS

BOSS®

BV8975B

CONTENTS

Bluetooth-Enabled

In-Dash Motorized Double-DIN

DVD/MP3/CD AM/FM Receiver

With 8" Widescreen

Touch Screen TFT Monitor

And Front Panel AUX Input

1.Welcome 3
2. Warning 3
3. Note 4
4.Features....5
5.Basic Operation....6
6.Panel Arrangement....7
7.Main Menu Touch Operation....10
8.OSD Setup....11
9.Adjust Mode 12
10.Remote Control Function 13
11.Touchscreen Display For Disc Playback....15
12.DVD Mode 16
13.RDS User Operation 18
14. Radio Operation 20
15.DVD Basic Operation 21
16.VCD Basic Operation 31
17.CD Basic Operation....34
18.MP3/USB/SD Operation 36
19. Bluetooth Touch Operation 37
20. Other Play Mode 39
21. Trouble Shooting 40
22.Wiring Diagram 41
23. Specifications 42
24. Accessory 43

02

INSTRUCTIONS

1.WELCOME

Thank you for enjoying our series of digital car A/V product.

To properly use this product, please go through this instruction manual for installation and operation, put it in a safe place for future use!

2.WARNING

1. Please keep the disc slot clean, wipe it off when there is some dirt on it. You should wipe off any dirt on the disc before you place it into the unit. If the disc is dirty and you place it inside the unit, it will cause the unit to go into an error and will not play the disc. Please ask professional to clean the laser.
2. Playing the radio at higher volumes for a long period of time may cause hearing issues. You should play this unit at a moderate listen level.
3. This unit is set up by precision parts. If you open up this unit, you will void any and all of your warranty.
4. Please do not touch LCD display with any hard object so that you prevent it from getting scratched or damaged.
5. To avoid an accident caused by watching the LCD screen. This unit has a vehicle lock out wire so that you will not be allowed to watch a video while driving down the road.
6. This unit is meant for a 12V power and negative ground system from a vehicle.

NOTE:

We keep improving this product all the time. There may be some changes in it that are not in this manual.

03

INSTRUCTIONS

INSTRUCTIONS

3. NOTE

● This unit can play the following disc

MODE	CONTENT	DISC SIZE
DVD	Sound, image	12cm
VCD	Sound, image	12cm
MP3	Sound only	12cm
CD	Sound only	12cm
Note: 1. This unit is compatible with MP4/DVD/VCD1.0/2.0/3.0 version,DVD, CD-R, CD-RW, MP3, WMA, JPEG.2. When playing a DVD, VCD, MP3, CD disc the display will auto identify the disc and show corresponding word. [IMAGE] When appears on the display, that means that there is no function, please choose another mode.

4 FEATURES

DVD PLAYER

1. MPEG-4 Decoder Technology
2. Compatible with MP4 (AVI/5.X), DVD (DVD-R/DVD-RW), VCD, SVCD, CD-RW, WMA, MP3, JPG
3. Supporting Multiple Subtitles, Angles, Languages
4. Child lock function
5. 4-Channel Audio Output
6. Pause, Play, Up/Down, Stop, Zoom, PBC Function

RADIO

1. AM/FM Radio Tuner
2. 30 Radio Preset Stations (18FM, 12AM)

BULETOOTH FUNCTION

1. Bluetooth wireless transfers
2. Displaying bluetooth paring and connection status, call status, and caller's ID
3. Fast performance, fast connection, accurate and sensible search of devices in range
4. Support A2DP, AVRCP, HS/HF for handing calls and playing music

LCD DISPLAY

1. 8" - 16:9 TFT LCD Display
2. Touchscreen

INSTRUCTIONS

INSTRUCTIONS

5. BASIC OPERATION

1. SOURCE ON/OFF

Press SRC button on panel or SOURCE button on remote control quickly to power on. Press SRC button on panel or SOURCE button on remote control longer to power off.

2. PLAYING SOURCE CHOOSE

Press SOURCE button on remote control, unit will switch sources in the following sequence: RADIO → DVD → AUX

3. MUTE CONTROL

Press MUTE button on panel or MUTE button on remote control shortly to turn off sound output, press again to back to sound output.

4. VOLUME ADJUSTMENT

1) Press VOL+/VOL- button on panel, VOL+/VOL- button on remote control or touch button on display to adjust volume level.
2) The volume setting on this unit is 0 - 39.

BASS, TREBLE, BALANCE & FADER ADJUSTING (SELECT)

Press SEL button on remote control to choose your desired Bass, Treble, Balance & Fader level:

NOTE:

1) DVD playing mode, MBP & User will be automatically activated.
2) After 5 seconds you choose desired mode, do not adjust volume button. The mode will automatically take you back to status before adjustment.

5. RESET

1) If unit is not working correctly, you should press the RES button. This will reset the radio and should start working correctly afterwards.
2) After reset, all settings will resume back to the factory default settings.

6.PANEL ARRANGEMENT

1. SOURCE Button

2.MUTE / TFT on/off Button

1. OPEN Button

4.VOLUME - Button

5.VOLUME + Button

6.PAUSE Button

1. RESET Button

8.REMOTE CONTROL RECEIVER

9.SD Input

10.AUX IN

11.MINI USB PORT

12.MIC input

INSTRUCTIONS

INSTRUCTIONS

BASIC FUNCTION

1. SOURCE Button

Press this button to power on. Press it shortly to switch audio source mode. At AUX IN mode, press it longer to power off.

2. MUTE / TFT on/off Button

Press this button to shut off the sound output, re-press this button can resume the sound output, long press this button can turn off the TFT LCD display.

3. OPEN Button

Press this button can eject the disc.

4. VOLUME - Button

Press this button shortly increase volume level one step by one step. Press this button longer increase volume level continuously.

5. VOLUME + Button

Press this button shortly decrease volume level one step by one step. Press this button longer decrease volume level continuously.

6. PAUSE Button

In playing state, press this button to execute Play/Pause.

7. RESET Button

Press this button and this unit will be restored to the initial state.

8. REMOTE CONTROL RECEIVER

It is able of receiving infrared signals launched by the remote control matching the unit.

9. SD Input

Connect the SD memory card to this socket, and the unit can play MP3 music.

10. AUX IN

External connected audio input.

11. MINI USB PORT

Connect the USB memory to this socket, and the unit can play music format files supported by this unit in the USB memory.

12. MIC input

Bluetooth MIC input.

BASE

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

1. Disc Slot

INSTRUCTIONS

INSTRUCTIONS

* This unit without CDC/TV/GPS function.

8.OSD SETUP (PIC 2)

Note: There are 3 buttons automatically changed according to your setting change in radio state when you activate or exit RDS; Changes are as following:
PTY↔LOUD; TA↔EQ; AF↔ST

TIME DISPLAY AND ADJUST

Time display: Touch main menu into adjust mode, press time setup button, the corresponding function will be displayed in yellow words.

(1)Press "+" on hour to add hour, press "-" to reduce hour;

(2)Press "+" on minute to add minute, press "-" to reduce minute.

NOTE: Touch the correspondence function, will be displayed in green background. The unit include two times system: Europe time (24 hour setup), America time (12 hour setup), when show the AM mark it indicate morning time, when appear the PM mark, it shows the time of afternoon.

Remark: This unit is with RDS function, it will automatically adjust the time when you activate RDS function or have received RDS radio channels. At no received RDS radio channels or AM state, you should adjust the time.

INSTRUCTIONS

INSTRUCTIONS

9.ADJUST MODE (PIC 3)

10.REMOTE CONTROL FUNCTION

POWER ON/OFF

2 MUTE

3 TIME DISPLAY

4 SOURCE

1. TO

B. 2017年1月1日

6 SEEK+/SEEK-

7 VOL+/VOL-

8 SEL

9 LOUD

10 RAND/P/N

LOC / RDM

III 1007 KOM

STOP

13 PLAY/PAUSE

14 ST/PROG

15 0-10+

16 AMS/RPT

1. TITLE

18 AUDIO

10 SET PLAYING TIME

1. CUSTITABLE

10 SODRIDE 11 DOCUMENTS

41 PBC/MENO

UP/DOWN/L/R ENTER

23 SLOW

24 ANGLE

25 SET UP

25 OSD

57 ZOOM

DOOM

20 MENO

1. SOURCE Button

Press this button to choose audio sources.

1. EQ Button

Press this button to choose POP, ROCK, CLASS, off.

1. SEEK + (▶) / SEEK - (◀) Button

Press this button to manual turning, speed or quick back, previous song and next song

1. VOL + ( → ) / VOL - ( ← )

Press this button to increase or decrease volume level.

1. SEL Button

Press this button to choose sound feature.

1. LOUD Button

Press this button to startup LOUD function.

1. BAND - P/N Button

In radio mode, press this button to choose band. In VCD, DVD mode, press this button to choose AUTO, PAL or NTSC system.

1. LOC/RDM Button

In radio mode, press this button to switch between local and direction. In VCD, CD mode, press this key to randomly play.

1. STOP Button

Press this button to stop playing.

1. POWER

Press once to switch on, press again to switch off.

1. MUTE Button

Press once to turn off audio output, press again to resume volume level.

1. DSP

Press this button to show the time.

1. PLAY/PAUSE Button

Press this button to switch between play and pause. In stop mode, press this button to play.

1. ST/ PROG Button

In radio mode, press this button to choose stereo or mono station. In audio mode, it can help STOP button to programmed play.

INSTRUCTIONS

15.0 - 10 + Button

Press this button to choose desired song, section, preset stations.

* Decimal numbers, for example the 19th song, press 1,9 button;

* Centesimal numbers, for example, the 120th song, press 1,2,0 button.

16. AMS / RPT Button

In radio mode, press this button to browse stored stations. In audio mode, press this button to play repeatedly.

17. TITLE Button

In DVD mode, press this button to play back to the top menu of disc.

18. AUDIO Button

In DVD mode, press this button to switch language of dialogue. In VCD mode, press this button to choose left track, right track, and stereo.

19. SET Playing Time

In DVD mode, press this button, you can define playing time.

20. SUBTITLE Button

In DVD mode, press this button to switch language of subtitle.

21. PBC Button

In VCD mode, press this button to display all song menus, work with number button to choose songs.

22. UP, DOWN, LEFT, RIGHT, ENTER

Button

In DVD mode, press this button to move cursor up, down, left, right to choose item in menu. Press the enter button to confirm choice.

23. SLOW Button

In audio mode, press this button to slow backward and slow forward.

24. ANGLE Button

In DVD mode, press this button to change play angle.

25. SETUP Button

In audio mode, press this button to choose different set items.

26. OSD Display

Press this button to display the title chapter and the left time.

27. ZOOM Button

In DVD/VCD mode, press this button to ZOOM in. In CD/MP3/USB/SD mode, press this button to choose EQ.

28. MENU Button

Press button to back to the main menu.

BATTERY CHANGE

When control distance of remote control becomes shorter or no function, please change battery. Please confirm polarity before change.

One hand press stopper, then pull out battery.

Put battery into controller.

Insert battery holder into controller.

INSTRUCTIONS

1. TOUCHSCREEN DISPLAY FOR DISC PLAYBACK (PIC4)

INSTRUCTIONS

12.DVD MODE (PIC 5)

INSTRUCTIONS

INSTRUCTIONS

13.RDS USER OPERATION (PIC 6)

• For details of RDS operation, please refer to other instruction

INSTRUCTIONS

RDS

1. EON (RDS Mark)

Indicate main unit is on auto tracking RDS mode.

1. AF (RDS Auto Tracking Mark)

Indicate radio is auto tracking RDS channel.

1. TA (RDS Signal Increasing Output)

Indicate RDS channel have signal increasing output.

1. TP (RDS Channel Stereo Mark)

Indicate RDS channel is on stereo playing mode.

1. POP.M (RDS Channel Mark)

Indicate RDS channel name.

1. RDS Tracking System

Press AF button in FM mode, and then press ◀/▶ last 2 minutes, RDS will auto search channel up and down, it will stop searching when RDS channel be founded, but "AF" will keep remaining on the screen and waits for the next traffic emergency report.

1. RDS Tracking on Playing Mode

In playing mode, "AF" tracking system keeps on opening and waits for traffic emergency report.

1) PTY: RDS button, press once will show music mode POP, press 1-6 function memory button, every group have 2 channel.

POP M

ROCK M

EASY M

LIGHT M

CLASSICS M

OTHER M

JAZZ

COUNTRY

NATION

2) Press PTY button twice and then press 1-6 function memory button, every button have 3 channel.

NEWS

AFFAIRS

INFORMATION

SPORT

EDUCATION

DRAMA

CULTURE

SCIENCE

CHILDREN

SOCIETT

RELIGION

PHONING

TRAVEL

Note: RDS channel in broken line is available.

AF: RDS auto search button, in radio mode also can press this button shortly auto tracking RDS channel, press this button shortly can cancel RDS function.

TA: In RDS mode, press this button can output TA signal, and check RDS channel is exist or not, if no RDS signal TFT will show "NO.TA.TP".

INSTRUCTIONS

INSTRUCTIONS

14.RADIO OPERATION (Please look at picture #6)

1. Band Selection

In radio mode, press BAND button, BAND/P/N button on remote control, or touch position on screen every time to choose band, the sequence is as follows:

$$ \begin{array}{c} \text {FM1} \longrightarrow \text {FM2} \longrightarrow \text {FM3} \ \text {\downarrow AM2} \leftarrow \text {AM1} \end{array} $$

2. Adjust Frequency

Manually Adjust Frequency:

Press SEEK + button on remote control, or ▶ touch button on display shortly every time, frequency will increase one step by one step till you get desired frequency. Press SEEK - button on remote control, or ◀ touch button on display shortly every time, frequency will ecrease on step by step till you get desired frequency.

Search Station:

Press SEEK + / SEEK - button on remote control, or ▶/▲ touch button on display shortly every time to search station in up/down direction. When get one station, it will auto stop searching.

3. Browse / Auto Search and Store Station

1) In radio mode, press AMS/RPT button on remote control, or APS button on display shortly to browse preset station on 1-6;
2) In radio mode, press AMS/RPT button on remote control, or APS button on display longer to auto search in whole band from present frequency and store 6 most strong frequency on 1-6;
3) This unit has FM1, FM2, FM3, AM1, AM2 Bands. Each band can store 6 stations, so a total 30 preset stations.
Note: After preset station, unit will cancel the former preset stations.

4. Mono/Stereo Selection

In radio mode, press ST/PTOG button on remote control or ST touch position on display to choose mono/stereo program.

Note: In radio mode, start up the stereo function automatic, touch the ST button again on the display, the TFT display will show the ST OFF & MOMO mark, that is to turn off the stereo. When the right under foot appear the MONO mark, it shows the MONO on.

5. Manual Preset and Store Station

In radio mode, press 1-6 button on remote control, or 1-6 position on display longer to store preset frequency into preset channel. For example, the present frequency is 89.8MHz, press 2 button longer, then 89.8MHz frequency is stored in 2 channel.

15.DVD BASIC OPERATION (Please link with touch operation at pic 4)

Slide in DVD disc, unit will play it automatically. If disc is in slot, press DVD touch button on main menu to play disc.

1. Pause Play

In playing mode, press ▶I button on remote control, or ▶II on the display to pause. Press again to go back to normal play.

2. Stop Play

In playing mode, 1) Press ▪/ button on remote control to enter the pause mode, the position will be stored in unit. At that time, press ▶I button on remote control or touch button on display to resume playing at the stored position. 2) Press ▪/ button on remote control twice to enter into stop mode, here, press ▶I button on remote control or touch button on display, unit will play from the first song.

3. Fast Forward/Fast Backward Play

In playing mode, press SEEK + button on remote control, or ▶ touch button on display to speed play. When you need quick back, press SEEK - button on remote control, or ◀ touch button on display to quick back play. Note: Hold above button a bit longer to operate.

4. Previous/Next Song Play

In playing mode, press SEEK + / SEEK - on remote control, or ▶/▲ touch button on display to choose previous/next song.

5. Switch System

In playing mode, short press the BAND/P/N button on remote control, to select PAL, AUTO, NTSC TV system. Note: This function can only be worked by the remote control.

6. Slow Play

Press SLOW button on remote control to slow play. The level of slow playing is as follows. Sequence is:

$$ \begin{array}{c} \text { LOW } 1 / 2 \longrightarrow \text { SLOW } 1 / 3 \longrightarrow \text { SLOW } 1 / 4 \longrightarrow \text { SLOW } \ \text { PLAY } \leftarrow \text { SLOW } 1 / 7 \leftarrow \text { SLOW } 1 / 6 \end{array} $$

Note: This function can only be worked by the remote control.

7. Zoom In/Zoom Out

Press ZOOM button on remote control to zoom in / zoom out the picture. The levels are as follows:

$$ \begin{array}{c} \text {ZOOM IN 2} \longrightarrow \text {ZOOM IN 3} \longrightarrow \text {ZOOM IN 4} \longrightarrow \text {ZOOM IN 1 / 2} \ \text {ZOOM IN OFF} \longleftarrow \text {ZOOM IN 1 / 4} \longleftarrow \text {ZOOM IN 1 / 3} \end{array} $$

Note:

1. This function can only be worked by the remote control.
2. Image which is zoomed in can be moved by up/down/left/right cursor to move.
3. Image which is zoomed out cannot be moved.

INSTRUCTIONS

INSTRUCTIONS

8. OSD

In playing mode, short press OSD on remote control to show all information of present disc.

9. Repeatedly Play

In play mode, press AMS/RPT button on remote control to start up follow repeat function.

$$ \text { Repeat (chapter) } \longrightarrow \text { Repeat (section) } \longrightarrow \text { Repeat (off) } $$

10. Angle Switch

If the DVD disc is recorded with multi-angles, you can press the ANGLE button to switch the angle during playing.

The sequence is as follow:

ANGLE 1 → ANGLE 2 → ANGLE 3

Note:

1. It just can be worked by the remote control.
2. It is only for the DVD disc which has multi-angle.
3. If there is a ☐ sign on the cover of the DVD disc. The number in the sign means how many angles the disc has.
4. You can not switch the angle when slow playing.

11.Multi-Audio

There are different languages of dialogue and audio systems in DVD disc.

If the DVD disc is recorded with multi-audio, you can switch the language of dialogue and the audio systems when playing.

Press the AUDIO button repeatedly to change the language of dialogue.

Note

1. It just can be worked by the remote control.
2. It is only for the DVD disc which has multi-language.
3. If there is a ② sign on the cover of the DVD disc, ② means that it was recorded by multi-language/audio system.
4. In VCD mode, press the AUDIO button to select the L/R or STEREO track.

12.Multi-Subtitle

If the DVD disc is recorded with multi-subtitle, you can switch the languages of subtitle.

Press the sub-t button repeatedly to change the language.

Note

1. It just can be worked by the remote control.
2. It only for the DVD disc which is recorded with multi-wubtitle.
3. If there is a ☐ sign on the cover of the DVD disc ☐ means that it has several subtitle.

13. Title Select

In DVD mode, press TITLE button to back to the title menu. Display shows all the titles of the disc. You can select the chapter you want by the cursor, press play button to play the chapter.

Note: It just can be worked by the remote control.

14. MENU Select

In playing mode, press PBC button on remote control to back to the menu, display will show chapter and section in disc. Work with ▲ /▼ button on remote control or touch button on display to choose your desired song. Press ▶ button / ENTER button to play. Note: This function can only be worked by the remote control.

OPEN: Press OPEN button on panel to eject disc.

15. Program Play

In DVD mode, you can set the sequence of playing by the program function, the operation is as follow:

When DVD is playing, press ST / PROG button, then display shows:

For example, program the first song, input 01, press ▶ button move the cursor to the second lattice, input desired song, for example, the third song. Program the second song, press ▶ button, move the cursor to 2[____] input 01, press ▶ button move the cursor to the second lattice, input desired song, for example, the 6 ^th song (press 6). Press ▶ button to program play. Back to the normal mode, press the ST/PROG button, then press ▶ button.

Note: This function can only be worked by the remote control.

16. Digital Album

Play the disc contains JPEG pictures, read the picture menu first.

1. Press ▶ button on remote control, the pictures will be browsed automatically. (It also can be worked to press number 6 button on the unit.)

2. Press ENTER button on the remote control, it can be manual browsed by SEEK + and SEEK -.

3. ZOOM in picture function: During auto browsing, press pause button stop the screen, press ZOOM button to zoom in or zoom out the picture. During manual browsing, you can press ZOOM button to zoom in or zoom out picture directly.

4.Under zoom in picture, you can move the picture by

Note: You can not move picture in normal mode and zoom out mode.

17. Setup

Press SETUP button, display will show the system set up menu and the submenu, select the item you want by ◀◀, after selecting the proper item, press ▲/▼/◄/► to press ENTER to confirm.

Note:

1. It just can be worked by the remote control.
2. Some function setting maybe different because of the different model or disc.
3. If the selected language is not recorded in the disc, then unit will show the appointed language.
4. About the "SETUP", please read the follow.
   Press "SETUP" on the remote control, it will appear the following touch menu:

INSTRUCTIONS

INSTRUCTIONS

SYSTEM SETUP

1. Press ▲ or ▼ button

1. Press ▲/▼/◄/►button, then to enter.

Note:
1. After input code "0000" press ENTER button to
turn on child look
2. Move cursor to level item, choose desired level;
3. Only child lock is in can you choose

INSTRUCTIONS

INSTRUCTIONS

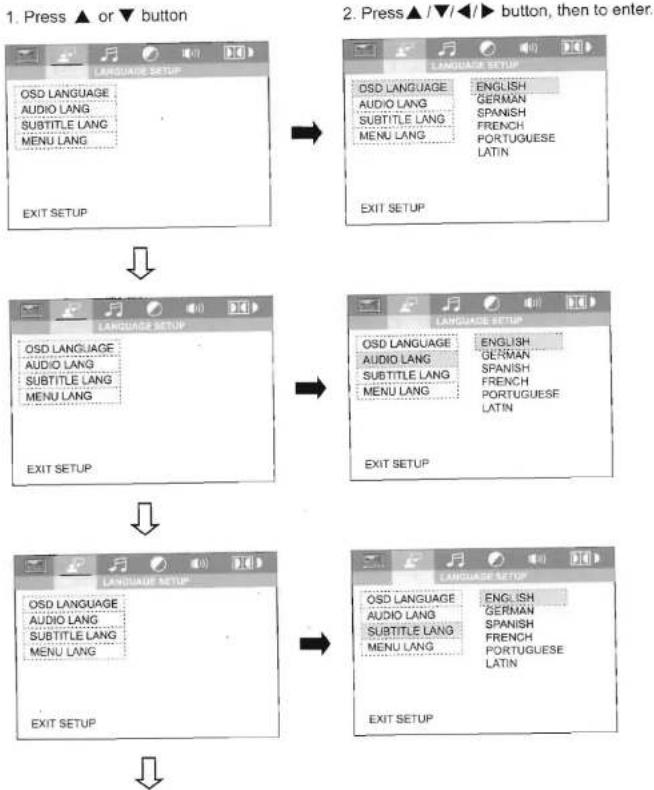

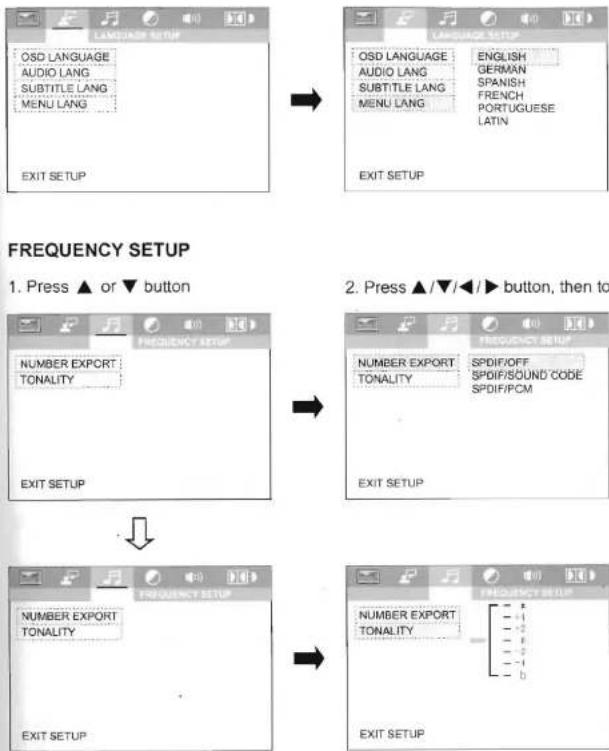

LANGUAGE SETUP

INSTRUCTIONS

INSTRUCTIONS

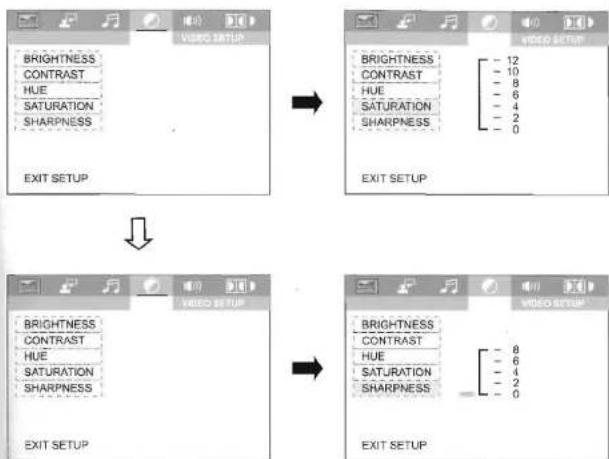

VIDEO SETUP

28

    G["BRIGHTNESS"] --> H["CONTRAST"]
    H --> I["HUE"]
    I --> J["SATURATION"]
    J --> K["SHARPNESS"]
    K --> L["EXIT SETUP"]

    M["BRIGHTNESS"] --> N["CONTRAST"]
    N --> O["HUE"]
    O --> P["SATURATION"]
    P --> Q["SHARPNESS"]
    Q --> R["EXIT SETUP"]

SPEAKER SETUP

29

INSTRUCTIONS

INSTRUCTIONS

DIGITAL SETUP

1. Press ▲ or ▼ button

→

1. Press ▲/▼/◄/► button, then to enter.

→

→

16.VCD BASIC OPERATION (Look at picture #4)

Slide in the VCD disc, it will play it automatically. If the disc is in slot, press DVD touch button on main menu can to play.

1. Pause Play

In playing mode, press ▶ button on remote control, or ▶ on display to pause. Press again to back to normal play.

2. Stop Play

In playing mode, 1) Press ▪/√ button on remote control to enter the pause mode, the position will be stored in unit. At that time, press ▶/√ button on remote control or touch button on display to resume playing at the stored position. 2) Press ▪/√ button on remote control twice to enter into stop mode, here, press ▶/√ button on remote control or touch button on display, unit will play from the first song.

3. Fast Forward/Rewind Function

In playing mode, press SEEK + button on remote control, or ▶ touch button on display to speed play. When you need quick back, press SEEK - button on remote control, or ◀ touch button on display to quick back play. Note: Hold above button a bit longer to operate.

4. Previous/Next Song Play

In playing mode, press SEEK + / SEEK - on remote control, or ▶/▲ touch button on display to choose previous/next song.

5. Switch System

In playing mode, short press the BAND/P/N button on remote control, to select PAL, AUTO, NTSC TV system. Note: This function can only be worked by the remote control.

6. Slow Play

Press SLOW button on remote control to slow play. The level of slow playing is as follows. Sequence is: 1/2 1/3 1/4 1/5 Note: This function can only be worked by the remote control.

7. Zoom In / Zoom Out

Press ZOOM button on remote control to zoom in / zoom out the picture. The levels are as follows: ZOOM IN 2 → ZOOM IN 3 → ZOOM IN 4 → ZOOM IN 1/2 Note: ZOOM IN OFF ← ZOOM IN 1/4 ← ZOOM IN 1/3 ← 1. This function can only be worked by the remote control. 2. Image which is zoomed in can be moved by up/down/left/right cursor to move. 3. Image which is zoomed out cannot be moved.

INSTRUCTIONS

8. OSD

In playing mode, short press OSD on remote control to show all information of present disc.

9. Number Buttons

In VCD mode, press 0-9 number button to input song. For example, you want to choose 13th song, press 10+ button, and then press 3 button once to play 13th song. Note: This function can only be worked by the remote control.

10. Repeat Play

In playing mode, press AMS/RPT button on remote control, to startup following, repeat function. Single song repeat→ Repeat play off. Note: 1) When playing VCD disc, if PBC is on, no repeat function. 2) After unit is power off or mode is switched to other playing mode except VCD mode, if you switch back to VCD mode, repeat playing will be cancelled.

11. Randomly Play

In VCD mode, press LOC/RDM button on remote control, to instantly play each song. Press again to back to the normal play. Note: When VCD disc, if PBC is on, RDM will not work.

12. Switch Track

In VCD mode, press AUDIO button on remote control to switch track as following sequence: Left → Right → Stereo

13. OPEN

Press OPEN button on panel to eject disc.

INSTRUCTIONS

14. PBC (MENU) Play

In VCD mode, press this button then play the PBC and display will show whole menu in disc, work with number button to choose song. When you are playing either song of the PBC, and you want to stop to select another song, press the button to turn off. Note:

1) This function can be worked by the control.
2) PBC is suitable for the SVCD and VCD 2.0 disc.
3) In PBC mode, you can not press number button only to choose song.

15. VCD Program Playing

In VCD mode, you can set playing sequence of songs by program play function. The program playing operation steps are as follows:

In VCD mode, press ST/PTOG button, display will show:

Input the songs which you want to programmed by the number buttons on remote control. For example: Program the first song, input your desires song, for example, the fourth song, and press number button 4 on the remote control. Program the second song, press ▼ button move the cursor to 2____. Input your desired song, for example, the eighth song, press number button 8 on the remote control. Press ▶ button to program play. Back to the normal mode, press the ST/PROG button, then press ▶ button. Note: This function can only be worked by the remote control.

INSTRUCTIONS

INSTRUCTIONS

17.CD BASIC OPERATION (Look at Picture #4)

Slide in CD/MP3 disc, unit will play it automatically. If disc is in slot, press DVD touch button on main menu can to play.

1. Repeat Play

In CD/MP3 mode, press AMS/RPT button on remote control, to startup following, repeat CD disc: Single song repeat → Repeat play off.

MP3 disc: Single song repeat→Directory repeat→ Repeat play off.

2. Fast Forward/Fast Rewind

Press SEEK + / SEEK - button on remote control, or ▶/◄◄ touch button on display to speed forward or backward playing.

Note: Hold above button a bit longer to operate.

3. Previous/Next Song Play

In playing mode, press SEEK + / SEEK - on remote control, or ▶/▲ touch button on display to choose previous/next song.

4. Pause Play

In play mode, press ▶ button on remote control, or ▶ button on display to pause. Press again to go back to normal play.

5. Stop Play

In play mode:

1) Press ▪/▶ button on remote control to enter the pause mode, the position will be stored in unit. At that time, press ▶I button on remote control or touch button on display to resume playing at the stored position.

2) Press ▪/〉 button on remote control twice to enter into stop mode, here, press ▶I button on remote control or touch button on display, unit will play from the first song.

6. OSD

In playing mode, short press OSD on remote control to show all information of present disc.

7. Randomly Play

In CD mode, press LOC/RDM button on remote control, to instantly play each song. Press again to back to the normal play.

8. EQ Mode

1) This function can only be worked by remote control.

2) When playing CD/MP3, press the "ZOOM" button on the remote control, you can choose the sound mode.

3) When enter this function, press the button ▲/▼/◄/► to move the course to select sound mode which in the system menu, after your selection position will show red color to indicate the confirmation.

9. OPEN

Press OPEN button on panel to eject disc.

10. CD Program Play

In CD mode, you can set the sequence of playing by the program function, the operation is as follows:

When CD is playing, press ST/PROG button, then the display shows:

PROG
	TC	TC	TC	TC
1	5	9	13	13
2	6	10	14	14
3	7	11	15	15
4	8	12	16	16
	PLAY	DELETE

Input the number of the song you want to program by the remote control, program the first song, input your desired song, for example, the sixth song, and press number button

6 on the remote control. Program the second song, press ▼ button move the cursor to

2[____]. Input your desired song, for example, the ninth song, press number button 9 on the remote control. Press ▶ button to program play.

Back to the normal mode, press the ST/PROG button, then press ▶ button.

Note: This function can only be worked by the remote control.

INSTRUCTIONS

INSTRUCTIONS

1. Insert SD card or USB, MP3 disc; click the name of the song directly to select the song you want to broadcast. If there are pictures or video document in the disc or SD card, you can select the relative icon to broadcast.

2. playback MP4 files, the touch screen → into the MP4 format, you can click directly or through remote control and touch button to choose the direction you need MP4 repertoire.

3. This interface of DVD touch function will display if you click on KEY. (Please refer to the instruction of DVD touch function) Note: By a remote control □/□ stop button to return to the playback screen.

1.Pause play

In playing mode, press ▶ button on remote control, or ▶ touch button on display to pause. Press again to back to normal play.

2.Previous/next song play

In playing mode, press SEEK + / SEEK - on remote control, or ▶/▲/▲ touch button on display to choose previous/next song.

3. Speed forward / backward play

Press SEEK + / SEEK - button on remote control, or ▶/◄◄ touch button on display to speed forward or backward playing.

4. Repeatedly play

In CD mode, press AMS/RPT button on remote control, to startup following, repeat Mp3 disc: Single song repeat→Directoryrepeat → Repeat play off.

1. Bluetooth hand-free/cell phone switching
2. Matching function during Bluetooth connection
3. Voice dialing function
4. Contact book mode switching
5. Return to the main screen
6. Hand-free key
7. Phone number display
8. Hang-up key
9. Delete key
10. Number keys

Functions and Descriptions

Bluetooth hand-free/cell phone switching

If you touch this switching button at the upper-left corner of the screen under the Bluetooth hand-free mode, the speaker will beep and the hand-free mode will be switched to the cell-phone mode.

Voice dialing function

If you touch the "Voice dial" button at the lower-left corner of the screen under the Bluetooth hand-free mode and the cell-phone mode, you will hear the keying tone, and you can go ahead with the voice dialing function according to the cell-phone instructions. Eg, if you wish to call someone, you can pronounce his/her name stored in the cell phone, then ,the name of the person to be called will be played by the speaker, and the telephone number of this person will be displayed on the screen and automatically dialed.

To cancel voice dialing

If you wish to disable the voice dialing function in the voice dialing mode, you can press the "Voice dialing" key again, and this function will be disabled after you hearing the keying tone.

Hand-free button: After a phone number is keyed in, press this button to call the user of this phone number. When there is an incoming call. Press this button to connect this call.

Hang-up button: When there is an incoming call, press this button to hang up or refuse to connect it.

Delete button: When a wrong digit is keyed in, press this button to delete the wrong digit.

Number keys: You can use these number keys to enter a phone number.

Phone number display: The phone number that you have just entered is displayed here.

INSTRUCTIONS

INSTRUCTIONS

Contact book mode switching

You can touch this button under the Bluetooth mode to select the next mode.

Touch this function key to search the dialed numbers. Each time this key is touched, the cursor will move to the next dialed number.

Touch this function key to search the received numbers. Each time this key is touched, the cursor will move to the next received number.

Touch this function key to search the missed numbers. Each time this key is touched, the cursor will move to the next missed number.

Operations and Settings for the Bluetooth Function

1. Features of the Bluetooth function

1) You can use the function buttons on the unit to receive a call or dial a phone number.
2) You can directly use the hand-free microphone to talk on the phone.
3) You can use the build-in volume control switch to adjust the volume at will.
4) You can switch between the Bluetooth hand-free mode and the cell phone mode.
5) You can use your voice to dial a new number (valid only for cell phones with voice dialing function).
6) With the Bluetooth function, you can use the Bluetooth microphone in the car to talk with your folks and friends without having to hold your cell phone, so that your hands are dedicated for driving, which is safer and law-observing. In the mean time, magnetic radiation from the cell phone is avoided.

2. Bluetooth match conditions

You can shortly touch the Bluetooth function key access the Bluetooth interface.

under the main menu to directly

With a cell phone that supports the function of Bluetooth wireless connection, you can establish a connection between your cell phone and the automobile-loaded unit under the Bluetooth mode to achieve date exchange and synchronization.

1. Matching and connections between the cell phone and the Bluetooth of the unit Set your cell phone to the Bluetooth mode, and use the cell phone to search equipments. After the Bluetooth equipment of the unit is searched, the cell phone will ask you for the Bluetooth password. Press the unit matching setup button "A##", and enter the Bluetooth password (0000) and confirm it, and then the cell phone will ask you whether you authorize the connection with this equipment or not. Please select "YES", and the cell phone will be automatically connected with the said Bluetooth equipment within 30 seconds. "OK LINK" will be displayed on the Bluetooth interface to show that a connection between the cell phone and the Bluetooth device has been successfully established. Under and mode (radio, TV, DVD, etc.), if there is an incoming call to your cell phone which has been stably connected to the Bluetooth device of the unit, the unit will switch from other mode to the Bluetooth mode after the cell phone rings for about 10 seconds. Current mode will be automatically restored after hang-up.

20. OTHER PLAY MODE

AUX IN:

AUX IN OPERATION

1) Press "Source" button on remote control or touch "AUX" on the touch screen, to switch to AUX mode.
2) This will allow you to listen and or watch any source that you have plugged into this section of the radio.
3) This unit has 1 - Video RCA input & 1 pair of Audio RCA's for this feature.

CCD (Back-Up Camera)

1) If there is a back-up camera installed onto your car, you will need to connect it to the CCD video input.
2) When you are backing up the car there you will see this image 📄 on your screen.
3) You can set CCD image according to your car's own position in general setting mode.

INSTRUCTIONS

21.TROUBLE SHOOTING

PROBLEM	CAUSE	SOLUTION
Can not power on	Check whether power fuse blew or not	Change fuse same as the old one
	Some factor cause MPU wrong operation	Press RESET button on the panel by pen point, then, power on
After ignition switch off, setting information all lose	Wrong connection between ignition line ACC and Constant 12 Volt wire	Change the wiring around
Remote control no function	No enough power supply from battery	Change battery in remote control
Poor performance of radio station	Improper length of antenna, poor connection of antenna grounding	Check whether antenna is connected or not, or poor connection
Can not load disc	The disc will not go in all the way	Remove the 2 screws on top of the radio
Can not play disc	Disc is scratched	Change new disc
	Put wrong side of disc into unit	Slot in the disc with sign side up
	Lens has dirty	Clean lens by lens clean disc
Can not switch language/subtitle	There is only one language/ subtitle in disc	If disc is not with multi-language/subtitle, it cannot switch language/subtitle
No image	Video line between unit and TV is not properly connected	Reconnect lines

INSTRUCTIONS

22.WIRING DIAGRAM

This player is equipped with ISO standard connector, please follow below instruction:

● Red - ACC ON (+12V)
● Yellow - 12 V Constant
- Black – Ground wire
● Blue - Power Antenna / Remote Amp Turn On
- Orange - Back-Up Camera Trigger (+)
● Grey/Grey black - Right front speaker (+/-)
● White/White black - Left front speaker (+-)
● Purple/Purple black - Right rear speaker (+/-)
● Green/Green black - Left rear speaker (+/-)
● Pink – Parking Brake (-)

Note:

The "PARKING BRAKE" wire must be connected to the parking brake system of your car. When the parking brake is engages, the LCD will be allowed to view your video. If not, the screen will produce an image saying, "PARKING BRAKE". This is a safety feature designed for the driver not to watch a video while driving. The video output on this unit will not be affected by this.

INSTRUCTIONS

INSTRUCTIONS

23.SPECIFICATIONS:

Power supply DC 12V

Power range 10.8-16.0V DC

Max operate current 10A

Dimensions 155X182X53MM

Ground system...... Negative ground

Amp Rating 80 Watts x 4 Channels

FM tuner

European frequency range 87.5-108MHz

USA frequency range 87.5-107.9MHz

Signal/Noisse ratio 55dB

Stereo separation 30dB

Search station volt 20-30dBuv

Distortion rate 1.5%

AM tuner

European frequency range 522-1620KHz

USA frequency range 530-1710KHz

Limit noise sensitivity 32dB

DVD PLAYER

Signal/Noise ratio 70dB

Frequency response 20Hz-20KHz

24. ACCESSORY

Accessory	Quantity
User Manual	1PC
Wire	1PC
USB Cable	1PC
Keys	2PCS
Install metal bar	1PC
Remote controller	1PC
Warranty card	2PCS
