Brand	Hyundai
Model	H-VC1597
Product Type	Canister Vacuum Cleaner
Dimensions (L x W x H)	45 cm x 30 cm x 30 cm
Weight	5.2 kg
Power Rating	800 W
Voltage	220-240 V, 50/60 Hz
Dust Capacity	2.0 L
Filter Type	HEPA washable filter
Filtration Stages	3-stage filtration
Cord Length	5.0 m
Noise Level	78 dB(A)
Suction Power	200 Air Watts
Vacuum Attachments	Crevice tool, upholstery brush, floor nozzle
Hose Length	2.0 m telescopic tube
Variable Speed Control	Electronic slide control
Dust Bag Indicator	Full bag indicator light
Overheat Protection	Yes, auto shut-off
Housing Material	ABS plastic
Warranty	2 years

Frequently Asked Questions - H-VC1597 HYUNDAI

How do I clean the HEPA filter on the Hyundai H-VC1597?

The HEPA filter is washable. Remove the filter cover, take out the filter, and rinse it under lukewarm water. Let it dry completely for 24 hours before reinstalling. Do not use detergent or brush the filter.

What is the dust capacity of the H-VC1597?

The dust container has a capacity of 2.0 liters. It is recommended to empty it when it reaches the max line to maintain optimal performance.

Can I use the vacuum without the dust bag?

No, the H-VC1597 uses a cyclonic system and does not require dust bags. The dirt collects in a transparent container.

Why is the suction power weak?

Check for blockages in the hose, tube, or nozzle. Also ensure the filter is clean and the dust container is not full. Empty and clean as needed.

How do I replace the exhaust filter?

Open the exhaust filter cover, remove the old filter, and insert a new one. The exhaust filter should be replaced every 6 months for best performance.

What attachments are included with the H-VC1597?

The vacuum comes with a crevice tool for tight spaces, an upholstery brush for furniture, and a floor nozzle for carpets and hard floors.

Is the vacuum suitable for pet hair?

Yes, the H-VC1597 has high suction power and a floor nozzle that works well on carpets and hard floors. The upholstery brush is also effective for removing pet hair from furniture.

Can I use an extension cord?

Yes, but ensure the extension cord has a minimum rating of 10 A and is fully unwound to prevent overheating. Do not exceed 15 meters.

How do I adjust the suction power?

Use the electronic slide control on the handle. Slide it to increase or decrease suction power according to the surface being cleaned.

What should I do if the vacuum overheats and shuts off?

Turn off the vacuum and unplug it. Check for blockages and ensure filters are clean. Let it cool for at least 30 minutes before restarting. The overheat protection will automatically reset.

USER MANUAL H-VC1597 HYUNDAI

БЫТОВОЙ ПЫЛЕСОС

VACL

Dear customer!

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Utilization of the product

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Please contact your local authorities for the correct method of disposal. By doing so, you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Important safeguards

When using this appliance, basic precautions should always be followed:

• Read this instruction manual carefully.
• Home use only. Do not use for industrial purposes.
• Before the first connecting of the appliance check that the voltage indicated on the rating label corresponds the mains voltage in your home.
• Unplug the appliance from the power supply, when not in use and before servicing.
• To reduce the risk of electric shock, do not use outdoors or on wet surfaces.
• To avoid damage of the flexible hose, do not fold or pull it strongly.
• Do not leave the vacuum cleaner, when plugged in.
• Keep away from children.
• Never switch off the appliance by pulling the cord.
• To avoid deforming of the plastic components of the appliance or fire accident, never put the appliance directly in sun shine or

near any heater or the like.

• Do not handle the plug by wet hands.
• Do not put any object into inlets. Do not use with inlet blocked. Keep free of dust, hair and anything that may reduce airflow.
• Be careful, when cleaning on stairs.
• Do not make attempts to repair the appliance, adjust or replace parts in the vacuum cleaner. When malfunctions happen, contact the authorized service center for examination, repair, electrical or mechanical adjustment.
• Do not let the cord hang over edges or touch hot surfaces.
• Before you start using the vacuum cleaner, please remove large or sharp objects from the floor in order to prevent the damage of the filter.

Never use the vacuum cleaner without the filters.

Description

General view

1. Dust bag compartment open handle
2. Hose inlet
3. Dust bag full indicator
4. Filter compartment
5. Handle
6. Wheel

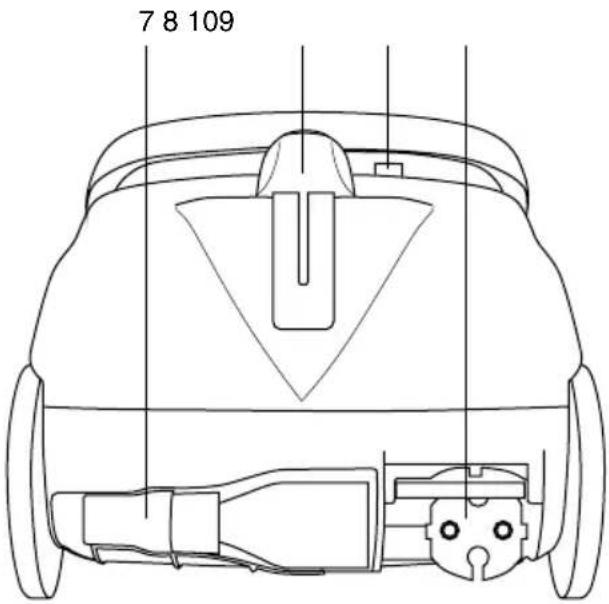

Back view

1. Attachments
2. On/Off button / Power regulator
3. Cord rewind button
4. Power cord

Assembling

Always remove the plug from the power supply before fitting or removing accessories.

Fitting flexible hose

- Insert the flexible hose into the air inlet and push down until it clicks.

Hose removing

- To remove the flexible hose from the vacuum cleaner, press the release button situated on the flexible hose base then pull to remove it from the air inlet.

Fitting metal tube and accessories

• Assemble the plastic tube from 2 pieces.
• Insert a flexible hose into the plastic tube.
  • Fit a nozzle to the metal tube:
• Universal floor brush is intended for cleaning bare floor and floor coverings.

- Furniture/ Crevice nozzle is for cleaning sofa, curtain or dust on the decorating surfaces, corners and between cushions.

Operation

- Before using the appliance, unwind a sufficient length of the cord and insert the plug into the power supply. The yellow mark on the cord shows the ideal cord length. Do not unwind the cord beyond the red mark.

- On the upper part of the body of the unit is placed the knob with 2 functions: switch on/off the power, adjust the power level

- Press this button to switch the unit on. To stop it press this button again.

- With the same knob you can also adjust the vacuum cleaner power.

- Turn the knob clockwise to increase the power, anticlockwise - to decrease it:

- decrease power for cleaning curtains, books, furniture, etc.

- increase power for cleaning bare floor.

- You can adjust the air flow using the air flow regulator on the flexible hose.

- On the back part of the upper body of the unit under the carrying handle is placed the

cord rewinder knob.

- To rewind the cord, push the carrying handle so that it presses this knob. Guide the cord with hand to ensure that it does not whip causing damage.

Care, cleaning and storage

• Switch off the appliance and pull out the plug from the power supply.
• Clean the outside of the appliance with a soft cloth with mild detergent. Harsh or abrasive detergent will damage the outside surface.
• Never immerse the appliance or cord into water and other liquids.

Cleaning dust bag

• Clean the cloth dust bag regularly to assure long life.
• Never use the appliance without the dust bag.
• Replace the dust bag once it is damaged.
• Switch off the appliance before cleaning the dust bag.
  • After removing the flexible hose, open a front cover, empty the dust bug and put it back.
• Close the front cover by pressing down until it clicks.

When the dust bag becomes full the mechanical indicator moves to the middle of the window. When it stops in the middle, please clean the dust bag without delay.

Cleaning motor filter and air filter

- Please clean the filters at least once a year. If you frequently use the appliance wash the motor filter and the air filter after 3-5 cleanings of the dust bag.

- Switch off the appliance and pull out the plug from the power supply.

- Open the dust bag compartment and pull out the motor filter established on the rear panel of the dust bag compartment.

- Wash the filter with warm water and dry in the sun.

• Put the filter back.
• For cleaning the air filter open the grill established on the rear part of the vacuum cleaner.
  • Take out the air filter and wash it with warm water. Dry it in the sun.

- Never use the appliance without filters.

- Do not use a washing machine to rinse filters. Do not use a hair drier to dry them.

Storage

• Switch the appliance off.
• Remove the mains plug from the wall
• Rewind the mains cord by pressing the cord rewind button.

socket.

Accessories

1. Vacuum cleaner 1 pc
2. Hose 1 pc
3. 2-piece plastic tube 1 pc
4. Universal floor brush 1 pc
5. Furniture/crevice nozzle 1 pc
6. Instruction manual 1 pc
7. Warranty card 1 pc
8. Consumer information 1 pc

Specifications

Power supply 220 V, 50 Hz
Power 1200 W max
Net weight 4 kg
Suction power 200 - 250 W
Dust collector volume 1.5 L
Unit dimension 300 mm x 210 mm x 180 mm
Gift box dimension	360 mm x 222 mm x 232 mm

Specifications are subject to change without notice. Dimensions are approximate.
