ErgoReach EP10 - Flat Screen Mount Rocstor - Free user manual and instructions

Product Type	Flat Panel Monitor Mount
Brand	Rocstor
Model	ErgoReach EP10
Mounting Standard	VESA 75x75 mm / 100x100 mm
Weight Capacity	8 kg (17.6 lbs)
Screen Size Compatibility	13 to 27 inches
Tilt Range	-5° to +15°
Swivel Range	±90°
Rotation	360° (landscape/portrait)
Height Adjustment	Yes, via gas spring arm
Arm Extension	Up to 500 mm from wall
Cable Management	Integrated cable routing channels
Material	Steel and aluminum alloy
Surface Finish	Powder coated black
Installation Options	Desk clamp or grommet mount
Clamp Thickness Range	10 to 80 mm
Grommet Hole Diameter	10 to 50 mm
Product Dimensions (WxHxD)	100 x 400 x 500 mm
Net Weight	2.5 kg
Warranty	2 years

Frequently Asked Questions - ErgoReach EP10 Rocstor

What is the VESA compatibility of the ErgoReach EP10?

The mount supports VESA 75x75 mm and 100x100 mm patterns, covering most monitors 13 to 27 inches.

What is the maximum weight capacity?

The maximum weight capacity is 8 kg (17.6 lbs). Ensure your monitor does not exceed this limit.

Does the mount offer height adjustment?

Yes, the gas spring arm allows continuous height adjustment along the vertical range.

Can I tilt the monitor?

Yes, you can tilt the monitor -5° forward and +15° backward for optimal viewing angle.

Does the mount allow swiveling?

Yes, the mount provides ±90° swivel left and right to share your screen.

How do I install the ErgoReach EP10?

It can be installed using either a desk clamp or a grommet mount. Both methods are included in the package. Follow the manual for step-by-step instructions.

Can I use this mount with a curved monitor?

Yes, as long as the monitor has a flat VESA mounting surface and weighs within the limit (8 kg). Curved monitors with standard VESA are compatible.

Does the mount include cable management?

Yes, the arm features integrated cable routing channels to keep wires organized and out of sight.

What is the desk thickness requirement for clamp installation?

The desk clamp fits desks with thickness 10 to 80 mm. For grommet mount, the hole diameter should be 10 to 50 mm.

Is the mount compatible with portrait orientation?

Yes, the mount allows 360° rotation, so you can easily switch between landscape and portrait modes.

USER MANUAL ErgoReach EP10 Rocstor

Technical line drawing of a mechanical device with a vertical post and base mount (no text or symbols)

User Manual

Y10N016-S1

Package Content

x1A	x1B	x1C
x1D	x1E	M6x12 - x3F
4mm - x1G	6mm - x1H

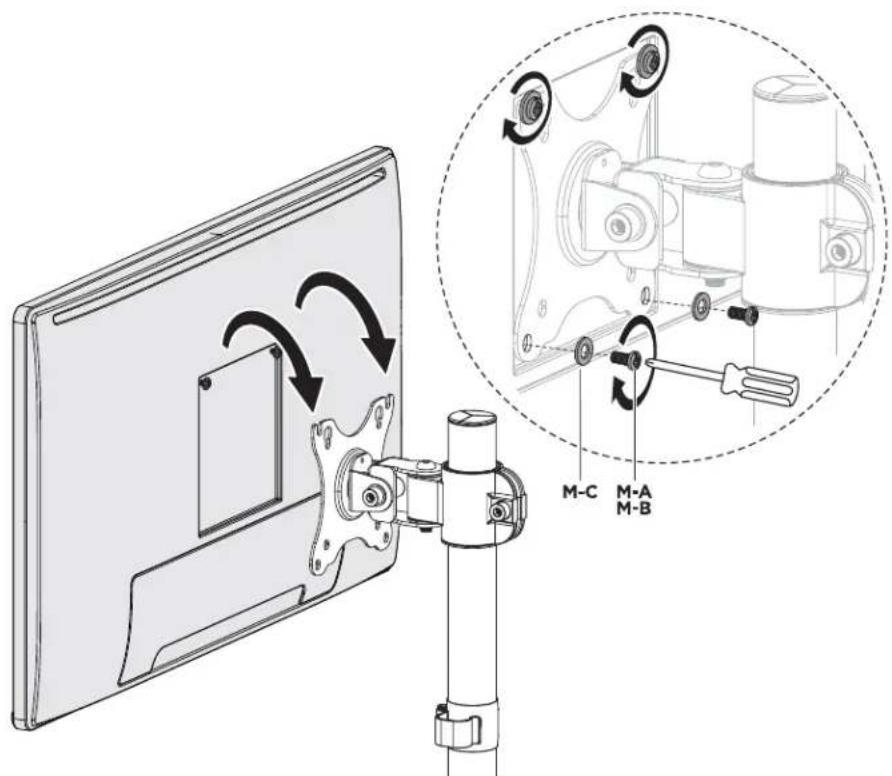

M4x12 - x4M-A	M5x12 - x4M-B	D5 - x4M-C

1

2

3

4

5

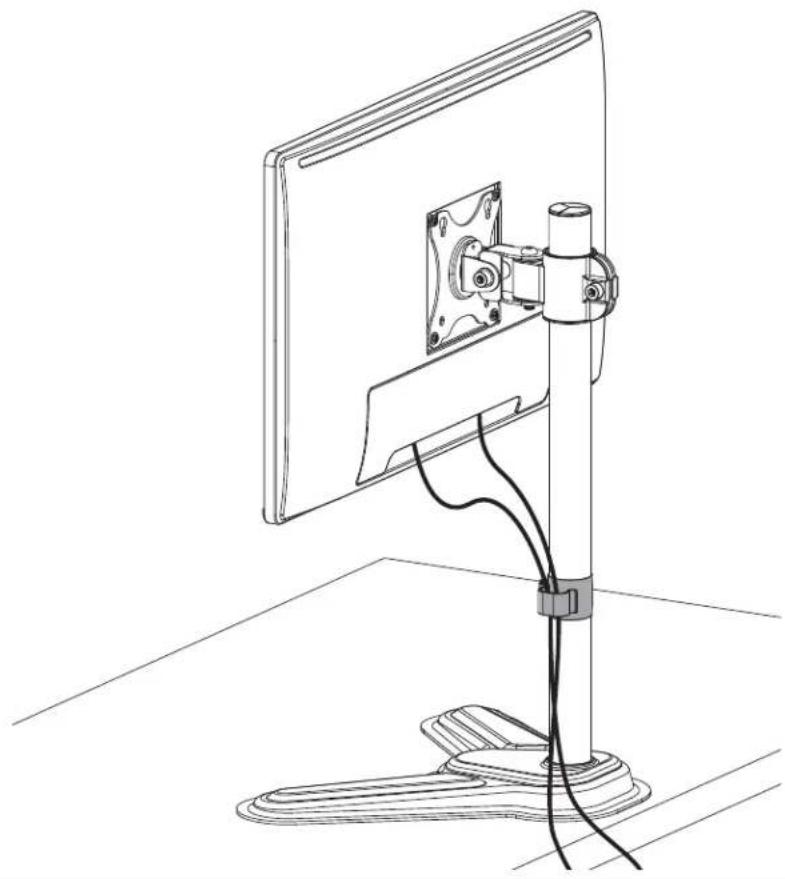

Line drawing of a desktop monitor mounted on a stand with cable and connectors, no text or symbols present

6

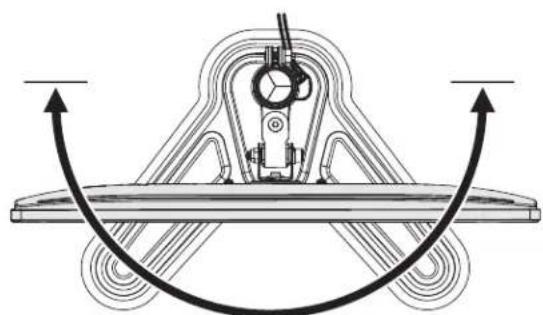

CAUTION:

DO NOT rotate monitor arms rear edge of desk to avoid an unstable situation may cause tipping.

Mechanical diagram showing a rotating assembly with curved arrows indicating motion (no text or symbols)

7

Technical line drawing of a mechanical assembly with a rotating shaft and housing (no text or symbols)

Note: If the display does not stop at your desired position, tighten the screw as shown.

Illustration of a hand pressing down on a tablet screen with a curved arrow indicating rotation (no text or symbols)

Illustration of a hand holding a tablet with an arrow indicating rotation (no text or symbols)

Simple line drawing of a hand pressing a circular arrow on a rectangular frame (no text or symbols)

Mechanical assembly diagram showing a pipe fitting with a directional arrow indicating motion (no text or symbols present)

Safety Seguridad Sécurité Sicurezza Sicherheit Veiligheid

EN

WARNING: Given the potential variability of mounting surface materials, it is crucial to verify that the mounting surface is sufficiently robust to support the installed product and equipment.

ES ¡Advertencia: Dada la posible variabilidad de los materiales de la superficie de montaje, es fundamental verificar que la superficie de montaje sea lo suficientemente resistente para soportar el producto y el equipo instalados.
FR Avertissement : En raison de la variabilité potentielle des matériaux de surface de montage, il est impératif de vérifier que la surface de montage est suffisamment solide pour supporter le produit et l'équipement installés.
DE Warnung: Aufgrund der möglichen Unterschiede in den Materialien der Montageoberfläche ist es unerlässlich zu überprüfen, ob die Montagefläche ausreichend stabil ist, um das installierte Produkt und die Ausrüstung zu tragen.
JA 警告: 取り付け面材料の変動が広範囲にわたる可能性があるため、取り付けられた製品と機器をサポートできるだけの十分な強度があるかどうかを確認することが極めて重要です。
ZH **警告：**由于安装表面材料可能存在广泛差异，务必验证安装表面足够坚固，以支撑安装的产品和设备。
NL Waarschuwing: Gezien de potentiële variabiliteit van de materialen van het montagesoppervlak, is het van cruciaal belang om te controleren of het montagesoppervlak voldoende sterk is om het geïnstalleerde product en de apparatuur te ondersteunen.
IT Avvertenza: Date le potenziali variazioni dei materiali della superficie di montaggio, è cruciale verificare che la superficie di montaggio sia sufficientemente robusta per sostenere il prodotto e l'attrezzatura installati. Turkish (TR):
TR Uyarı: Montaj yüzey malzemelerinin geniş bir şekilde değişebileceği göz önüne alındığında, montaj yüzeyinin monte edilen ürünü ve ekipmanı taşımak için yeterince güçlü olduğunu doğrulamanız gerekmektedir.

Safety Seguridad Sécurité Sicurezza Sicherheit Veiligheid

EN

WARNING! Stored Energy Risk. The arm mechanism is under tension and will autonomously elevate when attached equipment is detached. Consequently, NEVER disengage equipment unless the arm has reached its utmost position! Neglecting this directive could lead to severe personal injury and/or equipment damage.

CAUTION: Ensure that the bolt is perfectly centered in the hole. To securely attach the arm and prevent equipment damage, the plate must make contact with the underside of the desk on both sides of the hole.

Note: For support and warranty information, when contacting Rocstor customer service, please reference the serial number.

ES Nota: Para obtener información de soporte y garantía, al contactar con el servicio de atención al cliente de Rocstor, por favor, mencione el número de serie.
FR Note: Pour obtenir des informations sur le support et la garantie, lors de la prise de contact avec le service client de Rocstor, veuillez mentionner le numéro de série.
DE Hinweis: Für Informationen zum Support und zur Garantie, geben Sie bitte bei der Kontaktaufnahme mit dem Rocstor-Kundenservice die Seriennummer an.
JA 注意: サポートおよび保証情報については、Rocstorカスタマーサービスに連絡する際に、シリアル番号をご参照ください。
ZH **注意：**如需支持和保修信息，请在联系Rocstor客户服务时提供序列号。
NL Let op: Voor ondersteuning en garantie-informatie, vermeld bij contact met de klantenservice van Rocstor alstublieft het serienummer.
IT Nota: Per informazioni sul supporto e sulla garanzia, quando contattate il servizio clienti Rocstor, vi preghiamo di fare riferimento al numero di serie.
TR Not: Destek ve garanti bilgileri için Rocstor müşteri hizmetleriyle iletişime geçerken lütfen seri numarasını belirtiniz.

Mechanical device with attached vertical pole and base, shown with magnified inset showing internal component detail (no text or symbols)

Five-Year Factory Warranty

Rocstor provides a Limited Factory Warranty which applies to products you have purchased for commercial Household use in the ordinary course of your business.

Terms of warranty

Rocstor warrants its ErgoReach and ErgoCenter product series to be free from defects in materials and workmanship for a period of five years from the date of purchase. Rocstor's obligation under this warranty coverage is limited to repairing or replacing, at its sole discretion, any such defective products. This warranty does not apply to equipment that has been damaged by accident, negligence, or misapplication or has been altered or modified in any way. In the event Rocstor repairs or provide a replacement of a defective product or part, the warranty does not extend the original warranty period. Rocstor reserves the right to repair or replace any parts under warranty as new or factory re manufactured.

Non-transferable warranty

This warranty extends only to the original purchaser who must have properly registered the product. The product may be registered at the Rocstor Web site, https://rocstor.com/customer-support/warranty registration.

Exclusions

If Rocstor tests or examines the alleged defect in the product and finds that the damages or defects do not exist or were caused by a third party or an end user's misuse, improper installation or testing, or negligence, then Rocstor shall not be liable under the warranty. Furthermore, unauthorized attempts to repair or modify the product by wrong or inadequate electrical connection or voltage, inadequate or inappropriate site operation conditions, repair, installation corrosive area or atmosphere, a change in location or operating conditions or use, repair by non-Rocstor designated personnel, exposure to the elements, fire, Acts of God, theft, or equipment installation not recommended or contrary to Rocstor's specifications or recommendations. Warranties will be void and Rocstor will not be liable if the product serial number is tampered with, altered, removed, defaced or any other cause beyond the range of intended use.

Contact Information

Corporate Headquarters

12979 Arroyo Ave

San Fernando, CA 91340 - USA

Office: [phone]

Email: [e-mail]

Technical Support / RMA

Hours: 9:00 am - 5:00 pm PST

Mon - Fri (excluding holidays)

Tell: [phone] (Domestic and Internationals)

Email: [e-mail]

Sales Info

Hours: 8:00 am - 5:00 pm PST

Mon - Fri (excluding holidays)

Tell: [phone] (Domestic and Internationals)

Email: [e-mail]

Corporate, Government and Academic Customers

Our Corporate Sales Team's goal is to help our U.S.A. and Canadian customers find a storage solution that best serves their needs. We will help you determine your best purchasing options. For more information please contact the appropriate department below or call us at [phone].

General sales information: [e-mail]

Corporate sales information: [e-mail]

Educational sales information: [e-mail]

Federal, State & Local government sales information: [e-mail]

Resellers/Business Development/OEM Partners

All Channel National and International Resellers, VARs, Consultants ...

contact Rocstor Channel Sales: call: [phone]

Email: [e-mail]

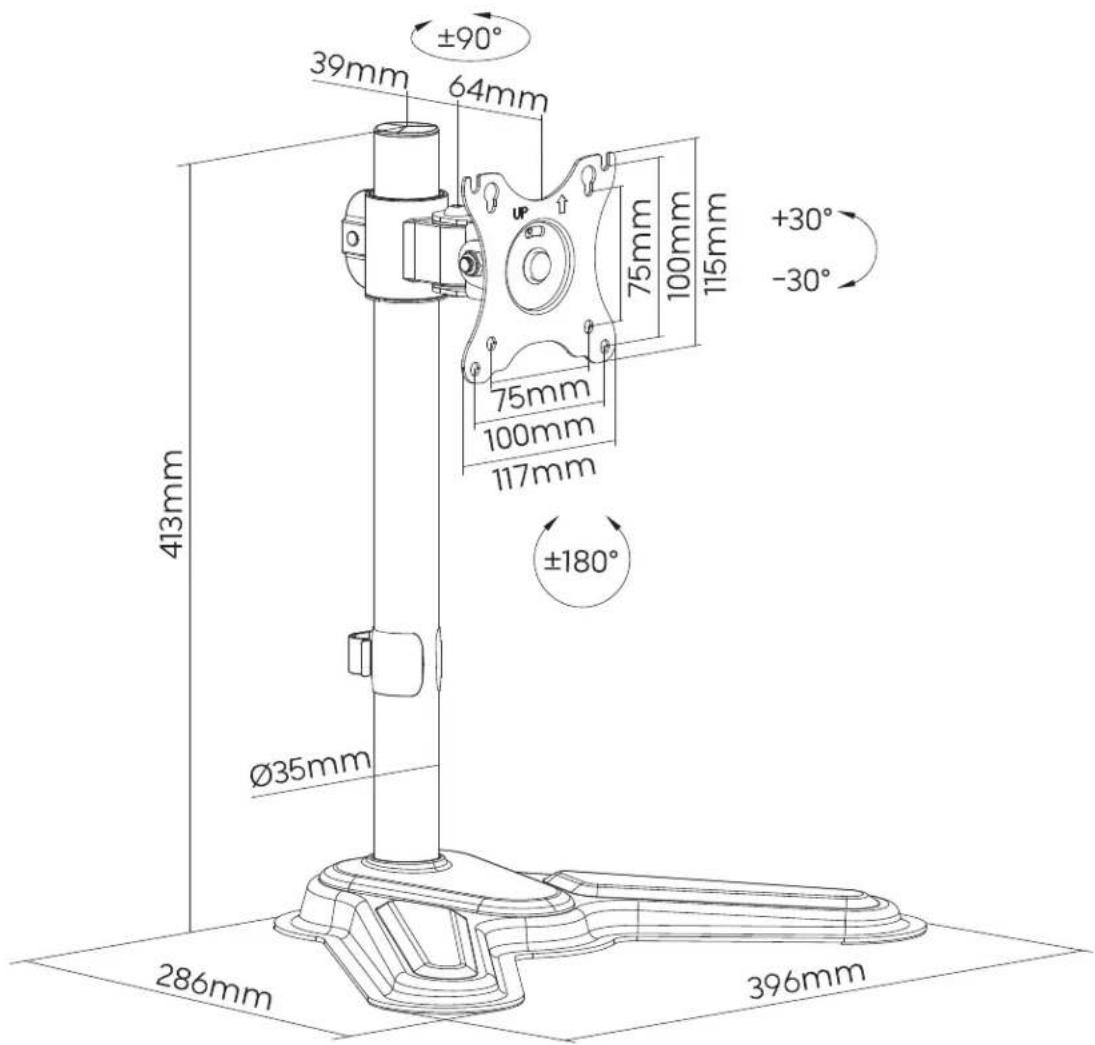

Dimensions (mm)
