WSIWP1 - Wall socket SANUS - Free user manual and instructions

Product Type	Wall Socket (Power & Cable Management)
Brand	Sanus
Model	WSIWP1
Color	White
Material	Flame-retardant plastic
Input Voltage	100-240V AC, 50/60Hz
Max Current	10A
Max Power	1500W
Number of Outlets	1 (grounded)
Cable Pass-Through	Yes, with grommet
Dimensions (W x H x D)	4.53 x 4.53 x 2.17 inches
Weight	0.5 lbs
Installation Type	Flush mount in standard drywall
Compatibility	For use with Sanus wall mounts
Safety Features	Safety shutter, overload protection
Certifications	ETL/UL listed
Included Accessories	Wall socket, mounting screws, installation guide
Warranty	5 years
Maintenance	Wipe with dry cloth; no solvents

Frequently Asked Questions - WSIWP1 SANUS

How do I install the Sanus WSIWP1 wall socket?

Installation requires cutting a standard drywall opening (approx. 4.5x4.5 inches), running electrical cable, and securing the socket with included screws. For safety, turn off power at the breaker and consult a qualified electrician if unsure.

What tools are needed for installation?

You will need a drywall saw, wire strippers, screwdriver, voltage tester, and possibly a stud finder. The socket comes with screws but no power cable.

Is the WSIWP1 compatible with any TV mount?

Yes, it is designed to work with most wall mounts, especially Sanus models. It provides a low-profile power outlet and cable pass-through behind the TV.

Is this wall socket UL listed?

Yes, the Sanus WSIWP1 is ETL/UL listed for safety and meets industry standards.

How do I clean the wall socket?

Clean with a dry cloth. Do not use water, solvents, or abrasive cleaners. Ensure power is off before cleaning.

What is the maximum electrical load?

The socket supports up to 1500W (10A at 150V) or standard household loads. Do not exceed this rating.

Does installation require an electrician?

If you are comfortable with basic electrical work and local codes, you can DIY. However, we recommend hiring a licensed electrician for safety.

Can the WSIWP1 be used in a bathroom or outdoor?

No, it is only for indoor dry locations. For wet/damp areas, use a GFCI-rated outlet.

What is the warranty period?

Sanus offers a 5-year warranty against defects in materials and workmanship.

How many cables can pass through the grommet?

The pass-through accommodates up to 4 cables (e.g., HDMI, power, audio) depending on thickness.

USER MANUAL WSIWP1 SANUS

We'll Make It Stress-Free

If you have any questions along the way, just give us a call.

800-359-5520 or, chat at SANUS.com/chatSP

We're ready to help!

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ ENTIRE MANUAL PRIOR TO USE - SAVE THESE INSTRUCTIONS

Before getting started, let's make sure this product is perfect for you!

CAUTION: Avoid potential personal injuries and property damage!

• Please read through these instructions completely to be sure you're comfortable with this easy install process.
• Do not use this product for any purpose not explicitly specified by manufacturer.
  • Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
• If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service

WARNING: RISK OF FIRE AND SHOCK. Do not connect the modules or to any other circuits or outlets.
CAUTION: RISK OF FIRE AND SHOCK. ONLY intended for use on 15 ampere branch circuits.
CAUTION: RISK OF FIRE AND SHOCK. Do not install power supply cord to within wall cavity.

This product conforms to and should be properly grounded in compliance with requirements of the current National Electrical Code or codes administered by local authorities.

All electrical products may present a possible shock or fire hazard if improperly installed or used. This product may bear the mark of a Nationally Recognized Testing Laboratory and should be installed in conformance with current local and/or the National Electrical Code.

Supplied Parts

⚠ WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer, contact Customer Service. Never use damaged parts!

Included

Legrand AV Inc. and its affiliated corporations and subsidiaries (collectively, "Legrand"), intend to make this manual accurate and complete. However, Legrand makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Legrand makes no representation of warranty, expressed or implied, regarding the information contained herein. Legrand assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
GOOD Logrand AV Inc. All rights reserved. SANUS is a Logrand brand. SANUS and the SANUS logo are trademarks of Logrand.

Legrand AV INC. 6436 City West Parkway; Eden Prairie, MN 55344 USA

1025682 03'20

Tools Required

Tape Measure

Pencil Phillips Screw Electric Drill

Surfaces are paintable to match your decor

① Verify Wall Compatibility

① Verify Speaker Plug Fit

BEFORE DRILLING ANY HOLES:

Make sure your speaker plug fits in

the upper module 01

STEP 1

STEP 3 STEP 4STEP 2

Insert Modules in Wall Secure Modules


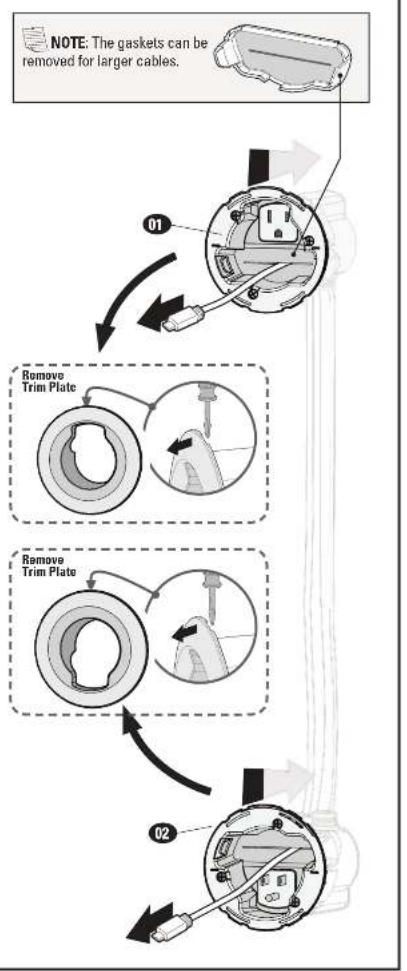

    A["NOTE: The gaskets can be removed for larger cables."] --> B["01"]
    B --> C["Remove Trim Plate"]
    C --> D["02"]
    D --> E["Remove Trim Plate"]
