| Product Type | Powered Subwoofer |
| Brand | Pyle |
| Model | PW15SUBA |
| Speaker Size | 15 inches |
| Amplifier Power (Peak) | 1000 Watts |
| Amplifier Power (RMS) | 500 Watts |
| Frequency Response | 20 Hz - 200 Hz |
| Impedance | 4 Ohms |
| Inputs | RCA Line Level Inputs |
| Outputs | Speaker Level Outputs |
| Low-Pass Crossover | Variable 40 Hz - 200 Hz |
| Phase Control | 0/180 Degrees |
| Enclosure Type | Ported (Bass Reflex) |
| Dimensions (W x H x D) | 18.5 x 18.5 x 18.5 inches |
| Weight | 41.5 lbs |
| Power Supply | AC 110-240V, 50/60 Hz |
| Protection Features | Short Circuit, Thermal Overload |
| Cabinet Material | MDF (Medium Density Fiberboard) |
| Finish | Black Carpet |
| Auto On/Off | Yes |
| Bass Boost | Yes (Variable) |
| Cleaning Instructions | Wipe with a dry, soft cloth |
| Safety Precautions | Do not expose to moisture; ensure proper ventilation |
| Spare Parts Availability | Fuse (internal, not user-replaceable) |
| Repairability | No user-serviceable parts; contact qualified personnel |
Frequently Asked Questions - PW15SUBA Pyle
How do I connect the subwoofer to my receiver?
Use an RCA cable from the subwoofer output on your receiver to the LFE (Low Frequency Effects) input on the subwoofer. If your receiver lacks a sub out, use a Y-splitter from the preamp outputs.
What is the recommended placement for best bass?
Place the subwoofer in a corner or along a wall to maximize bass output. Avoid placing it in the center of the room. Experiment with placement for optimal room acoustics.
Why is there no sound from the subwoofer?
Check that the subwoofer is powered on, the volume is turned up, and all cables are securely connected. Ensure the receiver's subwoofer output is enabled. Also verify the phase switch is set correctly.
How do I set the crossover frequency?
For home theater, set the low-pass crossover to 80 Hz as a starting point. Adjust based on your main speakers' capabilities. Turn the crossover control to match your system.
What does the phase switch do?
The phase switch (0 or 180 degrees) adjusts the timing of the subwoofer's output to align with your main speakers. Use the setting that produces the fullest bass at your listening position.
Can I use this subwoofer in a car?
This subwoofer is designed for home AC power. For car use, you would need a DC-to-AC power inverter (110V). However, it is not recommended due to size and power consumption.
How should I clean the subwoofer?
Unplug the subwoofer and wipe the exterior with a dry, soft cloth. Do not use liquid cleaners or abrasives. Avoid getting moisture near the amplifier plate.
Is the subwoofer magnetically shielded?
This subwoofer is typically not magnetically shielded. If placed near a CRT TV or sensitive equipment, maintain a distance of at least 2 feet to avoid interference.
What is the warranty period?
Pyle typically offers a 1-year limited warranty against defects in materials and workmanship. Keep your receipt for warranty service.
How do I dispose of this subwoofer?
Do not dispose of electronic waste in household trash. Take it to a local e-waste recycling center or follow your municipality's guidelines for electronic disposal.
User questions about PW15SUBA Pyle
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Subwoofer in PDF format for free! Find your manual PW15SUBA - Pyle and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PW15SUBA by Pyle.
USER MANUAL PW15SUBA Pyle
Questions? Comments?
We are here to help!
Phone: (1) 718-535-1800
Email: support@pyleusa.com
PYLE®
PyleUSA.com
with Professional Design
USER GUIDE
PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION
PW12SUBA
12" 1600W Active Powered Subwoofer Box System with Professional Design
Features:
- DSP Digital Signal Processor with Boost for Extended Low-Frequency Control
• Power-On and Signal Input LED Indicators
• Signal Input LED Indicator - Clip Limiter Circuitry with LED Indicator
• Balanced XLR + TRS Input Jacks
• Balanced XLR Thru Output Jacks for Parallel Connections
• Passive Heat Sink with Fan for Cooling - Subwoofer Crossover 80Hz/100hz/120HZ Low Pass
- Subwoofer Level Adjustment
- Subwoofer Phase Control
• Built-in Pole Mount Socket
• Built-in Carrying Handles - Custom Metal Grill
- Wooden Subwoofer
- Power Cable
Technical Specs:
- Construction Materials: Wooden Painted Enclosure with MDF Board
• Power Supply: 400 Watts RMS / 800 Watts Program / 1600 Watts Peak Power - Woofer: 12"
- Magnet: 70oz
- Voice Coil: 3"
• Frequency Response: (+/-3dB) 48Hz - 200Hz
• Maximum SPL: 127dB Peak / 124dB Continuous
• Product Dimensions: 13.78" x 20.87" x 20.47"-inches
PW15SUBA
15" 3000W Active Powered Subwoofer Box System with Professional Design
Features:
- DSP Digital Signal Processor with Boost for Extended Low-Frequency Control
• Power-On and Signal Input LED Indicators
• Signal Input LED Indicator - Clip Limiter Circuitry with LED Indicator
• Balanced XLR + TRS Input Jacks
• Balanced XLR Thru Output Jacks for Parallel Connections
• Passive Heat Sink with Fan for Cooling - Subwoofer Crossover 80Hz/100hz/120HZ Low Pass
- Subwoofer Level Adjustment
- Subwoofer Phase Control
• Built-in Pole Mount Socket
• Built-in Carrying Handles - Custom Metal Grill
What's in the Box:
- Wooden Subwoofer
- Power Cable
• Construction Materials: Wooden Painted Enclosure with MDF Board
• Power Supply: 750 Watts RMS / 1500 Watts Program / 3000 Watts Peak Power
- Woofer: 15"
- Magnet: 126oz
- Voice Coil: 4"
• Frequency Response: +/-3dB) 45Hz - 200Hz
• Maximum SPL: 128dB Peak / 125dB Continuous
• Product Dimensions: 23.23" x 19.69" x 21.65" -inches
PW18SUBA
18" 3000W Active Powered Subwoofer Box System with Professional Design
Features:
- DSP Digital Signal Processor with Boost for Extended Low-Frequency Control
• Power-On and Signal Input LED Indicators
• Signal Input LED Indicator - Clip Limiter Circuitry with LED Indicator
• Balanced XLR + TRS Input Jacks
• Balanced XLR Thru Output Jacks for Parallel Connections
• Passive Heat Sink with Fan for Cooling - Subwoofer Crossover 80Hz/100hz/120HZ Low Pass
- Subwoofer Level Adjustment
- Subwoofer Phase Control
• Built-in Pole Mount Socket
• Built-in Carrying Handles - Custom Metal Grill
What's in the Box:
- Wooden Subwoofer
- Power Cable
Technical Specs:
- Construction Materials: Wooden Painted Enclosure with MDF Board
• Power Supply: 750 Watts RMS / 1500 Watts Program / 3000 Watts Peak Power - Woofer: 18"
- Magnet: 126oz
- Voice Coil: 4"
• Frequency Response: +/-3dB) 40Hz - 200Hz
• Maximum SPL: 131dB Peak / 128dB Continuous
• Product Dimensions: 20.87" x 25.98" x 24.21"-inches


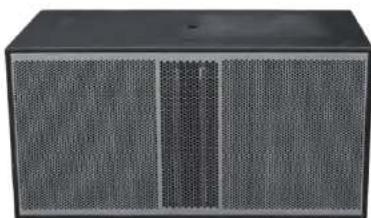

Black rectangular electronic device with textured back panel and vertical side stripe (no visible text or symbols)PW218SUBA
2x18" 3000W Active Powered Subwoofer Box System with Professional Design
Features:
- DSP Digital Signal Processor with Boost for Extended Low-Frequency Control
• Power-On and Signal Input LED Indicators
• Signal Input LED Indicator - Clip Limiter Circuitry with LED Indicator
• Balanced XLR + TRS Input Jacks
• Balanced XLR Thru Output Jacks for Parallel Connections
• Passive Heat Sink with Fan for Cooling - Subwoofer Crossover 80Hz/100hz/120HZ Low Pass
- Subwoofer Level Adjustment
- Subwoofer Phase Control
• Built-in Pole Mount Socket
• Built-in Carrying Handles - Custom Metal Grill
What's in the Box:
- Wooden Subwoofer
- Power Cable
Technical Specs:
- Construction Materials: Wooden Painted Enclosure with MDF Board
• Power Supply: 750 Watts RMS / 1500 Watts Program / 3000 Watts Peak Power - Woofer: 2x18"
- Magnet: 90 oz
- Voice Coil: 3"
• Frequency Response: +/-3dB) 35 Hz - 200Hz
• Maximum SPL: 134dB Peak / 131dB Continuous
• Product Dimensions: 255.91" x 236.22" x 47.24"-inches

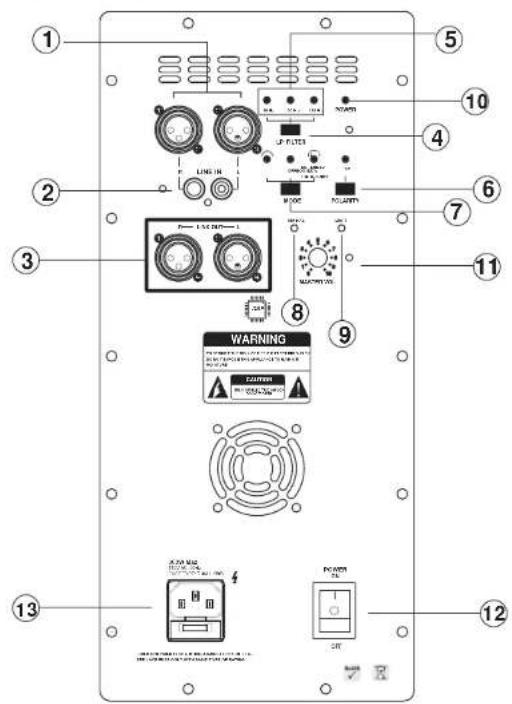

Control Panel Layout
PW12SUBA
- Combo XLR socket Inputs
- Line Inputs
- XLR Line out socket
- LP filter switch
- LP Indicator
LP Indicator for 80Hz/100Hz/120Hz
- Phase Indicator: When light is off,
it indicates that the phase is through
- Model Sheft of LP extend/Through/Bass indicator: indicated by three different LED light.
- Signal LED indicator
- Limit LED indicator
- Power LED indicator
- Volume Control
- Power Switch
- Fused LEC mains inlet
PW15SUBA/PW18SUBA/PW218SUBA
California Prop 65 Warning
WARNING:
This product contains Nickel carbonate which is known to the state of California to cause cancer birth defects and other reproductive harm. Do not ingest.
For more info go to: www.P65warnings.ca.gov
