BCPM-A2 - Headphones Polsen - Free user manual and instructions

Product Type	Over-ear headphones
Brand	Polsen
Model	BCPM-A2
Color	Black (typical)
Driver Size	40 mm
Frequency Response	20 Hz - 20 kHz
Impedance	32 Ω
Sensitivity	100 dB
Cable Length	1.2 m / 3.9 ft
Connector	3.5 mm jack
Weight	180 g / 6.3 oz
Dimensions (W x H x D)	7.5 x 6.5 x 3 in / 19 x 16.5 x 7.6 cm
Power Source	Wired (no battery required)
Controls	In-line volume control
Microphone	Built-in omnidirectional
Compatibility	Smartphones, tablets, PCs, audio devices with 3.5 mm jack
Noise Cancellation	Passive noise isolation
Ear Cushions	Soft leatherette
Headband	Adjustable padded
Foldable	Yes, for portability
Accessories Included	User manual, 3.5 mm audio cable
Warranty	1 year limited warranty
Maintenance	Clean with a soft dry cloth; avoid moisture
Safety	Do not use at high volume for extended periods to prevent hearing damage
Spare Parts	Ear pads and cables available separately

Frequently Asked Questions - BCPM-A2 Polsen

How do I connect the Polsen BCPM-A2 headphones to my device?

Plug the 3.5 mm audio jack into the headphone port of your device. Ensure the cable is fully inserted. The headphones do not require pairing or batteries.

Can I use these headphones with a PC?

Yes, as long as your PC has a 3.5 mm headphone jack. If your PC has separate audio and microphone jacks, you may need a splitter cable (not included) to use the microphone.

How do I clean the headphones?

Wipe the ear cups and headband with a soft, dry cloth. Do not use liquid cleaners or submerge the headphones in water. Remove ear pads gently for deeper cleaning if needed.

Are these headphones wireless?

No, the Polsen BCPM-A2 are wired headphones with a standard 3.5 mm audio cable. They do not have Bluetooth or wireless connectivity.

Do the headphones have a microphone?

Yes, they feature a built-in omnidirectional microphone located on the in-line control module. It is suitable for phone calls and voice commands.

What is the warranty period for these headphones?

The Polsen BCPM-A2 come with a 1-year limited warranty from the date of purchase. Please keep your receipt for warranty claims.

Can I replace the ear pads?

Yes, the ear pads are replaceable. You can purchase compatible replacement ear pads from Polsen or third-party sellers. Gently remove old pads and snap new ones into place.

Do these headphones have noise cancellation?

They offer passive noise isolation through the over-ear design and cushioned ear pads, which helps reduce ambient noise. They do not have active noise cancellation.

Are the headphones foldable for travel?

Yes, the Polsen BCPM-A2 headphones can be folded inward for compact storage. They are designed to be portable and easy to carry in a bag.

What should I do if there is no sound from one side?

Check that the audio cable is firmly connected to both the headphones and your device. Try another device to rule out source issues. If the problem persists, the cable may be damaged and need replacement.

USER MANUAL BCPM-A2 Polsen

The BCPM-1 and BCPM-A2 personal monitor amplifiers are ideal for musicians who stay in one spot while they perform, like keyboardists and drummers. These road-worthy yet lightweight monitors are hardwired to the audio source and will deliver the feed you need without excessive cabling or clutter. Your monitor control will be right at your belt when you need it.

The BCPM-1 is a passive monitor and requires no external power. Plug it in, and you're ready to go. Since it's a passive monitor, the BCPM-1 will deliver only the maximum volume that's being sent from the mixer. The BCPM-A2 is active and runs on two AAA batteries. It features a built-in amplifier for extra volume when it's needed.

PRECAUTIONS

• Please read and follow these instructions, and keep this manual in a safe place.
• Exposure to high sound levels can cause permanent hearing loss. Avoid listening at high volumes for extended periods of time.
• Clean this product with only a soft, dry cloth
• Make sure that this product is intact and that there are no missing parts.
• All images are for illustrative purposes only.

OVERVIEW

BCPM-1

1. Combo input jack
2. XLR release tab
3. Belt clip
4. 1/8 in. headphone output
5. Volume knob

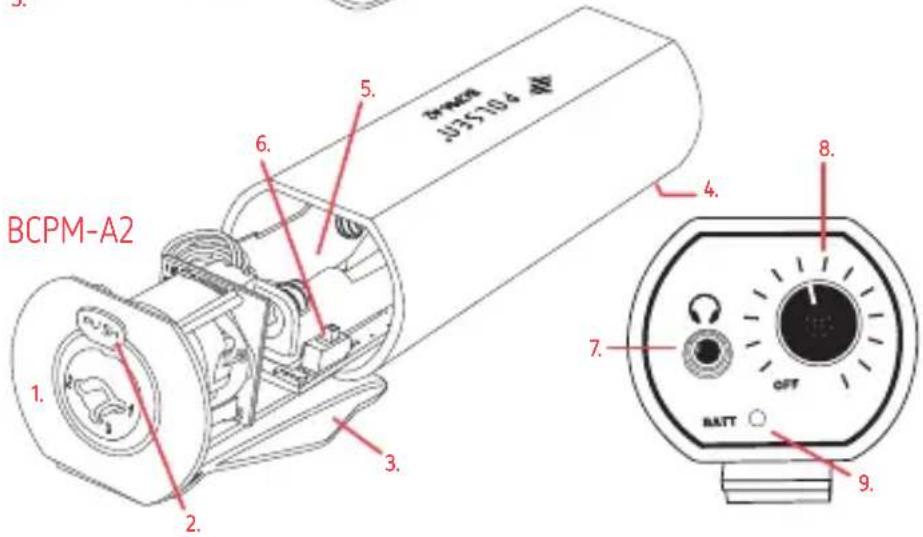

BCPM-A2

1. Combo input jack
2. XLR release tab
3. Belt clip
4. Battery compartment release
5. Battery compartment
6. Mono/stereo switch
7. 1/8 in. headphone output
8. On/off switch and volume knob
9. Power indicator LED

INSTALLING THE BATTERIES (BCPM-A2)

1. Press the battery compartment release, and push the top end of the unit to slide out the battery compartment.
2. Install two AAA batteries with the orientation indicated in the battery compartment.
3. Press the battery compartment back into the chassis until the battery release locks shut.

Hand holding a black handheld device with a red arrow pointing to the button (no visible text or symbols)

MONO OR STEREO SELECTOR (BCPM-A2)

Use the mono/stereo switch the signal you're receiving.

• If you're receiving a stereo signal from the mixer, select stereo.
• If you're receiving a mono track from the mixer, select mono.

Close-up of a mechanical component with a highlighted internal structure (no visible text or symbols)

Operating the BCPM-1 / BCPM-A2

Important! To avoid a sudden burst of sound, turn the volume all the way down, and then gradually increase it.

1. Connect the monitor to the mixer with a balanced cable that terminates in either a TRS 1/4 in. or XLR jack.
2. Plug headphones into the headphone output.
3. Turn on the unit. The green LED power indicator will glow when the unit is on. (BCPM-A2 only)
4. Use the volume knob to adjust the headphone volume.
5. Attach the monitor to your belt, or where it won't interfere with your performance.

SPECIFICATIONS

BCPM-1

Input Combo XLR and TRS 1/4 in. female

Output 1/8 in. (3.5 mm) TRS stereo female

Power Passive

Maximum Input Level +24 dBu

Minimum Input Level +24 dBu

Input Impedance 10 kΩ

Output Impedance 0.5 Ω

S/N Ratio >110 dB

Distortion (THD) <0.001%

Function Control Volume knob

Dimensions (H × W × L)

1.4 × 1.6 × 4 in. (3.5 × 4.1 × 10.2 ~cm)

Weight 5.4 oz. (153 g)

BCPM-A2

Input Combo XLR and TRS 1/4 in. female

Output 1/8 in. (3.5 mm) TRS stereo female

Power AAA batteries (×2)

Maximum Input Level Balanced: 0 dBu / Unbalanced: +24 dBu

Minimum Input Level +8.5 dBu

Input Impedance XLR: 40 kΩ / 1/4 in.: 10 kΩ

Output Impedance 0.5 Ω

S/N Ratio >95 dB

Distortion (THD) <0.005%

Function Control Volume knob / Power switch

Stereo/mono selector

Dimensions (H × W × L) 1.6 × 1.4 × 5.25 in. (4.1 × 3.6 × 13.3 cm)

Weight 6.8 oz. (194 g) without batteries

ONE-YEAR LIMITED WARRANTY

This Polsen product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Polsen Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Polsen along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information or to arrange service, visit www.polsenaudio.com or call Customer Service at 212-594-2353.

Product warranty provided by the Gradus Group.

www.gradusgroup.com

Polsen is a registered trademark of the Gradus Group. © 2019 Gradus Group LLC. All Rights Reserved
