F48 1030 B - Dishwasher Hiberg - Free user manual and instructions

Product Type	Freestanding Dishwasher
Brand	Hiberg
Model	F48 1030 B
Dimensions (H x W x D)	85 x 60 x 60 cm
Weight	50 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption	2000 W
Energy Efficiency Class	A++
Place Settings	14
Noise Level	49 dB(A)
Number of Programs	6
Programs	Eco, Intensive, Normal, Quick, Glass, Soak
Delay Start	Yes, up to 24 hours
Half Load Function	Yes
Interior Material	Stainless Steel
Child Lock	Yes
Water Leak Protection	Yes (AquaStop)
Water Consumption	10 L per cycle
Drying System	Condensation drying
Filter Type	Self-cleaning mesh filter
Salt and Rinse Aid Indicator	Yes
Spare Parts Availability	Yes, via Hiberg service
Recommended Descaling Interval	Every 3 months

Frequently Asked Questions - F48 1030 B Hiberg

How do I install the Hiberg F48 1030 B dishwasher?

Ensure the dishwasher is level and connected to a cold water supply. The drain hose must be properly secured to avoid leaks. Refer to the installation diagram in the manual for exact dimensions.

What should I do if the dishwasher doesn't start?

Check the power cord and fuse. Ensure the door is fully closed and latched. Verify that the water supply is turned on. If the issue persists, consult the error code section.

How often should I clean the filter?

The filter should be cleaned after every 2-3 cycles. Remove the lower rack and twist the filter assembly to access it. Rinse under running water and replace securely.

What detergents should I use?

Use a dishwasher detergent (powder, gel, or tablet) designed for automatic dishwashers. Always add rinse aid for better drying results. Avoid hand dishwashing liquid.

How do I add salt and rinse aid?

Locate the salt reservoir at the bottom of the dishwasher and fill with dishwasher salt. The rinse aid dispenser is inside the door, near the detergent compartment. Adjust the dosage according to water hardness.

What does the error code E1 mean?

Error E1 indicates a water supply issue. Check that the water tap is fully open and the inlet hose is not kinked. Also inspect the filter in the inlet hose for blockages.

Can I wash pots and pans with burnt food?

Yes, select the Intensive program which uses a higher temperature and longer wash cycle. Pre-soaking heavily soiled items is recommended for best results.

How do I descale the dishwasher?

Use a descaling agent specifically for dishwashers. Run an empty cycle on the highest temperature setting (e.g., Intensive) with the descaling product in the detergent compartment. Repeat every 3 months.

Is there a child lock feature?

Yes, the Hiberg F48 1030 B has a child lock. To activate, press and hold the Start/Reset button for 3 seconds until the indicator lights. Repeat to deactivate.

Why is the dishwasher not drying dishes properly?

Ensure the rinse aid reservoir is filled and the dosage is set correctly. Use a drying aid if needed. Also, check that the final rinse temperature is adequate and the load is not overcrowded.

USER MANUAL F48 1030 B Hiberg

Diagram of a medical or laboratory setup with coiled tubing and labeled components (no readable text or symbols)

Close-up of a mechanical component with a circular arrow indicating rotation (no visible text or symbols)

Рис. 1

Hand holding a small object with a white label, next to a dark gray device with a white cross symbol (no readable text or symbols)

Рис. 2

Person holding a device in front of a wall with ventilation grilles (no visible text or symbols)

Рис. 2

Blurred grayscale image of a person standing near a wall with a door (no visible text or symbols)

Рис. 3

Close-up of a hand holding a small electronic device with ventilation grilles (no visible text or symbols)

Рис. 4

Close-up of a kitchen appliance with a plastic tray, handle, and control knob (no visible text or symbols)

Рис. 2

Рис. 3

3D diagram of a mechanical component with green and white parts, no visible text or symbols

Illustration of kitchen utensils including a pot, pan, and lid arranged in a wire rack (no text or symbols)

Two-panel photo showing hands assembling a mechanical component, labeled A and B (no visible text or symbols)

Рис. 3-4

Technical line drawings of industrial piping and valves in a structural framework (no text or symbols)

Рис. 5-6

Hand holding a bundle of rods, no text or symbols visible

Рис. 7

Architectural floor plan showing grid layout and structural elements (no text or labels)

3D rendered diagram of a mechanical component with a circular arrow indicating rotation (no text or symbols)

3D diagram of a device casing with internal components and an arrow indicating direction (no text or symbols)

Pure technical diagram showing a mechanical or structural component with no text, numbers, or symbols

Hand holding a pipe fitting with a handle (no text or symbols visible)

Exterior view of a metal grate with grid pattern (no text or symbols)

Способ 1

Exterior view of a blue industrial machine with metal grid and control panel (no visible text or symbols)

3D rendering of a mechanical component with grid structure and mounting brackets (no visible text or symbols)

Способ 2

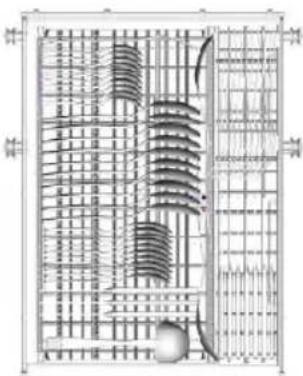

ЗАГРУЗКА КОРЗИН *

Manufacturer: Foshan Shunde Midea Washing Appliances MFG Co., LTD.

Address: N°20 Gangqian road, Beijiao, Shunde District, Foshan, Guangdong, PRC
