F48 1030 W - Dishwasher Hiberg - Free user manual and instructions

Product Type	Freestanding Dishwasher
Brand	Hiberg
Model	F48 1030 W
Dimensions (H x W x D)	85 cm x 60 cm x 60 cm
Weight	Approx. 50 kg
Place Settings	13
Energy Class	E (EU energy label)
Annual Energy Consumption	290 kWh/annum
Noise Level	49 dB(A)
Power Supply	230 V, 50 Hz, 10 A
Water Connection	Cold water only
Number of Programs	6 (Eco, Intensive, Normal, Quick, Rinse, Soak)
Key Features	Adjustable upper basket, Delay start, Salt and rinse aid indicator
Control Type	Electronic push buttons with LED display
Interior Material	Stainless steel
Drying System	Condensation drying
Safety Features	Child lock, AquaStop, overflow protection
Spare Parts Availability	At least 7 years after end of production
Repairability Index	8.2/10 (France)
Maintenance	Clean filters regularly, descale every 3-6 months

Frequently Asked Questions - F48 1030 W Hiberg

How do I start the dishwasher?

Load the dishes, add detergent, close the door, select a program using the program selector button, then press Start.

What does the salt indicator mean?

The salt indicator lights up when the water softener needs salt. Refill with dishwasher salt to avoid limescale.

Can I use regular detergent pods?

Yes, but ensure they are suitable for automatic dishwashers. Use all-in-one tablets or powder/gel as preferred.

How do I clean the filter?

Turn off the dishwasher, remove the lower basket, twist and remove the filter assembly, rinse under running water, and reinstall.

Why is the dishwasher not draining?

Check if the drain hose is kinked or clogged. Clean the filter and ensure the sink drain is not blocked.

What does the AquaStop system do?

AquaStop is a safety feature that prevents water leaks. It automatically shuts off the water supply if a leak is detected.

How do I activate the child lock?

Press and hold the Delay Start button for 3 seconds until a key symbol appears on the display. Repeat to deactivate.

What is the energy consumption per cycle?

About 1.05 kWh per cycle for the Eco program, based on standard test conditions.

Can I install the dishwasher under a counter?

Yes, the model is freestanding but can be placed under a counter as long as there is adequate ventilation and space.

Where can I find spare parts?

Contact Hiberg customer service or authorized dealers. Spare parts are available for at least 7 years after production end.

USER MANUAL F48 1030 W Hiberg

Close-up of a medical or laboratory device with coiled tubing and connectors, labeled 11, 12, and 13 (no readable text or symbols beyond labels)

Close-up of a mechanical component with a circular arrow indicating rotation (no visible text or symbols)

Рис. 1

Hand holding a small object with a white cross symbol, next to a dark gray device with a small bowl (no visible text or symbols)

Рис. 2

Person in protective suit standing near equipment (no visible text or symbols)

Рис. 2

Simple line drawing of a person standing near a wall with no text or symbols

Рис. 3

Blurred grayscale image of a hand holding a small object near a white panel (no visible text or symbols)

Рис. 4

Close-up of a kitchen appliance with a lid, tray, and control knob (no visible text or symbols)

Рис. 2

Рис. 3

3D diagram of a mechanical component with green and white spherical elements, no visible text or symbols

Illustration of kitchen utensils including a pot, pan, and lid arranged in a wire basket (no text or symbols)

Two-panel photo showing hands assembling a mechanical component, labeled A and B (no visible text or symbols)

Рис. 3-4

Technical line drawings of industrial piping and valves in a structural framework (no text or symbols)

Рис. 5-6

Hand holding a bundle of rods, no text or symbols visible

Рис. 7

Architectural floor plan showing grid layout and structural elements (no text or labels)

3D rendered diagram of a mechanical component with a circular arrow indicating rotation (no text or symbols)

3D rendering of a mechanical device with internal components and an arrow indicating direction (no text or symbols)

Pure technical diagram showing a structural component with arrows indicating forces or motion (no text or symbols)

Hand holding a pipe fitting with a threaded connector (no text or symbols visible)

3D rendering of a metal grid structure on a teal base (no text or symbols visible)

Способ 1

Close-up of a blue industrial machine with metal grid and control panel (no visible text or symbols)

Industrial machine component with mesh grid and metal frame (no visible text or symbols)

Способ 2

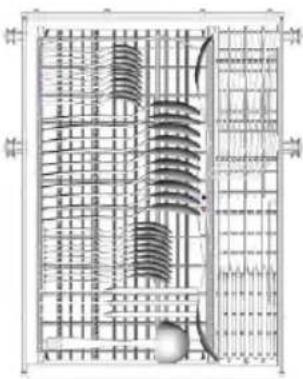

ЗАГРУЗКА КОРЗИН *

Manufacturer: Foshan Shunde Midea Washing Appliances MFG Co., LTD.

Address: N°20 Gangqian road, Beijiao, Shunde District, Foshan, Guangdong, PRC
