| Product Type | IP KVM Switch |
| Number of Ports | 16 |
| Port Connectors | 16 x RJ-45 (CAT5/5e/6) for remote KVM connections |
| Local Console Ports | 1 x VGA, 2 x USB (keyboard/mouse) |
| Network Interface | 1 x RJ-45 10/100/1000 Mbps Ethernet (for IP access) |
| Form Factor | Rackmount, 1U |
| Dimensions (W x D x H) | 17.2 x 10.6 x 1.7 inches (437 x 269 x 43 mm) |
| Weight | 9.9 lbs (4.5 kg) |
| Power Supply | AC 100-240V, 50/60Hz, external power adapter (included) |
| Power Consumption | 30W (max) |
| Remote Access | Web-based GUI, Java viewer, Virtual Media support via IP |
| Security Features | SSL/TLS encryption, user authentication, IP filtering |
| Supported OS | Windows, Linux, Mac OS, Sun Solaris, and others (PS/2 and USB) |
| Video Resolution | Up to 1920 x 1440 at remote console |
| Signal Type | VGA, PS/2, USB |
| Humidity Range | 0% to 80% RH (non-condensing) |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Included Accessories | Power adapter, rackmount brackets, 16 Cat5 cable kits (optional), manual |
| Compliance | FCC, CE, RoHS |
| Warranty | 3-year limited warranty |
Frequently Asked Questions - NetCommander B072-016-1-IP Tripp Lite
What is the Tripp Lite NetCommander B072-016-1-IP used for?
It is a 16-port IP KVM switch that allows you to remotely access and control up to 16 computers or servers over a network using a single keyboard, monitor, and mouse.
How do I connect the B072-016-1-IP to my network?

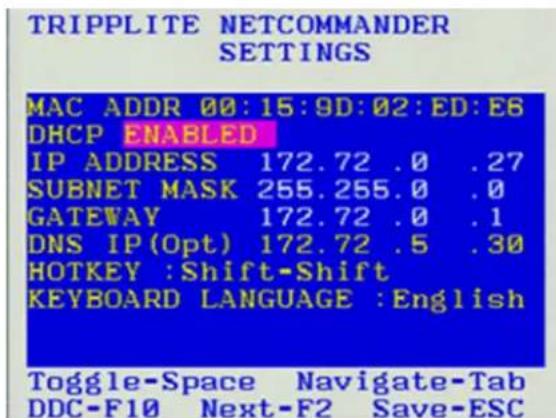

Connect an Ethernet cable from the NET port on the switch to your local area network (LAN) or router. Then assign an IP address via DHCP or static configuration through the front panel or web interface.
Can I cascade multiple NetCommander units?
Yes, you can daisy-chain units to expand control. Use the cascade ports to connect units, allowing control of up to 512 computers via a single console.
What type of cables do I need to connect computers?
You need CAT5/5e/6 cables with appropriate adapters. The switch uses RJ-45 connectors for remote KVM signals, and you'll need a matching receiver unit (sold separately) at each computer.

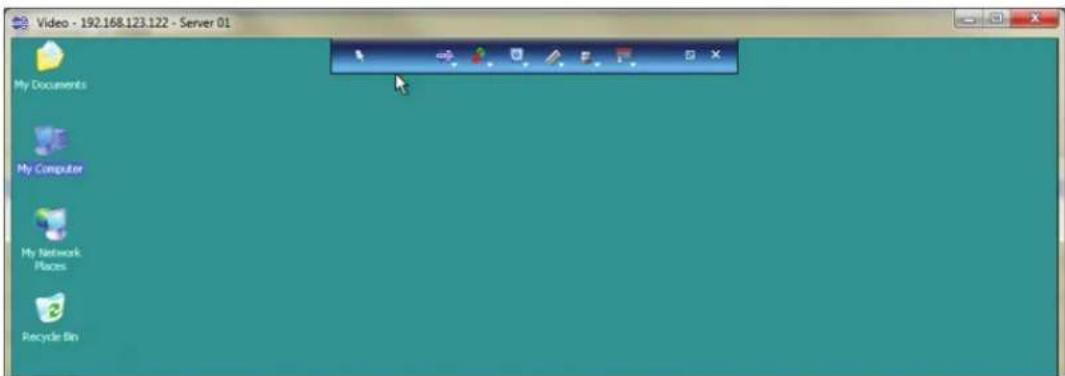

How do I access the switch remotely?

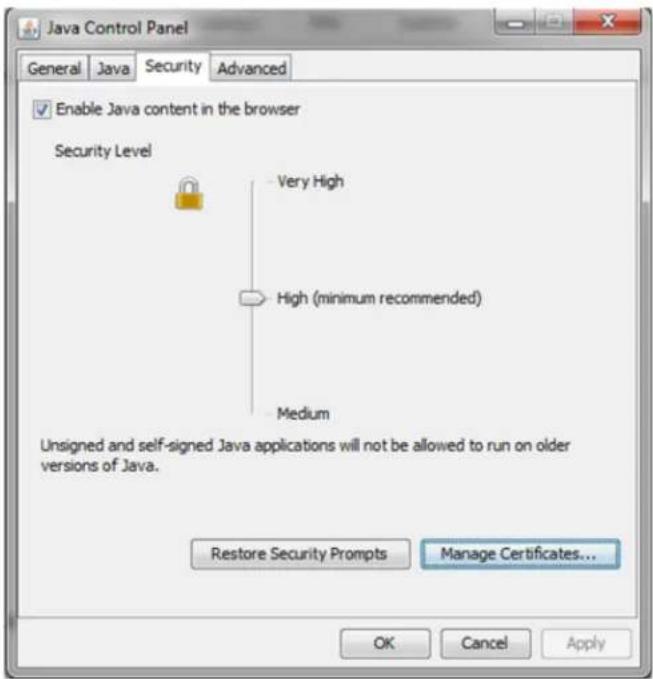

Open a web browser and enter the IP address of the switch. Use the web-based interface to log in and control connected computers. Java Viewer or ActiveX may be required for video.
Is the B072-016-1-IP compatible with all operating systems?
It supports a wide range of operating systems including Windows, Linux, Mac OS, Sun Solaris, and others that use USB or PS/2 keyboard and mouse signals.

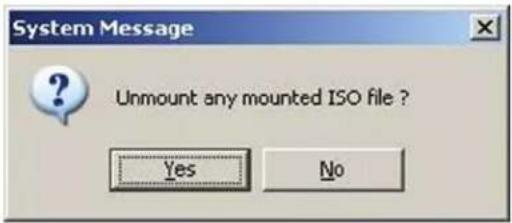

Does it support virtual media?
Yes, the virtual media feature allows you to mount ISO images or USB drives remotely, enabling software installation or file transfers without physical access.
How do I reset the unit to factory defaults?
Press and hold the reset button on the front panel for about 10 seconds until the LEDs flash. Alternatively, use the web interface under Administration > Factory Reset.
What is the maximum cable length for remote connections?
Using CAT5/5e/6 cables, you can connect computers up to 150 meters (492 feet) away from the switch, depending on signal quality.

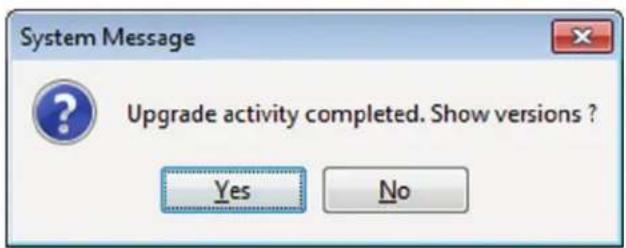

How do I update the firmware?
Download the latest firmware from Tripp Lite's website. Then access the switch via web interface, go to Administration > Firmware Upgrade, and upload the file. Do not power off during the update.
