Kraken Forged Edition - Audio System RAZER - Free user manual and instructions

Product Type	Over-Ear Gaming Headset
Brand	Razer
Model	Kraken Forged Edition
Driver Size	50 mm Neodymium Magnets
Frequency Response	20 Hz – 20 kHz
Impedance	32 Ω
Connectivity	3.5 mm Analog Jack
Microphone	Unidirectional, Retractable
Weight	Approx. 320 g (without cable)
Cable Length	1.3 m + 2 m Extension
Material	Aluminum Frame, Plush Leatherette Ear Cushions
Compatibility	PC, Mac, Xbox, PlayStation, Mobile
Main Functions	Immersive Audio, Noise Isolation, Retractable Mic
Care & Cleaning	Wipe with dry cloth; avoid liquids
Safety	Do not use at high volume for extended periods
Software Support	Razer Synapse (for advanced settings)

Frequently Asked Questions - Kraken Forged Edition RAZER

Is the Razer Kraken Forged Edition compatible with Xbox One?

Yes, it works with Xbox One via the 3.5 mm jack on the controller.

How do I adjust the volume on the headset?

Use the in-line remote on the cable to adjust volume and mute the microphone.

Can I replace the ear cushions?

Yes, ear cushions are detachable and replaceable. You can purchase replacements from Razer.

Does the headset have surround sound?

It supports Windows Sonic and Dolby Atmos on compatible devices.

How to clean the headset?

Wipe with a soft, dry cloth. Do not use alcohol or abrasive cleaners.

What is the warranty period?

Razer offers a 2-year limited warranty. Check the manual for details.

Does the microphone work with PC?

Yes, the retractable microphone works with PC via the 3.5 mm combo jack.

Are spare parts available?

Yes, you can order replacement cables, ear cushions, and mic covers from Razer.

How to store the headset?

Store in a dry place, away from direct sunlight, and avoid bending the cable.

Can I use the headset with Nintendo Switch?

Yes, plug it into the headphone jack of the Switch in handheld mode.

USER MANUAL Kraken Forged Edition RAZER

Sound quality, comfort and durability are hallmarks of a good pair of headphones. With an ultra-premium t and a durable, brushed aluminum nish, the Razer Kraken Forged Edion Music and Gaming Headphones oer full bodied sound that's built to last. The Razer Kraken Forged Edion is ouied with dynamic, custom tuned 40mm neodymium magnet drivers delivering booming bass, clear mids and crisp highs – producing a sound signature perfect for music and gaming.

To create a perfect pair of headphones, powerful audio has to be matched with a comfortable form factor. Featuring circumaural ear cups with plush leatheree ear cushions, and a fully adjustable headband design, the Razer Kraken Forged Edion headphones are made to be worn for hours on end.

Complete with a hard carrying case and swappable cables for use with and without an in-line microphone, the Razer Kraken Forged Edion is a perfect blend of form, funcon and versality.

TABLE OF CONTENTS

1. PACKAGE CONTENTS / HARDWARE REQUIREMENTS .... 3
2. REGISTRATION / TECHNICAL SUPPORT.... 3
3. TECHNICAL SPECIFICATIONS.... 4
4. DEVICE LAYOUT....5
5. USING YOUR RAZER KRAKEN FORGED EDITION....6
6. SAFETY AND MAINTENANCE 9
7. LEGALESE 10

1. PACKAGE CONTENTS / HARDWARE REQUIREMENTS

PACKAGE CONTENTS

• Razer Kraken Forged Edion
- Quick Start Guide
• 1.6m Audio Cable
• 1.6m Audio Cable with Inline Microphone
- 1/4'' (6.35mm) Audio Connector

HARDWARE REQUIREMENTS

Audio Usage

• Devices with 3.5mm audio jack

Audio + Microphone Usage

- Devices with 3.5mm audio + Microphone combined jack (Works with portable audio/mobile/compung devices including Razer Blade and Razer Edge)

1/4'' (6.35mm) Audio Connector Usage

• Devices with 6.35mm audio jack (Works with amplifiers and mixing equipment.)

2. REGISTRATION / TECHNICAL SUPPORT

REGISTRATION

Please visit www.razerzone.com/registraon for online product registraon.

TECHNICAL SUPPORT

What you'll get:

• 1 year limited manufacturer's warranty,
  • Free online technical support at www.razersupport.com.

3. TECHNICAL SPECIFICATIONS

HEADPHONES

• Drivers: 40mm Neodymium Magnets
  • Frequency Response: 20Hz – 20kHz
• Impedance: 32Ω
  • Sensitivity @ 1kHz: 100dB ± 3dB
• Input Power: 30mW
  • Approximate Weight: 390g

MICROPHONE

• Frequency Response: 50Hz – 10kHz
• Signal-to-Noise Rao: 60dB
• Sensitivity (@1kHz, 1V/Pa): -38dB ± 3dB
• Pick-up Paern: Omni-direconal

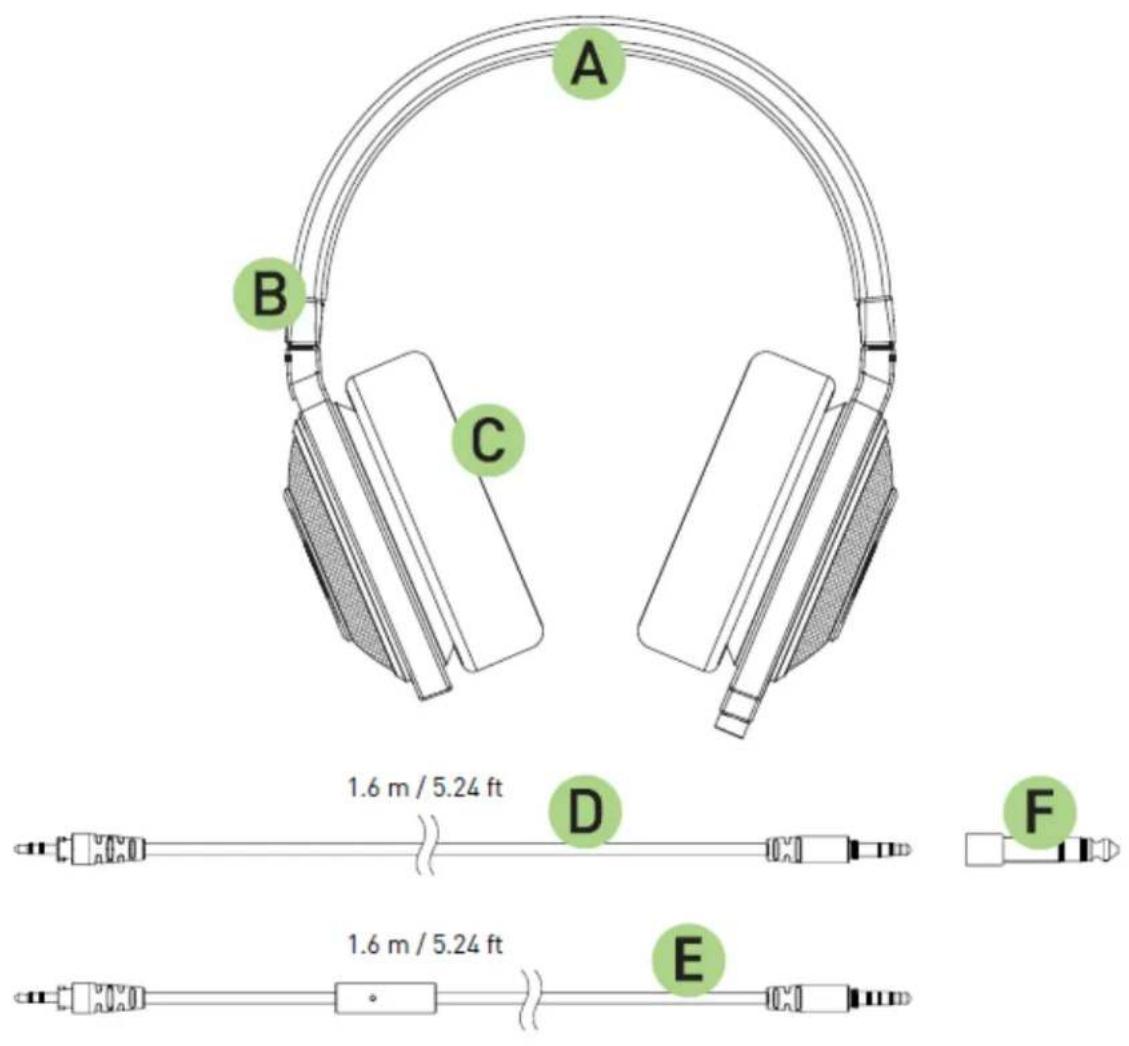

4. DEVICE LAYOUT

A. Adjustable Padded Headband
B. Foldable Ear Cup Design
C. Circumaural, Leatheree Ear Cushions
D. 3.5mm to 2.5mm Audio Cable
E. 3.5mm to 2.5mm Audio Cable with Inline Microphone
F. 1/4 " (6.35mm) Audio Connector

5. USING YOUR RAZER KRAKEN FORGED EDITION

SETTING UP YOUR RAZER KRAKEN FORGED EDITION

Press the Call Answer buon on the microphone to pick up incoming calls on your mobile phone.

Note: The inline microphone does not funcon when connected to devices via the 1/4 " (6.35mm) connector.

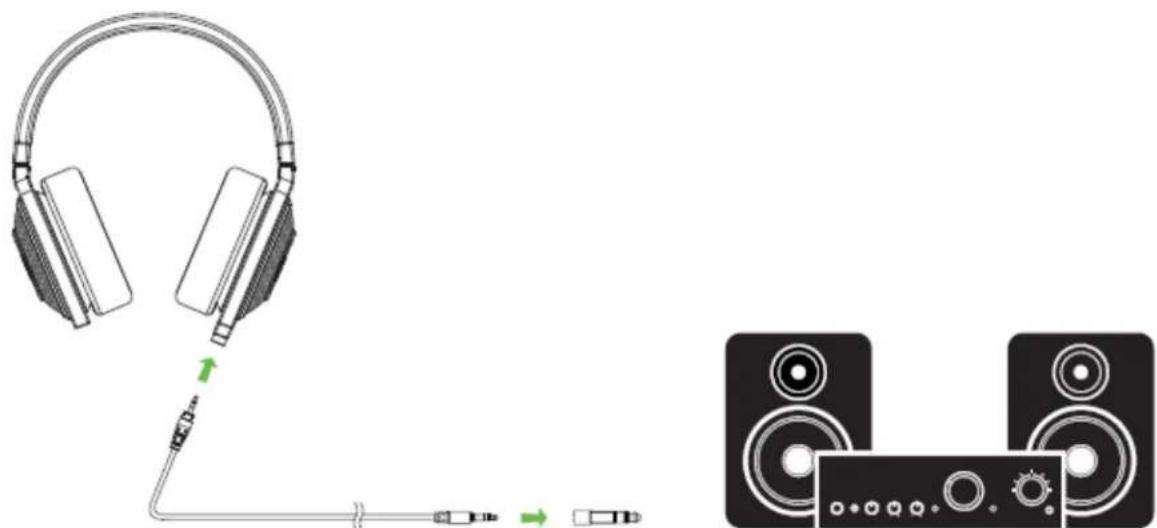

CONNECTING TO SOUND EQUIPMENT

Note: The inline microphone does not funcon when connected to devices via the 1/4 " (6.35mm) connector.

EXTENDING YOUR HEADPHONE'S LIFESPAN

We recommend stretching the headphones gently apart before placing them over your head to minimize headband stress. However, please avoid overstretching the headphones beyond its technical limits.

6. SAFETY AND MAINTENANCE

SAFETY GUIDELINES

In order to achieve maximum safety while using your Razer Kraken Forged Edion, we suggest that you adopt the following guidelines:

1. Should you have trouble operang the device properly and troublesomeong does not work, unplug the device and contact the Razer hotline or go to www.razersupport.com for support. Do not aempt to service or x the device yourself at any me.
2. Do not take apart the device (doing so will also void your warranty) and do not aempt to service it yourself or operate it under abnormal current loads.
3. Keep your device away from liquid, humidity or moisture. Operate your device only within the specied temperature range of 0° C ( 32° F) to 40° C ( 104° F). Should you operate it in a temperature that is beyond this range, unplug and switch o the device in order to let the temperature stabilize within the opmal temperature range.
4. The device isolates external ambient sounds even at low volumes, resulting in lowered awareness of your external surroundings. Please remove the device when engaging in any advies that requires acve awareness of your surroundings.
5. Listening to excessively loud volumes over extended periods of me can damage your hearing. Furthermore, legislaon of certain countries permits a maximum sound level of 86db to aect your hearing for 8 hours a day. We therefore recommend that you reduce the volume to a comfortable level when listening for prolonged periods of me. Please, take good care of your hearing.

MAINTENANCE AND USE

The Razer Kraken Forged Edion requires minimum maintenance to keep it in opmum condion. Once a month we recommend you unplug the device and clean it using a so cloth or coon swab with a bit of warm water to prevent dirt buildup. Do not use soap or harsh cleaning agents.

7. LEGALESE

COPYRIGHT AND INTELLECTUAL PROPERTY INFORMATION

©2013 Razer Inc. Patent Pending. All Rights Reserved. Razer, the Razer Triple-Headed Snake logo, the Razer distressed word logo and other trademarks contained herein are trademarks or registered trademarks of Razer Inc. and/or its aliated or associated companies, registered in the United States and/or other countries. Razer Inc. ("Razer") may have copyright, trademarks, trade secrets, patents, patent applications, or other intellectual property rights (whether registered or unregistered) concerning the product in this guide. Furnishing of this guide does not give you a license to any such copyright, trademark, patent or other intellectual property rights. The Razer Kraken Forged Edion (the "Product") may differ from pictures whether on packaging or otherwise. Razer assumes no responsibility for such differences or for any errors that may appear. Informaon contained herein is subject to change without notice.

LIMITED PRODUCT WARRANTY

For the latest and current terms of the Limited Product Warranty, please visit www.razerzone.com/warranty.

LIMITATION OF LIABILITY

Razer shall in no event be liable for any lost prots, loss of informaon or data, special, incidental, indirect, punive or consequential or incidental damages, arising in any way out of distribuon of, sale of, resale of, use of, or inability to use the Product. In no event shall Razer's liability exceed the retail purchase price of the Product.

COSTS OF PROCUREMENT

For the avoidance of doubt, in no event will Razer be liable for any costs of procurement unless it has been advised of the possibility of such damages, and in no case shall Razer be liable for any costs of procurement liability exceeding the retail purchase price of the Product.

GENERAL

These terms shall be governed by and construed under the laws of the jurisdicon in which the Product was purchased. If any term herein is held to be invalid or unenforceable, then such term (in so far as it is invalid or unenforceable) shall be given no eect and deemed to be excluded without invalidang any of the remaining terms. Razer reserves the right to amend any term at any me without noce.
