Product Type	Mechanical Diver Watch
Brand	ORIENT
Model	Sports EL03004B
Movement Type	Automatic winding with hand winding mechanism
Water Resistance	200 meters (air diving)
Power Reserve	Approximately 40 hours
Vibrations	21,600 vibrations per hour
Daily Accuracy	+25 seconds to -15 seconds
Jewels	22 jewels
Functions	Hour, minute, second hands; date indicator; power reserve indicator; second hand halt mechanism
Crown Type	Screwed-down crown for water resistance
Rotating Bezel	Unidirectional rotating bezel with click mechanism
Luminous	Luminous hands and dial markers
Maintenance	Rinse with fresh water after diving, avoid chemicals and high temperatures
Safety	Do not operate crown underwater; avoid strong shocks, magnetism, and extreme temperatures
Service	Contact ORIENT WATCH Service Center for repairs

Frequently Asked Questions - Sports EL03004B ORIENT

How do I wind the watch?

You can wind the watch by turning the crown clockwise (to the right) in the normal position. Alternatively, wearing the watch on your wrist automatically winds the mainspring through natural arm movements. To fully wind from a stopped position, turn the crown about 20 times.

How do I set the time and date?

For time: unscrew the crown (counterclockwise), pull out to the second click when second hand stops, turn crown clockwise to set time, press and screw tight. For date: pull crown to first click, turn counterclockwise to set date, then screw tight. Avoid setting date between 10 p.m. and 2 a.m.

What is the water resistance of the watch?

This watch is water-resistant up to 200 meters for air diving. It has a screwed-down crown that must be securely tightened before diving. Do not operate the crown underwater.

Can I use this watch for saturation diving?

No, this watch is intended for air diving only and cannot be used in saturation diving using helium gas.

What should I do if the glass fogs up?

Temporary fogging is normal due to temperature differences. If fogging persists or moisture is inside, consult the shop where you purchased the watch or the nearest ORIENT WATCH Service Center.

How do I use the rotating bezel?

Rotate the bezel to align the ▼ mark with the minute hand. The elapsed time can be read from the distance between the minute hand and the bezel numerals. The bezel is unidirectional and has a click mechanism to prevent accidental movement.

How should I maintain the watch after diving?

After diving, ensure the crown is tightened, then rinse the watch with fresh water to remove salt water. Dry with a soft cloth, paying attention to the bezel and bracelet connections.

What precautions should I take with magnetism and shocks?

Avoid exposing the watch to strong magnetic fields as it may affect accuracy. Also, avoid violent shocks like dropping the watch. Strong vibrations from tools like jackhammers may also affect precision.

How long does the power reserve last?

When fully wound, the watch runs for approximately 40 hours. The power reserve indicator shows the remaining winding level.

Is the watch automatic or manual?

It is an automatic winding mechanical watch with a hand winding mechanism. The mainspring can be wound automatically by arm movements or manually by turning the crown.

USER MANUAL Sports EL03004B ORIENT

Thank you for choosing our product. To ensure prolonged use and optimum performance, please read this instruction manual carefully and familiarize your-self with the terms of the guarantee.

Please keep this instruction manual handy for future reference.

◆ SAFETY PRECAUTIONS

Make absolutely sure to observe the demarcated contents indicated below to prevent any possible physical danger and property damage to you as well as other people concerned.

WARNING

A demarcation with this symbol represents the contents assuming possibility for death or serious injury when the product is used in any manner different from given instructions.

CAUTION

A demarcation with this symbol represents the contents assuming possibility of causing human injury or material damage only when a product is used in any manner different from given instructions.

◆ IN HANDLING THE WATCH

WARNING

(1) Water-resistance

① This watch is water-resistant up to 200 m for use in air diving. * This watch can only be used in air diving; please be aware that it cannot be used in saturation diving (using helium gas).
② The crown is a screwed-down type. Always tighten the crown securely when using this watch. If the crown is not securely tightened, water resistance cannot be guaranteed.
③ Do not operate the crown while in water or there is water on the watch. Water will penetrate the watch. If the crown is loose, water may enter the watch and cause a malfunction.
④ There is a small amount of humidity inside the watch. If external temperature is lower than inside the watch, the glass may fog. Temporary fogging will not damage the internal mechanism but if it remains for a long time or if there is moisture inside the watch, consult the shop where you purchased the watch or the nearest ORIENT WATCH Service Center.

(2) Precautions before diving

Make sure to do the following before you dive.

① Check that the watch is fully wound. (If not, wind the mainspring by swinging the watch for at least 30 seconds.) See the description of the ◆ AUTOMATIC WINDING MECHANISM (WITH HAND WINDING MECHANISM) and ◆ POWER RESERVE INDICATOR. *EL (40N) only
② Make sure the watch shows the correct time. ③ Check that the rotating bezel can be turned normally. If it can be turned counterclockwise, the rotation direction is normal.
④ Check that the screwed-down type crown is securely tightened. ⑤ Make sure that there are no cracks or chips in the glass or bracelet/strap. ⑥ Make sure that there are no abnormalities in the bracelet/strap links (spring bar and buckle).
* If there are any abnormalities, stop using the watch and contact the ORIENT WATCH Service Center.

20

(3) Precautions during diving

① Do not operate the crown while in the water.
② The rotating bezel may be hard to operate under water due to water pressure. (This is not a malfunction.)
③ Do not subject the watch to shocks, such as banging on rocks.

(4) Precautions after diving

① Do not operate the crown while there is water on the surface of the watch.
② To remove salt water from the case or bracelet/strap, first make sure the crown is securely tightened. Then, rinse it with fresh water to prevent rusting. After rinsing, wipe with a soft dry cloth to remove any moisture. Be especially careful to wipe off the bezel and the bracelet/strap connecting section (spring bar and buckle).

(5) Shock

① Be sure not to carry the watch when you engage in strenuous sports, whereas playing such light sports as golf, etc., will not adversely influence the watch.
② Avoid a violent shock such as dropping the watch on the floor.

(6) Magnetism

① If the watch is left at a location with strong magnetism for an extended period of time, the components may be magnetized, resulting in malfunction. Be careful.
② The watch may temporarily speed up or slow down when exposed to magnetism. Precision is restored when placed away from magnetism. In such a case, reset the time.

(7) Vibration

The watch may lose precision if subjected to strong vibrations such as from riding motorcycles, using jackhammers, chain saws, etc.

21

(8) Temperature

In environments below and above normal temperatures (5°C-35°C), the watch may malfunction and stop.

CAUTION

Do not use the watch at high temperatures, such as in a sauna. The watch may heat and cause burns.

(9) Chemicals, Gases, etc.

Utmost caution must be exercised when coming into contact with gases, mercury, chemicals (paint thinner, gasoline, various solvents, detergents containing such components, adhesives, paint, drugs, perfumes, cosmetics, etc.), and so forth. Such may cause discoloration of the watchcase, watchband, and dial face. Discoloration, deformation, and damage to various resin-based component parts may also occur.

(10) About the Product and Accessory Parts

CAUTION

Do not attempt to disassemble or modify the watch.

WARNING

Store the bracelet/strap pin and other small parts out of the reach of children. If any small parts are swallowed, immediately contact a doctor.

(11) Allergic reactions

CAUTION

If you develop a skin rash or your skin becomes abnormally irritated due to contact with the watch or strap, stop wearing the watch immediately and consult a doctor.

22

K9e_inside_201604_r0.indd 22-23

(12) About "luminous light"

This watch has luminous light on the hands and dial. The luminous light is a safe paint that stores sunlight and artificial light without using any radioactive material, and emits that light in a dark setting. As the paint discharges the stored light, it will become dimmer over time. The amount of light emitted and the time that light is emitted depends on various factors when the light is stored, such as the shape of the glass, the thickness of the paint, surrounding brightness level, the distance from the watch to the light source, and the light absorption level. Please note that when not enough light energy is stored, the watch may emit weak light or emit light for only a short time.

CAUTION

Before using the watch for diving, apply sufficient bright light or sunlight to the watch.

Light may not be emitted in certain cases if light is insufficient. Please note that an underwater light must also be used diving

(13) Water resistant watchband

Some models employ leather and nylon bands on which a special treatment to resist perspiration and water absorption have been applied. Please understand that the water resisting effect of this watchband can be lost depending on the period and conditions of use.

◆ FEATURES

(1) This watch is an automatic winding mechanical watch (with a hand winding mechanism).
(2) In addition to showing the time, this watch has a date indicator and power reserve indicator. *EL (40N) only
(3) It comes with a second hand halt mechanism.
(4) It uses shock-proof bearings to protect the balance from shocks.
(5) This watch is water-resistant up to 200 m for use in air diving.

23

164115:09

◆ SPECIFICATIONS

(1) Functions: hour/minute/second hands, date and power reserve indicator *EL (40N) only
(2) Vibrations: 21,600 vibrations/hour
(3) Daily accuracy: 25 sec. to -15 sec.
(4) Drive system: Mainspring winding
(5) Number of Jewels: 22 jewels
(6) Running time: More than 40 hours

The stated daily accuracy is in the following conditions:

• After 24 hours at room temperature with the mainspring wound fully and the dial facing up.

- Due to the characteristics of the automatic winding watch, the time may deviate from the stated "daily accuracy" depending on the following conditions: amount of time the watch is worn each day, position of the watch, movement of your arm, winding condition of the mainspring.

Product specifications may change without notice, for improvement.

BEFORE USE

WARNING

* Never perform operations not instructed in this manual while diving. * This watch is for use in air diving. Refrain from using it in saturation diving (diving using helium gas).

CAUTION

Before diving, make sure you have taken the necessary diving safety courses and are qualified to dive safely. Strictly follow the rules given in these courses.
* Measurement standards for altitude diving are very different from ordinary sea level diving, making it very dangerous in comparison. Make sure you have received special training.
* Use the rotating bezel only for reference.
* For actual use, use this watch together with other equipment in order to dive safely.

24

K9e_inside_201604_r0.indd 24-25

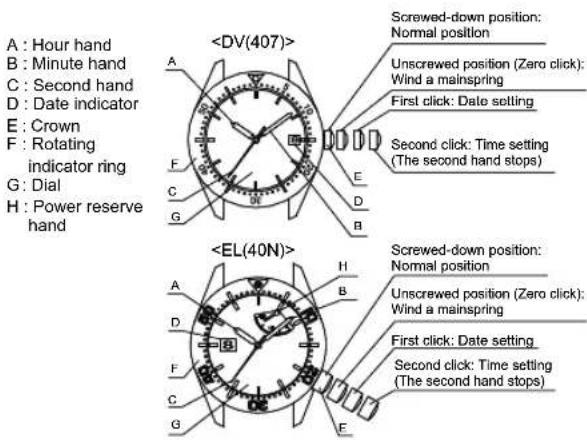

◆ NAMES AND FUNCTIONS OF INDIVIDUAL COMPONENT PARTS

* The position of the crown, date indicator, etc., varies from model to model.

25

164115:09

◆ AUTOMATIC WINDING MECHANISM (WITH HAND WINDING MECHANISM)

(1) This is an automatic winding mechanical watch (with a hand winding mechanism).
(2) The mainspring is wound by natural movements of your arm when wearing the watch on your wrist. In addition, you can also wind the mainspring by turning the crown.
(3) If your watch stops, either swing the watch back and forth ten or more times or turn the crown to wind the mainspring in order to restart the second hand. After it starts moving, set the calendar and time.
(4) When winding the mainspring, slowly turn the crown to the right (clockwise) while in its normal position.

Turning the crown to the left (counter-clockwise) merely turns the crown uselessly and does not wind the mainspring.

You can wind the mainspring fully by turning the crown to the right about twenty times from a stopped position.

The crown can still be turned after the mainspring is fully wound. Either use the above count or use the markings on the power reserve indicator when winding the watch. *EL (40N) only

(5) This watch will run approximately 40 hours after it is fully wound. If it is not wound enough, the watch may lose accuracy. In order to maintain the watch's accuracy, we recommend wearing the watch at least 8 hours a day.

CAUTION

In order to use the watch and maintain precision, we recommend that you hold the watch securely. Wind the spring by moving your arm left and right in a large arc, until the power reserve hand is at the middle of the power range (or higher) ^* EL (40N) only), indicating that the spring is adequately wound, and then put it on your wrist.

26

K9e_inside_201604_r0.indd 26-27

◆ MODELS WITH SCREWED-DOWN CROWN

This type of watch has a screwed-down crown Operate this type of watch as follows:

(1) Before setting the date and time, first turn the crown to the left to loosen the screw lock.
(2) After setting the date and time, turn the crown to the right while pressing in, until it stops turning to securely tighten the screw.

◆ HOW TO SET THE TIME & DATE

[How to set the time]

(1) Turn the crown counterclockwise to loosen the screw lock.
(2) Pull the crown out to the second click when the hand reaches the 12 o'clock position. (Second hand stops.)
(3) Turn the crown clockwise and set the current time.

*Since this watch comes with a calendar, be sure to set either a.m. or p.m. The date changes at [twelve o'clock midnight].

*When setting the time, first bring the hand back slightly later than the actual time and then move it forward to the actual time.

(4) Press the crown in to the unscrewed position.
(5) After adjusting the time, turn the crown clockwise while pressing in until it stops turning to tighten the screw securely.

27

164115:09

[How to set the date]

CAUTION

Avoid setting the date between 10:00 p.m. and 2:00 a.m. since the calendar changes during this time. If the date is set during this time period, the date may not change or the watch may malfunction. Be sure to move the hour and minute hands away from this time period when setting the date.

(1) Turn the crown counterclockwise to loosen the screw lock.
(2) Pull the crown out to the first click. * The crown on this watch can be pulled out to the first and second clicks.
(3) Turn the crown counterclockwise until you reach today's date.
(4) Press the crown in to the unscrewed position.
(5) After adjusting the date, turn the crown clockwise while pressing in until it stops turning to tighten the screw securely.

*The position of the crown, date indicator, etc., varies from model to model.

*About date correction at month's end: Date correction is necessary for months with 30 days or less. In this case, set the date to the [1st day] on the first day of the next month.

28

◆ POWER RESERVE INDICATOR \*EL (40N) only

The power reserve indicator shows how much the watch is wound, allowing you to see how much longer the watch will run at a glance. The time pointed to by the power reserve hand is the remaining time.

*The remaining time shown is only an approximation. The time shown may be different from actual remaining time.

This model has an automatic-winding system which comes with a power reserve indicator function. The mainspring will be automatically wound by your natural arm movements while you wear it on your wrist. The power reserve hand is pointing to the fully-wound position (40H). The amount the watch is wound will change with the frequency of your arm movements and the length of time you wear the watch, so the hand will not always point to the fully wound position. If you remove the watch from your arm and do not wind manually, the power reserve hand will move toward zero as time passes.

This model is equipped with a hand-winding mechanism. The power reserve indicator moves toward the fully wound position (40H) when the mainspring is wound using the crown.

◆ HOW TO USE THE ROTATING INDICATOR BEZEL

Please notice that some models come with a rotating indicator bezel, which should be used properly.

Turn the bezel by pointing the mark to the minute-hand. While certain time goes by, you can measure the elapsed time from the distance between minute-hand and figures on the rotating indicator bezel. You can also set the mark as a desired time to remind you how long time is still remain for an appointment.

You cannot turn the bezel reversely since it comes with a protection mechanism for preventing wrong operation by force or shock. Figures on the bezel could also help you to read the current time easily.

Rotating bezel

The above shows that 20 minutes have elapsed from 10:10.

- Depending on design, anti-reversely and 1 minute "click" sound mechanism on rotating indicator bezel does not apply to some models.
