MP8760 - Video projector 3M - Free user manual and instructions

Product Type	Multimedia Projector
Brand	3M
Model	MP8760
Display Technology	Single DMD (DLP)
Native Resolution	XGA (1024 x 768)
Maximum Resolution	SXGA (1280 x 1024) compressed
Projection Lamp	350 W DC NTP lamp
Lamp Life	Approximately 1500 hours
Zoom and Focus	Power zoom and power focus (f=25-45 mm)
Throw Ratio	1.44 - 2.59
Image Size (Diagonal)	1.0 - 8.7 m (38 - 340 inches)
Keystone Correction	0 - 12 degrees vertical (adjustable via menu)
Input Terminals	2x PC/RGB (D-Sub 15-pin), 2x RCA video, 1x S-VHS, 1x AUX, 3x audio (L/R)
Output Terminals	1x RGB monitor (D-Sub 15-pin), 1x audio out (L/R)
RS-232C Port	1x D-Sub 9-pin for mouse emulation and external control
Remote Control	Wireless IR with mouse emulation, full function
Audio	20 W stereo surround sound (built-in speakers)
Dimensions (W x H x D)	331 x 137 x 272 mm
Power Consumption	450 W
Power Requirements	AC 100-240 V, 50/60 Hz
Safety Certifications	FCC Part 15 Class A, CE, UL
Warranty	2 years limited (parts and labor); lamp: 90 days or 180 hours
Included Accessories	VGA cable, RCA video/audio cable, S-VHS cable, remote with batteries, power cords (US/UK/EU), PS/2 mouse adapter, serial mouse cable

Frequently Asked Questions - MP8760 3M

How do I connect my laptop to the MP8760 projector?

Use a VGA cable to connect your laptop's video output to one of the PC/RGB input ports. If needed, connect audio using a 3.5 mm stereo cable to the corresponding audio input. Turn on the projector first, then the laptop. Select the correct input (PC/RGB1 or 2) using the remote or control panel.

How do I replace the projection lamp?

Turn off the projector, unplug it, and wait 30 minutes for it to cool. Open the lamp door by pressing the release button, unscrew the two retaining screws, and pull out the old lamp cartridge. Insert the new lamp cartridge, secure with screws, and close the door. Reset the lamp timer in the Advanced Setup menu.

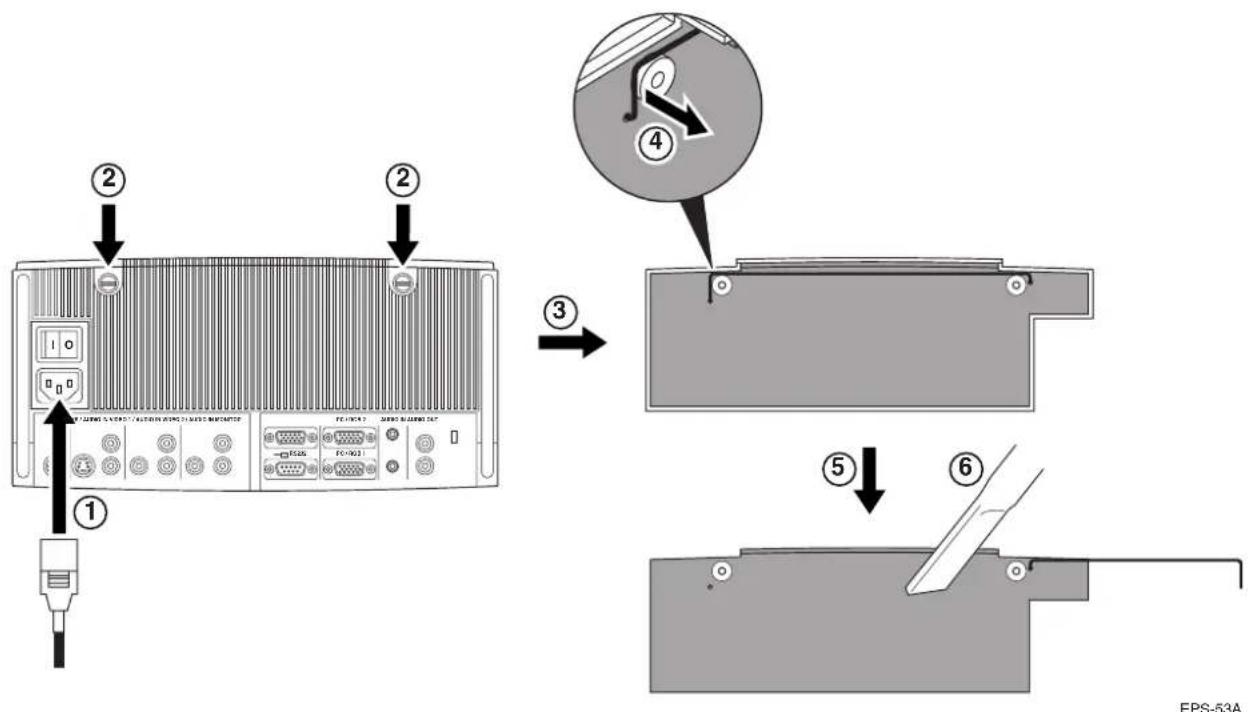

How do I clean or replace the air filter?

Unplug the projector. Remove the back panel by unscrewing two screws. Separate the air filter from the panel. Vacuum the filter to remove dust, or replace it if heavily soiled. Reassemble. It is recommended to replace the filter each time the lamp is changed.

How do I reset the lamp life indicator after replacing the lamp?

Go to the Main Menu > Advanced Setup > select Reset lamp display and press Enter. Confirm by selecting OK! when prompted.

How do I adjust keystone correction?

In the Picture menu, adjust the Height option to shift the image vertically (0-12 degrees). Alternatively, use the height adjustment foot located on the front bottom of the projector.

How do I use the mouse emulation feature?

Connect the mouse cable from the projector's RS-232 port to your computer. Power on the projector first, then the computer. Press the Mouse button on the remote control. Use the Disc Pad to move the cursor, and the left/right buttons for mouse clicks. Press Mouse again to disable.

What is the maximum screen size I can project?

The maximum diagonal image size is 8.7 m (340 inches) when using the shortest focal length and maximum distance. Refer to the image size chart in the manual for exact values.

How do I change the remote control address to avoid interference with multiple projectors?

On the projector, go to Advanced Setup > RC Address and select a number (1-4). On the remote, press and hold the Mode button and the corresponding address number (1,2,3, or 4) simultaneously for 4 seconds.

How do I factory reset the projector to default settings?

Press and hold the Enter and Mute buttons on the control panel simultaneously while turning on the main power switch. Then press the Standby button. The message 'Parameter factory settings restored' will appear.

What should I do if there is no image displayed?

Check all cable connections and ensure the input source is powered on. Verify the correct input is selected. If 'Looking for signal...' appears, adjust the Sync Mode in the Advanced Setup menu (try separate TTL or composite). Also ensure the projector is not in standby mode.

USER MANUAL MP8760 3M

MP8760 Multimedia Projector Operator's Guide

MP8760 Multimedia Projector Table of Contents

SAFEGUARDS....ii

WARRANTY iv

SECTION 1: UNPACK .... 1

1-1. CONTENTS OF SHIPPING BOX.... 1
1-2. KEEP YOUR PACKING MATERIALS.... 1
1-3. WHAT'S NEXT? 1

SECTION 2: PRODUCTION DESCRIPTION ...... 2

2-1. MACHINE CHARACTERISTICS 2
2-2. PARTS IDENTIFICATION LIST 2

SECTION 3: SET UP/CONNECTIONS....3

3-1. TERMINAL CONNECTION PANEL 3
3-2. OPERATOR TOUCH PANEL KEYPAD 3
3-3. MOUSE CONNECTION 4
3-4. CABLE CONNECTIONS 4

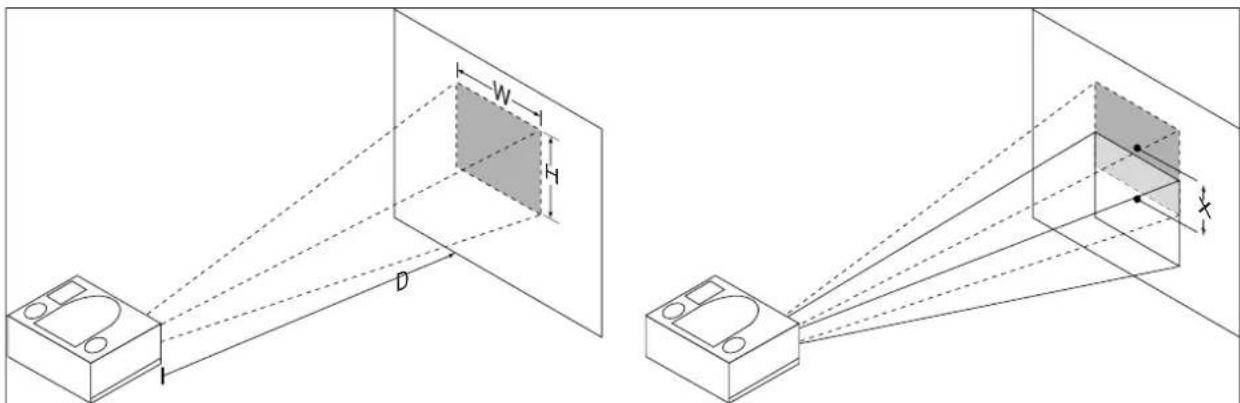

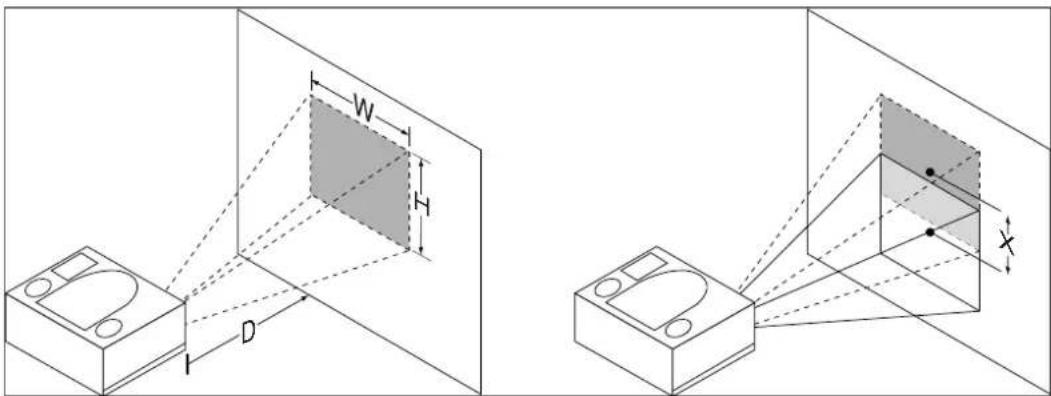

3-5. IMAGE SIZE (PROJECTOR-TO-SCREEN DISTANCE) 5
3-6. IMAGE HEIGHT 6

SECTION 4: OPERATING INSTRUCTIONS....7

4-1. POWER UP PROJECTOR 7
4-2. STANDBY MODE 8
4-3. PROJECTOR POWER DOWN 8

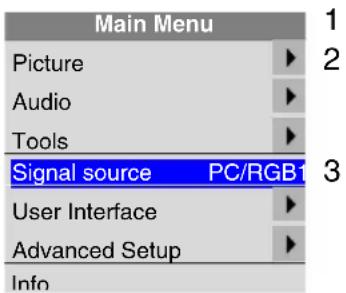

4-4. USING SYSTEM MENUS....8
4-5. MENU ADJUSTMENTS/SETTINGS 9

SECTION 5: REMOTE CONTROL....13

5-1. REMOTE CONTROL FUNCTIONS 13
5-2. MEANING OF THE ICONS 14
5-3. BATTERY REPLACEMENT....16

SECTION 6: MAINTENANCE ....17

6-1. REPLACING THE AIR FILTER 17

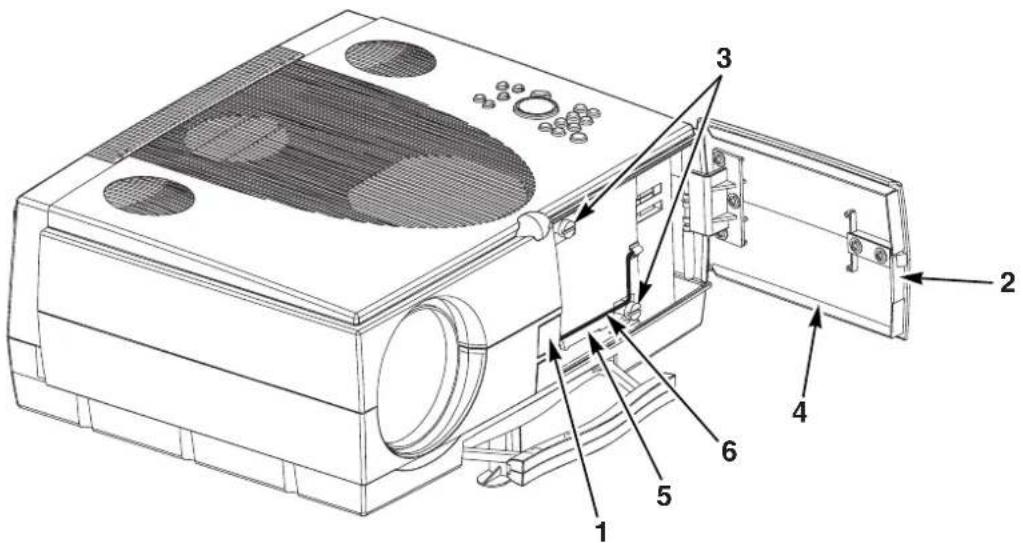

6-2. REPLACING PROJECTION LAMP 18
6-3. LAMP LIFE INDICATOR....19
6-4. CLEANING THE PROJECTOR 19

SECTION 7: TROUBLESHOOTING ...... 20

7-1. TROUBLESHOOTING PROBLEMS AND SOLUTIONS 20
7-2. SERVICE INFORMATION 22

SECTION 8: PRODUCT SPECIFICATIONS....23

8-1. TECHNICAL SPECIFICATIONS 23
8-2. ACCESSORY & SPARE PARTS LIST 24
8-3. HOW TO ORDER 24

APPENDIX....25

Safeguards

INTENDED USE

Before operating the machine, please read the entire manual thoroughly. The 3M Multimedia Projector MP8760 was designed, built, and tested for use indoors, using 3M lamps, 3M ceiling mount hardware and nominal local voltages. The use of other replacement lamps, outdoor operation, operation in environments containing heavy cigarette smoke or different voltages has not been tested and could damage the projector or peripheral equipment and/or create a potentially unsafe operating condition.

IMPORTANT SAFEGUARDS

1. Read and understand all instructions before using. Pay particular attention to areas where this symbol is shown.

WARNING

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Caution - Indicates a potentially hazardous situation which, if not avoided, could result in minor or lowerate injury. It may also be used to alert against unsafe practices.

√ Note - Used to emphasis important conditions or details.

1. Close supervision is necessary when any appliance is used by or near children. Do not leave appliance unattended while in use.

2. Never look directly into the projector lens when the lamp is on. The NTP (New Tip Placement) lamp produces a strong light that could damage your eyesight.

3. Care must be taken as burns can occur from touching hot parts.

4. Do not operate appliance with a damaged cord or if the appliance has been dropped or damaged - until it has been examined by a qualified service technician.

5. Position the cord so that it will not be tripped over, pulled or contact hot surfaces.

6. If an extension cord is necessary, a cord with an earth/ground and a current rating at least equal to that of the appliance should be used. Cords rated for less amperage than the appliance may overheat.

7. Always unplug appliance from electrical outlet before cleaning and servicing and when not in use. Grasp plug and pull to disconnect.

8. To reduce the risk of electric shock, do not immerse this appliance in water or other liquids.

9. To reduce the risk of electric shock, do not disassemble this appliance or attempt to service it yourself. Take it to a qualified technician when service or repair work is required. Incorrect reassembly can cause electric shock when the appliance is subsequently used.

10. The use of an accessory attachment not recommended by the manufacturer may cause a risk of fire, electric shock, or injury to persons.

11. Connect this appliance to a grounded outlet.

12. This unit is equipped with optical lenses and should not be exposed to direct sunlight.

13. Keep ventilation openings free of any obstructions.

14. Always operate machine on a flat, sturdy surface.
15. The projection lamp contains mercury. Always dispose of it in a proper manner according to local regulations.
16. To avoid premature lamp failure, do not change the mounting position of the projector (desktop ⇒ ceiling mount or ceiling mount ⇒ desktop mount) and continue to use the same lamp.
17. To avoid deposits from forming on internal components, do not operate projector in extremely humid environments (RH > 80%) or near any type of fine mist.

PRODUCT SAFETY LABELS

The following safety labels are used on or within the MP8760 projector to alert you to items or areas requiring your attention:

Inside of projector gets very HOT! Allow internal parts to cool before replacing the lamp.

LOCATION OF LABELS

SAVE THESE INSTRUCTIONS

The information contained in this manual will help you operate and maintain your 3M MP8760 Multimedia Projector.

Warranty

LIMITED WARRANTY

3M warrants this product against any defects in material and workmanship, under normal use and storage, for a period of two years from date of purchase. Proof of purchase date will be required with any warranty claim. In the event this product is found to be defective within the warranty period, 3M's only obligation and your exclusive remedy shall be replacement of any defective parts (labor included).

To obtain warranty service, immediately notify the dealer from which you purchased the product of any defects. In the USA call 1-800-328-1371 for warranty or repair service.

Exclusion to Warranty

The projection lamps are considered a consumable item and are warranted for 90 days or 180 hours of operation whichever occurs first.

LIMITATION OF LIABILITY

THE FOREGOING WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, AND 3M SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. 3M SHALL NOT BE LIABLE FOR ANY DAMAGES, DIRECT, CONSEQUENTIAL, OR INCIDENTAL, ARISING OUT OF THE USE OR INABILITY TO USE THIS PRODUCT.

Important: The above warranty shall be void if the customer fails to operate product in accordance with 3M's written instructions. This warranty gives you specific legal rights and you may have other rights that vary from state to state.

FCC STATEMENT - CLASS A: This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual may cause interference to radio communications. It has been tested and found to comply with the limits for a Class “A” computing device pursuant to Subpart B of Part 15 of the FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference in which case the user at his/her own expense will be required to take whatever measures may be required to correct the interference.

EEC STATEMENT: This machine was tested against the 89/336/EEC (European Economic Community) for EMC (Electro Magnetic Compatibility) and fulfills these requirements.

Video signal cables: Only use cables delivered by the manufacturer.

Video inputs: The input signal amplitude must not exceed the specified level.

PATENTS, TRADEMARKS & COPYRIGHTS

IBM and PS/2 are registered trademarks of International Business Machines Corporation. Apple Macintosh and ADB are registered trademarks of Apple Computer, Inc. Microsoft Windows is a trademark of the Microsoft Corporation. DLP is a trademark of Texas Instruments Incorporated. All other products are trademarks or registered trademarks of their respective companies.

Section 1: Unpack

1-1. Contents of Shipping Box

The MP8760 is shipped with the necessary cables required for standard VCR, PC or laptop computer connections. Carefully unpack and verify that you have all of the items shown below in Figure 1–1. If any of these items are missing, please contact your place of purchase.

Item Quantity

1. MP8760 Multimedia Projector 1
2. IR Remote control transmitter 1 (Two AAA batteries included) 2
3. Power cord set (US, UK, Europe) 1
4. VGA cable (2m) 1
5. RCA Video/ Audio (3m) 1

Item Quantity

1. S-VHS video cable (3m) 1
2. PS/2-Mouse-Adapter 1
3. Serial Mouse cable 1
4. Operator's Guide, 7 languages(not shown) 1
5. Registration card 1
6. Telephone (800#) stickers 2

1

2

√ Note

A set of cables/adapters for connection to Apple Macintosh computers is available as an option.

3

4

56

7

8
Figure 1-1. Packing List

1-2. Keep Your Packing Materials

Save the shipping box and packing materials in the event the MP8760 should require shipping to a 3M Service Center for repair. Use packing material to protect projector.

1-3. What's Next?

Take a few minutes to review Section 2 to familiarize yourself with the MP8760 machine characteristics and then turn to Section 3 to set up the projector.

We hope you will enjoy using this high performance product in your meetings, presentations and training sessions. This product has been produced in accordance with 3M's highest quality and safety standards to ensure smooth and trouble-free use in the years to come.

Section 2: Production Description

2-1. Machine Characteristics

The MP8760 integrates NTP lamp and Digital Light Processor (DLP) technology. It accepts input from computer and/or video sources and projects a super bright image.

The MP8760 Multimedia Projector is easy to set up and use. It offers the following features:

• Extremely light weight and portable
• NTP projection lamp 350W
• VGA (640 x 480) expansion
• SVGA (800 x 600) expansion
• XGA (1024 x 768) native resolution
• SXGA (1280 x 1024) compressed
• NTSC, PAL, SECAM compatible
- Ability to display 16.7 million colors
- Two computer input connections each with a separate audio-in connection
• Built-in Serial, PS/2 and ADB mouse emulation

• Three video/audio input connections
• Power focus, zoom and height shift
• Full function remote control
- Surround sound system
• Horizontal and vertical image inverting function allows rear screen and ceiling mounted projection
- On-screen menu for easy projector set up
- Menus display in English, German, French, Spanish, Italian, Dutch, Swedish
• 0-12 degree adjustable keystone correction

2-2. Parts Identification List

1. Infrared Remote Control Transmitter
2. 3 Speakers (Surround Sound System)
3. Operator Touch Panel
4. Exhaust Fan
5. Terminal Connections
6. Height Adjustment Foot
7. Projection Lens

8. Air intake/air filter

9. Carry Handle

10. Release Button (height adjustment foot)
11. AC Power Connection
12. AC Power Switch
13. Lamp Door
14. Lamp Door Release Button
15. Infrared Sensor

Section 3: Set Up/Connections

3-1. Terminal Connection Panel

The MP8760 projector has terminal connections on the backside of the projector. Refer to Section 3.4-Cable Connections for more detail.

1. AUX: Only compatible with 3M devices.
2. SVHS/AUDIO IN: SVHS and audio input.
3. VIDEO1/AUDIO IN: Videol and audio input.
4. VIDEO2/AUDIO IN: Video2 and audio input.
5. RS-232C: Mouse emulation/external projector control.
6. MONITOR: Output to external monitor.
7. PC/RGB1: Video input #1 from computer.
8. PC/RGB2: Video input #2 from computer.
9. AUDIO IN2: Audio L/R input from computer #2
10. AUDIO IN1: Audio L/R input from computer #1.
11. AUDIO OUT: Audio L/R output to external audio system.

Figure 3-1. Input Connection Terminals

3-2. Operator Touch Panel Keypad

The MP8760 operator touch panel keypad (Figure 3-2) is located on top of the projector. Refer to Section 4 for more detail on using the keypad.

1. Zoom: Adjust (decrease/increase) image size.
2. Video: Select Video1, Video2 or S-VHS input
3. PC: Select PC/RGB 1/2 input.
4. Enter: Initiate drop windows, toggle check box (on/off), display Info sub-menu or press and hold then use Disc Pad to reposition menu location.
5. Volume (-/+): Adjust (increase/decrease) audio level.
6. Mute: Toggle speakers on/off.
7. Brightness (-/+): Adjust image brightness. (See Menu.)
8. Disc/Pad: Move cursor up/down, left/right.
9. Menu: Display/remove menus. Menu (-/+): Increase/decrease menu value.
10. Aux: Toggle On/Off a 3M compatible device.
11. Focus: Adjust image focus.
12. Standby: Switch between standby mode (lamp off, fan off after cool down) and projection mode (lamp on, fan on).

Figure 3-2. Operator Panel Keypad

3-3. Mouse Connection

The MP8760 has mouse emulation capability. Connect your computer mouse to the MP8760 and control computer mouse functions using the remote control.

1. Power down the computer and projector.
2. Remove the mouse cable connection from your computer mouse port.
3. Connect the 9-pin D-Sub plug on the mouse cable to the RS-232 port on the projector.
4. RS-232 Serial Mouse: Connect 9-pin D-Sub plug on mouse cable to the serial port on the computer.
   PS/2 Mouse: Connect 9-pin D-Sub plug on mouse cable to PS/2 adapter and connect the 6-pin Mini-DIN adapter plug to the PS/2 port on the computer.
   MAC ADB: Connect 9-pin D-Sub plug on mouse cable to the Mac ADB adapter and connect the 4-pin Mini-DIN plug on ADB adapter to the ADB port on the computer.
   (The Mac ADB adapter is an accessory item that must be ordered separately)

√ Note

For serial mouse connections to a laptop computer, refer to the manufacturer's operating instructions. The internal pointing device or serial port configurations may need to be changed.

1. First, power on the projector, then power on the computer.

√ Note

Mouse emulation only works, when all cable connections are established and the proper start up sequence is followed. See section 4–1.

√ Note

The recommended mouse drivers for mouse emulation is the Standard Microsoft Mouse, Serial or PS/2.

3-4. Cable Connections

1. Turn off all power to the projector and input sources during cable hook up.

Caution

To prevent damage to equipment, all power to MP8760 and input sources must be turned OFF during cable hook up.

1. Connect cables being careful not to bend any pins in the cable plug or input terminal (Figure 3-1).
2. Start up projector then start up input sources. Section 4-1.

Cable Connection, continued

Figure 3-4. Cable Connections

3-5. Image Size (Projector-to-Screen Distance)

Adjust the size of the projected image using the zoom control buttons. The projected image size values, as they relate to the distance-to-screen value, are shown for focal lengths of f=25mm and f=45mm. Also shown is the maximum image height shift value that can vary depending on the focal length and the distance-to-screen. Figure 3.4.

Distance to Screen m (ft.)	Maximum (f=25mm) Minimum (f=45mm)
	Image Width m (in.)	Image Height m (in.)	Max Height m (in.)	Image Width m (in.)	Image Height m (in.)	Max Height m (in.)
2.00 (6.56) 1.42	(56.0) 1.06 (41.7)	0.43 (16.9)	0.80 (31.5) 0	60 (23.6) 0.24	(9.5)
2.50 (8.20) 1.76	(69.3) 1.32 (52.0)	0.54 (21.3)	0.99 (39.0) 0	74 (29.1) 0.30	(11.8)
3.00 (9.84) 2.11	(83.1) 1.57 (61.8)	0.64 (25.2)	1.18 (46.5) 0	89 (35.0) 0.36	(14.2)
5.00 (16.40) 3.48	(137.0) 2.60 (102.4)	1.06 (41.7)	1.96 (77.2) 1	47 (57.9) 0.60	(23.6)
7.00 (22.97) 4.85	(191.0) 3.62 (142.5)	1.47 (57.9)	2.73 (107.5) 2	05 (80.7) 0.83	(32.7)
10.00 (32.81) 6.90	(271.7) 5.16 (203.2)	2.10 (82.7)	3.88 (152.8)	2.92 (115.0) 1.18	(46.5)

Figure 3.4. Image Size/Maximum Image Height

3-6. Image Height

Use the Picture menu/Height option to shift (upward) the projected image. The center of the projected image can be shifted a maximum of 12 degrees without incurring any keystoning. Figure 3.5.

Figure 3.5. Maximum Image Shift

Section 4: Operating Instructions

4-1. Power Up Projector

Read the Important Safeguards before operating the MP8760 projector. After all cable connections have been completed, the projector can be powered up. During operation, keep the exhaust and intake air vents clear of obstructions to allow proper cooling.

Caution

Allow a projector that has been stored in a cold place to warm up to room temperature before applying power.

Figure 4-1. Power Up Projector

1. Press the Main Power switch (1) to ON. A red LED indicator will illuminate to indicate there is power.
2. Press the Standby button (2) to illuminate the lamp. A red LED indicator will turn green as an image appears and grows brighter on the screen.
3. Check all ventilation slots (3) and clear away all obstructions.

√ Note

Ventilation vents are located on the top and back of the projector. Do not block airflow by placing objects on top of the projector.

1. Adjust the Focus (4) and Zoom (5) for best image.
2. Press the Foot Release button (6) to release the height adjustment foot (7).
3. Power up your computer and video source(s).

√ Note

In most cases, the projector will automatically adjust to the graphic mode of your computer by selecting a pre-programmed setting.

4-2. Standby Mode

When the projector is not being used, place it into standby mode.

1. Press the Standby button.
2. The lamp will switch off and the red LED will illuminate.

√ Note

The fan motor will continue to run for a few minutes until the projector cools down and then the fan will turn off.

1. Press the Standby button again to illuminate the lamp and project an image on the screen.

4-3. Projector Power Down

1. Press the Standby button to place the projector in the standby mode (red LED illuminates).
2. Wait until the cooling fan motor cycles off and the lamp LED turns off.

√ Note

Switching the main power off before the fan has cycled off will decrease the life of the projection lamp.

1. Press the Main Power switch to Off.
2. Turn off the power to your input devices.
3. Install lens cap to protect projection lens.
4. To transport the projector, disconnect all power and connection cables.

4-4. Using System Menus

Main Menu: Press the Menu button on the operator touch panel keypad (Figure 3-3) or the remote control keypad (Figure 5-1) to display the Main Menu.

The menu name (1) is on the top line.

An arrowhead (2) at the right of a menu line indicates that this item is a sub-menu that can be selected.

A text field (3) at the right of a line indicates that this is a value that you can change in a drop down window.

Info: Press Enter to display the Info window.

To select a sub-menu, press the Disc Pad up or down to highlight (select) the desired sub-menu (2). Then press the Disc Pad to the right or the Enter button to display the sub-menu (see Sub-Menu).

To change a text field value, press the Disc Pad up or down to highlight (select) the menu line (3). Then press the Disc Pad to the right or the Enter button to display a drop down window of all the possible values. Use the Disc Pad to select a value and press Enter to initiate the selection.

To exit a sub-menu, press the Disc Pad to the left.

To completely exit the menu system and return to the projected image, press the Menu button.

Sub-Menu: Select the desired sub-menu (see Main Menu). Press the Disc Pad to the right or the Enter button to display the sub-menu.

Tools
Freeze	○
Magnify	○
Factor	-|—|+
Timer	off
Minutes 10

The sub-menu name (1) is on the top line.

A check box field (2) at the right of a sub-menu line indicates that you can toggle that value On/Off by pressing the Enter button.

A slider bar (3) at the right of a sub-menu line indicates you can increase or decrease the value.

A number field (4) at the right of a sub-menu line indicates that you can change it.

To change a slider bar value, it must be highlighted. Press the +/- button on the remote control or Bright +/- button on the operator touch panel to increase or decrease the value.

To change a number field, press the Disc Pad up or down to highlight (select) the menu line. Then press the +/- button on the remote control or Bright +/- button on the operator touch panel to increase or decrease the amount of the value.

4-5. Menu Adjustments/Settings

The following charts lists all the menu items that can be adjusted along with the default settings.

Main Menu Description / Action Default		Setting
Picture Display picture submenu
Audio Display audio submenu
Tools Display tools submenu
Source(drop down window)	Select input source(PC/RGB1 / PC/RGB2 / SVHS /VIDEO 1 / VIDEO 2 / AUX)	According to search procedure
User Interface Display user interface submenu
Advanced Setup Display advanced setup submenu
Info Display information window(press Enter)

In active PC/RGB mode:

Picture (PC/RGB) Submenu Items	Description / Action Default		Setting
Height	Adjust projected image height ▼▲
Brightness Adjust the brightness			-|j|+
Contrast Adjust the contrast			-|j|+
Optimize Set best brightness for image
Hor. Position Adjust horizontal position of image			|—|
Ver. Position Adjust vertical position of image			||—|
Tracking Adjust number of pixels per line
Sync	Adjust phase synchronization		|—|
Mode	Select data mode to adjust within this menu (Predefined modes /User Mode 1...3)
Resolution(drop down window)	Select pixel resolution (640x350 /720x350 / 640x400 / 720x400 /640x480 / 800x600 / 832x624 /1024x768 / 1152x864 / 1152x870 /1152x900 / 1280x960 / 1280x1024)

Main Menu
Audio
Tools
Signal source	PC/RGB1
User Interface
Advanced Setup
Info

Height
Brightness
Contrast
Optimize
Hor. Position
Ver. Position
Tracking	1312
Sync
Mode VESA 1024 x 768 75Hz
Resolution	1024 x 768

4-5. Menu Adjustments/Settings, continued

In active Video mode:

Picture (Video) Submenu Items	Description / Action Default	Setting
Height	Adjust projected image height
Brightness Adjust the brightness
Contrast Adjust the contrast
Color Adjust color saturation
Tint Adjust HUE for NTSC

Audio Submenu Items	Description / Action Default	Setting
Volume Adjust volume
Audio Audio mute -on / -off -on
Speaker Speakers -on / -off -on
Balance Adjust balance
Treble Adjust treble
Bass Adjust bass
Surround	Adjust surround sound level

Tools Submenu Items	Description / Action Default	Setting
Freeze	Freeze frame ☑on / -Off	-Off
Magnify	Magnify mode ☑on / -Off	-Off
Factor Adjust magnification factor
Timer Select timer mode (off / small / large) off
Minutes	Adjust timer countdown(1 to 90 minutes)	10 minutes

User Interface Submenu Items	Description / Action Default	Setting
Language(drop down window)	Select user interface language(English / Deutsch / Français /Español / Italiano / Nederlands /Svenska)	English
Blank Screen Color(drop down window)	Select color of Blank Screen(Black / Red / Green / Blue / Yellow /Cyan / Magenta / White)	Black
Graphics	Activate on-screen status barindicators and icons. (e.g. 📋)-on / -off	√-on
Reset Window Position	Reset all menu window position to default
Help(drop down window)	Select Help window mode(immediate / 1, 3, or 5 seconds / off)	3 seconds

Height
Brightness
Contrast
Color
Tint

Audio
Volume	-||+
Audio
Speaker
Balance	L||R
Treble	-||+
Bass	-||+
Surround	-||+

Tools
Freeze	○
Magnify	○
Factor	—H+
Timer	off
Minutes 10

User Interface
Language	English
Blank Screen Color	Black
Graphics
Reset Window Position
Help	3 seconds

4-5. Menu Adjustments/Settings, continued

In active PC/RGB mode:

Advanced Setup(PC/RGB) Submenu Items	Description / Action Default	Setting
Projection(drop down window)	Select projection orientation(standard / Rear / Rear/Ceiling /Ceiling)	standard
Color Manager Display	Color Manager submenu
Remote Control Remote	control receiver -on / -off-on	√
RC Address Select remote control address(1 / 2 / 3 / 4)		1
Sync Mode1(drop down window)	Select Sync Mode for PC/RGB1(separate TTL / composite TTL /separate ana. / composite ana. /sync on green)	separate TTL
Sync Mode2(drop down window)	Select Sync Mode for PC/RGB2(separate TTL / composite TTL /separate ana. / composite ana. /sync on green)	separate TTL
SOG Level Adjust level	for sync on greensynchronization	-|—|—|+
Reset Data Modes Set all data modes to factory defaultsettings.
Reset lamp display Resets the lamp hours displayed onthe Info window
Test Display test submenu

In active Video mode:

Advanced Setup (Video) Submenu Items	Description / Action Default	Setting
Projection(drop down window)	Select projection orientation(standard / Rear / Rear/Ceiling /Ceiling)	standard
Color Manager Display	Color Manager submenu
Remote Control Remote	control receiver -on / -off-on	☑
RC Address Select remote control address(1 / 2 / 3 / 4)		1
Video standard(drop down window)	Select Video standard(PAL B,G,H,I / NTSC M / SECAM /NTSC 44 / PAL M / PAL N / PAL 60 /NTSC COMB / automatic)	automatic
Reset lamp display Resets the lamp hours displayed onthe info window
Test Display test submenu

Advanced Setup
Projection standard
Color Manager
Remote Control
RC Address	1
Sync Mode1 separate TTL
Sync Mode2 separate TTL
SOG level
Reset Data Modes
Reset lamp display
Test

Advanced Setup
Projection standard
Color Manager
Remote Control
RC Address	1
Video standard	automatic
Reset lamp display
Test

4-5. Menu Adjustments/Settings, continued

Color Manager Submenu Items	Description / Action Default	Setting
Brightness red Adjust brightness for red portion
Contrast red Adjust contrast for red portion
Brightness green Adjust brightness for green portion
Contrast green Adjust contrast for green portion
Brightness blue Adjust brightness for blue portion
Contrast blue Adjust contrast for blue portion
Default Sets color settings to default values

Color Manager
Brightness red	- - - +
Contrast red	- - - +
Brightness green	- - - +
Contrast green	- - - +
Brightness blue	- - - +
Contrast blue	- - - +
Default

Test Submenu Items	Description / Action Default	Setting
Parameter display Parameter display window ☑-on / ☑-off	☐-off
Color test picture Display color test picture
Frame test picture Display frame test picture

Test
Parameter display	○
Color test picture
Frame test picture

Info (display only) Description / Action
Hardware Current hardware level
Firmware Current firmware level
VESA xxxxxxxxxx Current data or video mode
Lamp (bar indicator) Lamp life hours (Green: lamp good / red: lamp needs replacement)
OK!	Closes the Info display by pressing the Enter button

3M

MP8760

Hardware: xxx-x.xx-x

Firmware: xxx-x.xx

VESA 1024 x 768 75 Hz Lamp

OK!

Section 5: Remote Control

5-1. Remote Control Functions

Aim the remote control toward the projection screen or at the sensor. Press desired remote button to send a signal to the projector.

*Video: Switch displayed image to video input. In Video mode, toggles between: Video1 / Video2 / SVHS

*PC: Switch to PC mode. In PC mode, toggles between RGB1 & RGB2.

*Enter: Mouse emulation ON, left mouse button. Mouse emulation OFF, Enter button for confirmation of a selection.

Drag: Lock left mouse button.

Text: Not used.

Blank: Replace projected image with white background. Press again to return image.

Optimize: Adjust brightness and contrast for best picture.

Reveal: Press Reveal to cover the image on the screen with a gray mask. Use the Disc Pad to reveal the image. Press Reveal again to return full screen projection of image.

*Volume: Increase (+) or decrease (−) speaker volume.

Mouse: Toggle mouse emulation On/Off. On: The L & R buttons operate left & right mouse key functions. Drag-and-drop functions are possible by pressing the Drag button.

Disc Pad moves Mouse pointer. Off: L button is the Enter confirmation button. R button is for menu window. Disc Pad centers image.

positioning. Disc Pad centers image.

Mode 1,2,3,4: Toggle between remote control addresses 1, 2, 3, 4. (See Appendix ?)

Info: Display information window.

*Zoom: Increase (+) or decrease (-) size of displayed image.

Pointer: Place a pointing device on the screen. Use Disc Pad to move pointer.

*Standby: Switch the projector between Standby mode (lamp off, fan off) and operation mode (lamp on, fan on)

*Focus: Adjust focus (+/-) of displayed image.

Aux: Toggle On/Off a 3M compatible device.

*Menu: Display system menus.

Disc Pad (mouse pointer): Move (point) the cursor on the projected image. Navigate menus. See Pointer.

Menu window position:

In mouse emulation mode: right mouse Button (R). Not in mouse emulation mode: keep button pressed while moving menu window with Disc Pad around

Window: Toggle between full screen and centered display mode (Non-XGA modes only!!!)

Timer: Displays timer (window in lower part of screen). Repeated operation of key toggles on/off.

*Mute: Toggle On/Off the audio sound.

*Bright: Increase (+) or decrease (-) brightness of displayed image.

Freeze: Stores (freezes) the projected image. Press again to return the projection of the current image.

Magnify: Press to enable magnification mode. Press +/- buttons to increase/decrease the magnification factor. Move Disc Pad to displace the magnified area within the image. Press Magnify again to toggle back to normal presentation. In video mode (NTSC only), press Magnify to toggle between scaled and unscaled representation.

An icon will display to indicate a presentation tool is active.

√ Note

The buttons marked with an asterisk (*) also appear on the operator touch panel keypad.

5-2. Meaning Of The Icons

An icon will display to indicate a presentation tool is active.

Pointer mode

Activate with Pointer button on IR-Remote control

In the Pointer mode you can move a pointer over and around the picture area.

By pressing the Pointer button on the remote control a second time it will be turned off.

Freeze mode

Activate with Freeze button on IR-Remote control

In the Freeze mode the picture will be freezed.

Pressing the Freeze button on the remote control a second time or the Magnify button, the freeze mode will be turned off.

Magnify mode

Activate with Magnify button on IR-Remote control

In the magnify mode the image can be magnified (zoomed). With the -(1) and +(3) buttons you can decrease or increase the magnifying factor. You can select the magnified area by using the Disc Pad.

Pressing the Magnify button on the remote control a second time, the magnify mode will be turned off.

Reveal mode

Activate with Reveal (7) button on IR-Remote control

In the reveal mode the picture will be covered by a grey sheet. You now can reveal the covered image by using Disc Pad. Pressing the Reveal button on the remote control a second time, the reveal mode will be turned off.

Muting mode

Activate with Mute button on IR-Remote control

In the muting mode the sound output of the projectors internal speakers and the external output will be muted.

Pressing the Mute button on the remote control a second time, the muting mode will be turned off.

Mouse emulation (Only in data mode [PC/RGB \_] available!)

Activate with Mouse button on IR-Remote control

If you've connected the projector with the mouse cable and the right adapters to your PC and turned on the projector before booting the PC it will emulate a mouse over the IR remote control transmitter.

By pressing the Mouse button on the IR remote control the mouse emulation will be activated. You can move around the mouse pointer with the Disc Pad. The Disc Pad is pressure sensitive, that means so stronger you press the pad so faster the mouse pointer will move. The mouse buttons will be emulated by the two buttons left and right beside the Discpad. . The drag function can be emulated by the Drag (2) button below the Disc Pad. The mouse emulation can be turned off by pressing the Mouse button a second time.

5-2. Meaning Of The Icons, continued

Question mark

A question mark in a box will appear if the projector can't recognize the mode of the data input source.

Even if you select a standard VESA mode on your system this can happen, because some device drivers of the graphic cards in the PC using timing parameters which differ from the parameters given out from the VESA organization.

As a result of this, the projector may detect a wrong predefined data mode or switches to a User mode, so you may see only a part of the whole picture.

To correct this situation you must select manually a data Mode in the Picture menu which should match the mode you've selected on the PC. If there is no matching mode you must select a User mode.

In a User mode you can manually select the Resolution which is normally not choosable.

It may be necessary to correct the Horizontal and Vertical Position and the Tracking and Sync values in the Picture menu. These values will be stored so the mode can be recognized the next time.

If you've accidentally misadjusted the values of a standard predefined data mode, you can reset them by selecting Reset Data Modes in the Advanced Setup menu. The settings of a User mode won't be affected by this action.

Optimize

The image optimize process ist just in progress – please wait a few seconds!

Looking for signal source...

The projector can not find any input signal on the video and data inputs.

Either there is no input source connected to the projector or the source is giving no output signal. For RGB/PC input sources you must manually select another Sync Mode recognition in the Advanced Setup menu.

5-3. Battery Replacement

The remote control uses two AAA batteries. The battery cover is located on the back of the remote control.

1. Press the locking tab (1) to release door. Figure 5-1.
2. Lift up on the door (2) to remove it and set it to the side.
3. Remove old batteries.
4. Install new batteries (3). Make sure the polarity (+/-) on each battery matches the decal.
5. Replace battery compartment door.

Figure 5-1. Replacing Batteries

Section 6: Maintenance

6-1. Replacing The Air Filter

For best performance, replace the air filter each time the projection lamp is changed.

√ Note

Periodically check air filter for excess dust or dirt. Replace or clean as needed.

1. Unplug the power cord (1) of the projector.
2. Unscrew two screws (2) securing back panel.
3. Remove the back panel (3).
4. Separate the air filter from the back panel (4).
5. Vacuum (5) the air filter to remove the dust and dirt.
6. Insert the air filter in the back panel.
7. Insert the back panel and secure with screws (2).

Figure 6-1. Removing Air Filter Door

6-2. Replacing Projection Lamp

The NTP lamp of the projector has a limited lifetime of approximately 1500 hours. If the projected image appears dark or a red lamp life indicator bar displays during projector startup, you should change the lamp and air filter.

√ Important Note

This lamp contains mercury. Consult your local hazardous waste regulations and dispose of this lamp in a proper manner.

Caution

Always unplug the projector when changing the lamp. There are high voltage parts inside the cabinet that may cause electric shock.

Caution

Allow the projector to cool down for 30 minutes. Lamp and adjacent metal parts become extremely hot and can cause burns to your fingers.

1. Press the Standby/On button on the operator touch panel or remote control. Wait for the fan motor to cycle off.
2. Turn the main power switch to OFF and unplug the projector power cord.
3. Set the projector on a sturdy surface with the front of the projector facing you.
4. Press and hold the lamp door button (1) with your index finger. Slide your finger to the right and depress the lock tab (2). Pull outward on the lamp door (4) to hinge it to the right side and access the lamp cartridge (5).
5. Unscrew two retaining screws (3) securing the lamp cartridge (5).
6. Grasp handle (6) and carefully pull the lamp cartridge (5) out of the projector.
7. Carefully insert the new lamp cartridge (5) and secure with retaining screws (3).
8. Close the lamp door (4) tightly until the lock tab (2) slides into the locked position.
9. Go to the Advanced Setup menu and reset the lamp life display to zero. (see 6-3. Lamp Life Indicator)

Figure 6-2. Changing the lamp cartridge

6-3. Lamp Life Indicator

The elapsed operating time of the lamp is displayed on the Info sub-menu. From the Main menu, select INFO to display the lamp life. As long as the lamp indicator bar is green, the lamp is good. When the bar changes to red, the lamp should be changed.

After changing the projection lamp, the lamp life indicator must be reset to zero.

To reset the lamp life indicator:

1. Press the Menu button to display the main menu.
2. Select the Advanced Setup sub-menu using the Disc Pad.
3. Select Reset lamp display and press the Enter button.
4. The following message will display: "Really reset lamp life display? OK! / Cancel"
5. Using the Disc Pad, select OK! and press Enter to acknowledge the change.
6. Press Menu to exit the menu system.

√ Note

To view the used/remaining lamp life:

(1) Go to the Main Menu.
(2) Select "Info".
(3) Press the Enter button.

6-4. Cleaning the Projector

For best performance, keep your projector free of excess dust and surface dirt. Use a soft cloth to remove dust from the projector housing. Use 3M ^® High Performance Cleaning Cloth to remove surface dirt and smudges from the projection lens.

Caution

Always unplug the projector when cleaning. Take care that no liquids get inside the projector. There are high voltage parts inside the cabinet that may cause electric shock.

Figure 6-3. High Performance Cleaning Cloth

7-1. Troubleshooting Problems and Solutions

Problem Probable Cause Possible Solution
Projector will not turn on.	Power cable is disconnected or not plugged in.Main power switch is not on.The ?inner fuses? are open?	Plug the power cable into an AC outlet.Turn the main power switch to the ON position.Send the unit to be repaired.
Image is disturbed or unstable.	Wrong Sync setting.Wrong Tracking value.	Set to factory default setting. (See below!)Change Sync setting in the Picture menu for optimum performanceFor vertical interference stripes, change the Tracking in the Picture menu for optimum performance.
No computer image projected. Message “Looking for signal ...” displays.	Loose cable.No power to computer.Wrong synchronization mode.	Check and secure cable connections.Turn on computer.Adjust synchronization mode of the projector to the synchronization mode of the computer via Advanced Setup menu.
No video image projected.	Loose cable.No signal from video source.	Check and secure cable connections.Check video picture on TV.
No video images are projected or the video image ?does something? and turns off.	The video source is sending a video signal and the projector cannot automatically select the video standard in use.	In the submenu Video Standard? in the Advanced Setup menu, manually change the video standard from Automatic to the type of standard in use.
Mouse does not work.	Loose cable.Wrong connection.Wrong power up sequence.	Check and secure cable connections.For PS/2 and ADB (Apple) mouse a special adapter is necessary. Only use adapters from the original manufacturer (Section 8-2).The mouse emulation operates correctly only if the correct power up sequence has been used (refer to section 3-5.) To verify that the projector is programmed for the desired mouse emulation mode, go to the Screen Parameters? In the Advanced Setup/Test submenu. Check that the parameter MTPE presents the desired mouse mode. This is not a selection, but a ???? that shows the type of mouse emulation with which the projector is programmed to communicate.
The lamp turns off, the Standby button and LED lights up and stays green as the fan cools the unit, and the unit goes into Standby Mode.	The air intake or exhaust vents are blocked.The air filter is dirty.	Clear all obstructions from the air intake and exhaust vents.Clean or replace the filter.
The lamp turns off, the unit goes into Standby Mode, and the fan ????s more rapidly.	The air intake or exhaust vents are blocked.The air filter is dirty.	Clear all obstructions from the air intake and exhaust vents.Clean or replace the filter.

Note: It is necessary to turn the projector off and on with the main power switch before restarting the projector.

The lamp turns off, the Standby button blinks red for a few seconds, and the unit goes into Standby Mode.

· The air intake or exhaust vents are blocked.· The air filter is dirty.

· Clear all obstructions from the air intake and exhaust vents.· Clean or replace the filter.

The Standby buttonblinks red and thelamp with not turnon.	There is no lamp inthe unit.The lamp isimproperly placed inthe unit.	Put a 3M MP8760 lamp in the unit.Install the lamp again.
A question markappears in the lowerleft of the screenwhen connecting tocomputer video.	The horizontal andverticalsynchronizationsignals from thecomputer video arenot correctly polarizedaccording to VESAvideo standards.The computer videosignal is not a VESAor Mac standard.	Select Mode in the Image menu, select the correct videomode, and press Enter.
Image off-center.	Image position.	Center image with the Disc Pad of the control panel or on theremote control transmitter.
Cannot get entireimage on the screen.	WrongTrackingvalue.Compatibilityproblem.	If vertical interference stripes occur, change theTrackingvalue in thePicturemenu for optimum performance.Refer to the documentation for your graphic card. Change theResolutionsetting in thePicturemenu to the resolution ofthe video mode output from the computer graphic card.
Washed out image.	WrongContrastsetting.WrongBrightnesssetting.	ChangeContrastsetting in thePicturemenu. The barshould be in the middle position.LowerBrightnesssetting in thePicturemenu. ChoosingBrightness and pressing Enter can perform an automaticadjustment.
Humming noise.Slowly passinghorizontal bars.	Signal sources areconnected to differentpower sources.VCR connected toaerial system and toprojector.Bad signal.	Locate the source of disturbance. Disconnect the sourcesone after another from the projector. Connect all sources to acommon power source.Remove antenna connection from VCR. If the disturbancedisappears, use a by-pass filter (isolating transformer) toconnect the antenna to the VCR.Try different input source.
Image is disturbed orunstable.	WrongSyncsetting.WrongTrackingvalue.	Set tofactory default setting.(See below!)Change Sync setting in thePicturemenu for optimumperformanceFor vertical interference stripes, change theTrackingin thePicturemenu for optimum performance.
No computer imageprojected. Message“Looking for signal...” displays.	Loose cable.No power tocomputer.Wrong synchro-nization mode.	Check and secure cable connections.Turn on computer.Adjust synchronization mode of the projector to the synchro-nization mode of the computer viaAdvanced Setupmenu.
No video imageprojected.	Loose cable.No signal from videosource.	Check and secure cable connections.Check video picture on TV.
Mouse does notwork.	Loose cable.Wrong connection.Wrong power upsequence.	Check and secure cable connections.For PS/2 and ADB (Apple) mouse a special adapter isnecessary. Only use adapters from the original manufacturer(Section 8-2).The mouse emulation operates correctly only if the correctpower up sequence has been used (refer to section 3-5.)
Image off-center.	Image position.	Center image with the Disc Pad of the control panel or on theremote control transmitter.
Cannot get entireimage on the screen.	WrongTrackingvalue.Compatibilityproblem.	If vertical interference stripes occur, change theTrackingvalue in thePicturemenu for optimum performance.Refer to the documentation for your graphic card. Change theResolutionsetting in thePicturemenu to the resolution ofthe video mode output from the computer graphic card.
Washed out image.	WrongContrastsetting.WrongBrightnesssetting.	ChangeContrastsetting in thePicturemenu. The barshould be in the middle position.LowerBrightnesssetting in thePicturemenu. ChoosingBrightness and pressing Enter can perform an automaticadjustment.

Humming noise.Slowly passing horizontal bars.

• Signal sources are connected to different power sources.• VCR connected to aerial system and to projector.• Bad signal.

• Locate the source of disturbance. Disconnect the sources one after another from the projector. Connect all sources to a common power source.• Remove antenna connection from VCR. If the disturbance disappears, use a by-pass filter (isolating transformer) to connect the antenna to the VCR.• Try different input source.

√ Note

The factory default settings of the projector can be restored by pressing Enter and Mute simultaneously on the control panel when switching on the main power switch of the projector and pressing the Standby button afterwards.

The projector will start immediately and the message “Parameter factory settings restored” displayed in the starting screen will indicate the default settings are reset.

7-2. Service Information

For product information, product assistance, service information, or to order accessories or spare parts, please call:

In U.S. or Canada: 1-800-328-1371

In other locations, contact your local 3M Sales office.

8-1. Technical Specifications

Display Technology Single DMD
Resolution 1,024 x 768 (total 2,359,296 pixels)625 (PAL) / 525 (NTSC) video lines to full screen size magnification
Colors 16,770,000 colors
Zoom / Focus / Height shift Power control
Projection Lens	Throw Ratio=1.44 - 2.59 / f=25 - 45 mm Power Zoom / Power Focus,0° - 12° Power Height Shift
Picture Size 1.0 - 8.7 m (38 - 340 in.) diagonal,2.6 m diagonal at 3.0 m distance and f=25 mm
Projection Lamp 350 W DC NTP lamp
PC Compatibility Resolution 640 x 400 & 800 x 600 (magnified), 1024 x 768 (native) and1280 x 1024 (compressed) (sync on green is available)
Video Compatibility NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM, PAL-60
Input Terminals PC/RGB: RGB x 2 (D-Sub 15-pin)PC/RGB: PC-Audio x 2 (3.5 mm stereo mini jack)Video: RCA x 2 + SVHS x 1 + Camera/Aux x 1Video: Audio x 3 (2 x RCA left/right)
Output Terminals RGB-Monitor: RGB x 1 (D-Sub 15-pin)Audio: Audio x 1 (2 x RCA left/right)
Communication Terminals RS-232C (D-Sub 9-pin)
Scanning Rates Hor.: 15-86 kHz, Vert.: 50-160 Hz
Audio Speakers 20 Watts, stereo surround sound
Height Adjuster	Front leg (additional 0°... 9°, variable)
Unique Features Digital magnification,	Wireless infrared remote control
Remote Control Transmitter	Projector control, PC/MAC mouse cursor control
Dimension (WxHxD)	331 x 137 x 272 mm
Power Requirements	AC 100-240 V ±50/60 Hz
Power Consumption	450 W
Regulatory Approvals	FCC Part 15, Class A, CE, UL
Warranty	Two years limited warranty on parts and labor

8-2. Accessory & Spare Parts List

Part Description Part Number
Projection Lamp Kit- NTP Lamp (350W)- Air Filter	78-6969-9048-6
Air Filter (included in lamp kit 78-6969-9048-6)	78-8118-3476-7
Power Cords (U.S., UK, Europe)For special power cords. See Appendix D-3	DY-0205-1356-9 (U.S.)DY-0205-1355-1 (UK)DY-0205-1354-4 (Europe)
VGA Cable (15-15 pin male/male) DY-0205-1271-0
Video Cable (S-Video Mini-DIN-4pin) DY-0205-1010-2
Composite Video Cable (RCA to RCA) DY-0205-1008-6
Audio Cable (RCA to 3.5 mm stereo) DY-0205-1359-3
PC Serial Cable (PC mouse connection) DY-0205-1007-8
Remote Control 78-8118-3475-9
Mac Cable Set (optional) DY-0205-1361-9
Carry Case (optional) 78-6969-8587-4
Shipping Case (optional) 78-6969-8588-2
Mouse Y-Cable (optional) DY-0205-1507-7
Extension Cable Kit (optional) XX-0034-1714-2
PC-Audio Cable (3.5 mm stereo to 3.5 mm stereo)(optional)	26-1012-0683-2
Ceiling Mount Kit (optional)	78-6969-8591-6

Mac Cable Set (optional), Part number DY-0205-1361-9: This kit contains a Mac mouse adapter and a Mac video cable.

Extension Cable Kit (optional), Part number XX-0034-1714-2: The extension cable kit includes a video amplifier and 20 m (65 ft.) video cable. The kit increases the allowable distance between the projector and the video source without burdening the video source.

Mouse Y-Cable (optional), Part number DY-0205-1507-7: This cable provides user with the option to simultaneously operate the MP8760 remote mouse and a PC mouse (only works with Microsoft serial mouse).

8-3. How to Order

Please order these parts through your dealer, or contact 3M Customer Service at the following number:

• In U.S. or Canada: 1-800-328-1371
• In other locations, contact your local 3M Sales office.

Appendix

A-1. Optional Lenses Charts

Note: The zoom function is not available when optional lenses are installed.

Short Throw Lens:

Distance D		f=20 mm
		Width W		Height H		Shift X
m	(ft.)	m	(in.)	m	(in.)	m (in.)
1.0	(3.28) 0.9	3	(36.6) 0.70	(27.6) 0.11	(4.3)
1.5	(4.92) 1.3	7	(53.9) 1.03	(40.6) 0.16	(6.3)
2.0	(6.56) 1.8	1	(71.3) 1.36	(53.5) 0.21	(8.3)
3.0	(9.84) 2.6	9	(105.9) 2.02	(79.5) 0.31	(12.2)
4.0	(13.12) 3.5	7	(140.6) 2.67	(105.1) 0.41	(16.1)

Long Throw Lens:

Distance Dm (ft.)	f=88 mm
	Width Wm (in.)	Height Hm (in.)	Shift Xm (in.)
4.0 (13.12) 0.80	(31.5) 0.60	(23.6) 0.23	(9.1)
5.0 (16.40) 1.00	(39.4) 0.75	(29.5) 0.29	(11.4)
6.0 (19.69) 1.20	(47.2) 0.90	(35.4) 0.35	(13.8)
7.0 (22.97) 1.40	(55.1) 1.05	(41.3) 0.40	(15.7)
8.0 (26.25) 1.60	(63.0) 1.20	(47.2) 0.46	(18.1)
9.0 (29.53) 1.80	(70.9) 1.35	(53.2) 0.52	(20.5)
10.0 (32.81) 2.00	(78.7) 1.50	(29.1) 0.57	(22.4)

A-2. Power Cord Sets

A standard power cord set (U.S., UK, or European) will be included with each MP8760. If you need a special power cord set, contact your local 3M authorized dealer. The power cords must be in accordance with the regional and corresponding national safety regulations and be properly approved. Examples of these power cords are shown below.

North America

UL Listed CSA Certified

15A 125VAC

Germany, Netherlands,

Spain, France, Greece

VDE Certified

10A 250VAC

Great Britain

AUSTA Certified

13A 250VAC

Italy

IMQ or BASEC

Certified

10A 250VAC

Switzerland

SEV Certified

10A 250VAC

Australian

SAA Certified

10A 250VAC

Denmark

Complies with Danish

Standard

6/10A 250VAC

A-3. Changing Of The IR-Remote-Control Address

Changing of the IR-Remote-Control address:

You can choose one out of four different IR-RC addresses for the projector, so you can control four projectors separately without any interferences to another projector.

To change an address from the standard address #1, go to the Advanced Setup menu and choose an address of your choice under the menu item RC Address (1...4). Confirm your selection with the Enter button.

After this point you can't control the projector with the IR-RC transmitter anymore until you change the transmitter address to the same address. (Of course, you still can enter the menu system and change back the address with the Control Panel of the projector!)

To change the address of the IR-RC transmitter, please press the Mode button and an address number (buttons 1,2,3 or 4) simultaneously for 4 seconds on the IR-RC transmitter.

After this you should be able to control the projector by IR-RC again if you've chosen the same address for the projector and the IR-RC transmitter.

A-4. Resetting The Projector To Factory Default Settings

The factory default settings of the projector can be restored by pressing Enter and Mute simultaneously on the control panel when switching on the main power switch of the projector and pressing the Standby button afterwards.

The projector will start immediately and the message “Parameter factory settings restored” displayed in the starting screen will indicate the default settings are reset.

If you've had selected another menu language as english, which is the default language, you'll have to select your menu language again.

A-5. Supported Data Modes and Resolutions

Table of the predefined Data modes:

Data Mode Name Resolution	Hor. x Vert.	Horizontal Frequency kHz	Vertical Frequency Hz	Pixel-Clock MHz
VGA 640 x 350 640 x 350 30,000 70,000 25
VESA 640 x 350 85Hz 640 x 350 37,861 85,081 32
VGA Text 720 x 350 720 x 350 31,469 70,087 28
VGA 640 x 400 640 x 400 25,560 60,000 25
VESA 640 x 400 85Hz 640 x 400 37,861 85,081 32
VGA Text 720 x 400 720 x 400 31,469 70,087 28
VGA 640 x 480 640 x 480 31,469 59,941 25
VESA 640 x 480 72Hz 640 x 480 37,861 72,810 32
VESA 640 x 480 75Hz 640 x 480 37,500 75,000 32
VESA 640 x 480 85Hz 640 x 480 43,269 85,008 36
VESA 800 x 600 56Hz 800 x 600 35,156 56,250 36
VESA 800 x 600 60Hz 800 x 600 37,879 60,317 40
VESA 800 x 600 72Hz 800 x 600 48,077 72,188 50
VESA 800 x 600 75Hz 800 x 600 46,875 75,000 50
VESA 800 x 600 85Hz 800 x 600 53,674 85,062 56
VESA 1024 x 768 43Hz 1024 x 768 35,522 86,957 45
VESA 1024 x 768 60Hz 1024 x 768 48,363 60,004 65
VESA 1024 x 768 70Hz 1024 x 768 56,476 70,069 75
VESA 1024 x 768 75Hz 1024 x 768 60,023 75,029 79
VESA 1024 x 768 85Hz 1024 x 768 68,677 84,996 95
VESA 1152 x 864 75Hz 1152 x 864 67,500 75,000 108
VESA 1280 x 960 60Hz 1280 x 960 60,000 60,000 108
VESA 1280 x 1024 60Hz 1280 x 1024 63,981 60,020 108
VESA 1280 x 1024 75Hz 1280 x 1024 79,975 75,024 136
Mac 640 x 480 640 x 480 35,000 66,667 30
Mac LC 640 x 480 640 x 480 34,975 66,619 31
Quadra 832 x 624 832 x 624 49,107 75,087 57
Mac 1024 x 768 1024 x 768 60,241 74,927 80
Mac 1152 x 870 1152 x 870 68,681 75,062 100
Mac 1280 x 960 1280 x 960 85,938 85,003 139
Sun 1152 x 900 66Hz 1152 x 900 61,846 66,004 95
Sun 1152 x 900 76Hz 1152 x 900 71,713 76,047 105

Table of predefined Resolutions for User-Mode 1...3:

Predefined Resolutions

640 x 350

720 x 350

640 x 400

720 x 400

640 x 480

800 x 600

832 x 624

1024 x 768

1152 x 864

1152 x 870

1152 x 900

1280 x 960

1280 x 1024

IMPORTANT NOTICE:

All statements, technical information, and recommendations related to 3M's products are based on information believed to be reliable, but the accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated with such use. Any statements related to the product which are not contained in 3M's current publications, or any contrary statements contained on your purchase order shall have no force or effect unless expressly set forth in a written agreement signed by an authorized officer of 3M.

Warranty and Limited Remedy. This product will be free from defects in material and manufacture for a period of two years from the date of purchase. The projection lamps are considered consumable items and are warranted for 90 days or 180 hours of operation, whichever occurs first. 3M MAKES NO OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3M's option, to replace or repair the 3M product or refund the purchase price of the 3M product.

Limitation of Liability. Except where prohibited by law, 3M will not be liable for any loss or damage arising from this 3M product, whether direct, indirect, special, incidental or consequential regardless of the legal theory asserted.

Let us help you make the most of your next presentation. We offer everything from presentation supplies to tips for better meetings. And we're the only transparency manufacturer that offers a recycling program for your used transparencies. For late-breaking news, handy reference and free product samples, call us toll-free in the continental United States and Canada, 24 hours a day, or visit our Internet Website.

http://www.3m.com/meetings e-mail: [e-mail]

3M Austin Center

Building A145-5N-01 6801 River Place Blvd. Austin, TX 78726-9000

3M Canada

P.O. Box 5757 London, Ontario N6A 4T1

3M Mexico, S.A. de C.V.

Apartado Postal 14-139 Mexico, D.F. 07000 Mexico

3M Europe

Boulevard de l'Oise 95006 Cerge Pontoise Cedex France

Litho in USA Copyright ' 2000 3M IPC. All Rights Reserved 78-6970-9022-9 Rev. A
