Product Type	Video Splitter Cable
Model Number	307802
Brand	MANHATTAN
Connector Type (Input)	1 x DVI-I 24+5-pin Male
Connector Type (Output)	2 x VGA 15-pin Female
Length	0.3 m (1 ft)
Weight	144.5 g (5.1 oz)
Wire Gauge	30 AWG
Operating Voltage	500 V DC
Insulation Resistance	50 MOhms
Conductor Resistance	1 Ohm
Shielding	Mylar and aluminum foil shielding
Connector Plating	Gold-plated with thumbscrews
Jacket Material	Molded PVC boot with strain relief
Warranty	Lifetime
Key Feature	Splits one video source to two displays
Compatibility	DVI-I and VGA devices
Cleaning	Wipe with dry cloth; avoid liquids
Safety	Do not bend excessively; keep away from moisture
Repairability	Non-repairable; replace if damaged

Frequently Asked Questions - 307802 MANHATTAN

What is the Manhattan 307802 cable used for?

The Manhattan 307802 is a video splitter cable that connects a single DVI-I source to two VGA displays, ideal for dual-display presentations.

Does the 307802 support audio?

No, this cable carries video only. Audio must be transmitted separately.

What is the maximum resolution supported?

The cable supports high-resolution video, typically up to 1920x1080 (Full HD) depending on the source and displays.

Can I use this cable with a DVI-D source?

Yes, the input is DVI-I which is backward compatible with DVI-D. However, analog VGA output requires DVI-I or DVI-A source for full compatibility.

How long is the cable?

The cable length is 0.3 meters (1 foot), suitable for short distances between the source and displays.

Are the connectors gold-plated?

Yes, the connectors feature gold-plated contacts with thumbscrews for secure, corrosion-resistant connections.

Is the cable shielded?

Yes, it is fully shielded with mylar and aluminum foil to reduce electromagnetic interference.

Does the 307802 require external power?

No, it is a passive cable that does not require any external power source.

What is the warranty on this cable?

The Manhattan 307802 comes with a lifetime warranty against defects in materials and workmanship.

Can I connect two different types of displays?

Yes, both outputs are VGA, so you can connect two VGA monitors or projectors. The source must support analog output for VGA compatibility.

USER MANUAL 307802 MANHATTAN

Thank you for purchasing one of a variety of MANHATTAN ^® Video Splitter Cables, each designed to provide quick and easy 2-to-1 connections for crystal-clear video transmissions. Each cable in this series supports high-resolution images for dual-display presentations delivered by a single source. (See the connector configuration chart with specs on the back of this guide.)

Close-up of two black DVI connectors with gold connectors, one connected to a USB cable (no text or symbols on the devices themselves)

• Delivers a single, high-quality video signal to two displays – ideal for presentations, retail displays and training applications
  • Gold-plated connectors with thumbscrews provide maximum connectivity
• Integrated 2-in-1 output design eliminates Y-cable tangles and clutter
• Fully shielded to reduce EMI and other interference sources
  • Molded PVC boot and strain relief
  Lifetime Warranty

BRINGING COMPUTERS TO LIFE

MANHATTAN® offers a complete line of PC Components, Peripherals, Cables and Accessories. Ask your local computer dealer for more information or visit us online at

www.manhattan-products.com

Copyright © MANHATTAN

All products mentioned are trademarks or registered trademarks of their respective owners.

CONNECTOR CONFIGURATIONS

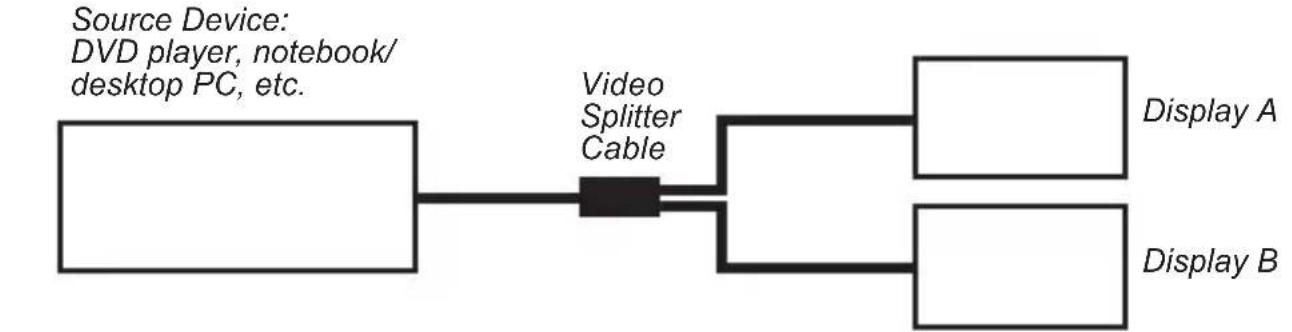


With-Cable standing Insulation ConductiveModel # Contacts Connectors Voltage Resistance Resistance Length Weight
307765 1 VGA 15-pin male; 2 VGA 15-pin female 28 AWG	1	300 V DC	20 MOhms	3 Ohms	0.3 m (1 ft.)	158.7 g (5.6 oz.)
307772 1 DVI 24+1-pin male; 2 24+1-pin female	30 AWG1	500 V DC	50 MOhms	1 Ohm	0.3 m (1 ft.)	150.2 g (5.3 oz.)
307796 1 DVI 24+5-pin male; 1 DVI 24+5-pin female; 1 VGA 15-pin female	30 AWG1	500 V DC	50 MOhms	1 Ohm	0.3 m (1 ft.)	164.5 g (5.8 oz.)
307802 1 DVI 24+5-pin male; 2 VGA 15-pin female	30 AWG1	500 V DC	50 MOhms	1 Ohm	0.3 m (1 ft.)	144.5 g (5.1 oz.)
307826 1 DVI 24+1-pin male; 1 DVI 24+1-pin female	30 AWG2	500 V DC	50 MOhms	1 Ohm	0.3 m (1 ft.)	141.7 g (5.0 oz.)
1 HDMI 19-pin female
307833 1 HDMI 19-pin male; 2 HDMI 19-pin female	30 AWG2	300 V DC	50 MOhms	2 Ohms	0.3 m (1 ft.)	107.7 g (3.8 oz.)
307857 1 HDMI 19-pin male; 2 DVI-D 24+1-pin female	30 AWG2	300 V DC	50 MOhms	2 Ohms	0.3 m (1 ft.)	107.7 g (3.8 oz.)
307864 1 HDMI 19-pin male; 1 DVI 24+1-pin female	30 AWG2	300 V DC	50 MOhms	2 Ohms	0.3 m (1 ft.)	116.2 g (4.1 oz.)
1 HDMI 19-pin female
307871 1 DVI-I 24+5-pin male; 1 VGA 15-pin female	30 AWG1	500 V DC	50 MOhms	1 Ohm	0.3 m (1 ft.)	144.5 g (5.1 oz.)
1 RCA female, RGB
307994 1 VGA 15-pin male; 1 VGA 15-pin female 28 AWG	1	500 V DC	50 MOhms	1 Ohm	0.3 m (1 ft.)	150.2 g (5.3 oz.)
1 RCA female, RGB
308175 1 VGA 15-pin male; 1 VGA 15-pin female	30 AWG1	500 V DC	50 MOhms	1 Ohm	0.3 m (1 ft.)	164.5 g (5.8 oz.)
1 DVI-I 24+5-pin female
308182 1 DVI-D 24+1-pin male; 2 VGA 15-pin female	30 AWG2	300 V DC	50 MOhms	2 Ohms	0.3 m (1 ft.)	133.2 g (4.7 oz.)
308199 1 DVI-I 24+5-pin male; 2 DVI-I 24+5-pin female	30 AWG1	500 V DC	50 MOhms	1 Ohm	0.3 m (1 ft.)	150.2 g (5.3 oz.)
308205 1 mini-DVI-D 32-pin male; 1 DVI-D 24+5-pin female; HDMI 19-pin female	30 AWG2	300 V DC	5 MOhms	10 Ohms	0.3 m (1 ft.)	110.5 g (3.9 oz.)
COMMON SPECIFICATIONS
Certifications	Contacts	Cable
1 UL	Gold-plated	Mylar and aluminum shielding
2 UL, HDMI 1.2	Molded PVC boot	Thermal plastic casing
	Shielded
