Product Type	Computer Cable
Brand	Manhattan
Model	307994
Category	Cables for Computers and Peripherals
Connector Type	USB 2.0 Type-A Male to USB 2.0 Type-B Male
Cable Length	1.8 m (6 ft)
Data Transfer Rate	Up to 480 Mbps
Compatibility	Windows, macOS, Linux, Chrome OS
Color	Black
Weight	0.1 kg (3.5 oz)
Material	PVC outer jacket, bare copper conductors
Shielding	Yes, foil and braid shielding
Power Source	Bus-powered from USB port
Plug and Play	Yes, no driver required
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Certifications	RoHS, CE, FCC
Package Contents	1 x USB 2.0 AB Cable
Warranty	Lifetime Warranty
Cleaning	Wipe with a dry cloth; avoid liquids
Safety Notice	Do not bend sharply or expose to extreme heat

Frequently Asked Questions - 307994 MANHATTAN

What type of cable is the Manhattan 307994?

The Manhattan 307994 is a USB 2.0 A to B cable, commonly used to connect printers, scanners, and other peripherals to a computer.

Is the Manhattan 307994 compatible with USB 3.0?

Yes, it is backward compatible with USB 3.0 ports, but data transfer will be limited to USB 2.0 speeds (up to 480 Mbps).

How long is the Manhattan 307994 cable?

The cable length is 1.8 meters (6 feet), providing a suitable reach for most desktop setups.

What devices can I connect with this cable?

This cable is ideal for connecting printers, scanners, external hard drives, and other USB-B devices to a computer with a USB-A port.

Does the cable support data transfer only or also charging?

The cable supports both data transfer and charging for compatible devices, though charge current may be limited to 500 mA (USB 2.0 standard).

Is the cable shielded to reduce interference?

Yes, the cable features foil and braid shielding to minimize electromagnetic interference and maintain signal integrity.

Can I use this cable with my printer?

If your printer has a USB-B port, this cable is compatible. It is a standard connection for many printers from HP, Canon, Epson, etc.

What is the maximum data transfer speed?

The maximum data transfer speed is 480 Mbps, which is the USB 2.0 specification. It is sufficient for printing and scanning tasks.

Is the cable plug and play?

Yes, the cable is plug and play. No drivers are required for standard operation on Windows, macOS, and Linux systems.

How to clean and maintain this cable?

Wipe the cable with a dry, soft cloth. Avoid using liquids or abrasive cleaners. Do not bend the cable sharply or wrap it tightly to prevent damage.

USER MANUAL 307994 MANHATTAN

Thank you for purchasing one of a variety of MANHATTAN ^® Video Splitter Cables, each designed to provide quick and easy 2-to-1 connections for crystal-clear video transmissions. Each cable in this series supports high-resolution images for dual-display presentations delivered by a single source. (See the connector configuration chart with specs on the back of this guide.)

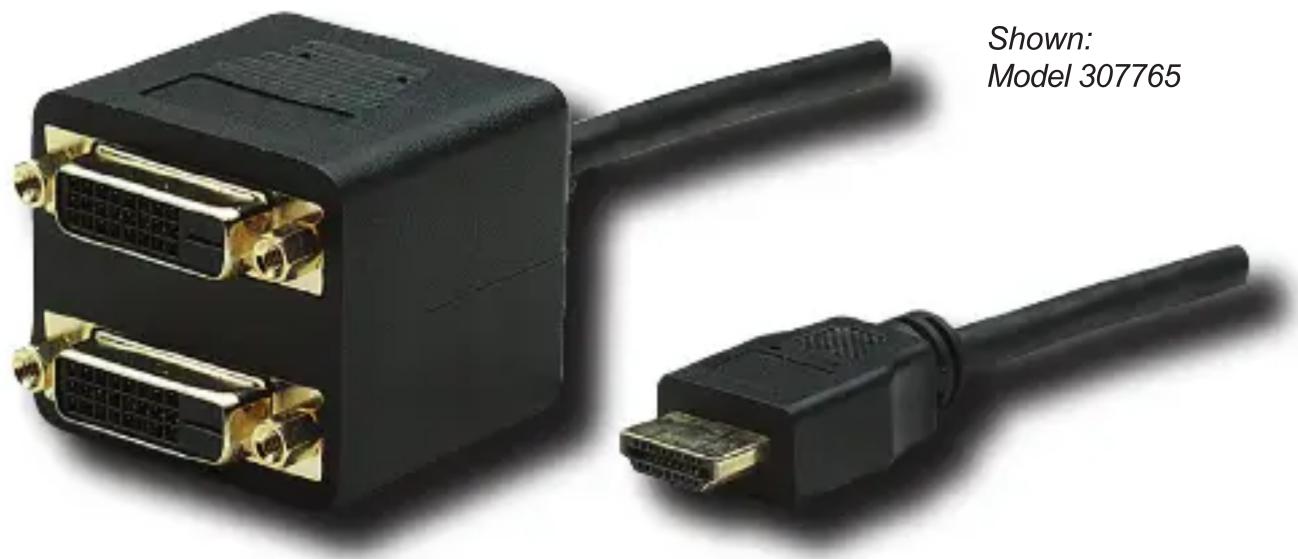

Close-up of two black DVI connectors with gold connector pins, shown alongside a detailed model (no text or symbols on the devices themselves)

• Delivers a single, high-quality video signal to two displays – ideal for presentations, retail displays and training applications
  Gold-plated connectors with thumbscrews provide maximum connectivity
• Integrated 2-in-1 output design eliminates Y-cable tangles and clutter
• Fully shielded to reduce EMI and other interference sources
  • Molded PVC boot and strain relief
  Lifetime Warranty

BRINGING COMPUTERS TO LIFE

MANHATTAN® offers a complete line of PC Components, Peripherals, Cables and Accessories. Ask your local computer dealer for more information or visit us online at

www.manhattan-products.com

Copyright © MANHATTAN

All products mentioned are trademarks or registered trademarks of their respective owners.

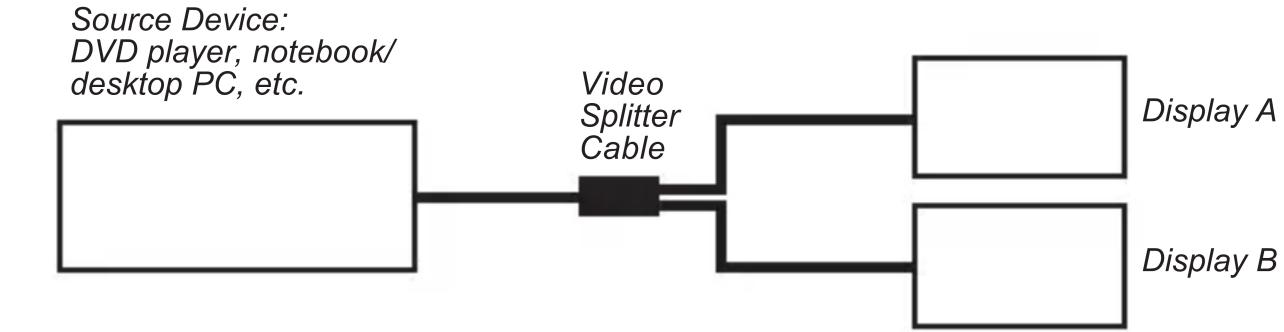

CONNECTOR CONFIGURATIONS

With-Cable standing Insulation ConductiveModel # Contacts Connectors Voltage Resistance Resistance Length Weight
307765 1 VGA 15-pin male; 2 VGA 15-pin female 28 AWG	1	300 V DC	20 MOhms	3 Ohms	0.3 m (1 ft.)	158.7 g (5.6 oz.)
307772 1 DVI 24+1-pin male; 2 24+1-pin female	30 AWG1	500 V DC	50 MOhms	1 Ohm	0.3 m (1 ft.)	150.2 g (5.3 oz.)
307796 1 DVI 24+5-pin male; 1 DVI 24+5-pin female; 1 VGA 15-pin female	30 AWG1	500 V DC	50 MOhms	1 Ohm	0.3 m (1 ft.)	164.5 g (5.8 oz.)
307802 1 DVI 24+5-pin male; 2 VGA 15-pin female	30 AWG1	500 V DC	50 MOhms	1 Ohm	0.3 m (1 ft.)	144.5 g (5.1 oz.)
307826 1 DVI 24+1-pin male; 1 DVI 24+1-pin female	30 AWG2	500 V DC	50 MOhms	1 Ohm	0.3 m (1 ft.)	141.7 g (5.0 oz.)
1 HDMI 19-pin female
307833 1 HDMI 19-pin male; 2 HDMI 19-pin female	30 AWG2	300 V DC	50 MOhms	2 Ohms	0.3 m (1 ft.)	107.7 g (3.8 oz.)
307857 1 HDMI 19-pin male; 2 DVI-D 24+1-pin female	30 AWG2	300 V DC	50 MOhms	2 Ohms	0.3 m (1 ft.)	107.7 g (3.8 oz.)
307864 1 HDMI 19-pin male; 1 DVI 24+1-pin female	30 AWG2	300 V DC	50 MOhms	2 Ohms	0.3 m (1 ft.)	116.2 g (4.1 oz.)
1 HDMI 19-pin female
307871 1 DVI-I 24+5-pin male; 1 VGA 15-pin female	30 AWG1	500 V DC	50 MOhms	1 Ohm	0.3 m (1 ft.)	144.5 g (5.1 oz.)
1 RCA female, RGB
307994 1 VGA 15-pin male; 1 VGA 15-pin female 28 AWG	1	500 V DC	50 MOhms	1 Ohm	0.3 m (1 ft.)	150.2 g (5.3 oz.)
1 RCA female, RGB
308175 1 VGA 15-pin male; 1 VGA 15-pin female	30 AWG1	500 V DC	50 MOhms	1 Ohm	0.3 m (1 ft.)	164.5 g (5.8 oz.)
1 DVI-I 24+5-pin female
308182 1 DVI-D 24+1-pin male; 2 VGA 15-pin female	30 AWG2	300 V DC	50 MOhms	2 Ohms	0.3 m (1 ft.)	133.2 g (4.7 oz.)
308199 1 DVI-I 24+5-pin male; 2 DVI-I 24+5-pin female	30 AWG1	500 V DC	50 MOhms	1 Ohm	0.3 m (1 ft.)	150.2 g (5.3 oz.)
308205 1 mini-DVI-D 32-pin male; 1 DVI-D 24+5-pin female; HDMI 19-pin female	30 AWG2	300 V DC	5 MOhms	10 Ohms	0.3 m (1 ft.)	110.5 g (3.9 oz.)
COMMON SPECIFICATIONS
Certifications	Contacts	Cable
1 UL	Gold-plated	Mylar and aluminum shielding
2 UL, HDMI 1.2	Molded PVC boot	Thermal plastic casing
	Shielded
