Product Type	ProLine G2 Overlapping Double Solid Door
Model Number	P2DO188
Height	1783 mm (70.2 in)
Width	798 mm (31.4 in)
Fits Frame (HxW)	1800 x 800 mm
Material	14 gauge (1.75 mm) mild steel
Finish	Polyester powder paint, RAL 7035 textured light gray
Gasket	Seamless polyurethane (UL Component Recognized)
Latching System	Smooth Glide – timed latch engagement, 3-point latch for doors ≥ 1000 mm height
Handle	Low-profile Swing Handle with key lock (standard)
Hinge	140-degree standard, 180-degree optional; reversible without removing side covers
Load Rating	250/113 kg, safety factor 1.5 (tested on 2000x600x800 mm frame; varies by size)
Grounding	Two grounding studs included
Mounting Hardware	All included
Accessories	ProLine Grounding Kit, Door Stop Kit, 180-Degree Hinge Kit, Side Door Adapter, Flush Swing Handles, L-Handle, Flush Bezels, Steel/Thermoplastic Data Pocket, Door Bar Grid Straps, Door Support Roller Kit
EMC Options	Available as HF variant (plated with EMI/RFI gasket); longer lead time

Frequently Asked Questions - P2DO188 Hoffman

What are the dimensions of the P2DO188 door?

The P2DO188 door has a height of 1783 mm (70.2 in) and a width of 798 mm (31.4 in). It fits a frame size of 1800 x 800 mm.

Is the door suitable for outdoor use?

The door features a seamless polyurethane gasket providing a watertight and dust-tight seal. The standard finish is polyester powder paint (RAL 7035) which offers corrosion resistance, but for outdoor or harsh environments, consider optional custom coatings.

Can the door be reversed to hinge on the opposite side?

Yes, single doors can be hinged left or right (default left). For overlapping double doors (like P2DO188), the primary door can be set as left or right (default right). Reversal can be done without removing side covers.

What type of latch system does the P2DO188 use?

It uses the Smooth Glide latching system on the primary door, featuring timed latch engagement and a durable double-flanged latch rod with three Delrin® rollers. The secondary door has two latch points with a center lever for secure closure.

What is the maximum load capacity of this door?

The door has a load rating of 250/113 kg with a safety factor of 1.5, tested on a 2000x600x800 mm frame. Actual capacity may vary with different frame sizes.

Does the P2DO188 come with a lock?

Yes, it includes a low-profile Swing Handle with a key lock as standard. Other handle and lock options (e.g., flush swing handles, L-handle) are available as accessories.

What is the gasket material and how does it seal?

The gasket is made of seamless polyurethane and is UL Component Recognized. It provides a watertight and dust-tight seal against moisture and contaminants.

Can this door be used on the side of an enclosure?

Yes, it can be used on the sides with the optional Side Door Adapter (sold separately). It can also be used on the front or rear.

What is the standard hinge angle?

The standard hinge allows 140-degree opening. A 180-degree hinge kit is available as an accessory.

Are there EMC versions of the P2DO188?

Yes, the P2DO188 is a standard painted door. EMC versions (HF suffix) are available for some sizes, featuring plated coating and metalized non-woven fabric EMI/RFI gasket. Check catalog for availability; lead times are longer.

USER MANUAL P2DO188 Hoffman

Two white industrial cabinets with black handles, one open and one closed (no text or symbols visible)

APPLICATION

ProLine G2 Solid Doors (Single or Overlapping Double) feature a solid swing and a high load capacity. The Smooth Glide latching system is made from quality components and incorporates an innovative timed latch action, ensuring a solid door seal with a low closure force. Sold individually.

FEATURES

• Smooth Glide latching system – for a smooth, reliable and repeatable door close over enclosure lifetime
• Low-profile Swing Handle with key lock; other options available
• Seamless polyurethane gasket (UL Component Recognized) provides a watertight, dust-tight seal against moisture and contaminants

SPECIFICATIONS

• Single doors available for frames up to 1000 mm wide
• Overlapping double doors available for frames 800 mm wide and greater
• Door bar system on all doors
- Timed latch engagement to ensure top and bottom of door catch reliably
- Durable, double-flanged latch rod and three Delrin ^® rollers to prevent metal-on-metal grinding

• 3-point latch system for doors 1000 mm or greater in height
• Key lock handle standard; other options available
• Single doors can be hinged on left or right (default left); overlapping double doors can have the primary door as the left or right door (default right)
  • 14 gauge (1.75 mm) mild steel
  • 140-degree hinging standard (180-degree hinge option available)
• Door can be reversed without removing the side covers
• Can be used on front or rear of enclosure; can be used on the sides of enclosure with side door adapter (not included)
• Two grounding studs
  • All mounting hardware included
• Soldindividually

Overlapping Double Doors – Additional Specifications

• Primary door with Smooth Glide latching system
- Secondary door has two latch points with a center lever to ensure secure door closure

EMC Doors - Additional Specifications:

• Plated to provide corrosion resistance while maintaining a metal-to-metal contact with the metal fiber gasket
• Metalized non-woven fabric EMI/RFI material covering UL94HP rated urethane foam gasket
• Plating exposed in interior and paint over plated exterior
• Longer lead times required for EMC items

FINISH

• Polyester powder paint; RAL 7035 textured light gray standard
- Custom colors available

LOAD RATING

- 250/113kg, safety factor 1.5; frame size: 2000x600x800 mm (load ratings vary by frame size)

ACCESSORIES

• ProLine Grounding Kit
- Door Stop Kit
• 180-Degree Hinge Kit
- Side Door Adapter
- Flush Swing Handles
- LHandle
- Flush Bezels
• Small Flush Swing Handle
• Steel Data Pocket
• Thermoplastic Data Pocket
- Door Bar Grid Straps
- Door Support Roller Kit

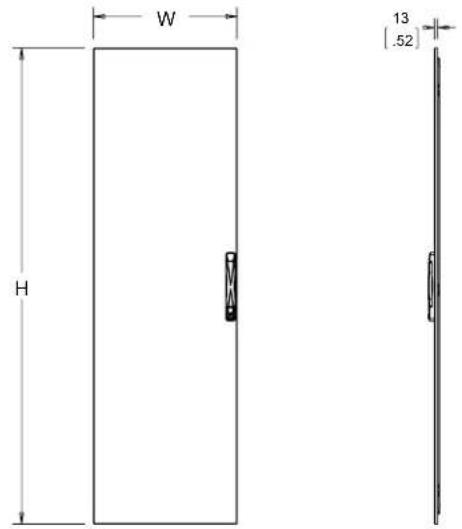

BULLETIN: P40

Standard Product Single Door

Catalog Number	H (mm)	H (in.)	W (mm)	W (in.) Fits Frame HxW (mm)			Description
P2D64 58323.039815.7600x400			Painted
P2D66 58323.059823.5600x600			Painted
P2D68 58323.079831.4600x800			Painted
P2D86 78330.859823.5800x600			Painted
P2D88 78330.879831.4800x800			Painted
P2D105	983	38.7	498	19.6	1000x500	Painted
P2D106	983	38.7	598	23.5	1000x600	Painted
P2D108	983	38.7	798	31.4	1000x800	Painted
P2D125	1183	46.6	498	19.6	1200x500	Painted
P2D126	1183	46.6	598	23.5	1200x600	Painted
P2D128	1183	46.6	798	31.4	1200x800	Painted
P2D145	1383	54.4	498	19.6	1400x500	Painted
P2D146	1383	54.4	598	23.5	1400x600	Painted
P2D146HF	1383	54.4	598	23.5	1400x600	EMC
P2D164	1583	62.3	398	15.7	1600x400	Painted
P2D165	1583	62.3	498	19.6	1600x500	Painted
P2D166	1583	62.3	598	23.5	1600x600	Painted
P2D168	1583	62.3	798	31.4	1600x800	Painted
P2D184	1783	70.2	398	15.7	1800x400	Painted
P2D185	1783	70.2	498	19.6	1800x500	Painted
P2D186	1783	70.2	598	23.5	1800x600	Painted
P2D186HF	1783	70.2	598	23.5	1800x600	EMC
P2D187	1783	70.2	698	27.5	1800x700	Painted

Catalog Number	H (mm) H (in.) W (mm) W (in.) Fits Frame HxW (mm)	Description
P2D188	178370.279831.41800x800Painted
P2D189	178370.289835.41800x900Painted
P2D1810	178370.299839.31800x1000Painted
P2D205	198378.149819.62000x500Painted
P2D206	198378.159823.52000x600Painted
P2D206HF	198378.159823.52000x600EMC
P2D207	198378.169827.52000x700Painted
P2D208	198378.179831.42000x800Painted
P2D208HF	198378.179831.42000x800EMC
P2D2010	198378.199839.32000x1000Painted
P2D225	218385.949819.62200x500Painted
P2D226	218385.959823.52200x600Painted
P2D226HF	218385.959823.52200x600EMC
P2D227	218385.969827.52200x700Painted
P2D228	218385.979831.42200x800Painted
P2D228HF	218385.979831.42200x800EMC
P2D2210	218385.999839.32200x1000Painted

89129475

Standard Product Overlapping Doors

Catalog Number	H (mm)	H (in.)	W (mm)	W (in.)	Fits Frame HxW mm	Description
P2DO68 58323.079831.4600x800Painted
P2DO88 78330.879831.4800x800Painted
P2DO108 98338.779831.41000x800Painted
P2DO1012 98338.7119847.21000x1200Painted
P2DO128 1183	46.679831.41200x800Painted
P2DO1212 1183	46.6119847.21200x1200Painted
P2DO148 1383	54.479831.41400x800Painted
P2DO1412 1383	54.4119847.21400x1200Painted
P2DO168 1583	62.379831.41600x800Painted
P2DO1612 1583	62.3119847.21600x1200Painted
P2DO1616 1583	62.3159862.91600x1600Painted
P2DO188 1783	70.279831.41800x800Painted
P2DO1810 1783	70.299839.31800x1000Painted
P2DO1810HF	1783	70.2	998	39.3	1800x1000	EMC
P2DO1816 1783	70.2159862.91800x1600Painted
P2DO1818 1783	70.2179870.81800x1800Painted
P2DO208 1983	78.179831.42000x800Painted
P2DO208HF 1983	78.179831.42000x800EMC
P2DO2012 1983	78.1119847.22000x1200Painted
P2DO2016 1983	78.1159862.92000x1600Painted
P2DO2018 1983	78.1179870.82000x1800Painted
P2DO228 2183	85.979831.42200x800Painted
P2DO228HF 2183	85.979831.42200x800EMC
P2DO2212 2183	85.9119847.22200x1200Painted
P2DO2216 2183	85.9159862.92200x1600Painted
P2DO2218 2183	85.9179870.82200x1800Painted
