USER MANUAL GNCL-20 Auray

Black flexible adjustable cable with a clip, shown against a plain background (no text or symbols visible)

Thank you for choosing Auray.

Auray's Heavy Duty Gooseneck Mic Clamp is ideal for mounting a mic to any tabletop up to 2.5 inches thick. Clamp the mic vertically or horizontally, and angle its long gooseneck so you can record a vocal track or podcast—no matter where the mic is mounted. The heavy-duty gooseneck can hold up to 4 pounds, allowing you to mount a camera, with a separate adapter, and record live streaming video.

Precautions

• Please read and follow these instructions, and keep this manual in a safe place.
• Handle this product with care.
• Keep this product away from water and any flammable gases or liquids.
• Make sure this product is intact and that there are no missing parts.
• Make sure everything is secure before proceeding.
• Do not exceed the maximum load capacity.
• All images are for illustrative purposes only.

Overview

Mic clip 1

3/8 F to 5/8 M adapter 2

Gooseneck 3

Hex wrench 4

Gooseneck mounts 5

Clamp 6

Assembly Instructions

1. Screw the mic clip onto the gooseneck.

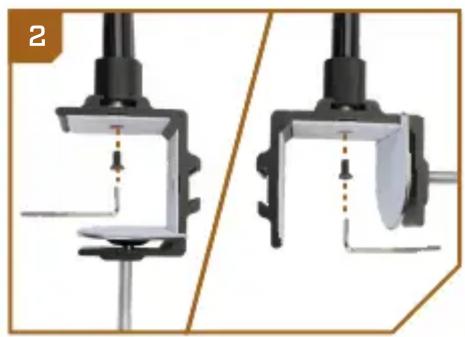

2. Attach the gooseneck to one of the mounts using the included hex wrench.
3. Attach the clamp onto your tabletop and tighten until secure.

Close-up of a black electric shock absorber with a cable, showing mechanical components and motion direction (no text or symbols)

Two mechanical clamping or mounting diagrams showing a bracket and a curved component with dashed alignment lines (no text or symbols)

Mechanical assembly diagram showing a rotating clamp mechanism with directional arrows (no text or symbols)

Specifications

Max Clamp Width: 2.5 in. (6.4 cm)

Load Capacity: 4 lb. (1.8 kg)

Height: GNCL-12: 12 in. (30.5 cm)

GNCL-20: 20 in. (50.8 cm)

Weight: GNCL-12: 1.5 lb. (0.7 kg)

GNCL-20: 2 lb. (0.9 kg)

One-Year Limited Warranty

This Auray product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Auray Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Auray along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.

For more information or to arrange service, visit www.aurayaudio.com or call Customer Service at 212-594-2353.

Product warranty provided by the Gradus Group.
