Product Type	Table Clamp
Clamp Type	C-Clamp
Material	Steel
Finish	Black
Maximum Clamp Width	3.75 in (9.5 cm)
Threading	5/8-27, 3/8-16 (with adapter)
Included Adapter	5/8-27 female to 3/8-16 male
Pad Material	Neoprene
Weight	1.25 lb (567 g)
Width	1.6 in (4 cm)
Depth	2.8 in (7.1 cm)
Thickness	0.2 in (5 mm)
Warranty	1-year limited warranty
Compatible Devices	Microphones, shock mounts, goosenecks, ballheads, camcorders
Mounting Stud	5/8-inch with star nut
Recommended Cleaning	Soft, dry cloth only

Frequently Asked Questions - CLHD-3 Auray

What is the maximum desktop thickness the CLHD-3 can clamp onto?

The Auray CLHD-3 can clamp onto surfaces up to 3.75 inches (9.5 cm) thick.

Does the CLHD-3 come with a 3/8-inch adapter?

Yes, it includes a 5/8-27 female to 3/8-16 male adapter for devices with a 3/8-16 mounting socket.

What is the weight of the Auray CLHD-3 clamp?

The clamp weighs 1.25 lb (567 g).

Can I use this clamp with a ballhead?

Yes, using the included 3/8-16 adapter, you can attach a ballhead or camcorder with a 3/8-16 socket.

How do I adjust the clamp width?

Use the included hex wrench to remove the screws, realign the screw holes for the desired width, and replace the screws.

Is the CLHD-3 clamp scratch-resistant?

It features neoprene pads that prevent scratches on desks or polished surfaces.

What is the warranty period for this product?

The Auray CLHD-3 comes with a one-year limited warranty against defects in materials and workmanship.

How should I clean the clamp?

Clean only with a soft, dry cloth. Do not use liquids or abrasive cleaners.

What is the construction material of the CLHD-3?

The clamp is made of heavy-duty steel with a black finish.

Does the clamp include a star nut?

Yes, the 5/8-inch stud comes with a star nut to secure the microphone once attached.

USER MANUAL CLHD-3 Auray

Microphone Table Clamp

CLHD-3

Owner's Manual

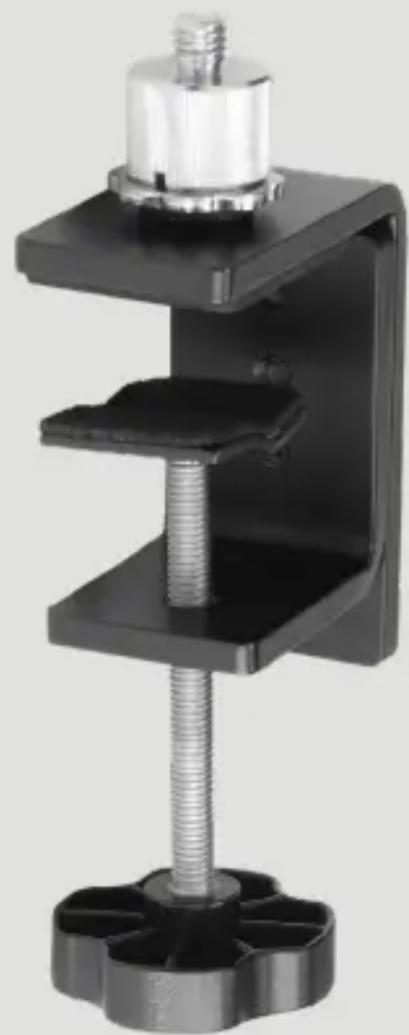

Close-up of a black mechanical clamp with a metallic screw and threaded base (no text or symbols visible)

Thank you for choosing Auray.

The Auray CLHD-3 heavy-duty steel table clamp will securely mount a microphone, shock mount, or gooseneck to any desk, table, or flat surface up to 3.75 inches thick. The 5/8-inch stud comes with a star nut to snug up a microphone once it's attached. The included 5/8- to 3/8-inch adapter adds a stable and secure mount for any device with a 3/8-16 mounting socket, like a ballhead or camcorder. Neoprene pads assure the clamp will not scratch the finish on a desk or polished surface.

Precautions

• Please read and follow these instructions, and keep this manual in a safe place.
- Handle the unit with care.
• Clean the unit with only a soft, dry cloth.
• Make sure everything is secure before proceeding.
• Make sure the item is intact and that there are no missing parts.
• All images are for illustrative purposes only.

Overview

Clamp 1

5/8-27 female to

3/8-16 male adapter 2

Star nut 3

Hex wrench 4

Technical line drawing of a mechanical clamp or holder assembly (no text or symbols)

Adjusting the Clamp

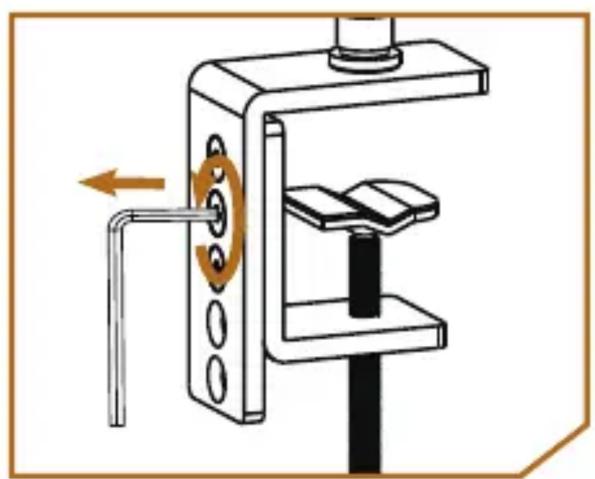

1. To adjust the clamp for maximum width, use the hex wrench to remove the screws.

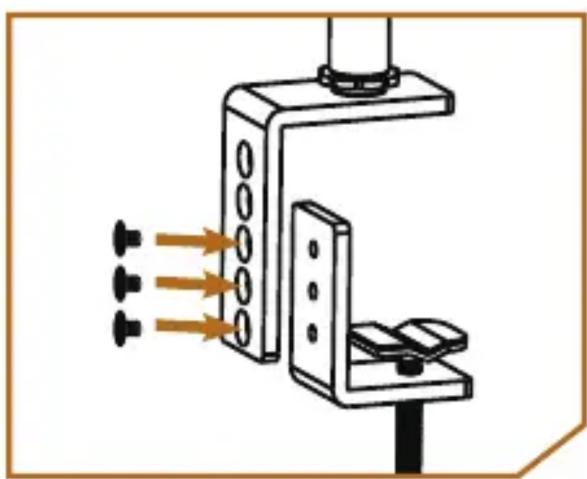

2. Realign the screw holes for the maximum clamp width, and replace the screws.

Mechanical assembly diagram showing a clamping mechanism with a rotating knob and shaft (no text or symbols)

Diagram of a mechanical clamp or clamping device with three arrows pointing to a component (no text or symbols present)

Specifications

Type: C-clamp

Threading: 5/8-27 3/8-16 with adapter

Max Clamp Width: 3.75 in. (9.5 cm)

Construction: Steel

Finish: Black

Dimensions (W × D): 1.6 × 2.8 in. (4 × 7.1 cm)

Thickness: 0.2 in. (5 mm)

Weight: 1.25 lb. (567 g)

This Auray product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Auray Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Auray along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.

For more information or to arrange service, visit www.aurayaudio.com or call Customer Service at 212-594-2353.

Product warranty provided by the Gradus Group. www.gradusgroup.com

AURAY ^* A Gradus Group Brand

AURAY is a registered trademark of the Gradus Group. © 2023 Gradus Group LLC.

All Rights Reserved.
