HV-16 Cristal - Kettle Grunkel - Free user manual and instructions

Product Type	Electric Kettle
Brand	Grunkel
Model	HV-16 Cristal
Capacity	1.7 L
Power	2200 W
Voltage	220-240 V ~ 50/60 Hz
Material	Glass body, stainless steel heating element and lid
Dimensions (H x W x D)	25 cm x 22 cm x 18 cm
Weight	1.2 kg (approx.)
Base Type	Cordless, 360° swivel base
Filter	Removable anti-scale filter
Water Level Indicator	Transparent window with scale markings
Safety Features	Auto shut-off, boil-dry protection, overheat protection
Illumination	Blue LED light when boiling
Cleaning	Wipe exterior with damp cloth; descale interior with vinegar or citric acid regularly
Stability	Non-slip feet
Opening Mechanism	One-button lid opening with safety lock
Warranty	2 years limited
Reparability	Spare parts available: lid, base, filter, heating element (service center required for element)

Frequently Asked Questions - HV-16 Cristal Grunkel

What is the capacity of the Grunkel HV-16 Cristal kettle?

The kettle has a capacity of 1.7 liters, ideal for making multiple cups of hot beverages.

What is the power rating?

It operates at 2200 W for fast boiling.

What materials is the kettle made of?

The body is made of heat-resistant glass, and the heating element and lid are stainless steel.

Does the kettle have an auto shut-off feature?

Yes, it includes automatic shut-off when the water reaches boiling point or if the kettle is empty (boil-dry protection).

How do I clean the kettle?

Clean the exterior with a damp cloth. For descaling, fill with equal parts water and white vinegar or use citric acid, boil, and rinse thoroughly.

Can I use the kettle on a 360° base?

Yes, it comes with a 360° swivel base for easy cordless pouring and convenient placement.

How do I replace the anti-scale filter?

The filter is removable. Simply pull it out from the spout, clean or replace it, and push it back in.

What is the warranty period?

Grunkel offers a 2-year limited warranty against manufacturing defects.

Does the kettle have a water level indicator?

Yes, there is a transparent water window with markings for easy measuring.

Is the kettle suitable for all stovetops?

No, this is an electric kettle only for use on its power base. Do not place on any heat source.

USER MANUAL HV-16 Cristal Grunkel

DESCUBRE TODO LO QUE PODEMOS HACER POR TI EN

www.grunkel.com

GRACIAS POR ESCOGER ESTE PRODUCTO GRUNKEL

This instruction manual is an accurate reproduction of the specifications, operation and look of the product you have just bought, except for typographical, print or translation errors. The specifications, operation and features of this product are subject to change without further notice.

Funcionamiento

• Please, read carefully the entire instruction manual before using it.
• Pay special attention to the safety indications.
• Keep this instruction manual. If you hand over this appliance to another person, these instructions must be also be transferred.
• Keep also the guarantee card, purchase ticket or invoice. If possible, keep the original box with all the accessories included for future inquiries.

General safety instructions

Before using the appliance ensure that the main voltage corresponds to the voltage displayed on the rating label. Always plug the appliance into a suitable electrical outlet.

In order to avoid electrical shock risk, please do not inmerse the power cord nor the appliance into water or any other kind of liquid. Check the cleaning instructions.

Do not use unauthorized accessories. This will result in cancellation of the guarantee and could cause accidents.

Do not keep the power cording hanging from the table or the shelf. Keep it away from hot sources. Do not allow sharp or blunt objects to touch it. Do not operate the appliance if the power cord or the plug are damaged, or if you notice unusual operation of the appliance.

Do not leave the appliance operating without supervision. Always switch off the appliance and unplug it. Pull the plug, not the power cord.

If any repair is needed, or if the power cord must be replaced, please ask a aqualified professional or contact the Official Technical Support.

CAUTION: to ensure children's safety, keep away packaging material such as plastic bags, carton boxes, etc.

Always watch the appliance when using it near children Never leave the appliance without supervision.

grunkel

Only use the appliance for domestic purposes and in the way indicated in these instructions.

This appliance is not supposed to be operated by any external timer or remote control system.

Do not touch the hot parts of the appliance. Do not cover it and do not place if near flammable materials.

Do not use the appliance over or near heat sources, such as gas heaters, electric heaters or hot ovens.

Never use forks or sharp objects to clean the appliance. This could cause several damage and may cause an accident.

CAUTION: The appliance may stay hot during or after operation.

Do not immerse the appliance in water. Do not handle the appliance with wet hands.

Before cleaning the appliance, check that it is unplugged. Allow it to cool down before cleaning.

If you require a copy of the instruction manual, please contact the Official Technical Support.

Do not use the appliance in an improper way. It could cause severe injuries. In the event that the appliance has been misused by the costumer, the guarantee will be cancelled.

Do not use the appliance outdoors.

Do not place the appliance on surfaces with instability or low heat resistance, or on top of any other domestic appliance.

It is recommended to operate the appliance with proper venting.

Do not leave plastic objects in contact with the appliance while it is operating. Heat may melt them and cause severe damage to the appliance.

CAUTION: Once the appliance is switched off, it may stay hot for several minutes. Allow it to cool down before handling it again.

Allow the appliance to cool down before storing it. Do not wrap the power cord around the appliance.

Use exclusively cold water to fill the tank.

Water level must be between the MAX and MIN marks. If the water level is beyond the maximum level allowed, hot water may splash and cause severe burns while boiling.

Turn off the appliance before separating it from the base.

This appliance has been designed to operate with the base supplied in this kit. Do not try to use a different base from any other kettle model.

This appliance is intended for domestic use. It may also be suitable for:

• Kitchens for staff at shops, offices and other work environments.
• For customers in hotels and residences.
• Bed & breakfast settings.

CAUTION!

CHILDREN UNDER 8 YEARS OLD SHOULD NOT USE NOR CLEAN THIS APPLIANCE WITHOUT THE SUPERVISION OF AN ADULT. NEITHER CAN BE USED NOR CLEAN BY PEOPLE WITH REDUCED PHYSICAL, MENTAL OR SENSORIAL CAPABILITIES, WITHOUT EXPERIENCE OR KNOWLEDGE CONCERNING THE USE OF THE APPLIANCE, OR WITHOUT HAVING RECEIVED PROPER TRAINING UNDER DIRECT SUPERVISION FROM AN EXPERIENCED PERSON RESPONSIBLE FOR THEIR SAFETY.

CAUTION

Hot surface

Safety thermal switch

The safety thermal switch protects the appliance against overheating.

If the appliance is operating without any water on the tank, or if it stays switched on for excessive time, the safety switch will turn it off automatically. Once the safety system has switched off the appliance, allow it to cool down completely and proceed to descaling before using it again.

WARNING

Do not exceed the maximum 1.7L mark. At the same time, ensure that the tank is filled to reach the minimum 0.6L mark.

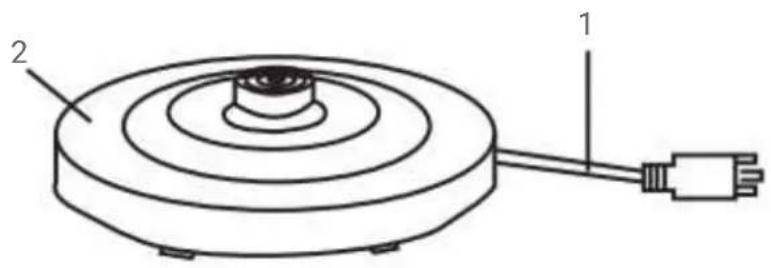

Part identification

Número Descripción
1 Power cord
2 Base
3 ON / OFF button
4 Lid safety lock
5 Water deposit

Operation

NOTE: This appliance can only be used to boil water. Do not use it to boil milk, coffee, tea, soup or any other liquid.

Ensure that the power switch button is off before plugging it into the electrical outlet.

1. Put the appliance in vertical position over a suitable plain surface.
2. Remove the lid from the base. Open the lid cover by pressing the safety lock button. Fill the tank with cold water. The water level must at least the minimum mark (0.6L) and should not surpass the maximum level (1.7L).

grunkel

1. Check that the appliance is dry, with special attention to the bottom part. Dry with a clean towel if needed.
2. Place the lid back on top of the base. Plug the power cord in a suitable electrical outlet. Press the switch button to turn it on. The red light indicator will also turn on.
3. Once the boiling point is reached, the safety system will automatically turn off the appliance. You can turn off the appliance before the boiling point is reached by pressing the on / off button.
4. To pour the hot water, pull the lid by the handle. Ensure that the lid cover remains closed.

Once this operation is finished, allow the lid to cool down for at least 15 minutos before using it again.

NOTE: Please, remove all remaining water from the tank after each use and before operating the appliance again.

Descaling

Calcium deposits may form around the heating element of the appliance, depending on the used water's quality. It is recommended to remove these deposits periodically by following these steps:

• Prepare a mixture of 0,5l water with two tablespoon of vinegar.
• Pour the mixture into the appliance's tank.
• Turn on the appliance. When the mixture reaches its boiling point, the appliance will switch off automatically. Allow the mixture acting for 3 minutes.
• Remove the mixture with extreme caution in order to avoid accidental burns.
• Once the appliance has cooled down completely, clean it thoroughly with clean water.

Cleaning and maintenance

Before cleaning the appliance it must be unplugged from the electrical outled and allowed to cool down completely.

Use an slightly moistened soft cloth to clean the appliance.

Never immerse the appliance into water or any other liquid. Do not put it under running water. Do not clean the appliance in the dishwasher.

Do not use abrasive products for cleaning. Do not use sharp or metallic tools to remove the dirt from the appliance.

Keep the lid cover close while the appliance is not being used. Keep it away from heat sources, direct sunlight, wet environments or sharp objects.

WARNING

This appliance is intended for domestic use. Do not use it for commercial purposes. If so, guarantee would be cancelled.

220-240V \~50Hz / 2200W

Product disposal

Regulation regarding waste from electronic appliances according to RAEE 2002/96/EC. This symbol means the appliance can not be treated as regular domestic waste; it must be returned to the distributor, handed over the corresponding electronic product collection point or delivered to the collection point empowered for such purpose, so its components are recycled and not mixed within domestic waste.

You can also contact your local waste collection service, so it can be collected and treated accordingly following the environment protection instructions, or to receive proper information about the steps to follow for the correct disposal of the appliance.

The correct disposal of an appliance implies avoiding negative consequences for both environment and health. A proper disposal allows to save a significant amount of energy and resources. As a reminder of the necessity of disposing the appliances separately, the product displays the symbol of a crossed out garbage bin.
