ACE648X - Kitchen hood ASPES - Free user manual and instructions
Find the device manual for free ACE648X ASPES in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Kitchen Hood |
| Brand | Aspes |
| Model | ACE648X |
| Width | 60 cm |
| Depth | 50 cm |
| Height | 15 cm (adjustable chimney) |
| Weight | 8 kg |
| Power Supply | 220-240 V, 50 Hz |
| Maximum Power Consumption | 150 W |
| Motor Type | Single motor, 2 speeds |
| Extraction Capacity | 650 m³/h |
| Noise Level (max) | 65 dB(A) |
| Energy Class | A+ |
| Lighting | 2 x 3 W LED |
| Controls | Push buttons |
| Grease Filter | Aluminum, washable |
| Carbon Filter | Optional, replaceable |
| Venting Outlet Diameter | 150 mm |
| Installation Type | Wall-mounted or recirculation |
| Safety Features | Automatic shut-off, overheat protection |
| Cleaning and Maintenance | Grease filter washable in dishwasher |
| Spare Parts Available | Filters, LEDs, motor |

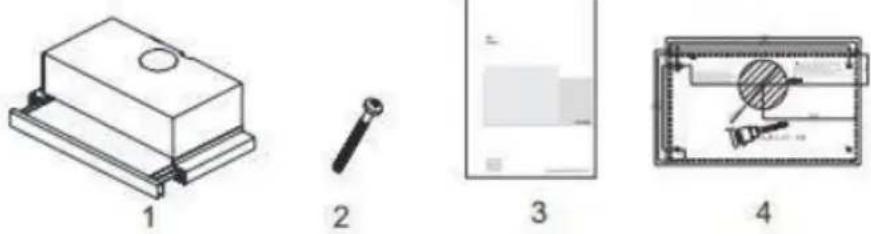

| Included Accessories | Chimney, screws, template |
| Warranty | 2 years |
Frequently Asked Questions - ACE648X ASPES

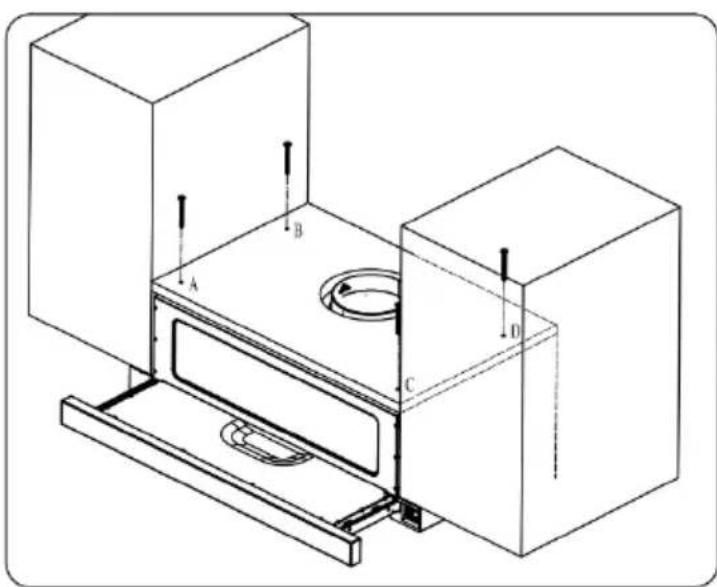

How do I install the Aspes ACE648X kitchen hood?
Installation should be done by a qualified technician. Ensure the hood is at least 65 cm above gas hobs and 50 cm above electric hobs. Use the provided template and fix securely to the wall. For recirculation mode, install the charcoal filter.

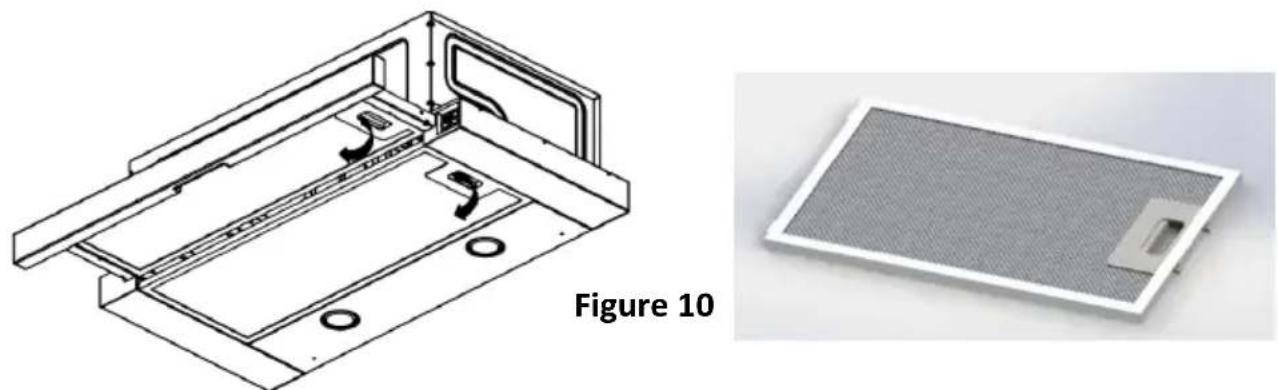

How do I clean the grease filter?
The aluminum grease filter is dishwasher-safe. Remove it by pulling the handle and wash in dishwasher at low temperature, or hand wash with mild detergent. Dry completely before reinserting. Clean every 2 months.
How do I replace the carbon filter?
Only use if recirculation mode. Open the grease filter, remove the used carbon filter, and insert a new one. The carbon filter should be replaced every 3-6 months depending on usage.
How do I change the LED bulb?
Disconnect power. Remove the lamp cover by gently prying it off. Pull out the defective LED and push in a new one of the same type (3W, G4 base). Reattach the cover.
Why is my hood not extracting properly?
Check if the grease filter is clogged, clean it. Ensure the carbon filter if installed is not saturated. Verify ducting is not blocked. Also check that the motor speed is set correctly.
Can I use the hood without ducting?
Yes, the ACE648X can operate in recirculation mode by installing a charcoal filter (not included). The air is filtered and returned to the kitchen.
What is the noise level of this hood?
At maximum speed, the noise level is approximately 65 dB(A), which is similar to normal conversation.
How to reset the filter cleaning indicator?
After cleaning the grease filter, press and hold the speed control button for 3 seconds until the indicator light turns off. Refer to manual for exact procedure.
Is the hood suitable for island installation?
The ACE648X is designed for wall mounting. For island use, you would need an additional ceiling mounting kit (not included). Check compatibility before purchase.
What parts are covered under warranty?
The warranty covers manufacturing defects for 2 years from purchase. Consumables like filters and bulbs are excluded. Keep the receipt for service.
