EV106 - Vacuum Sealer JATA - Free user manual and instructions

Product Type	Food Vacuum Sealer
Brand	JATA
Model	EV106
Dimensions (L x W x H)	400 x 200 x 100 mm
Weight	1.5 kg
Power Supply	220-240 V ~ 50/60 Hz
Power	100 W
Main Functions	Automatic and manual vacuum sealing, sealing, film cutting
Sealing Type	Hot sealing, sealing width 2.5 mm
Sealing Bar Capacity	30 cm
Suction Mode	Automatic and manual
Housing Material	ABS Plastic
Included Accessories	Film roll, 5 bags, roll adapter
Maintenance and Cleaning	Clean with a damp cloth after each use; do not immerse
Safety	Automatic shut-off in case of overheating, lid lock button
Spare Parts Available	Replacement gaskets, sealing bar, rolls and bags
Repairability	Repairability index not communicated
Warranty	2 years

Frequently Asked Questions - EV106 JATA

How to use the JATA EV106 vacuum sealer?

Place the food in a suitable bag or film roll. Position the bag in the vacuum chamber, close the lid and select the desired mode: automatic or manual. Press the vacuum sealing button. The machine sucks out the air and seals the bag automatically.

What types of bags can I use with the JATA EV106?

Use only bags or rolls specially designed for vacuum sealing. The JATA EV106 is compatible with smooth bags and rolls up to 30 cm wide.

Can I vacuum seal liquids with this appliance?

Yes, but with caution. Use the manual mode to stop suction as soon as the liquid approaches the sealing bar. Do not overfill the bag.

How to clean the JATA EV106?

Unplug the appliance. Clean the exterior and vacuum chamber with a damp cloth. Never use abrasive products and never immerse the appliance in water.

What to do if the seal is not airtight?

Check that the sealing bar is clean and free of residue. Make sure the silicone gasket is correctly positioned. If the problem persists, replace the gasket.

How to use the film roll with the appliance?

Cut a piece of roll to the desired length. Seal one end using the seal only function. Place the food, then vacuum seal and seal the second end.

Does the appliance get very hot during use?

The sealing bar heats up to seal the bag, but the appliance has a thermal protection that automatically cuts off heating in case of overheating. Let it cool for 1 minute between cycles.

Where can I buy spare parts for the JATA EV106?

The replacement gaskets, sealing bars and accessories (bags, rolls) are available from JATA customer service or from authorized dealers.

What is the warranty of the appliance?

The JATA EV106 comes with a 2-year warranty against manufacturing defects. Keep your receipt.

Can I use bags from other brands?

It is recommended to use bags compatible with JATA appliances or quality universal bags. Make sure they are suitable for vacuum sealing.

USER MANUAL EV106 JATA

INSTRUCCIONES DE USO

INSTRUÇÕES DE UTILIZAÇÃO • INSTRUCTIONS OF USE

INSTRUCTIONS D'USAGE • ISTRUZIONI PER L'USO

BEDIENUNGSANLEITUNG

Close-up of a white mechanical component with a black square mark and a numbered label '12' (no readable text or symbols beyond the number)

DATOS TÉCNICOS • DADOS TECNICOS • TECHNICAL DATA Junio 2017

Mod. EV106 230 V~

50 Hz 80 W

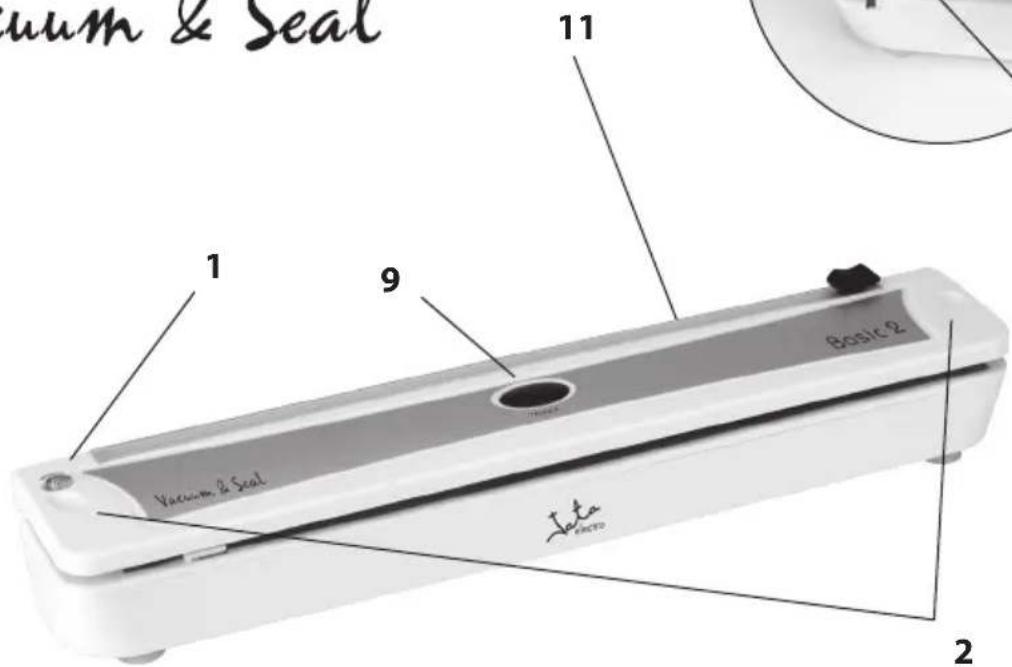

Main components and functions

1. Vacuum and sealed button.

Pushing it, begins the vacuum operation and it seals automatically when this is completed.

2. Side locks.

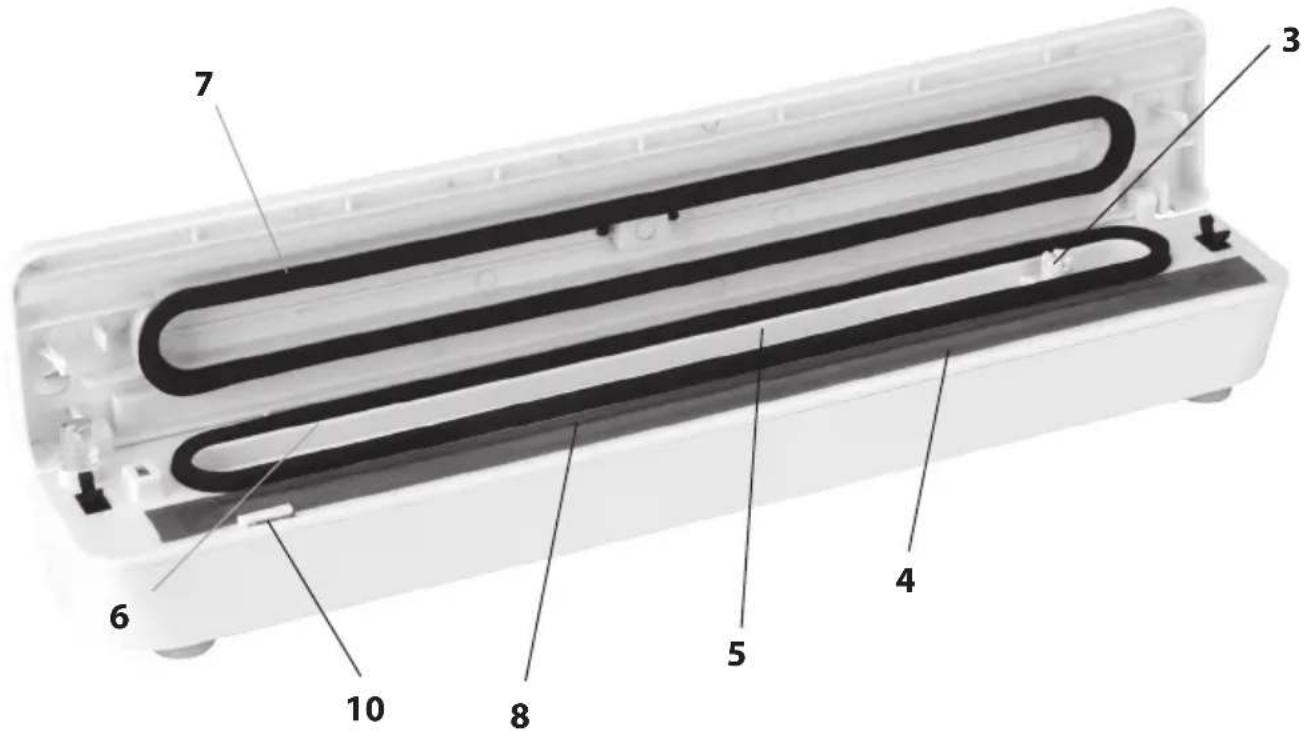

1. Air inlet: This connects the vacuum chamber with the pump.
2. Sealing strip: Places the bag to be sealed on this strip.
3. Vacuuming chamber: Positions the bag opening inside the chamber. It attracts the air and collects any liquid that could leak from the bag.
4. Lower gasket: It maintains the air outside forming an air chamber with the top seal. Keep it clean and dry and replace it if any damages or distortions appear.
5. Upper gasket: Keeps the air out forming an air chamber with the lower seal. Keep it clean and dry and replace it if it presents any damages or distortions.
6. Sealing element: Hot resistance with Teflon covering for sealing the bag.
7. Valve.
   10.Flange.
8. Blade guide.
   12.Blade.

ATTENTION

• Carefully read these instructions before using your appliance for the first time and keep it for future enquires.
• This appliance can be used by children at the age of 8 or more and people with physical, sensory or mental capabilities or lack of experience and knowledge if they have been given an appropriate supervision or instruction concerning the safety use of the appliances and understand the dangers involved.
• Keep all plastic bags and packaging components out of the reach of children. They are potentially dangerous.
• Do not connect to the mains without checking that the voltage on the rating plate and that of your household are the same.
• Manipulation or replacement of any component must be performed by an authorized service centre.
  • Do not leave unattended while in use.
  • Take care the cable does not touch any hot parts.
• Don’t allow children play with the appliance. Keep the appliance out of the reach of children.
• Keep out of curtains or other flammable materials.

• Avoid any contact with the sealing strip. It is hot and can burn.

• Keep away from hot surfaces.
  • This appliance has been designed for domestic use only.

• VERY IMPORTANT: Do not immerse the main body and/or the cable cord of the appliance in water or any other liquid.
  • To unplug, pull from the plug, never from the cable.
  • It must not be used outdoors.
• The cleaning and maintenance done by users, can not be done by children without any supervision.
• If the cable were to deteriorate it must be changed by an Authorised Service Centre.

INSTRUCTIONS OF USE

Always use original spare parts.

I. Making a bag with a plastic roll

1. Connect the appliance to the mains. The vacuuming and sealing button will turn green.
2. Pull the roll until the extent desired for the bag.
3. Slide the blade (12) by pressing down on the blade guide (11). Fig 3
4. Press the side latches (2) and lift the lid.
5. Place one end of the cut piece on the sealing element (8), fixing the bag into the flange. Fig 1.
6. Close the top cover by pressing the side locks.
7. Press (1) to start sealing the bag. During the process, the button light (1) changes from green to red.
8. Keep hands pressing the top for a better seal as shown in Figure 2. At the end of the process the button light (1) will turn green.

9. Press slightly the valve (9) to facilitate the opening of the lid.

10. Press the side latches to open the lid and remove the bag. The bag will then be ready for vacuuming and sealing.

II. Vacuum packaging with bag

1. Place the items inside the bag.
2. Clean and stretch the opening of the bag, ensure that there is no dust, waves or wrinkles and have in mind that the sealing area is totally dry.
3. Place the bag opening into the vacuuming chamber (5). Make sure the air intake (3) is not covered by the bag. Fig. 4.
4. Press side latches and push the button (1).
5. Press the lid down using both hands to facilitate vacuuming. Fig 2.
6. The appliance will perform the emptying and will seal the bag automatically. During the process the button (1) starts flashing and immediately will turn red. At the end of the process, it will turn to green.
7. You can cancel the process by pressing again button (1).
8. The vacuum packaging is complete. Press the side latches (2) to open the lid and remove the bag.

NOTE

• For an improved sealing effect, leave the machine to cool for a minute before using it again. Eliminate any remaining liquid or food from the vacuum chamber before further packing.
• Do not carry out the sealing function continuously to avoid overheating the heating element. The machine will reject the function if the button (1) is activated 20 seconds from the last time.
• The machine is designed to be used with suitable bags. Do not use another type of bag that is not suitable for vacuum packing.
• Cut the bag with scissors to open the sealing area.

MAINTENANCE AND CLEANING

• Before you proceed to cleaning, make sure the appliance is unplugged from the mains.
• Clean with a slightly dampened cloth.
• Do not use abrasive or chemical products, metallic scourers, and such may deteriorate the protection.

ENVIRONMENT PROTECTION

• Dispose the appliance according to the local garbage regulations.
• Never throw it away to the rubbish. So you will help to the improvement of the environment.

GARANTIA GERAL (2 ANOS) - GARANTIA TOTAL

In the rest of countries, the holder of the guarantee will enjoy all the rights that his legislation in force concedes.
