AHT2630D-S - Hedge Trimmers Maruyama - Free user manual and instructions

Product Type	Hedge Trimmer
Brand	Maruyama
Model	AHT2630D-S
Blade Length	26 inches (660 mm)
Engine Displacement	30 cc (1.8 cu in)
Engine Type	2-stroke, air-cooled
Fuel	Gasoline-oil mixture (50:1)
Cutting Capacity	Up to 1 inch (25 mm) diameter
Weight	12.5 lbs (5.7 kg)
Overall Length	40 inches (1016 mm)
Vibration Level	5.0 m/s² (typical)
Sound Pressure Level	94 dB(A)
Ignition	Electronic
Carburetor	Diaphragm
Handle	Rear handle with throttle trigger
Blade Guard	Included
Features	Dual-sided reciprocating blades, anti-vibration system, easy-start technology
Maintenance	Clean air filter regularly, sharpen blades as needed, use proper fuel mix
Safety	Requires proper PPE, keep hands away from blades, stop engine before adjustments
Spare Parts	Available through Maruyama dealers

Frequently Asked Questions - AHT2630D-S Maruyama

What type of fuel does the Maruyama AHT2630D-S hedge trimmer use?

The Maruyama AHT2630D-S uses a gasoline-oil mixture at a ratio of 50:1. Use fresh unleaded gasoline with an octane rating of 89 or higher and high-quality 2-stroke engine oil.

How do I start the hedge trimmer?

Ensure the on/off switch is in the ON position. Set the choke to the closed position if the engine is cold. Press the primer bulb 5-7 times until fuel is visible. Hold the throttle lock and pull the starter rope briskly. Once the engine starts, open the choke and allow it to warm up.

What is the blade length?

The Maruyama AHT2630D-S features a 26-inch (660 mm) double-sided blade, allowing efficient cutting of hedges and shrubs.

How do I sharpen the blades?

Sharpen the blades with a flat file or sharpening stone at a 30-degree angle. It is recommended to have the blades professionally sharpened periodically. Always disconnect the spark plug before sharpening.

What safety precautions should I take?

Always wear safety goggles, gloves, and hearing protection. Keep hands and feet away from the blades. Never operate near bystanders or pets. Inspect the area for hidden objects. Stop the engine before cleaning or adjusting.

What is the weight of the trimmer?

The Maruyama AHT2630D-S weighs approximately 12.5 lbs (5.7 kg), making it manageable for prolonged use.

How do I store the hedge trimmer for winter?

Drain the fuel tank and run the engine until it stops to prevent carburetor damage. Clean the unit thoroughly, lubricate the blades, and store it in a dry, frost-free place. Remove the spark plug and add a teaspoon of oil into the cylinder, then pull the starter rope slowly to distribute.

What is the warranty?

Maruyama offers a 2-year warranty for consumer use and a 1-year warranty for commercial use. Warranty covers defects in materials and workmanship. Proof of purchase is required.

Where can I find replacement parts?

Replacement parts can be obtained from authorized Maruyama dealers or online through their parts portal. Common parts include blades, air filters, spark plugs, and fuel lines.

How do I adjust the carburetor?

Carburetor adjustment should be done by a qualified technician or according to the manual. There are three screws: idle speed (T), low-speed mixture (L), and high-speed mixture (H). Turn them gently 1/4 turn at a time. Incorrect adjustment can damage the engine.

USER MANUAL AHT2630D-S Maruyama

Line drawing of a mechanical device with a spring and lever (no text or symbols)

AHT2630D

AHT2630D-L

AHT2630D-S

PRÓLOGO

AHT2630D-L

AHT2630D-S

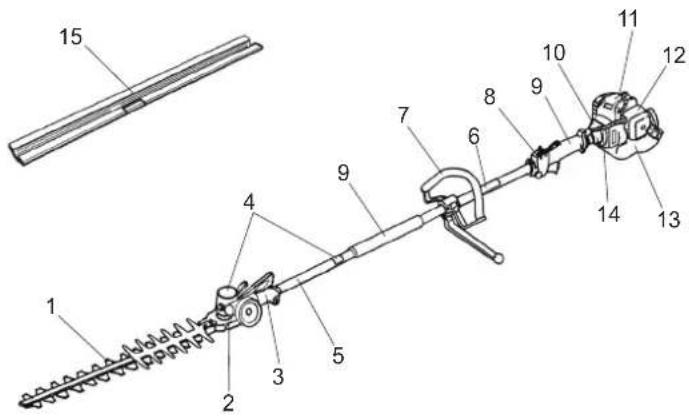

1. Funda de cuchillas
2. Codo de engranajes
3. Transmisión angular
4. Adhesivos de seguridad
5. Conjunto eje
6. Modelo Nombre
7. Manillar cerrado
8. Gatillo de acelerador y mando de pare
9. Empuñadura del tubo del eje motriz
10. Alojamiento del tambor de embrague
11. Motor
12. Filtro de aire
13. Tanque de Combustible
14. Cables de acelerador y pare

15. Funda de las cuchillas

16. Lâminas de corte

17. Codo de engranajes
18. Transmisión angular
19. Autocolante de segurança
20. Conjunto eje
21. Nome do modelo
22. Pega redonda
23. Accionador do estrangulador
24. Cabo da haste
25. Armação do tambor de embraiagem
26. Motor
27. Filtro de ar
28. Depósito de combustível
29. Cabo do estrangulador e Fios do interruptor de paragem

30. Cobertura da lâmina

31. Messer und Messerbalken

32. Getriebegehäuse
33. Winkelantrieb
34. Gefahrenhinweisschilder
35. Wellenbaugruppe
36. Modell Name
37. Rundgriff
38. Drosselklappenschalter und Ein-/Ausschalter
39. Wellengriff
40. Kupplungstrommel gehäuse
41. Motor
42. Luftfilter
43. Kraftstofftank
44. Gaszug und Züge des Ein-/Ausschalterzüge
45. Messer-Futteral

ADHESIVOS INFORMATIVOS DE SEGURIDAD E INSTRUCCIONES/ DECALCOMANIAS DE SEGURANÇA/ GEFAHRENHINWEISSCHILDER

[SOBRE EL MOTOR] [NO MOTOR] [AUF DEM MOTOR] (P/N 284587)

Emisión CE aprobada

Aprovação CE

Four black-and-white warning symbols: exclamation mark, person reading, hand holding a tool, and shield (no text or numbers)

[SOBRE EL CODO DE ENGRANAJES]

[NA TRANSMISSÃO DO ÂNGULO]

[AUF DEM GETRIEBEGEHÄUSE]

(P/N 407349)

SICHERHEIT AM HECKENSCHEREN

Simple line drawing of a plug or socket with a cable inserted, no text or symbols present

Tubo de plástico delgado Tubo de plástico fino Dünnen Kunststoffschlauch

MEZCLA DE COMBUSTIBLE TABLA

Idle speed adjustment screw

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a person using a power shaver to spray or brush, with trees in the background (no text or symbols)

UTILIZACIÓN

PRECAUCIÓN

Obelis European Authorized Representative Center (O.E.A.R.C.)

Boulevard Général Wahis, 53, B-1030 Bruselas, Bélgica

Obelis European Authorized Representative Center (O.E.A.R.C.)

Boulevard Général Wahis, 53, B-1030 Bruselas, Bélgica

Obelis European Authorized Representative Center (O.E.A.R.C.)

Boulevard Général Wahis, 53, B-1030 Bruxelas, Bélgica

Obelis European Authorized Representative Center (O.E.A.R.C.)

Boulevard Général Wahis, 53, B-1030 Bruxelas, Bélgica

Obelis European Authorized Representative Center (O.E.A.R.C.)

Obelis European Authorized Representative Center (O.E.A.R.C.)

Obelis European Authorized Representative Center (O.E.A.R.C.)

Boulevard Général Wahis, 53, B-1030 Brussels, Belgium

Tel: +(32) 2.732.59.54 Fax: +(32) 2.732.60.03

E-Mail : [e-mail]
