TP 1726 - Toaster COMELEC - Free user manual and instructions

Product Type	Toaster
Brand	Comelec
Model	TP 1726
Number of Slots	2
Dimensions (approx.)	28 x 18 x 20 cm
Weight (approx.)	1.2 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	800-1000 W
Browning Control	Adjustable, 7 levels
Functions	Cancel, Defrost, Reheat
Auto Shut-off	Yes
Removable Crumb Tray	Yes
Cleaning Instruction	Unplug, wipe exterior with a damp cloth; empty crumb tray regularly
Safety Feature	Automatic shut-off and non-slip feet
Material	Plastic housing with stainless steel accents
Cord Length	Approx. 85 cm
Spare Parts	Not available; contact customer service
Repairability	Non-user serviceable; professional repair recommended
Warranty	Standard manufacturer warranty

Frequently Asked Questions - TP 1726 COMELEC

How do I adjust the browning level on the TP 1726 toaster?

Turn the browning control dial to your desired level (1-7). Higher settings produce darker toast.

Can I use the defrost function for frozen bread?

Yes, press the Defrost button before lowering the bread. The toaster will adjust the toasting cycle accordingly.

How do I clean the toaster?

Always unplug the toaster before cleaning. Wipe the exterior with a damp cloth. Slide out the crumb tray at the bottom to empty crumbs.

What does the Reheat function do?

The Reheat function warms existing toast without further browning. Press the Reheat button to activate.

Why does my toast pop up before it's done?

Check the browning setting; it may be too low. Also ensure the bread slices are of standard thickness. If problem persists, contact support.

Is the toaster safe to leave unattended?

No, never leave the toaster unattended while in use. It has automatic shut-off as a safety feature, but supervision is recommended.

How do I cancel a toasting cycle?

Press the Cancel button to immediately stop the toasting process and pop up the bread.

What is the maximum slice thickness?

The toaster accommodates standard bread slices up to about 2.5 cm thick. Thicker slices may not fit properly.

The toaster doesn't turn on. What should I do?

Check that the power cord is securely plugged into a working outlet. Also ensure the toaster is not in cancel mode. If still off, contact customer service.

Are spare parts available for this toaster?

Spare parts are typically not sold separately. For repairs, contact the manufacturer or an authorized service center.

USER MANUAL TP 1726 COMELEC

Thank you for purchasing this COMELEC product, this device has been checked in all its components meticulously, so we guarantee the correct operation, but for this to be the case we need that YOU read the instruction book carefully, as this will contribute to the best performance of this article.

P.G.E, S.L guarantees to the buyer of this product, a total guarantee of TWO YEARS, governed by the established conditions whose regulation is found in Royal Legislative Decree 1/2007 of 16.

December, which approves the revised text of the General Law for the Defense of Consumers and Users, (articles 114 to 127)

P.G.E, S.L is committed to repairs are completely free, labor and spare parts, including.

The Technical Assistance Service will resolve any repairs that may be required by this apparatus.

Carefully review the INSTRUCTION BOOK included, on the use, maintenance and conservation of the device.

Any anomaly that could occur due to the non-observance of such instructions will not be protected for the guarantee.

The date of sale of the device, for the purposes of warranty period, will be that which appears on the purchase invoice.

Guarantee operation: As regards all those compliance defects detected by the technical assistance, which are manifested within six months of the delivery of the goods, it is assumed that they already existed on that date, the intervention will be completely free. (unless this hypothesis is incompatible with the nature or nature of the conformity defect).

During the following eighteen months, it must be the user who demonstrates. That the lack of conformity it was coming at the time of delivery. MANUFACTURED CHINA FOR COMELEC

DECLARATION OF CONFORMITY

Manufacturer Name: PRAGMATICA GRUPO EUROPEO, S.L Adress: Tapisers 10 Poligono Industrial Els Mollons Post Code: 48970 City: Alaguea VALENCIA

We declare under our responsibility that the product.

Product Description: Toaster

Model

COME

It complies with the European Union legislation in compliance with the 2004/108 / EU guidelines

The standards apply:

EN 55014-1:2008+A1+A2:

EN 55014-2:1997+A1+A2:

EN 61000-3-2:2006+A1:A2:

EN 61000-3-3:2013

Name:

Position:

Date:

Signature:

Pablo Gonzalez

Administrador

10 Enero 2.019

1.2.1.2017

INFORMATION ON RECYCLING

Disposal of the old appliance, the European Directive 2002/96 / EC on waste equipment Electrical and Electronic (WEEE), establishes that old appliances can not be thrown as municipal waste without normal classification. Appliances have to be collected separately with theo optimize the recovery and recycling of the materials they contain and restore the impact on human health and the environment.

The symbol "container with wheels" crossed out on the product reminds you of obligation, that when you dispose of the device must be collected separately. Consumers should contact the local or retail authority to obtain information about the correct disposal of your old device.

Pragmatica Grupo Europeo, S.L

Tapisers 10 Poligono Industrial Els Mollons

46070 Alequas VALENCIA Tino. 963 313 252

USER

DATE OF SALE

Seller's signature and stamp

IMPORTANT: To make the guarantee effective, the SELLER must fill out sign and stamp this Certificate. To receive assistance under the conditions set forth in this certificate, please submit to the Technical Service Authorized, this document next to the Purchase Invoice.

Exterior view of a modern flat-screen toaster with a black handle and control panel (no visible text or symbols)

CARACTERISTICAS TÉCNICAS

Modelo

TP 1726

Voltaje:

220-240V\~

Frecuencia.

50 Hz

Potencia:

1.000 W

1. Read these instructions carefully before using the appliance.

2. This appliance is designed for domestic use only. Only such as indicated in this manual should be used.

instructions. Misuse and improper handling can cause problems in the device and harm the user.

1. Before connecting the appliance, make sure that the voltage indicated on the nameplate matches that of the socket of current.

2. Do not store or use the device outdoors.

3. Unplug the appliance before opening the chassis.

4. Before cleaning the unit, unplug it from the power outlet and allow the unit to cool.

5. Do not use this appliance in the bathroom or near water sources.

6. Do not insert the appliance or the plug into water or other liquids. If the device falls into the water, unplug it immediately from the power and take it to an authorized technical service to examine it before using it again.

7. Do not place or operate the appliance and its power cord on or near hot surfaces (for example, power plates cooking) or fire flames.

8. Do not leave the cord hanging on sharp edges and keep it away from hot objects and flames. Do not screw the cable around the unit. Do not bend the cable.

9. Do not use the appliance if the cable or plug is damaged. If the cable is damaged, it must be replaced, only by the manufacturer, its technical service or by qualified technical personnel, in order to avoid dangers.

10. If the device does not work properly, or if it has been damaged in any way, return the device to the authorized center nearest for review, repair or adjustment.

11. In case of hardware problems, do not try to repair the product yourself. All repairs must be carried out by qualified technical personnel.

12. Before connecting the appliance, make sure that the voltage indicated on the nameplate matches that of the socket of current.

13. To unplug from the outlet, please pull the plug itself and not the cord or the appliance.

14. Make sure your hands are dry before plugging in or unplugging the appliance.

15. This device is not intended for use by persons (including children) whose physical, sensory or are mentally reduced or lack experience or knowledge, unless they have had supervision or instructions suitable for the use of the device by a responsible person.

16. Children should be supervised to ensure they do not play with the device.

17. Do not use accessories not recommended by the manufacturer.

18. Do not use cutlery or pointed utensils to remove bread. When removing toast, be careful not to damage the heating components.

19. Do not touch any metal part on the outside of the device. These can get very hot during operation.

20. Do not insert slices of bread that are too thick or wrapped in foil to avoid risk of electric shock or fire.

21. Never cover the device.

22. The device is not designed to be operated with an external timer or remote control systems.

23. Do not toast bread for too long, as it can burn and cause a fire.

24. Do not place the appliance under curtains, wall furniture or combustible materials.

25. The surface of the kitchen may become hot during operation.

26. Bread may bum, therefore, do not use the toaster near or under combustible materials, such as curtains.

27. There is a risk of fire if the waste tray is not cleaned regularly.

28. If the bread sticks to the toaster, unplug it, wait until it cools and remove it.

ADDITIONAL USER SAFETY WARNING:

The meaning of the symbol found on the product surface is:

• The toaster grill can reach a high temperature when the appliance is in operation.

- The temperature of the metal panels in the main body can also be very hot.

• The temperature of accessible surfaces can be high when the appliance is in operation.

TOASTER PARTS

1. Slot for bread

2. Tray collects crumbs

3. Roasting level selector

4. Start-up lever

5. Lever to heat buns

6. Defrost button

7. Repeat button

8. Cancel button

TOASTER USE

1. Make sure the toaster is plugged into the mains.

2. Place the toast in the slot and lower the button.

3. The toaster will start and start toasting.

4. Adjust the toast level selector to the desired level.

5. To stop roasting, press the CANCEL button every time you want.

6. Raise the button if you want to check the toast status.

7. When the toast is finished, the button automatically rises. You can extract the toast safely.

8. If you see that the level of roasting is not desired, you can repeat the operation.

9. In this case, adjust the level of roasting to a lower level and make sure that the toast does not burn during re-roasting.

TOASTED LEVEL REGULATOR.

The roasting level regulator, regulates the roasting time, is adjustable between 1 and 7.

1 - 2 Soft roasting

3 - 5 Medium roast

6 - 7 Intense roasting

REPETITION FUNCTION.

You can toast the bread again if you think that little toast has remained.

- Put the toast back in the slot.

- Select the toast selector to a low toast position.

- Lower the toast button

- Press the REHEAT button, the re-toasting indicator will light, make sure the bread does not burn.

· The button will automatically rise when toasting ends.

DEFROST FUNCTION.

Your toaster can defrost bread before toasting it if you wish.

- Place the bread in the toaster.

- Select the desired level.

- Lower the toast button.

- Press the "defrost" button, the indicator will light, make sure not to burn the bread.

Cancel function · Press the CANCEL button if you see that the bread is burning.

CLEANING AND MAINTENANCE INSTRUCTIONS.

BEFORE CLEANING THE TOASTER, YOU MUST UNPLUG IT FROM THE ELECTRICAL NETWORK AND WAIT FOR

IT TO COOL

o Unplug the toaster.

o Do not use harsh or abrasive cleaning products or steel scourers to clean the toaster. If you want to use any

cleaning product, apply it using a rag, and never directly on the toaster.

o Use a soft, damp cloth to clean the outside of the appliance, and a dry one to make it shine.

o Do not immerse the toaster under water or any other liquid.

o Do not use metal utensil to extract bread crumbs.

STORAGE

* Make sure the unit is disconnected and allow to cool before storing.

* Clean the device before storing it (see maintenance section).

* Wind the cable carefully.

* Store the appliance in a cool and dry place.

ATTENTION: THIS TOASTER MUST BE CONNECTED TO AN EARTH SOCKET

CHARACTERISTICS:

WIDE MOUTH

LIGHT INDICATORS

6 TOAST POSITIONS.

NOTE: ANY DEFECTS OF THE APPLIANCE DUE TO MISUSE OR MAINTENANCE BY THE

CONSUMER WILL NOT ENTER WITHIN THE WARRANTY PERIOD GIVEN BY THE MANUFACTURER OR IMPORTER.

USO DEL TOSTADOR

Exterior view of a modern flat-screen toaster with a silver body and black handle (no visible text or symbols)

TECHNICAL SPECIFICATIONS

Model : TP 1726

Voltaje: 220-240V \~

Frecuencia. 50 Hz

Potencia: 1.000 W

PLEASE READ THE INSTRUCTIONS CAREFULLY OF THIS MANUAL BEFORE STARTING.

DO NOT HANDLE THIS TOASTER INTERNALLY.

The texts, photos, colors, figures and data correspond to the current technical level from the moment they have been printed. We reserve the right to modifications motivated by the permanent development of the technique in our

MANUAL DE INSTRUÇÕES

TORRADEIRA DE PÃO

1 FATIA LONGA

MODELO TP1726

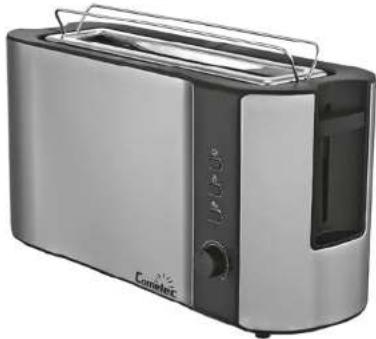

Exterior view of a modern CoMeliec toaster with a silver and black casing (no visible text or symbols)

ESPECIFICAÇÕES TÉCNICAS

Modelo: TP 1726
