TP-POE-18 - Network card / adapter Tycon Systems - Free user manual and instructions

Product Type	Power over Ethernet (PoE) Injector
Model	TP-POE-18
Input Voltage	100-240V AC, 50/60Hz
Output Voltage	48V DC
Max Output Power	18W (0.375A)
PoE Standard	IEEE 802.3af
Ports	1x RJ45 Input, 1x RJ45 Data+Power Output
Dimensions (L x W x H)	100 mm x 60 mm x 30 mm
Weight	150 g
LED Indicators	Power (Green), PoE Active (Yellow)
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 70°C
Humidity	5% to 90% (non-condensing)
Power Cord	Detachable, 1.5m included
Safety Protection	Overload, short circuit, surge
Certifications	CE, RoHS
Maintenance	Wipe with dry cloth; do not use liquids
Repair	No user-serviceable parts; contact Tycon support
Installation	Plug and play; no configuration required

Frequently Asked Questions - TP-POE-18 Tycon Systems

What is the TP-POE-18 used for?

The TP-POE-18 is a Power over Ethernet (PoE) injector that adds power to an Ethernet cable, allowing devices like IP cameras, wireless access points, and VoIP phones to receive power and data over a single cable.

What is the maximum power output of the TP-POE-18?

The TP-POE-18 provides up to 18W of power at 48V DC, compliant with IEEE 802.3af standard.

Is the TP-POE-18 compatible with all PoE devices?

It is compatible with devices that require 802.3af compliant PoE (15.4W max) or passive PoE at 48V. Check your device's voltage and power requirements before use.

How do I install the TP-POE-18?

Connect the device's Ethernet cable to the 'Data In' port, then connect a standard Ethernet cable from the 'Data & Power Out' port to your PoE device. Plug the power adapter into an AC outlet. The injector is plug and play.

What do the LED indicators mean?

The green Power LED lights when the injector is receiving AC power. The yellow PoE Active LED lights when power is being delivered to the connected device.

Can the TP-POE-18 be mounted on a wall?

Yes, the injector has mounting brackets and can be wall-mounted using screws. Ensure proper ventilation.

What is the operating temperature range?

The TP-POE-18 operates between -10°C to 50°C (14°F to 122°F). Avoid exposing it to extreme temperatures or moisture.

Does the TP-POE-18 support gigabit Ethernet?

Yes, it supports 10/100/1000 Mbps (Gigabit) Ethernet passthrough. The data rate is not affected by the power injection.

What should I do if the PoE LED is not lighting up?

First, verify the AC power is connected and the supply is working. Check the Ethernet cable connections. Ensure the connected device is PoE-compatible and not drawing more than 18W. Try a different cable or device.

Is the TP-POE-18 safe to use outdoors?

The TP-POE-18 is designed for indoor use only. For outdoor installations, it must be placed in a weatherproof enclosure.

USER MANUAL TP-POE-18 Tycon Systems

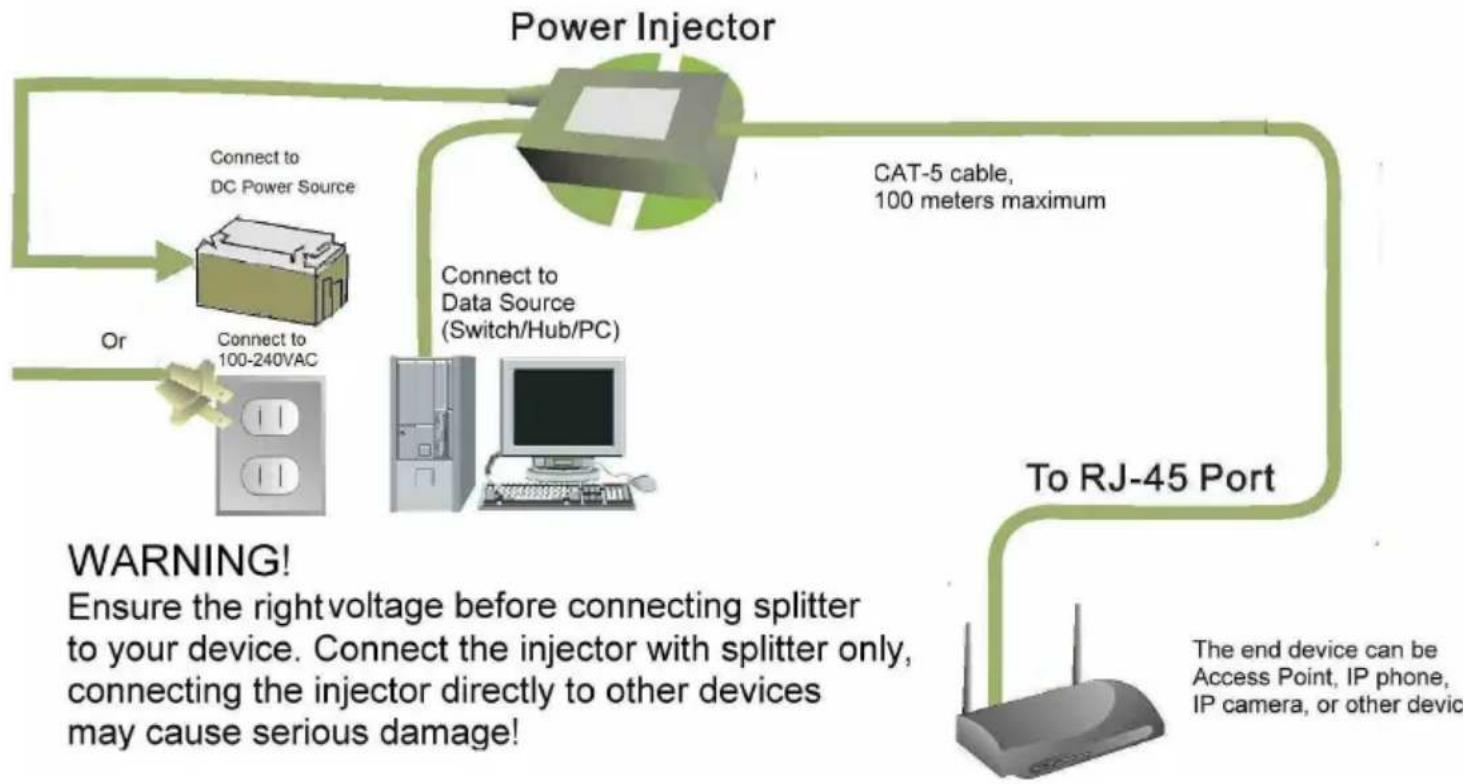

Application of POE (Power over Ethernet)

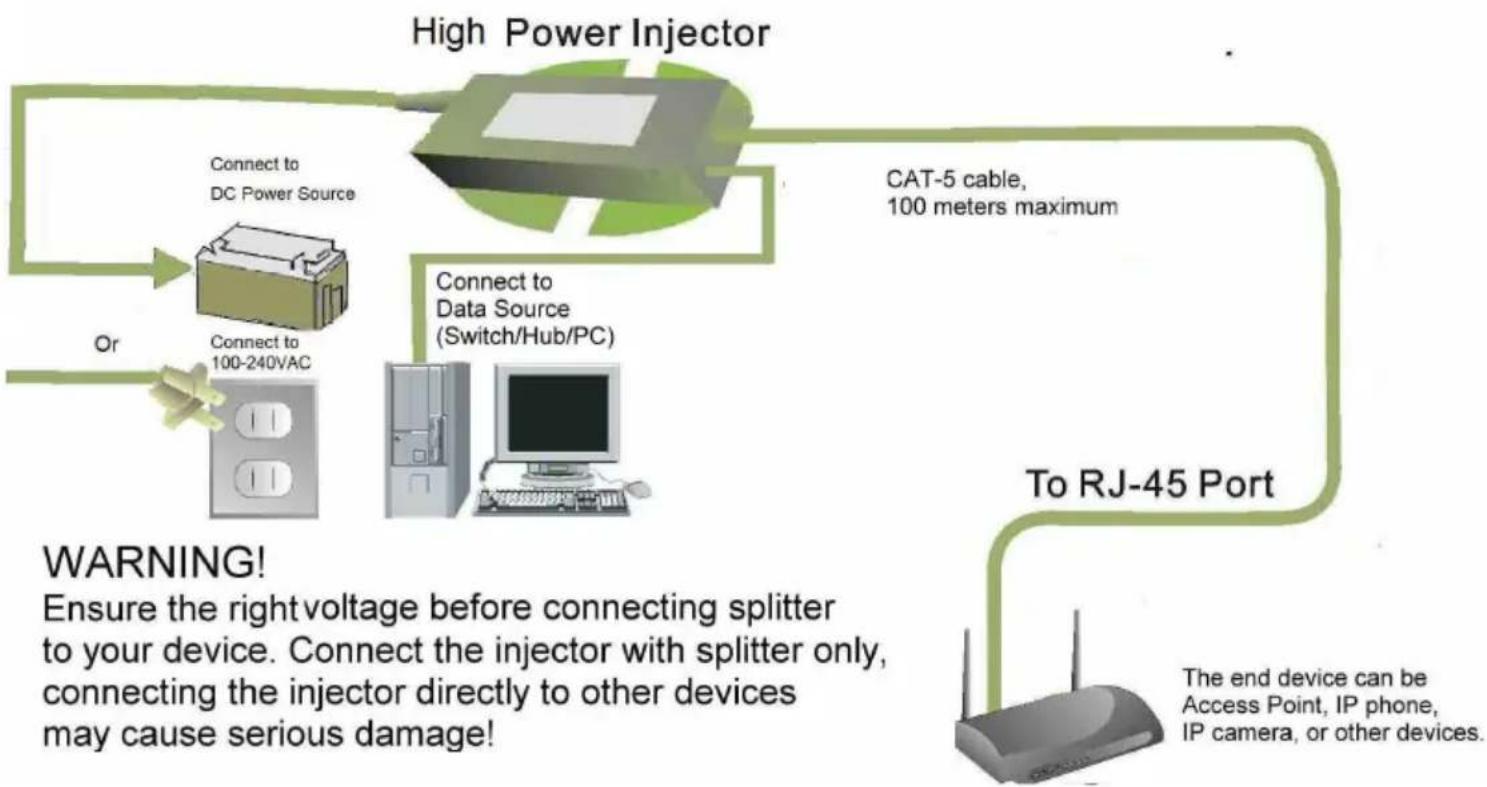

Application of POE (Power over Ethernet)
