DA 36 - Dishwasher Ansonic - Free user manual and instructions

Product Type	Freestanding Dishwasher
Brand	Ansonic
Model	DA 36
Width	60 cm
Height	85 cm
Depth	60 cm
Weight	45 kg
Power Supply	220-240 V ~ 50 Hz, 10 A
Energy Class	A+
Water Consumption	10 L per cycle
Noise Level	49 dB(A)
Place Settings	12
Number of Programs	6
Program Types	Eco, Intensive, Normal, Quick, Glass, Rinse
Half Load Function	Yes
Delay Start	Up to 24 hours
Water Connection	Cold water only
Water Pressure	0.04 - 1.0 MPa
Safety Features	Child lock, anti-flood system, overflow protection
Maintenance	Clean filter monthly, descale every 3 months
Spare Parts Availability	Filters, spray arms, detergent dispenser, door seal
Warranty	2 years

Frequently Asked Questions - DA 36 Ansonic

How do I install the dishwasher?

Ensure the dishwasher is placed on a level surface. Connect the water inlet hose to a cold water supply (3/4 inch thread). Connect the drain hose to the sink drain or a dedicated waste pipe. Plug into a grounded outlet. Adjust the feet for stability.

What detergent should I use?

Use a dishwasher detergent in powder, gel, or tablet form. For best results, use a multifunctional tablet (e.g., with salt and rinse aid). Avoid using hand dishwashing liquid.

Why is the dishwasher not cleaning properly?

Check that the spray arms are not blocked. Ensure the filter is clean. Use the correct amount of detergent. Load dishes properly, facing down. Verify water temperature is at least 50°C for eco program.

How do I clean the filter?

Turn off the dishwasher and remove the lower spray arm. Rotate the filter assembly counterclockwise to remove it. Rinse under running water with a soft brush. Reinstall and lock by turning clockwise.

What does the 'E1' error code mean?

Error E1 indicates a water inlet failure. Check that the water tap is open and the inlet hose is not kinked. Also clean the inlet filter at the hose connection to the dishwasher.

Can I use the dishwasher with half a load?

Yes, select the Half Load option if available on your model. This reduces water and energy consumption, but still use the same amount of detergent.

How do I reset the dishwasher?

Press and hold the Start button for 3 seconds or turn off the power for 1 minute. If the problem persists, refer to the manual or contact support.

Why is there water left at the bottom?

Check the drain hose for kinks or clogs. Clean the filter and ensure the drain pump is not blocked. A small amount of water is normal after a cycle to seal the door.

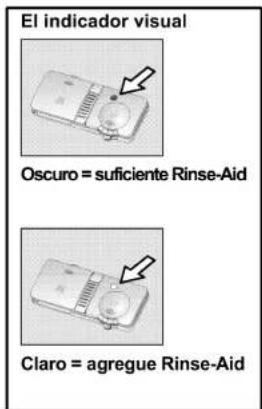

How often should I add rinse aid?

Fill the rinse aid dispenser when the indicator light comes on or every 1-2 months depending on use. This ensures spotless drying.

What should I do if the dishwasher leaks?

Immediately turn off the water supply and power. Check hose connections. Inspect the door seal for damage. Contact a qualified technician if necessary.

USER MANUAL DA 36 Ansonic

Cutaway view of a cleaning appliance showing internal components like dish, wheels, and fixtures (no text or symbols visible)

Diagram of a mechanical or electrical component with an upward arrow indicating motion (no text or symbols present)

Close-up of a mechanical clamp or bracket with a metallic rod inserted (no visible text or symbols)

Illustration of a hand holding a mechanical component with directional arrows indicating movement (no text or symbols)

Hand inserting a device into a device with a circular button (no text or symbols visible)

Close-up of a mechanical component being inserted into a housing, showing internal parts and a tool (no text or symbols visible)

Illustration of a handheld electronic device with a circular button and labeled component 'C' (no text or symbols on the device itself)

Información de uso

Hand holding a circular object with engraved text, no readable symbols or numbers present

Illustration of a funnel pouring liquid into a container with a lid, no text or symbols present

8

E
