Product Type	Solo Microwave with Grill
Brand	Nevir
Model	NVR-6030 MMG
Capacity	25 L
Microwave Power	800 W
Grill Power	1000 W
Dimensions (W x D x H)	455 x 365 x 275 mm
Weight	12.5 kg
Voltage / Frequency	230 V / 50 Hz
Display	LED Digital Display
Timer	Up to 95 minutes
Turntable	Yes, 315 mm glass tray
Child Lock	Yes
Defrost Function	By weight or time
Grill Function	Yes, separate grill mode
Interior Light	Yes
Door Type	Drop-down door
Control Type	Touch control buttons
Material	Stainless steel interior
Cleaning	Wipe with damp cloth; mild detergent
Safety Features	Door interlock, overheat protection
Spare Parts Availability	Yes, through authorized service centers
Repairability Index	7.0 / 10
Energy Efficiency Class	A+ (estimated)
Main Functions	Microwave, Grill, Defrost, Timer, Child Lock

Frequently Asked Questions - NVR-6030 MMG NEVIR

How do I set the microwave power level?

Press the 'Power' button repeatedly to cycle through power levels (100%, 80%, 60%, 40%, 20%). Then set the cooking time.

Can I use metal containers or aluminum foil?

No, metal can cause sparks. Use only microwave-safe glass, ceramic, or plastic containers. Avoid aluminum foil unless specified in the manual.

How do I defrost food using weight?

Press the 'Defrost' button, then enter the weight in grams using the numeric keypad. The microwave will calculate the defrosting time automatically.

Why is the turntable not rotating?

Check if the turntable glass tray and roller ring are properly positioned. If still not rotating, the turntable motor may need service.

How do I clean the microwave interior?

Wipe the interior with a damp cloth and mild soap. For stubborn stains, heat a bowl of water with lemon juice for a few minutes to loosen residues.

What does the 'Grill' function do?

The grill uses a heating element to brown and crisp food. Activate it by pressing the 'Grill' button. You can combine microwave and grill for baking.

How do I activate the child lock?

Press and hold the 'Stop/Clear' button for 3 seconds until a lock icon appears. To unlock, repeat the process.

Is there a safety interlock?

Yes, the microwave will not operate unless the door is properly closed. This prevents radiation leakage.

How do I adjust the beep volume?

Some models allow you to mute the beep by pressing and holding the 'Sound' button. Check manual for detailed steps.

What is the maximum cooking time?

The timer can be set up to 95 minutes. For longer cooking, you may need to restart the timer after it ends.

USER MANUAL NVR-6030 MMG NEVIR

Exterior view of a modern kitchen microwave oven with digital display and control buttons (no visible text or symbols)

Line drawing of an electrical outlet plug with two leads (no text or symbols)

Simple line drawing of a circular object with diagonal hatching and two legs (no text or symbols)

10 --- 30 min: 1 minuto

30 --- 95 min: 5 minutos

Exterior view of a modern kitchen microwave oven with digital display and control knobs (no visible text or symbols)

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model	NVR300MM G
Rated Voltage 230V ~ 50Hz
Rated Input Power (Microwave) 1050 W
Rated Output Power (Microwave) 700 W
Rated Input Power (Grill) 1000 W
Oven Capacity 20 L
Turntable Diameter 255 mm
External Dimensions	439.5 x355 x 25 mm
Net Weight Approx. 11.33 kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to remove a cover which gives protection against exposure to microwave energy.
3. Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.
4. Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. (only for grill series)
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
13. Install or locate this oven only in accordance with the installation instructions provided.

14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

15. Use this appliance only for its intended uses as described in manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.

16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement or near a swimming pool.
19. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any events on the oven.
20. Do not let cord hang over edge of table or counter.
21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
22. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
23. Microwave heating of beverages can result in delayed eruptive boiling, therefore take care when handling the container.
24. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
25. Children should be supervised to ensure that they do not play with the appliance.

1. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet
2. The appliances are not intended to be operated by means of an external timer or separate remote-control system.

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

CLEANING

Be sure to unplug the appla the power supply. i nce

1. Clean the inside of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a grounding-type 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

Two-round-pin plug

UTENSILS

CAUTION

Personal Injury Hazard It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks

Aluminum foil Shielding only . Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks

Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray	1
Turntable ring assembly	1
Instruction Manual	1

G

Simple line drawing of a round table with diagonal hatching and two legs (no text or symbols)

Grill Rack (Only for Grill series)

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

Shut off oven power if the door is opened during operation.

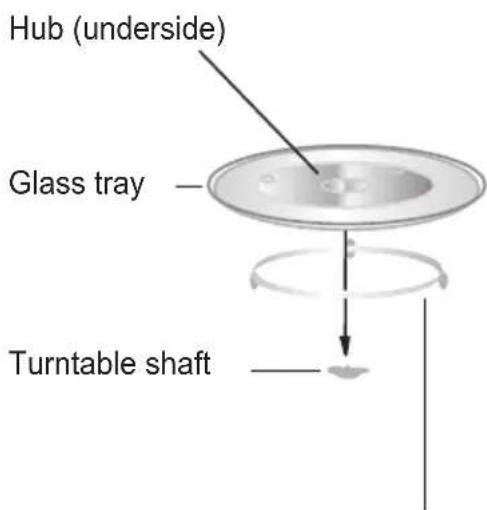

Turntable Installation

Turntable ring assembly

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

Installation

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

A minimum clearance of 7 inches (20cm) is required between the oven and any adjacent walls.

(1) Leave a minimum clearance of 12 inches (30cm) above the oven.

(2) Do not remove the legs from the bottom of the oven.

(3) Blocking the intake and/or outlet openings can damage the oven.
(4) Place the oven as far away from radios and TV as possible.
Operation of microwave oven may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

1. Clock Setting

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once.

1) Press "CLOCK/PRE-SET", the hour figures will flash;
2) Turn “” to adjust the hour figures, the input time should be within 0--23.
3) Press "CLOCK/PRE-SET", the minute figures will flash.
4) Turn “ ” to adjust the minute figures, the input time should be within 0--59.
5) Press "CLOCK/PRE-SET" to finish clock setting. ":" will flash.

Note: 1) If the clock is not set, the clock would not function when powered.

2) During the process of clock setting, if no oppression in 1 minute, the oven will go back to the previous status automatically.

2. Microwave Cooking

1) Press the "Micro/Grill/Combi" key once, and "P100" displays.
2) Press “Micro/Grill/Combi” for times or turn “ ” to select the microwave power “P100”, “P80”, “P50”, “P30”, “P10” will display in order.
3) Press "START/+30SEC./CONFIRM" to confirm.
4) Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press "START/+30SEC./CONFIRM" to start cooking.

NOTE: the step quantities for the adjustment time of the coding switch are as follow:

0---1 min: 5 seconds

1---5 min: 10 seconds

5---10 min: 30 seconds

10---30 min: 1 minute

30---95 min: 5 minutes

Microwave Power Chart

Microwave Power	100%	80%	50%	30%	10%
Display	P100	P80	P50	P30	P10

3. Grill Cooking

1) Press the "Micro/Grill/Combi" key once, and "P100" displays.
2) Press "Micro/Grill/Combi" for times or turn " " to select the grill power.
3) Press "START/+30SEC./CONFIRM" to confirm when the LED displays "G".
4) Turn " " to adjust the grill time. (The time setting should be 0:05- 95:00.)
5) Press "START/+30SEC./CONFIRM" to start cooking.

Note: If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press "START/+30 SEC./CONFIRM" to continue cooking. If no operation, it will continue working.

4. Combination Cooking

1) Press the "Micro/Grill/Combi" key once, and "P100" displays.
2) Press “Micro/Grill/Combi” for times or turn “ [icon] ” to select the combination power “C-1(55%microwave+45%grill)” and “C-2(36%microwave+64%grill)” will display in order.
3) Press "START/+30SEC./CONFIRM" to confirm.
4) Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press "START/+30SEC./CONFIRM" to start cooking.

5. Speedy Cooking

1) In waiting state, press "START/+30SEC./CONFIRM" key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes.
2) During the microwave, grill and combination cooking and time defrost process, press "START/+30SEC./CONFIRM" to increase the cooking time.
3) In waiting state, turn “ ” left to choose the cooking time directly. After choosing the time, press “START/+30SEC./CONFIRM” to start cooking. The microwave power is 100%.

Note: Under the states of auto menu and weight defrost, cooking time cannot be increased by pressing “START/+30SEC./CONFIRM”

6. Defrost By Weight

1) Press "W.T./TIME DEFROST" once, the screen will display "dEF1".
2) Turn “ ” to select the food weight. The range of weight is 100-2000g.
3) Press "START/+30SEC./CONFIRM" key to start defrosting

7. Defrost By Time

1) Press "W.T./TIME DEFROST" twice, the screen will display "dEF2".
2) Turn “ ” to select the cooking time. The MAX.time is 95 minutes.
3) Press "START/+30SEC./CONFIRM" key to start defrosting

8. Multi-Stage Cooking

Two stages can be maximally set. If one stage is defrosting, it should be put in the first stage. The buzzer will ring once after each stage and the next stage will begin.

Note: Auto menu cannot be set as one of the multi-stage.

Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

1) Press "W.T./TIME DEFROST" twice, the screen will display "dEF2";
2) Turn “ ” to adjust the defrost time of 5 minutes;
3) Press "Micro./Grill/Combi" once;
4) Turn “ ” to choose 80% microwave power till “P80” displays;
5) Press "START/+30SEC./CONFIRM" to confirm;
6) Turn “ ” to adjust the cooking time of 7 minutes;
7) Press "START/+30SEC./CONFIRM" to start cooking.

9. Pre-set Function

1) Set the clock first. (Consult the instruction of clock setting.)
2) Input the cooking program. Two stages can be set at most. Defrosting should not be set in preset function.

Example: if you want to cook with 80% microwave power for 7 minutes.

a. Press "Micro/Grill/Combi" once;
b. Turn “ ” to choose 80% microwave power till “P80” displays;
c. Press "START/+30SEC./CONFIRM" to confirm;
d. Turn " " to adjust the cooking time of 7 minutes;

After the above steps, please do not press "START/+30SEC./CONFIRM". Then do as following:

3) Press "CLOCK/PRE-SET". The hour figures flash;
4) Turn “ ” to adjust the hour figures, the input time should be within 0--23.
5) Press "CLOCK/PRE-SET", the minute figures will flash.
6) Turn “ ” to adjust the minute figures, the input time should be within 0--59.
7) Press "START/+30SEC./CONFIRM" to finish setting. ":" will light, buzzer will ring twice when the time arrives, then cooking will start automatically.

Note: clock must be set first. Otherwise, pre-set function will not work.

10. Auto Menu

1) In waiting state, turn “ ” right to choose the menu from A-1 to A-8.
2) Press "START/+30SEC./CONFIRM" to confirm the menu you choose;
3) Turn " " to choose the food weight;
4) Press "START/+30SEC./CONFIRM" to start cooking;
5) After cooking finishes, the buzzer sounds five times.

Auto Menu

Menu	Weight(g)	Display	Power
A - 1 200 200Reheat600 600	400		400 100%
A - 2 200 200Vegetable400 400	300		300 100%
A - 3 250 250Fish450 450	350		350 80%
A - 4 250 250Meat450 450	350		350 100%
A - 5Pasta	50 (with water 450 ml) 100 (with water 800 ml)	50 80%100
A - 6 200 200Potato600 600	400	400	100%
A - 7 200 200Pizza	100%400	400
A -8Soup	200 200400	80%400

11. Lock-out Function for Children

Lock: In waiting state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep" denoting entering the children-lock state and screen will display "……".

Unlocking: In locked state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep" denoting that the lock is released.

12. Inquiring Function

1) In cooking states of microwave, grill and combination, press "Micro/Grill/Combi", the current power will be displayed for 2-3 seconds.
2) In pre-set state, press "CLOCK/PRE-SET" to inquire the time for delay start cooking. The pre-set time will flash for 2-3 seconds, then the oven will turn back to the clock display.
3) During cooking state, press “CLOCK/PRE-SET” to check the current time. It will be displayed for 2-3 seconds.

13. Specification

(1) The buzzer will sound once when turning the knob at the beginning;
(2) “START/+30SEC./CONFIRM” must be pressed to continue cooking if the door is opened during cooking;
(3) Once the cooking programme has been set, "START/+30SEC./CONFIRM" is not pressed in 1 minute. The current time will be displayed. The setting will be cancelled.
(4) The buzzer sounds once by efficient press, inefficient press will be no response.
(5) The buzzer will sound five times to remind you when cooking is finished

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom.	Refer to "Maintenance of Microwave" to clean dirty parts.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

In order to fulfill ruling UNE EN-60065, we indicate that if the flexible wire is damage, it can only be replaced by a technical service recognized by NEVIR S.A., due to some special tooling is required.

nevir®

Forno Microondas

MANUAL DE INSTRUÇÕES

Modelo: NVR-6030 MMG

Exterior view of a modern kitchen microwave oven with control panel and digital display (no visible text or symbols)

Line drawing of a black electrical outlet plug with two leads (no text or symbols)

LOUÇA

PRECAUÇÃO

Perigo de lesões

Simple line drawing of a round object with diagonal hatching and two legs (no text or symbols)

Trempe (apenas nos modelos com grill)
