TO-1409V - Toaster BRANDT - Free user manual and instructions

Product type	Toaster
Brand	BRANDT
Model	TO-1409V
Power supply	220-240 V ~ 50/60 Hz
Power consumption	850 W
Dimensions (L × D × H)	272 × 180 × 180 mm
Net weight	1.25 kg
Capacity	2 slots (2 slices)
Browning levels	5 levels (1 to 5)
Main functions	Browning, reheating, defrosting, manual stop
Pastry rack	Yes, with activation lever
Extra high lift	Yes, 20 mm above the initial position
Automatic shut-off	Yes, in case of bread jam
Crumb tray	Removable, washable
Self-adjusting guides	Yes
Care and cleaning	Damp cloth, crumb tray washable with soapy water
Safety	Do not immerse, do not insert metal objects, keep away from children
Warranty	2 years (by the distributor)
Spare parts and repairability	Original parts via approved after-sales service

Frequently Asked Questions - TO-1409V BRANDT

How to use the pastry rack?

Lower the lever on the left side of the toaster to activate the rack. Place the pastry (brioche, croissant, etc.) on it. Set the browning level with the selector, then lower the bread lever to start the cycle.

How to clean the BRANDT TO-1409V toaster?

Unplug the appliance and let it cool down. Clean the exterior with a damp cloth. For crumbs, remove the crumb tray, wash it with soapy water, and dry it before putting it back. Never immerse the appliance in water.

What to do if a slice of bread gets stuck in the toaster?

Automatic shut-off cuts the power. Unplug the appliance and let it cool completely. Raise and lower the lever several times to try to bring the bread up. Never use metal objects.

How to use the defrost function?

Place the frozen bread in the slots. Lower the lever until it locks, then press the defrost button (⚙️). The indicator light turns on. The toaster automatically adjusts the toasting time.

How to adjust the browning level?

Turn the browning level selector from 1 to 5. The higher the number, the more toasted the bread. Positions 1-2 are light, 3-4 medium, 5 dark. Adjust according to the type and thickness of the bread.

Can I toast buttered or oiled bread?

No, do not butter or oil the bread before toasting. This could damage the appliance and cause a fire. The bread should be dry.

What is the capacity of the TO-1409V toaster?

It has two slots that can accommodate two standard slices of bread. The self-adjusting guides adapt to the thickness of the slices.

How to use the reheat function?

Place the cooled toast in the slots, lower the lever, then press the reheat button (!!!). The indicator lights up. This warms without browning further.

Does the toaster turn off automatically?

Yes, the toaster automatically shuts off at the end of the cycle and ejects the bread. In case of jam, an automatic shut-off function cuts the power for safety.

What are the important safety precautions?

Do not immerse the appliance, do not insert metal objects into the slots, keep away from children, do not cover the slots while in use, and always use the crumb tray.

USER MANUAL TO-1409V BRANDT

FR MANUEL D'INSTRUCTION

EN INSTRUCTION MANUAL

Grille pain

Toaster

TO-1409

Brandt

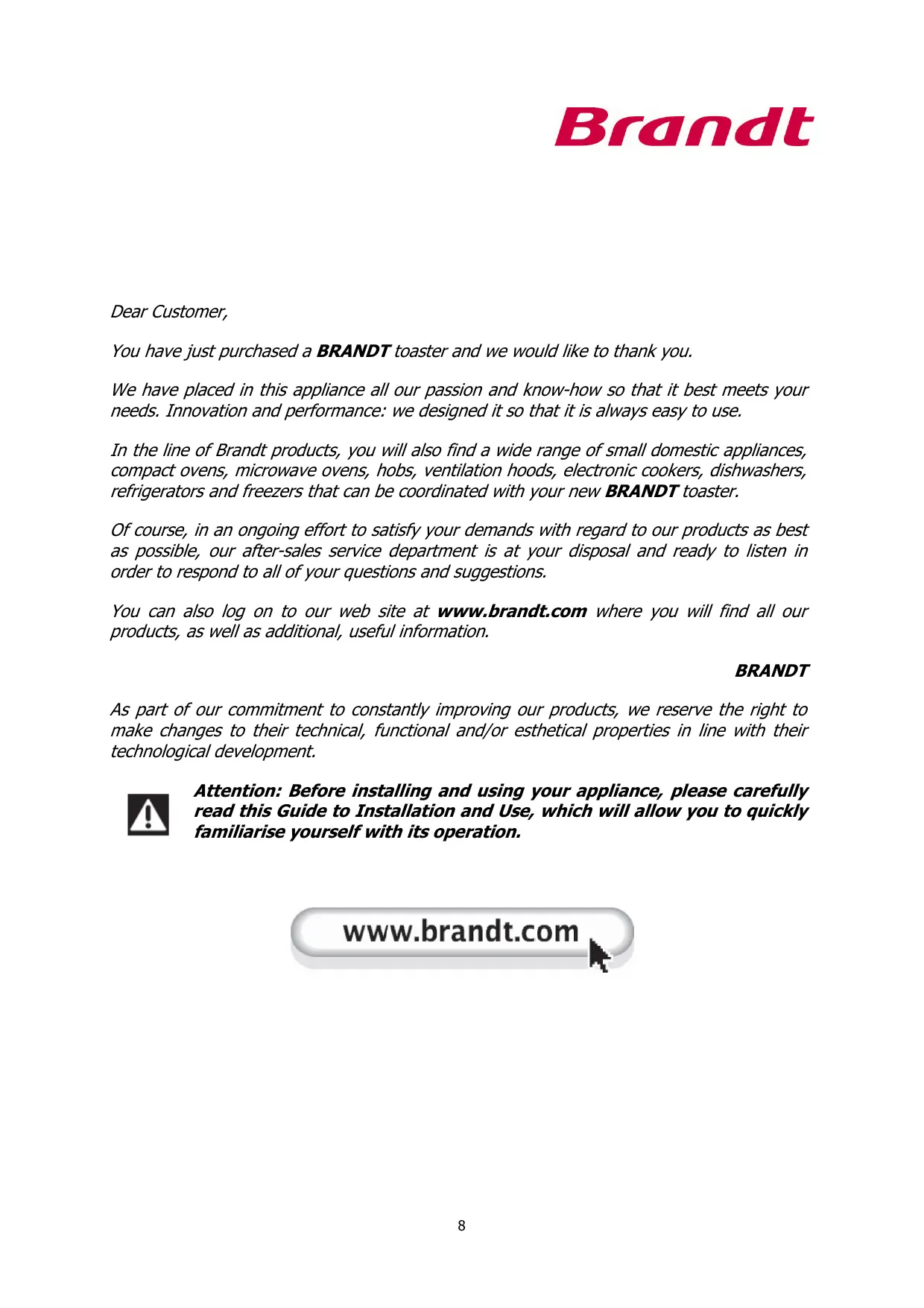

Chère Cliente, Cher Client,

ENGLISH INSTRUCTION MANUAL 8

Technical diagram of a toaster with numbered parts labeled for identification

You have just purchased a BRANDT toaster and we would like to thank you.

We have placed in this appliance all our passion and know-how so that it best meets your needs. Innovation and performance: we designed it so that it is always easy to use.

In the line of Brandt products, you will also find a wide range of small domestic appliances, compact ovens, microwave ovens, hobs, ventilation hoods, electronic cookers, dishwashers, refrigerators and freezers that can be coordinated with your new BRANDT toaster.

Of course, in an ongoing effort to satisfy your demands with regard to our products as best as possible, our after-sales service department is at your disposal and ready to listen in order to respond to all of your questions and suggestions.

You can also log on to our web site at www.brandt.com where you will find all our products, as well as additional, useful information.

BRANDT

As part of our commitment to constantly improving our products, we reserve the right to make changes to their technical, functional and/or esthetical properties in line with their technological development.

Attention: Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.

www.brandt.com

TABLE OF CONTENTS

1/ INFORMATION FOR THE USER 10

A. Safety recommendations 10
B. Technical data
C. Protecting the environment 10

2/ PREPARING YOUR APPLIANCE 11

A. Description of the toaster 11
B. Preparing for use 11
C. Types of bread 11
D. Selecting the level of browning 11

3/ USING YOUR APPLIANCE 12

A. Toast function 12
B. Reheat function 12
C. Defrost function 12
D. Bread roll function 12

4/ CARING FOR AND CLEANING YOUR APPLIANCE 13

A. Cleaning the toaster 13
B. Warranty and after-sale service 13

A. Safety recommendations

• This appliance is for household use only. Do not use this appliance for anything other than intended use.
• To protect against electrical hazard do not immerse any part of the appliance or cord in water or any other liquid.
  • Always unplug from the plug socket when not in use and before cleaning.
• Do not operate the appliance if it damaged, after an appliance malfunctions or it has been damaged in any manner, return to the customer service department to repair, because special purpose tools are required.
• In the interest of safety, regular periodic close checks should be carried out on the supply cord to ensure no damage is evident. Should there be any signs that the cord is damaged in the slightest degree, the entire appliance should be returned to the customer service department.
• Do not let the cord hang over the edge of a table or counter or touch hot surfaces. Allow unit to cool before wrapping cord around base for storage.
• Do not leave the appliance exposed to the elements (rain, sun, ice, etc.).
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• When using this appliance, allow adequate air space above and on all sides for air circulation. Do not allow this appliance to touch curtains, wall coverings, clothing, dishtowels or other flammable materials during use. Caution is required on surfaces where heat may cause a problem-an insulated heat pad is recommended.
• The temperature of accessible surfaces may be high when the appliance is operating. Care must be taken not to touch any hot surfaces, do not store or cover the appliance until it has fully cooled down.
• Do not use the toaster without the slide out crumb tray in place. The crumb tray should be cleaned regularly. Do not allow crumbs to build up in the tray.
• Do not place any objects on top of the toaster.
• Do not cover the slots during toasting.
• Do not put excessively large pieces of food or items wrapped in aluminium foil in the slots.
• Do not use this appliance with any foodstuff product containing sugar content or with products containing jam or preserves.
• Never attempt to extract jammed toast, muffins, bagels or any other item with a knife or any other object, as contact with live elements may cause electrocution.

B. Technical data

Modèle	TO-1409
Alimentation	220-240 V 50/60Hz
Consommation	850W
Dimensions	272x180x180mm
Poids net	1.25kg

C. Protecting the environment

At the end of its working life, the product must not be disposed with household waste. It must be taken to a special local authority waste collection centre or to a company providing this service. Disposing household appliances separately avoids possible negative effects on the environment and health and enables the constituent materials to be recycled which saves energy and resources.

To remind you that you must dispose of this appliance correctly the symbol shown above appears on the product warning you not to dispose of it with household waste.

For further information, contact your local authority or the shop where you bought the product.

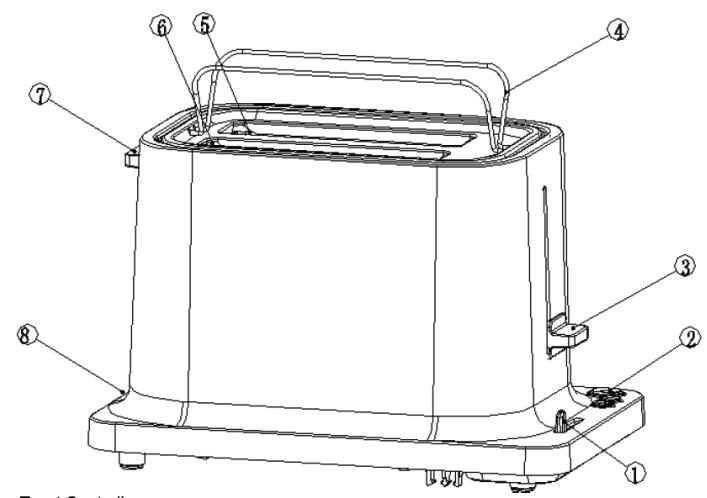

A. Description of the toaster

Technical diagram of a toaster with numbered parts labeled for identification

1. Browning level selector
2. Control panel
3. Toast lever
4. Bread roll rack
5. Bread Slots
6. Heater Element
7. Lever for bread roll rack
8. Crumb tray

1. Cancel button
2. Reheat button
3. Defrost button
4. Browning level selector

B. Preparing for use

• Always use the appliance on a dry, level surface.
- Do not place this appliance on or near a hot gas or electric burner, in or where it could touch a heated oven, or a microwave oven.
- Before using the toaster, check that there are no objects in the slots
- Before using the toaster for the first time, switch it on two or three times without any bread in the slots, as described below, setting the browning selector to its highest position, in order to eliminate any residual manufacturing oil.

C. Types of bread

Sliced bread is the most suitable for use in this toaster. If you wish to use another type of bread, please bear in mind the following advice:

• Cut the bread into regular-shaped slices of even thickness.
• Do not toast different types of bread or slices of different thicknesses at the same time.
• Mixed cereal bread usually takes longer to toast than normal bread.
• Do not spread butter, oil or similar on the bread before toasting.

D. Selecting the level of browning

The browning level can be set from 1 to 5. The higher the number, the browner the toast will be.

• Positions 1 and 2 are for browning the toast the very lightly.
• Positions 3 and 4 are for medium browning.

• Position 5 is for dark browning.
- When choosing the browning level, remember that dry bread and thin slices toast quicker than fresh bread and thicker slices. So the browning selection will depend on the type of bread, the quality of the bread and the thickness of the slices.
- The browning level must be selected before switching the toaster on.

3/ USING YOUR APPLIANCE

A. Toasting function

• Put the slices of bread, muffins, or bagels in the slots.
• Select the level of browning using the browning dial.

When using the toaster for the first time we suggest you toast on number 4. Varying types of bread and personal preference may require a different browning setting.

High lift: to remove smaller items such as crumpets and muffins, lift carriage control lever approximately 20mm above the starting position.

• Plug the toaster in.
• Press the toast lever down until it is engaged at the bottom. The light button will come on and the self-adjusting guides will adjust to the slices of bread automatically. The toasting cycle will then begin.
• When the toasting cycle comes to an end, the bread will automatically pop up and the toaster will switch off. If you wish to toast more bread, wait 1 or 2 minutes before using the toaster again.
• If you wish to remove the slices of bread before the end of the toasting cycle, press the button and the bread will automatically pop up and the toaster will switch off.
• When you have finished using the toaster, unplug it and wait for it to cool down before putting it away.

If a slice of bread becomes stuck in the toaster, the automatic switch off function will automatically cut off the current supply. Unplug the appliance and wait for it to cool down completely. Raise and lower the toast lever several times to try and get the stuck slice of bread out.

Never interrupt the toasting process by raising the toast lever, always press the button.

B. Reheat function

This function is for heating up toast which has gone cold, without toasting it any more. Press the toast lever down until it is engaged and press the 🎨 button. The light will come on.

C. Defrost function

This function is for toasting frozen bread.

Press the toast lever down until it is engaged and then press the ✿ button. The light will come on.

D. Bread roll rack

Press the bread roll rack lever down and put the bread rolls on it. Adjust the browning level using the dial and press the toast lever down until it is engaged.

4/ CLEANING & MAINTENANCE

A. Cleaning the toaster

Before cleaning the toaster, unplug it and wait for it to cool down.

Clean the outside of the toaster with a damp cloth.

Do not use solvents or abrasive products to clean the toaster.

To remove any crumbs pull out the crumb tray. Clean the tray with soapy water and dry it carefully before putting it back into its slot.

Do not submerge the toaster in water or any other liquid or place it under the tap.

The crumb tray should be cleaned regularly. Do not allow breadcrumbs to accumulate in the bottom of the toaster.

B. Warranty and after-sale service

This product is covered by a 2-year warranty by your retailer. For more details, please refer to the warranty conditions supplied by your distributor.
