Product Type	Upright Freezer
Brand	Balay
Model	3GVB1316
Total Capacity	Approx. 200 L
Freezing Capacity	Up to 10 kg per 24 hours
Energy Efficiency Class	E (EU 2019/2016)
Annual Energy Consumption	Approx. 260 kWh
Climate Class	SN-N-ST-T
Noise Level	42 dB
Dimensions (H x W x D)	180 x 60 x 65 cm
Weight	Approx. 65 kg
Power Supply	220-240 V, 50 Hz
Temperature Range	-18°C to -24°C
Defrosting	Manual defrost required
Interior Lighting	LED light
Shelves/Compartments	4 shelves, 1 drawer
Door Hinge	Rigid (not reversible)
Handle	Recessed handle
Control Type	Dial knob
Temperature Indicator	Exterior digital display
Fast Freeze Function	Yes
Door Open Alarm	No
Maintenance	Clean condenser coils annually
Safety Features	Child lock, 2-hour power failure safety
Spare Parts Availability	Available for 10 years after model discontinuation

Frequently Asked Questions - 3GVB1316 BALAY

How do I set the temperature on my Balay 3GVB1316 freezer?

Use the dial knob located inside or on the control panel. Turn it to the desired setting. Typically, a middle setting is recommended for normal use. For detailed steps, refer to the user manual.

What should I do if the freezer is not freezing properly?

Check that the door is fully closed and the seal is clean. Ensure the temperature dial is set correctly. Also, verify that the condenser coils at the back are free of dust. If the problem persists, contact customer support.

How often should I defrost the freezer?

Defrost when the ice buildup reaches about 5 mm. This typically occurs every 6 to 12 months, depending on usage and humidity. Do not use sharp tools to remove ice.

Can I reverse the door opening direction?

No, for this model the door hinge is not reversible. The door opens from the left side only.

What is the noise level of this freezer?

The noise level is approximately 42 dB, which is within the normal range for household freezers. Slight variations may occur during operation.

How can I save energy with my freezer?

Place the freezer in a cool, well-ventilated area away from heat sources. Keep the door closed as much as possible and avoid putting hot food inside. Defrost regularly and clean the condenser coils yearly.

What should I do if the power goes out?

Keep the door closed to maintain the cold temperature. The freezer can keep food frozen for about 2 hours without power. If the outage is longer, consider using dry ice or moving food to another freezer.

How do I clean the condenser coils?

Unplug the freezer and pull it away from the wall. Use a vacuum cleaner with a brush attachment to gently remove dust from the coils. Avoid bending the coils. Plug back in after cleaning.

Is there a child lock feature?

Yes, this model includes a child lock to prevent accidental setting changes. Refer to the user manual to learn how to activate and deactivate it.

Where can I find spare parts for my Balay 3GVB1316?

Spare parts are available through Balay customer service or authorized dealers. Provide your model number for the correct part. Parts are typically available for 10 years after the model is discontinued.

USER MANUAL 3GVB1316 BALAY

Figura 1

1 Reguladordelatemperatura

Fig. 1

1Selectordetemperatura

Εικόνα 1

Resim 1

Illustration of a refrigerator with an open drawer and a closed door, showing a double arrow indicating rotation (no text or symbols)

4

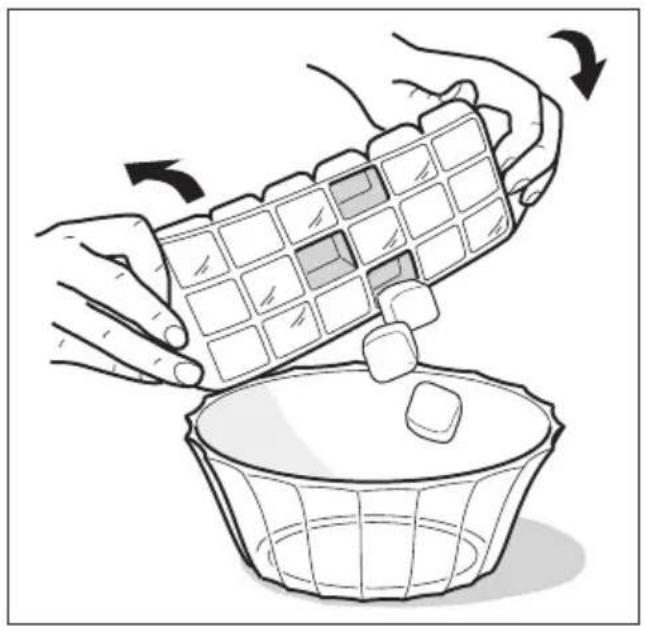

Illustration of hands placing a grid-based object into a bowl with an arrow indicating rotation (no text or symbols)

5

Illustration of a kitchen interior with a stove, a pot, and a bowl (no text or symbols)

6

7

BSHELECTRODOMÉSTICOS,S.A.

C/Itaroa,n°1

31620Huarte

Pamplona(NAVARRA)

A-28-893550

9000348230(8803)es/pt/el/tr
