Product Type	Built-in Electric Oven
Brand	Balay
Model	3CGX468BT
Energy Efficiency Class	A+
Dimensions (H x W x D)	59.5 x 59.5 x 56.5 cm
Oven Capacity	71 L
Net Weight	35 kg
Power Supply	220-240 V, 50/60 Hz, 16 A
Maximum Power	3.6 kW
Cooking Functions	Convection, Grill, Turbo Grill, Bottom Heat, Defrost
Self-Cleaning	Pyrolytic
Control Type	Touch and Rotary Knobs
Display	Digital LCD
Number of Oven Shelves	2
Oven Lighting	Yes, halogen
Cooling System	Tangential fan
Door Type	Drop-down, cool-touch glass
Safety Features	Child lock, automatic shut-off, door lock during pyrolysis
Maintenance	Pyrolytic self-cleaning cycle
Spare Parts	Available from Balay authorized service
Repairability Index	8.0 / 10
Color	Stainless steel / Black glass

Frequently Asked Questions - 3CGX468BT BALAY

How do I install the Balay 3CGX468BT oven?

Installation must be carried out by a qualified technician. Ensure the oven is connected to a 220-240 V power supply with a 16 A circuit breaker. The built-in cavity dimensions should be at least 59.5 x 59.5 x 56.5 cm. Refer to the installation manual for detailed steps.

How do I use the pyrolytic self-cleaning function?

Remove all accessories and large food residues. Select the Pyrolysis function, set a duration (typically 2-3 hours), and lock the door. The oven will heat to high temperatures to burn off residues. After cooling, wipe ash with a damp cloth. Do not use chemical cleaners.

What accessories are included with the oven?

The oven comes with 2 wire shelves, 1 universal baking tray, and 1 grill rack. Additional accessories can be purchased separately.

How do I set the timer?

Press the Timer button, use the +/- knobs to set desired time (up to 99 minutes), and confirm. The oven will beep when time is up. For delayed start, use the End Time function.

Why is my oven not heating?

Check that the oven is properly connected to power and the circuit breaker is on. Ensure the door is fully closed. If the display shows an error code (e.g., E011), contact Balay service. Also verify that a cooking function is selected.

Can I use aluminum foil in the oven?

Yes, but avoid covering the entire oven floor or blocking air vents. Use heavy-duty foil and keep it away from heating elements. Do not use foil during pyrolytic cleaning.

How do I replace the oven light bulb?

Disconnect the oven from power. Remove the glass cover by turning it counterclockwise. Replace with a halogen bulb (G9, 25 W, 300°C resistant) and reassemble. Do not touch the new bulb with bare hands.

What is the difference between convection and turbo grill?

Convection uses a fan to circulate hot air for even baking, while Turbo Grill combines the grill element with convection, ideal for roasting and browning. Use convection for cakes and turbo grill for meats.

How do I clean the oven door glass?

For interior glass, use a damp cloth and mild detergent. For exterior, use glass cleaner. The inner door glass can be removed for thorough cleaning: refer to the manual for door disassembly instructions.

Is the oven energy efficient?

The Balay 3CGX468BT has an energy efficiency class of A+. It features efficient insulation and a low standby power consumption (<0.5 W). Use residual heat by turning off the oven 5-10 minutes before end of cooking.

USER MANUAL 3CGX468BT BALAY

Noabrirlapuertadelhornosisalehumodelaparato.

Diagram of a device with an open drawer and a laptop, showing directional arrows indicating movement (no text or symbols present)

Sunuevacocina

Illustration of a rectangular electronic device with mounting holes and a flat top panel (no text or symbols)

Bandejaesmaltada

parapasteles, pastasygalletas.

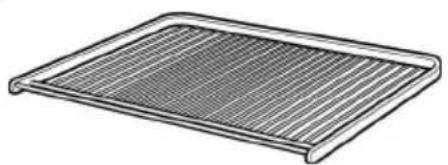

Line drawing of a rectangular grid-patterned plate (no text or symbols)

Parrilla

Illustration of a hand holding a rectangular panel with an upward arrow, no text or symbols present

Montary desmontarelcristal delapuerta

Desmontar

Technical diagram showing a mechanical assembly with directional arrows and a component (no text or symbols)

Illustration of a hand holding a monitor with an arrow pointing to it, no text or symbols present

Simple line drawing of a mechanical component with a circular arrow indicating rotation (no text or symbols)

1. Sustituirlabombillaporotradelmismotipo.
2. Volveraenroscarelcristalprotector.
3. Retirarelpañodecocinayconectarelfusible.

Vidrioprotector
