3EB712XP - Kitchen BALAY - Free user manual and instructions

Product Type	Built-in Electric Oven
Brand	Balay
Model	3EB712XP
Energy Source	Electric
Energy Class	A
Oven Capacity	71 L
Dimensions (H x W x D)	595 x 595 x 548 mm
Weight	35 kg
Power Consumption (Conventional)	3.5 kW
Power Consumption (Fan Forced)	2.9 kW
Heating Functions	Conventional, Fan-forced, Grill, Fan Grill, Bottom Heat, Defrost
Control Type	Rotary Knobs & Electronic Timer
Display	LED
Interior Light	Yes
Cleaning System	Catalytic Enamel (Back Wall)
Cool Door	3-pane Cool Door
Child Lock	Yes
Automatic Shut-off	Yes
Spare Parts Availability	Spare parts available via Balay Service
Installation Type	Built-in

Frequently Asked Questions - 3EB712XP BALAY

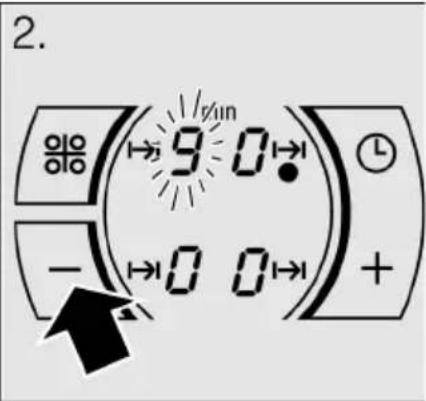

How do I set the oven clock?

Press the timer button, then use the +/- buttons to set the time. Confirm by pressing the timer button again.

What is the maximum temperature for this oven?

The maximum temperature is 250°C in conventional mode and 220°C in fan-forced mode.

How do I use the grill function?

Turn the function selector to the grill symbol. Set the temperature between 150°C and 250°C. Preheat for 5 minutes before placing food.

Can I use aluminium foil in the oven?

Yes, but avoid covering the oven bottom or heating elements as it may cause overheating. Use only on shelf positions.

How do I clean the catalytic enamel?

Run an empty oven at 250°C for 30 minutes. The catalytic coating breaks down grease into ash, which can be wiped off when cool.

What should I do if the oven door is not closing properly?

Check if the door hinges are obstructed or if the door gasket is damaged. For repairs, contact Balay Service.

How do I activate the child lock?

Press and hold the lock button for 3 seconds until a key symbol appears on the display. Repeat to deactivate.

What is the correct way to insert the telescopic shelves?

Align the shelf guides with the runners and push in until they click. Ensure the stoppers are facing outwards.

The oven is not heating up; what should I check?

Verify that the timer is set to manual mode (not cooking time). Also check the circuit breaker. If problem persists, call service.

How do I replace the oven light bulb?

Disconnect power. Remove the glass cover (turn counterclockwise). Replace with a 25W, 300°C resistant bulb (type G9). Reassemble.

USER MANUAL 3EB712XP BALAY

Conectarydesconectar
