Product Type	Drip Coffee Maker
Brand	Grunkel
Model	MO-AROMA3
Color	Black / Silver
Dimensions (W x D x H)	25 x 20 x 30 cm
Weight	1.5 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption	900 W
Capacity	12 cups (1.2 L)
Filter Type	Permanent reusable filter
Keep Warm Function	Yes
Anti-Drip System	Yes
Water Level Indicator	Yes
Auto Shut-off	Yes
Programmable Timer	No
Cord Length	80 cm
Material	Plastic and stainless steel
Dishwasher Safe Parts	Carafe and filter basket
Warranty	2 years

Frequently Asked Questions - MO-AROMA3 Grunkel

How do I descale the coffee maker?

Mix equal parts water and white vinegar (or use a commercial descaling solution). Fill the reservoir and run a brew cycle without coffee. Repeat with clean water to rinse. Perform this every 2-3 months.

What is the best way to clean the coffee maker?

Wash the carafe and filter basket with warm soapy water or in the dishwasher (top rack). Wipe the exterior with a damp cloth. Do not immerse the base in water.

Can I use ground coffee instead of pods?

Yes, the MO-AROMA3 uses a permanent reusable filter, so you can use any ground coffee. Avoid using very fine grounds as they may clog the filter.

Why is my coffee weak or not brewing properly?

Ensure the water reservoir is filled above the minimum level. Use a medium grind size. Clean the filter basket and ensure the drip valve is in place. Descaling may also improve performance.

How can I replace the carafe?

Replacement carafes can be ordered from Grunkel or authorized dealers. Check the model compatibility. The carafe is a standard design with a lid and handle.

What is the water capacity of the reservoir?

The water reservoir holds up to 1.2 liters, which brews approximately 12 cups of coffee (based on a standard 100 ml cup).

Does the coffee maker have an auto shut-off feature?

Yes, the MO-AROMA3 automatically shuts off after 2 hours of inactivity for safety and energy savings.

Can I set a timer to start brewing automatically?

No, this model does not have a programmable timer. It only operates manually by pressing the power button.

Can I use paper filters with this coffee maker?

Yes, you can use standard cone-shaped paper filters (size #4) in addition to the built-in permanent filter.

Where can I find replacement parts or accessories?

Replacement parts (carafe, filter basket, etc.) are available through Grunkel's customer service or on their website. Use the model number MO-AROMA3 for compatibility.

USER MANUAL MO-AROMA3 Grunkel

Exterior view of a modern black grunkel air purifier with glass lid and control panel (no text or symbols visible on body)

Two people smiling while looking at a document together (no visible text or symbols)

Two ice hockey players in action on a large screen, one wearing a jersey with number 11, against an indoor arena backdrop (no text or symbols visible)

White blender with blue control knob against purple background (no text or symbols visible)

White microwave oven with control knobs and a screen, set against an orange background (no text or symbols visible)

White electric heater with digital display and wheels, no visible text or symbols

White outdoor toaster oven with a roasted chicken on the grating, set against an orange background (no visible text or symbols)

3D rendering of a gray vacuum cleaner with orange handle and spiral button (no text or symbols visible)

White rectangular toaster with black lid and front panel, set against a solid purple background (no text or symbols visible)

Product photo of a lime brush maker with green handle and white base, set against solid purple background (no text or symbols visible)

Close-up of a black frying pan with a metallic rim, set against a solid yellow background (no text or symbols visible)

Black outdoor fan with visible blades and a black handle against a blue background (no text or symbols)

White digital balance scale with a digital display showing 1.5L, set against a solid pink background (no text or symbols on the scale itself)

Blue and white steam iron with mesh handle and handle, against a solid green background (no text or symbols visible)

Exterior view of a white rectangular kitchen grater with handles and a black handle, set against a solid purple background (no text or symbols visible)

DESCUBRE TODO LO QUE PODEMOS HACER POR TI EN

www.grunkel.com

GRACIAS POR ESCOGER ESTE PRODUCTO GRUNKEL

This instruction manual is an accurate reproduction of the specifications, operation and look of the product you have just bought, except for typographical, print or translation errors. The specifications, operation and features of this product are subject to change without further notice.

Technical line drawings of a mechanical device with exploded and assembled views, showing internal components and part assembly (no text or symbols)

Line drawing of a mechanical device with a central knob and handle (no text or symbols)

• Please, read carefully the entire instruction manual before using it.
• Pay special attention to the safety indications.
• Keep this instruction manual. If you hand over this appliance to another person, these instructions must be also be transferred.
• Keep also the guarantee card, purchase ticket or invoice. If possible, keep the original box with all the accessories included for future inquiries.

General safety instructions

Before using the appliance ensure that the main voltage corresponds to the voltage displayed on the rating label. Always plug the appliance into a suitable electrical outlet.

In order to avoid electrical shock risk, please do not inmerse the power cord nor the appliance into water or any other kind of liquid. Check the cleaning instructions.

Do not use unauthorized accessories. This will result in cancellation of the guarantee and could cause accidents.

Do not keep the power cording hanging from the table or the shelf. Keep it away from hot sources. Do not allow sharp or blunt objects to touch it. Do not operate the appliance if the power cord or the plug are damaged, or if you notice unusual operation of the appliance.

Do not leave the appliance operating without supervision. Always switch off the appliance and unplug it. Pull the plug, not the power cord.

If any repair is needed, or if the power cord must be replaced, please ask a aqualified professional or contact the Official Technical Support.

CAUTION: to ensure children's safety, keep away packaging material such as plastic bags, carton boxes, etc.

Always watch the appliance when using it near children Never leave the appliance without supervision.

grunkel

Only use the appliance for domestic purposes and in the way indicated in these instructions.

This appliance is not supposed to be operated by any external timer or remote control system.

Do not use the appliance over or near heat sources, such as gas heaters, electric heaters or hot ovens.

Never use forks or sharp objects to clean the appliance. This could cause several damage and may cause an accident.

Do not immerse the appliance in water. Do not handle the appliance with wet hands.

Before cleaning the appliance, check that it is unplugged.

If you require a copy of the instruction manual, please contact the Official Technical Support.

Do not use the appliance in an improper way. It could cause severe injuries. In the event that the appliance has been misused by the costumer, the guarantee will be cancelled.

Do not use the appliance outdoors.

Do not place the appliance on surfaces with instability or low heat resistance, or on top of any other domestic appliance.

This appliance is suitable for grinding coffee, cereals, legumes, spices, sugar or dried fruits. It is not intended for grinding meat, vegetables, liquids or hard food.

Before using the appliance, check that there are no objects in the deposit.

To avoid overheating, do not use the appliance longer than 60 seconds in a row.

Never use the appliance without the lid.

CAUTION: The blades are very sharp. Please, be extremely careful when using the appliance.

Extreme cautions must be adopted when handling the blades, emptying the deposit and during the cleaning of the appliance and its accessories.

WARNING: In case of improper use, injuries and loss of guarantee may occur.

Children must be supervised so they do not play with the appliance.

WARNING: This appliance is intended for domestic purposes exclusively. Do not use for commercial applications.

CAUTION!

CHILDREN UNDER 8 YEARS OLD SHOULD NOT USE NOR CLEAN THIS APPLIANCE WITHOUT THE SUPERVISION OF AN ADULT. NEITHER CAN BE USED NOR CLEAN BY PEOPLE WITH REDUCED PHYSICAL, MENTAL OR SENSORIAL CAPABILITIES, WITHOUT EXPERIENCE OR KNOWLEDGE CONCERNING THE USE OF THE APPLIANCE, OR WITHOUT HAVING RECEIVED PROPER TRAINING UNDER DIRECT SUPERVISION FROM AN EXPERIENCED PERSON RESPONSIBLE FOR THEIR SAFETY.

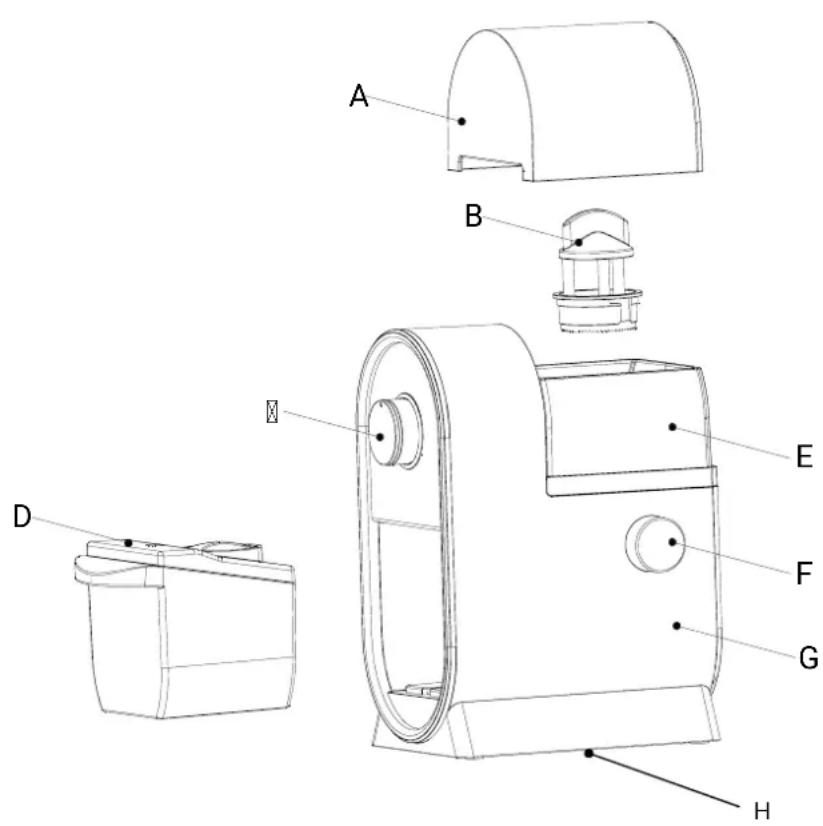

Part identification

Ref. Description
A Lid
B Blades
C Switch
D Grind deposit
E Grain deposit
F Grinding knob
G Body
H Cord storage

Assembly and operation

1. Insert the blades into the corresponding space in the grain tank. Make sure the indicator points to the open lock icon. Once inserted, rotate the blade so that the indicator points to the closed lock icon.

2. Insert the grinding tank into the corresponding space on the front of the appliance body. The appliance will not work if the tank is not installed correctly.

3. Add coffee beans to the bean container. Do not exceed the quantity indicated by the MAX mark. Then replace the lid to close the tank.

Technical line drawings of a mechanical device with exploded and assembled views (no text or symbols)

1. Connect the appliance to the electrical socket. Adjust the grind regulator according to the desired type of grind (coarser or finer). Press the switch to start the process. The appliance will stop when you stop pressing the switch button.

NOTE: Do not press the button for longer than 60 seconds. Wait at least 1 minute after each 60 seconds pressing. After 3 pressings, allow at least 30 minutes before using the appliance again.

1. Remove the ground grain from the tank.

Cleaning and maintenance

Before cleaning the appliance ensure it is unplugged from the power outlet. Allow it to cool down completely before cleaning it.

Clean the appliance after each use. Use a suitable brush to avoid cuts when cleaning the blades.

Wipe the surface of the appliance with a slightly moistened cloth. Then use a dry cloth to clean the surface.

Line drawing of a mechanical device with a handle and central circular component (no text or symbols)

Do not use abrasive products for cleaning. Do not use water to clean the appliance. Never immerse the appliance into water.

Clean the appliance periodically. Avoid food to get accumulated.

CAUTION: Never attempt to wash the appliance in the dishwasher.

After you have finished using the appliance, store it in a cool, dry place. The power cord can be winded in the cord compartment on the bottom of the appliance.

WARNING

This appliance is intended for domestic use. Do not use it for commercial purposes. If so, guarantee would be cancelled.

220-240V \~50/60Hz / 120W

Product disposal

Regulation regarding waste from electronic appliances according to RAEE 2002/96/EC. This symbol means the appliance can not be treated as regular domestic waste; it must be returned to the distributor, handed over the corresponding electronic product collection point or delivered to the collection point empowered for such purpose, so its components are recycled and not mixed within domestic waste.

You can also contact your local waste collection service, so it can be collected and treated accordingly following the environment protection instructions, or to receive proper information about the steps to follow for the correct disposal of the appliance.

The correct disposal of an appliance implies avoiding negative consequences for both environment and health. A proper disposal allows to save a significant amount of energy and resources. As a reminder of the necessity of disposing the appliances separately, the product displays the symbol of a crossed out garbage bin.
