Product Type	Video Intercom
Brand	Steren
Model	CCTV-086
Category	Intercom
Dimensions (Main Unit)	Approximately 200 x 120 x 35 mm
Weight (Main Unit)	Approximately 350 g
Power Supply	12V DC, 500 mA (adapter not included)
Display	7-inch TFT LCD, 800x480 resolution
Camera Resolution	720p (1280x720)
Night Vision	Yes, infrared LEDs up to 5 meters
Audio	Full duplex two-way audio
Connection	Wired (4-wire) connection between indoor and outdoor units
Functions	Video monitoring, audio communication, door release, intercom
Outdoor Unit Material	Aluminum alloy with weatherproof design
Indoor Unit Material	ABS plastic
Mounting	Wall-mounted (indoor and outdoor)
Operating Temperature	-10°C to 50°C
Memory	Supports up to 4 outdoor units
Maintenance	Clean with a soft, dry cloth; avoid harsh chemicals
Safety	UL and CE certified; low voltage operation
Repairability	Spare parts available through authorized service centers; user-replaceable handset
General Information	For residential and small office use; includes wiring diagram in manual

Frequently Asked Questions - CCTV-086 Steren

How do I install the Steren CCTV-086 intercom?

Install the outdoor unit near your door at eye level (about 1.5 m high). Connect the 4 wires (audio, video, power, ground) to the indoor unit. Mount the indoor unit on a wall inside. Refer to the wiring diagram in the manual for proper connections.

What is the power requirement for the CCTV-086?

The indoor unit requires a 12V DC power supply with at least 500 mA. Use an AC adapter rated for 12V/1A. The outdoor unit is powered through the indoor unit via the connection cable.

Can I connect multiple outdoor units to one indoor unit?

Yes, the CCTV-086 supports up to 4 outdoor units. You need to configure them in the settings menu (under 'Doorbell Setup'). Each outdoor unit must be on a different channel.

How do I adjust the camera angle on the outdoor unit?

The outdoor camera can be tilted vertically by loosening the mounting screw slightly and adjusting the angle. The horizontal angle is fixed but can be changed by rotating the whole unit during installation.

Why is the video feed black and white?

The camera switches to black-and-white mode in low light conditions (night vision). Ensure night vision is enabled in settings. If it's still black and white during the day, check the IR sensor is not blocked.

How do I pair the indoor and outdoor units?

The units come pre-paired from the factory. If you need to pair them again, press and hold the 'Pair' button on the indoor unit (located behind the front panel) for 5 seconds, then press the doorbell button on the outdoor unit.

Can I use the intercom without wiring?

No, this model is a wired system. You must run cables between the indoor and outdoor units. Ensure cables are rated for outdoor use and buried or protected from damage.

How do I clean the outdoor unit?

Wipe the outdoor unit with a soft, damp cloth. Do not use abrasive cleaners or high-pressure water. The camera lens can be cleaned with a microfiber cloth to avoid scratches.

What should I do if the door release function stops working?

Check the wiring to the electric door lock. Ensure the lock is compatible (12V DC, max 500 mA). Test the lock directly with a power source. If the lock works, the issue may be in the indoor unit; contact technical support.

Where can I find replacement parts for the CCTV-086?

Replacement parts (handset, camera module, etc.) are available through Steren authorized service centers. Contact Steren customer support or visit their website for a list of service providers in your area.

USER MANUAL CCTV-086 Steren

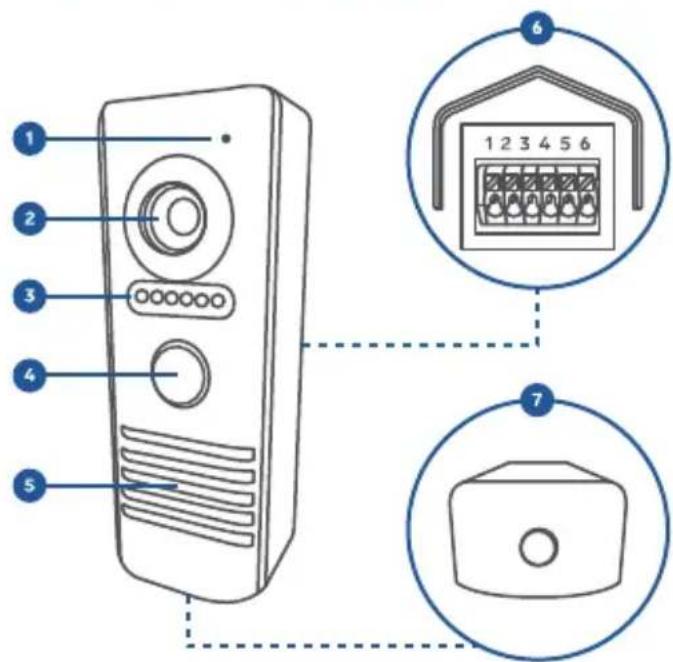

Exterior view of a silver remote control device with a circular lens and control buttons (no text or symbols visible)

Close-up portrait of a smiling woman with long dark hair, outdoors with blurred greenery background (no text or symbols visible)

IMPORTANTE

Parte posterior

Line drawing of a mechanical component with mounting holes and a central square frame (no text or symbols)

Carcasa

Line drawing of a mechanical bracket or bracket with a base and mounting feet (no text or symbols)

Frente de calle

Line drawing of a mechanical component with a screwdriver inserted, no text or symbols present

Technical line drawing of a mechanical component with screws and fasteners (no text or symbols)

Silhouette of a person walking toward a wall with a sun and a cross symbol (no text or labels)

Silhouette of a person walking toward a wall with cloud reflections, no text or symbols present

2

Line drawing of a door handle with two pencil icons below (no text or symbols)

3

Technical line drawing of a mechanical bracket with screw fasteners and mounting holes (no text or symbols)

Line drawing of a hand pressing a button on a device (no text or symbols)

Illustration of a person holding a tablet displaying a photo outdoors (no text or symbols visible)

Illustration of a hand pressing a key on a device panel with two icons (user and phone) and a user icon, no text or symbols present.

Illustration of a hand pointing at three key icons on a rectangular panel (no text or symbols)

Illustration of a hand interacting with three icons: a user profile, a key, and a person (no text or symbols present)
