Product Type	Vacuum Cleaner
Brand	Polti
Model	Lecologico AS801
Dimensions (H x W x D)	25 x 30 x 40 cm
Weight	5.5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	1200 W
Dust Capacity	2.5 L
Filtration System	HEPA filter
Cord Length	6 m
Noise Level	78 dB
Main Functions	Dry vacuuming, adjustable suction, floor and carpet cleaning
Accessories Included	Crevice tool, brush, upholstery nozzle
Maintenance	Empty dust container regularly, clean filters monthly
Safety Features	Overheat protection, automatic cord rewinder
Spare Parts Available	Replacement HEPA filters, dust bags
Repairability	Modular design, easy access to motor and filters

Frequently Asked Questions - Lecologico AS801 POLTI

How do I empty the dust container?

Press the release button to detach the dust container from the main unit. Hold it over a trash bin, press the bottom release to open the lid, and empty the contents. Ensure the lid is securely closed before reattaching.

How often should I clean the HEPA filter?

Clean the HEPA filter at least once a month. Remove it from the unit and gently tap off dust. If heavily soiled, wash with cold water and let it dry completely for 24 hours before reuse. Replace every 6-12 months.

What is the power consumption of the Polti Lecologico AS801?

The vacuum cleaner has a power consumption of 1200 W. It operates on a standard 220-240 V household outlet.

How do I replace the vacuum bag?

This model uses a dust container instead of a bag. No bag replacement is needed; simply empty the container as described above.

Why is the suction power weak?

Weak suction may be due to a full dust container, clogged filter, or blockage in the hose. First, empty the container. Next, clean the HEPA filter. Check the hose and attachments for obstructions. If the issue persists, inspect for motor problems.

Can I use the vacuum cleaner on hardwood floors?

Yes, the Polti Lecologico AS801 is safe for hardwood floors. Use the adjustable suction control to reduce power and avoid scratches. The included brush attachment is gentle on sensitive surfaces.

How to rewind the power cord?

Press the cord rewind button located on the top of the unit. The cord will automatically retract. Guide it with one hand to prevent tangling.

What accessories are included with the vacuum?

The vacuum comes with a crevice tool (for tight spaces), a dusting brush (for delicate surfaces), and an upholstery nozzle (for furniture). These attach to the hose or wand.

How often should I replace the HEPA filter?

Replace the HEPA filter every 6 to 12 months, depending on usage. Signs of replacement include persistent odors or reduced suction even after cleaning.

Is there a warranty for the Polti Lecologico AS801?

Polti typically offers a 2-year warranty on vacuum cleaners. Check your purchase documentation or contact Polti customer support for specific terms.

USER MANUAL Lecologico AS801 POLTI

Lecologico Compact AS800 - AS801

KEY

1) Pivoting wheels
2) Upper cover locking pins
3) Upper cover locking holes
4) Container locking pins
5) "EcoActive-Filter" water container
6) Water container handle
7) Upper cover
8) Upper cover opening button
9) Tube junction
10) Carrying handle
11) Mains ON/OFF switch
12) + button (suction power increase)
13) Suction power indicator lights
14) - button (suction power decrease)
15) Cable winder button
16) Accessories holder place
17) Air outlet filter grill
18) Opening levers for air outlet filter grill
18a) Locking pins for air outlet filter grill
18b) Locking holes for air outlet filter grill
19) Hepa filter
19a) Back sponge filter
20) "EcoActive-Filter" water filter group
21) Filter cage cover
22) Square sponge filters
23) Shaped sponge filter
24) Filter body with micropore sponge
25) Elbow tube locking ring
26) Elbow tube
27) Supply cable plug

KEY TO ACCESSORIES

A) Telescopic tube
A1) Telescopic tube spring button
B) Universal brush
B1) Brush selector
C) Flexible tube handle
D) Hose
E) Tube
F) Multipurpose nozzle
G) Lance for cleaning corners
H) Soft brush
I) Accessories holder
J) Jug for filling the container
L) Turbo brush (optional)
M)* Joker brush
N)* Parquet accessory

5-A) Water container cleaning brush

* (optional for mod. AS800)

Dear Customer,

Thank You for choosing this Polti product. By choosing Lecologico, you have thought of your family's health because Lecologico Polti is a friend of the environment, but an enemy of dust, pollen, mites and their allergens. Thanks to the EcoActive-filter, its green heart, it traps the dirt in the water which, when it is dirty, can be poured away without the risk of dust escaping into the air.

With Lecologico Polti you can really relax. Its filtering system of 6 layers with Hepa filter retains the smallest particles, therefore the exiting air is perfectly pure. In addition, EcoActive-Filter eliminates dusty bags and all the problems related to them.

The generous accessory set will allow you to face cleaning problems, solving them quickly and easily.

Before using Lecologico, read these instructions carefully.

What is EcoActive-Filter?

EcoActive-Filter is the "green" heart of Lecologico and consists of a revolutionary water filter. The EcoActive-Filter employs the natural purifying strength of water to catch the dirt, avoiding irritating contact with dust and harmful dispersion of dust into the environment.

It is specifically the flow of water contained in the special filter and its bubbling that make the cleaning operations with Lecologico much more effective.

What is HEPA filter?

Lecologico is more than a vacuum cleaner, it is also an air purifier. In fact, it is equipped with a special and very powerful HEPA filter, already used in professional applications where the maximum hygiene is necessary. It is able to retain the thinnest dust, pollen, mites and other micro-organisms.

This unit conforms with EC-directives 89/336 as amended by 93/68 (EMC) and 73/23 as amended by 93/68 (low voltage).

Polti S.p.A. reserves the right to change equipment or accessory specification without prior notice.

PRECAUTIONS

KEEP THESE INSTRUCTIONS

- Read these instructions for use carefully before using the appliance.

- Any use which does not comply with these instructions will invalidate the warranty.

- The wiring system to which the appliance is connected must always comply with the laws in force.

- Before connecting the appliance, make sure that the mains voltage is the same as the voltage indicated on the data label of the appliance and that the power outlet is connected to earth

- Always turn off the appliance at the on/off switch before unplugging it.

- If the appliance is left unused, always disconnect it from the mains. Never leave the appliance unattended with the cable plugged into the mains.

- Always make sure the appliance is unplugged before performing maintenance work of any kind

- Do not pull the power cord out of the socket, but grasp the plug itself to avoid damage to the socket.

- Do not allow the power cord to be twisted, crushed, stretched, or come into contact with sharp or hot surfaces.

- Do not use the appliance if the power cable or other important parts are damaged.

- Do not use electric extension leads that are not authorized by the manufacturer, as they may cause damage or fire.

- If it is necessary to replace the power supply cable, please refer to the nearest Polti authorised service centre, since the use of a special tool is necessary.

- Never touch the appliance with wet hands or feet with the cable plugged into the mains.

- Do not use the appliance when barefoot.

- Do not use the appliance near a bathtub, shower or container full of water

- Never immerse the appliance, the cable or the plugs in water or another liquid.

- Use of the appliance in places where there is a danger of explosions is prohibited.

- Do not use the product with toxic substances.

- Do not lay the hot appliance on surfaces sensitive to heat.

- Do not leave the appliance exposed to wind or rain.

- Do not place the appliance near a live element, an electric stove or any other source of heat.

- Do not expose the appliance to extreme temperatures

- Never let children or people who are not familiar with how the appliance works use it.

- Do not press the buttons hard or with a pointed object such as a pen.

- Always rest the appliance on a stable surface.

- In case of accidental fall of the appliance it is necessary to have it checked by an authorized Service Centre as the internal safety features may have been affected.

- In case of breakdown or malfunction switch off the appliance and never attempt to disassemble it, but refer to an authorized Service Centre.

- In order to avoid prejudicing the safety of the appliance, use only original spare parts and accessories approved by the manufacturer.

- Do not wind the power cord around the appliance, especially when the appliance is still hot.

- Do not use the appliance to suck up acids or solvents, as these might cause serious damage to the appliance and above all do not suck in explosive dust or liquids, as these could cause explosions on coming into contact with the inside components of the appliance.

- Do not vacuum up toxic substances.

- Do not vacuum up burning or incandescent objects such as embers, ash or other material in which combustion is taking place.

- Do not vacuum up detergents or other substances which could generate foam inside the water container, as this could

Lecologico Compact AS800 - AS801

cause malfunctioning.

• Do not vacuum up liquids
  • Water tank can be filled with tap water.
• Do not vacuum up materials such as cement, chalk etc. which solidify once they came in contact with water thus damaging the appliance
• During refilling with water, switch off and disconnect the appliance from the mains.
• It is necessary to keep the unit in horizontal position during operation.
• Do not direct the steam jet on electrical appliances.
• Leave the appliance to cool down before cleaning it.
• Before storing the appliance be sure that it has completely cooled down.
• This appliances is equipped with safety devices which are to be replaced only by a suitably qualified technician.

CORRECTUSEOFTHEEPRODUIT

This appliance is intended for home use for sucking solids as described and in accordance with the instructions provided in this manual. Please read these instructions carefully and keep them, as you may find them useful in future.

Polti declines liability for any damage or accident derived from any use of Lecologico which is not in conformity with the instructions contained in this booklet.

AFTERSON

Directive 2002/96/EC (Waste Electrical and Electronic Equipment - WEEE): information for users

This product complies with EU Directive 2002/96/EC.

The crossed-out wastebasket symbol on the appliance means that at the end of its useful lifespan, the product must be disposed of separately from ordinary household wastes.

The user is responsible for delivering the appliance to an appropriate collection facility at the end of its useful lifespan.

Appropriate separate collection to permit recycling, treatment and environmentally compatible disposal helps prevent negative impact on the environment and human health and promotes recycling of the materials making up the product. For more information on available collection facilities, contact your local waste collection service or the shop where you bought this appliance.

PREPARATIONFORUSEE

• Push the upper cover opening button (8) which is on the upper cover (7)
• Lift the upper cover turning it upwards as indicated in fig. 1.
• Fill the "EcoActive-Filter" water container (5) by using the jug supplied (J), carefully respecting the exact amount of water indicated on it (fig.2) (400 ml).
  For correct operation, it is important that the amount of water is the one contemplated in the jug capacity, neither lower nor higher.
• Put the upper cover (7) back taking care that the two pins (2) on the cover (7) engage with the two holes (3) on the appliance, pushing the button (8) again.
• Insert the tube (E) into the junction (9) turning it clockwise until it connects (fig.3).

OPERATION

• Unwind the cable until it is completely outside its storage compartment by pulling the plug (27) towards you (fig.4).
• Connect the plug to the mains.
• Position 1 of the indicators lights (13) will start to flash. Your appliance is now in a "stand-by" position (fig.5).
• Push the mains On/Off switch (11) (fig.6), Lecologico will start to operate at minimum speed, the first stage of the indicator lights will change from flashing to constant. The mains On/Off switch (11) can be pushed with your foot without bending down.
• The power levels are four. We suggest use

Lecologico Compact AS800 - AS801

at the minimum level for curtains, at the medium-low for couches, armchairs and pillows, medium-high for carpets and high for floors and hard surfaces (ceramic, marble etc.).

• To increase the speed, push the + button (12), each press on the button + (12) will increase the motor power by one level.
• The increase by one level is indicated by the illumination of one further stage of the indicator lights.
• By pushing the - button (14), at each press the motor power will decrease and one stage will switch off.
• To take the appliance back to the "stand-by" position, push the mains On/Off switch (11), the first stage of the indicator lights (13) will start to flash again.
• To start vacuum cleaning again, push the mains On/Off switch (11) again.
• Do not vacuum up any detergent or foamy substance. They could prejudice the correct operation of the appliance.

HOOVOCEUSTRYANDECUEANFEE WATER TANK

• Switch off the appliance at the mains switch (11) and disconnect the power supply cable from the mains.
• Disconnect the tube from the junction by turning it anticlockwise (fig.3).
• Push the opening button (8) on the upper cover (7).
• Lift the cover (7) by turning it upwards as indicated in fig.1.
• Lift the container handle (6) by taking it to the height of the tube hole as in fig.7.
  • Take out the container (5) by pulling it out of the appliance (fig.8)
• Pull the water filter cage (20) upwards and then pull it out (fig. 9-10).
  • Empty the container (5) and rinse it.
• Unhook the elbow tube locking ring (25) by pulling it outwards (fig.11).
• Pull the elbow tube (26) from the filter body (24) until it slips off (fig.12).
• Divide all the components as described in the key and then rinse them under running

water (if the sponge filter is damaged, replace it by contacting a Polti Authorized Service Centre)

• Before putting the sponge filters (22-23) back, wring them by using a cloth so as to dry them perfectly.
• Reassemble the water filter group (20) by repeating the operation in reverse order.

NOTE: before reassembling the water filter, make sure that all the parts have been properly dried.

• Put the filter group (20) back into the container (5) so as to insert the elbow tube (26) between the two projections of the container (fig.13).
• Gently push the water container handle (6) until the two slots on the handle fit with the two pins (4) on the appliance (fig.14).
• Before storing the appliance or before using it again, make a drying cycle as described in the "Drying cycle" paragraph.
• A cleaning brush (5-A) is supplied for easy cleaning of the water container (5); it may also be used to clean the appliance's hose connections and the inside of tools.

NOTE: Do not use the brush for cleaning the outside of the appliance.

BIO ECOLOGICO

Bioecologico is available for sanitising while using the suction function. It is a scented antibacterial product with natural-based anti-allergenic substances. If it is added regularly to the water in the water container (5) of Lecologico, it will prevent the proliferation of bacteria and micro-organisms and inhibit the action of allergens. In addition to assuring a sanitising action, Biecologico will eliminate smells due to the presence of dust in the water, leaving a pleasant smell of cleanness in the room.

Use:add 8 ml each time you fill the water-container.

Bioecologico is sold by Polti dealers or by our authorised Assistance Centres.

Bioecologico is available in the mountain pine or citrus.

Lecologico Compact AS800 - AS801

DRYINGCYCEE

Warning: make the drying cycle with the water container empty.

The drying cycle eliminates possible water particles present in the filters and in the suction tubes of the container (5). The purpose of this process is to avoid interventions of the humidity sensor, which interrupts the operation of the appliance.

The humidity sensor acts in protection of the Hepa filter preventing humidity particles from reaching it, damaging its function.

• Move the two air outlet filter grill opening levers (18) at the same time by pushing them towards the inside (fig.15) so as to allow the air outlet filter grill (17) to un-hook.
• Remove the Hepa filter (19) as described in the "Cleaning or replacing the Hepa filter" paragraph.
• Remove the back sponge filter (19a).
• Connect the supply cable plug (27) to the mains.
• The first stage of the suction power indicator lights (13) on the handle will start to flash.
• To reactivate the appliance, keep the mains ON/OFF switch (11) pushed until the machine reaches the maximum speed.
• The appliance will keep on working as long as the humidity sensor feels the presence of water in the circuit.
• When the sensor no longer feels water in the circuits of the appliance, it will automatically go to the stand-by position and the indicator lights (13) will start to flash.
• Put the Hepa filter (19) and the air outlet filter grill (17) back in place.
• If you want to use the appliance again, fill the water container (5) as indicated in the "Preparation for use" paragraph, otherwise store the appliance with the container (5) empty.

HUMIDITYSEASORR

- If the sensor measures some humidity, the machine will stop and the 4 lights on the indicator lights (13) will start to flash alter-

nately first to last and viceversa.

• To reactivate the appliance, keep the mains ON/OFF switch (11) pushed until the machine reaches the maximum speed.
• The appliance will keep on working as long as the humidity sensor feels the presence of water in the circuit.
• When the sensor no longer feels water in the circuits of the appliance, it will automatically go to the stand-by position and the indicator light (13) will start to flash.
• Reassemble the Hepa filter (19) and the air outlet filter grill (17), inserting first the two pins (18a) into the locking holes (18b) (fig.16).

Warning: make the drying cycle with the water container empty.

JUNING TOOLS

Tools may be connected directly to the hose (D) or to the telescopic tube (A).

Using the telescopic tube (A)

The tube is about 60 cm long when closed, 1 m when extended to its greatest length. To increase or decrease length, press the catch positioned as shown in fig. 6 and extend or reduce length as desired.

Using the joker brush (M)*

The Joker brush may be used to vacuum up solids or a limited amount of liquids on any kind of surface.

Using the parquet accessory (N)*

Position the Joker brush (M) on the parquet accessory (N) as shown in figure 17. Apply the tool to the brush, following the direction of the arrow so that it is aligned properly and they connect together.

To release the parquet accessory from the Joker brush, pull the two levers on the sides of the frame outward and lift the brush (fig.18).

* (optional for mod. AS800)

Using the universal brush (B)

Connect the brush to the telescopic tube. If you move the selector on the brush (B1)

pressing with a foot, you can change the suctioning surface without bending down. The position with bristles extended is recommended for all non-carpeted floors.

The position without bristles is recommended for carpets.

Multipurpose nozzle (F)

The multipurpose nozzle is recommended for cleaning upholstery surfaces such as the joints of sofas, armchairs, mattresses, car upholstery, etc.

Lance for cleaning corners (G)

The lance (G) is recommended for thorough vacuum cleaning of hard-to-reach spots such as skirting boards and folds in sofas, armchairs, upholstered furniture and car upholstery.

Soft brush (H)

The soft brush has soft bristles for dusting delicate surfaces such as picture frames, books, etc.

Using the accessories holder (I) and the accessories holder place (16)

The accessories holder may be used to fasten tools onto the body of the appliance or the handle.

Installation on the handle:

Hook one of the accessories holder rings to the handle. Insert the tools you want to keep handy in the rings (fig.19).

Installation on the appliance body:

Slide the accessories holder guide into the groove on the back of the appliance as shown in figure 20, proceeding to anchor the tools as described above. You may perform the same operation to store the universal brush (B) with the telescopic tube (A) attached to it.

AUTOMATCCCABBEE/INDERR

Before putting the vacuum cleaner away, rewind the power cable by pressing the button (15), as shown in fig.21, being careful to accompany it during winding.

GENERAL FINANCE

Always make sure the appliance is unplugged before performing maintenance work of any kind.

Cleaning the "EcoActive-Filter" water filter cage (20) and sponge filters (22-23).

We recommend that you clean after every use.

• Switch off the appliance by the mains ON/OFF switch (11). Disconnect the power supply cable from the mains.
• Push the upper cover opening button (8).
• Lift the cover (7) by turning it upwards as in fig.1.
• Lift the container handle (6) by taking it to the height of the tube hole as indicated in fig.7.
• Remove the container (5) by pulling it out of the appliance (fig.8).
• Pull upwards the water filter group (20) and then pull it out (fig.9-10).
  • Empty the water container (5) and rinse it.
• Unhook the elbow tube locking ring (25) by pulling it towards the outside (fig.11).
• Pull the elbow tube (26) from the microspore sponge filter body (24) until it slips off (fig.12).
• Divide all the components as described in the key and then rinse them under running water (if the sponge filter is damaged, replace it contacting a Polti Authorized Service Centre).
• Before putting the sponge filters (22-23) back, wring them by using a cloth so as to dry them perfectly.
• Reassemble the water filter group (20).

NOTE: before reassembling the water filter, make sure that all parts have been properly dried.

- Put the filter group (20) back into the container (5) so as to insert the elbow tube (26) between the two projections of the container (fig.13).

- A cleaning brush (5-A) is supplied for easy cleaning of the water container (5); it may also be used to clean the appliance's hose connections and the inside of tools.

NOTE: Do not use the brush for cleaning the outside of the appliance

Cleaning or replacing the Hepa filter

• Move the two air outlet filter grill opening levers (18) at the same time by pulling them towards the inside so as to allow the air outlet filter grill (17) to unhook (fig.15).
• Remove the HEPA filter (19) from its location, tap it and, if necessary, replace it with an original Polti spare part.
• Reassemble the Hepa filter (19) and the air outlet filter grill (17), inserting first the two pins (18a) into the locking holes (18b) (fig.16).

NOTE: the filter lasts about 100 hours (about 6 months) in normal domestic use. If the suction power noticeably decreases, replace the filter even before the 100 hours.

ELECTRICALSAFETY

No earth required.

Ensure the mains voltage suits your appli- ance.

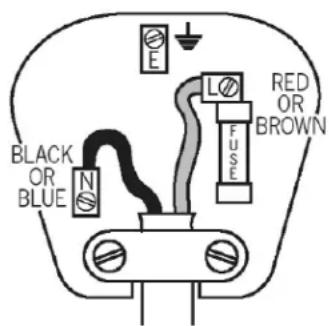

Fitting the mains plug important

The wires in the mains lead are coloured in accordance with the following code:

- Blue: Neutral

- Brown: Live

The wire which is coloured BLUE must be connected to the Terminal which is marked with the letter "N" or coloured BLACK.

The wire which is coloured BROWN must be connected to the Terminal which is marked with the letter "L" or coloured RED.

It is important that the outer sheath is clamped correctly into the 3-pin plug.

If in doubt consult your local Service Dealer or qualified electrician before the machine is used.

A 13 AMP FUSE MUST BE FITTED TO THE MAINS

PLUG.

TROUBLE CAUSE SOLUTION
The suction switches off during use and the 4 indicator lights flash alternately.	The suction hose or the elbow tube are obstructed.The suction power is too high for the type of surface.	Take out any obstructions in the tubes.Keep the mains ON/OFF switch pushed until the 4 indicator lights go back to constant light from flashing, taking the suction power to the speed previously set.
The suction switches off during use and the 4 indicator lights flash simultaneously.	Intervention of the humidity sensor because the filters and tubes are not dry enough.Intervention of the humidity sensor because of too much water in the container.Intervention of the humidity sensor for accidental anomalous movement of the appliance during use.	Operate as described in the "Drying cycle" paragraph.Empty the container and operate as described in the "Drying cycle" paragraph. Fill the container again by using the jug supplied.Empty the container and proceed as described in the "Drying cycle" paragraph.
The drying cycle lasts more than 3 minutes.	The humidity sensor does not work correctly.	Contact the nearest Polti authorised After-sales centre

NOTE
