Product Type	Window Air Conditioner
Brand	Mabe
Model	MMT12HABWLCAM8
Cooling Capacity (BTU)	12,000 BTU
Coverage Area	Up to 550 sq. ft.
Energy Efficiency Ratio (EER)	12.1
Power Supply	115V / 60Hz / 12A
Dimensions (W x H x D)	26.2 x 20.5 x 24.1 inches
Weight	68 lbs
Refrigerant	R-410A
Modes	Cool, Fan, Dehumidify, Auto
Fan Speeds	3 (Low, Medium, High)
Thermostat Control	Electronic with remote control
Timer	24-hour programmable
Sleep Mode	Yes
Air Filter	Washable mesh filter
Filter Maintenance	Clean every 2 weeks
Condensate Drain	Automatic splash system
Safety Features	Overload protector, anti-freeze sensor
Installation	Window mount kit included
Remote Control	Yes (included)
Noise Level	52 dB (high fan)
Warranty	1 year parts and labor

Frequently Asked Questions - MMT12HABWLCAM8 Mabe

How do I install the Mabe MMT12HABWLCAM8 air conditioner?

Installation requires a standard window opening (min. 26" wide). Follow the step-by-step instructions in the manual: secure the mounting brackets, slide the unit in place, attach side curtains, and seal gaps. Ensure the unit tilts slightly outward for proper drainage.

How often should I clean the air filter?

Clean the washable mesh filter every two weeks under normal use. Remove the front grille, take out the filter, rinse with lukewarm water, let dry completely, and reinstall. Do not operate the unit without the filter.

What does error code E1 mean?

Error code E1 indicates a temperature sensor fault. Turn off the unit, unplug it for 5 minutes, then restart. If the error persists, contact Mabe service for a replacement sensor.

Can I use the air conditioner without the remote control?

Yes, the unit has manual controls on the front panel. Use the power, mode, and fan speed buttons to operate without the remote. However, some features like timer and sleep mode may only be accessible via remote.

Why is water leaking from the back?

Water leaking is normal during humid operation. The unit uses an automatic splash system to evaporate condensate. If leaking persists, check that the unit is tilted downward (approx. 1/4" to 1/2") and that the drain holes are not blocked.

How do I reset the air conditioner?

To reset, unplug the unit for 10 minutes and then plug it back in. This clears temporary errors and restores factory settings. For a hard reset, press and hold the timer and mode buttons simultaneously for 5 seconds (check manual).

What is the recommended setting for energy saving?

Use Eco or Sleep mode during nighttime. Set the thermostat to 78°F (26°C) for a balance of comfort and efficiency. Keep doors and windows closed, and use the programmable timer to avoid running the unit when not needed.

The display shows a snowflake icon, what does it mean?

The snowflake icon indicates the unit is in cooling mode. If blinking, it may mean the compressor is in anti-short cycle delay (protecting the compressor). Wait 3-5 minutes for it to stabilize.

Can I install this air conditioner in a casement window?

This unit is designed for double-hung or sliding windows. For casement windows, an additional custom installation kit may be required. Refer to the manual for specific measurements and options.

How do I clean the condenser coils?

Each season, vacuum the rear condenser coils with a soft brush attachment to remove dust and debris. For stubborn dirt, use a commercial coil cleaner and rinse gently with water. Avoid damaging the fins.

USER MANUAL MMT12HABWLCAM8 Mabe

for the English version, go to page 47

lea este instructivo antes de instalar su aire acondicionado read this manual before installing your new air conditioner

modelos/models

MMT12HABWCAM8

MMT12HDBWCAM8

MMT12CDBWCAM8

MMT12CABWLCAM8

MMT12CDBWLCAM8

MMT12HABWLCAM8

MMT12HDBWLCAM8

MMT12CABWCAM8

MMT12CABSCAM8

MMT12HABSCAM8

MMT12CDBSCAM8

MMT12HDBSCAM8

MMT18CDBWCAM8

MMT18HDBWCAM8

MMT18CDBSCAM8

MMT18HDBSCAM8

MMT24CDBWCAM8

MMT24HDBWCAM8

MMT24CDBSCAM8

MMT24HDBSCAM8

PM01

mabe

contenido

Notas:

Important Safety Instructions 48

Parts and features 49

Operation instructions .... 51

Remote control 51

Emergency and Test operation 58

Air flow direction adjustment 59

SLEEP function 60

Healthy Airflow 61

Timer On/Off operation 62

TURBO operation 62

Installing the batteries 63

Maintenance 64

WARNINGS 67

Troubleshooting 70

Installation instructions 73

Selection of installation place 73

Installation of indoor and outdoor units 74

Indoor Unit 77

Outdoor Unit 81

Installation checklist and test run 87

Rated electrical specifications 88

welcome

Everything you need to know for the proper operation of your product can be found here and in our web sites. We invite you to get to know your product, read this manual and get the most out of it.

Important Safety Instructions

• Your own safety is important for us. Please read this information before using your new product.
• Do not use extension cords.
• Do not plug other electric appliances to the same power outlet.
• Hold the connector by the power plug, not by the cord.
• This product is equipped with a "Y" type polarized plug having a built-in grounding wire.
• Do not remove the grounding terminal or use outlet adapters.
• If the power cord is damaged, it must be replaced by the manufacturer, its authorized service agent or by qualified personnel in order to avoid a hazard.
• If voltage variations are usual in your area, have a voltage regulator installed.
• This appliance is not intended for use by persons (including children) having reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
  • Children should be supervised to make sure they do not use the appliance as a toy.
• IMPORTANT: Failure to follow these warnings, will make you entirely responsible for personal injuries or material damages that may occur from using this equipment.
• If the appliance will be connected to a fixed power supply wiring, a surge protector must also be installed and a main power switch and/or fuse rated 1.5 times the maximum current of the unit should be used.

The following conditions are not considered as a normal use of the appliance:

• If it has not been operated in accordance with the provided operation instructions.
• Damages caused by accidents, electrical overloads, voltage fluctuations, using an energy other than the specified, or catastrophes.
• If it has been used with commercial or industrial purposes, or for other than the indicated in the operation instructions.
• If the product has been repaired by unauthorized persons and/or service workshops.

indoor unit

display board B

1. Signal receiver hole.
2. Ambient temp. display. When receiving the remote control signal, display the set temperature.
3. Operation mode indicator (lights up when the compressor is on.)

display board C (on models having only LED indicators)

1. Remote control signal receiver. A beep is heard when a signal from the remote control is received.
2. Power indicator. Lights up when the unit starts.
3. TIMER mode indicator. Lights up when the TIMER operation is selected.
4. Operation mode indicator. Lights up when the compressor is on.

display board

display board A

1. Signal receiver hole.
2. Ambient temp. display. When receiving the remote control signal, display the set temperature.
3. COOL display
4. HEAT display
5. HEALTH display
6. DRY display

outdoor unit

1. Outlet
2. Inlet
3. Connecting piping and electrical wiring
4. Drain hose

operation Instructions

remote control

1. Mode display

Operation Mode		COOL	DRY FANAUTO
Remote Control

1. Signal sending display
2. SWING display
3. FAN SPEED display

1. LOCK display
2. TIMER OFF display TIMER ON display
3. TEMP display

8. Additional functions display

Operation mode QUIET SLEEP TURBO

Remote control

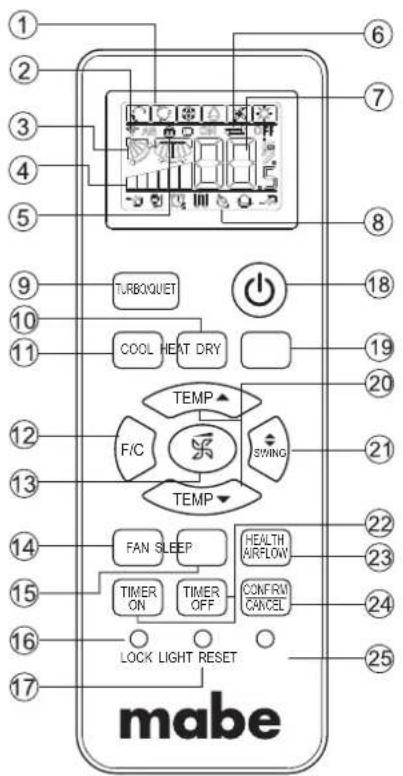

9. TURBO button

1. FAN button

2. COOL button

3. F/C button (Fahrenheit degrees/Celsius degrees)

4. FAN SPEED button

5. QUIET button

6. SLEEP button

7. LOCK button

8. LIGHT button. Turns ON and OFF the indoor unit LED display.

9. POWER/SOFT button

10. DRY button

11. TEMP button

12. SWING UP/DOWN button

13. TIMER OFF/ON button

14. HEALTH AIRFLOW button

15. CANCEL/CONFIRM button. Function: Setting and cancel to the timer and other additional functions.

16. RESET button. If the remote control is not operating properly, use a sharp pointed item to press this button to reset the remote control.

remote control

1. Mode display

Operation Mode		COOL	DRY FANAUTO	AUTO	HEAT
Remote Control

1. Signal sending display
2. SWING display
3. FAN SPEED display

1. LOCK display
2. TIMER OFF display TIMER ON display
3. TEMP display

8. Additional functions display

Operation mode	QUIET	SLEEP	HEALTH	TURBE	SupplementedElectricalheating
Remote control

9. TURBO button

1. HEAT button
2. COOL button
3. F/C button (Fahrenheit degrees/Celsius degrees)
4. FAN SPEED button
5. FAN button
6. SLEEP button
7. LOCK button
8. LIGHT button. Turns ON and OFF the indoor unit LED display.
9. POWER/SOFT button
10. DRY button
11. TEMP button
12. SWING UP/DOWN button
13. TIMER OFF/ON button
14. HEALTH AIRFLOW button
15. CANCEL/CONFIRM button

Function: Setting and cancel to the timer and other additional functions.

1. RESET button

If the remote control is not operating properly, use a pen point or similar object to press this button to reset the remote control.

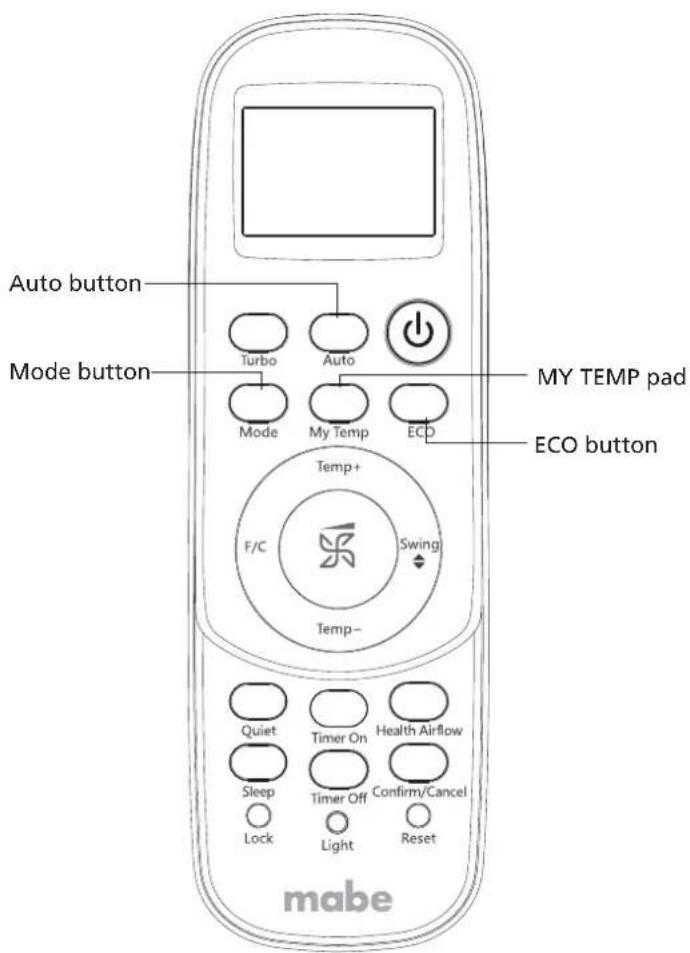

remote control for cool-only models equipped with the MY TEMP feature

When the MYTEMP function is activated, the remote control will sense and display the temperature around it in order to achieve the desired temperature.

The distance between the remote control and the indoor unit should be 7 m maximum, without obstacles.

Press AUTO then enter auto mode.

MODE button, it will follow cycle "cooling---dehumidify---air blowing---heating---cooling" (For cooling only model, heating mode is invalid).

Energy saving function, it works under cooling only mode, after enter ECO function, the logo of "ECO" will display on the remote screen.

basic operation

1. Unit start

Press ON/OFF on the remote controller, unit starts.

1. Select a temperature setting

Press the TEMP+ or TEMP- button

TEMP+ Every time the button is pressed, the temperature setting increases 1 °C, if kept depressed, it will increase rapidly.

TEMP- Every time the pad is pressed, the temperature setting decreases 1 °C, if kept depressed, it will decrease rapidly.

Select a desired temperature.

1. Fan function

Press the FAN pad.

Each time the FAN SPEED button is pressed, the fan speed will change as follows:

Remote control:

Air conditioner is running under displayed fan speed.

When FAN is set to AUTO, the air conditioner automatically adjusts the fan speed according to room temperature.

Operation mode	Remote control Note
AUTO Under the mod		Auto operation, air conditioner will automatically select Cool or Heat operation according to room temperature.When FAN is set to AUTO, the air conditioner automatically adjusts the fan speed according to room temperature.
COOL		Cooling only units do not have displays and functions related with heating.
DRY		In DRY mode, when room temperature becomes lower than temp. setting + 2 °C, unit will run intermittently at LOW speed regardless of FAN setting.
HEAT (only on some models)		In HEAT mode, warm air will blow out after a short period of the time due to cold-draft prevention function.
FAN		In FAN operation mode, the unit will not operate in COOL or HEAT mode but only in FAN mode. AUTO is not available in FAN mode. Temperature setting is disabled. When FAN is set to AUTO, the air conditioner automatically adjusts the fan speed according to room temperature. In FAN mode, SLEEP operation is not available.

emergency and test operation

emergency operation

• Use this operation only when the remote control is defective or lost, and with function of Emergency running air conditioner can run automatically for a while.
• When the emergency operation switch is pressed, a "Pi" sound is heard once, which means the start of this operation.

• When POWER switch is turned on for the first time and emergency operation starts, the unit will run automatically in the following mode:
• It is not possible to change the temperature setting or fan speed setting. It is also not possible to operate the timer or the DRY mode.

Room temperature

Designated temperature

TIMER mode Fan Speed

Operation mode

Above 23 °C COOLING26 °C No AUTOMATIC

test operation

• Test operation switch is the same as emergency switch.
• Use this switch in the test operation when the room temperature is below 16 °C, do not use it in the normal operation.
• Continue to press the test operation switch for more than 5 seconds. After you hear two "Beeps", release your finger from the switch: the cooling operation starts with the air flow speed at "Hi".

- Under this operation mode, the fan motor of the indoor unit will run at HIGH speed.

air flow direction adjustment

vertical air flow

Pos. 1: → √→ √→ √→ √→ √→ √→ AUTO Swing Initial State

Pos. 2: No initial state displayed on remote control. The vertical louvers will be fixed on the current position.

CAUTIONS:

• Before adjusting the louvers manually, turn off the unit.
• When humidity is high, condensate water might occur at air outlet if all vertical louvers are adjusted to the right.
• It is advisable not to keep horizontal flap at downward position for a long time in COOL or DRY mode, otherwise, condensate water might occur.
• When restarting after turning the unit OFF with the remote control, the remote will automatically return to the previous set swing position.

SLEEP function

Press the SLEEP button, the remote control will show 📄, and then achieve to the sleep function. Press again the SLEEP pad, the sleep function will be cancelled.

Operation mode

1. In COOL or DRY mode

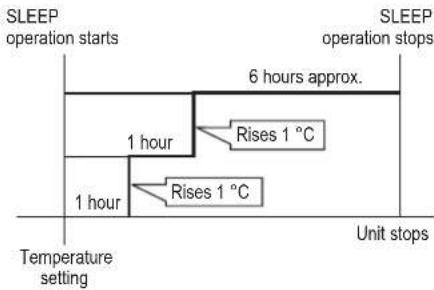

1 hour after SLEEP mode starts, the temperature will become 1 °C higher than temperature setting. After another hour, the temperature will rise another 1 °C. The unit will run for further 6 hours then stops. Temperature is higher than temperature setting so that room temperature won't be too low for your sleep.

In COOL and DRY modes

2. In HEAT mode (only on some models)

1 hour after SLEEP mode starts, temperature will become 2 °C lower than temperature setting. After another 1 hour, the temperature decreases by 2 °C further. After another 3 hours, temperature rises by 1 °C further. The unit will run for another 3 hours then stops. Temperature is lower than temperature setting so that room temperature won't be too high for your sleep.

In HEAT mode

3. In AUTO mode

The unit operates in corresponding sleep mode adapted to the automatically selected operation mode.

4. In FAN mode

The SLEEP function will not be available under the FAN mode.

1. When quiet sleeping function is set to 8 hours the quiet sleeping time can not be adjusted. When TIMER function is set, the quiet sleeping function can't be set up. After the sleeping function is set up, if user resets TIMER function, the sleeping function will be cancelled; the machine will be in the state of timing-on, if the two modes are set up at the same time, either of their operation time is ended first, the unit will stop automatically, and the other mode will be cancelled.

Note:

• When TIMER function is set, the sleeping function can't be set up. After the sleeping function is set up, if user resets TIMER function, the sleeping function will be cancelled; the machine will be in the state of timing-on.
• Power failure resume: Press the sleep pad ten times within five seconds and enter function after hearing four sounds. And press the sleep pad ten times within five seconds and leave this function after hearing two sounds.
• Power failure resume function: If the unit is started for the first time, the compressor will not start running unless 3 minutes have elapsed. When the power resumes after power failure, the unit will run automatically, and 3 minutes later the compressor starts running.

healthy airflow

1. Press ⏻ to start.
2. Repeatedly press the HEALTH AIRFLOW button [HEALTH AIRFLOW]. The louver position will cycle between the following three settings. Select the position you require.

Notes:

• Do not adjust the position of the louver manually. Otherwise, the louver will not operate correctly. If the louver does not run correctly, stop it for a minute and then restart using the remote control.
• After setting the healthy airflow function, the position of the louver will be fixed.
• During COOLING, it is better to select this mode
• Under COOLING and DRY modes, using the air conditioner for a long time when air humidity is high can result in condensed water on the louver.

timer On/Off operation

1. After unit starts, select the desired operation mode.
2. Press the TIMER ON or TIMER OFF button to change TIMER mode. When pressing TIMER ON button, the display will show "ON 0.5". After 10 seconds the time display will be blank.
   When pressing TIMER OFF button, the display will show "OFF 0.5". After 10 seconds the time display will be blank. Then select the desired TIMER mode, (TIMER ON or TIMER OFF or TIMER ON-OFF). "ON" or "OFF" will flash.
3. Press TIMER ON or TIMER OFF button to set time.
   Each time you press the button, the time setting will be increased by 0.5 hours until reaching 12 hours, then each press will increase the time by 1 hour until reaching 24 hours.
4. Confirm TIMER setting. After setting the desired time press the CONFIRM/CANCEL button to CONFIRM your selection "ON" or "OFF" will stop flashing.

To cancel the TIMER

Press the CONFIRM/CANCEL button again. The set TIME will be deleted.

After replacing batteries or a power failure, the time should be reset.

According to the time setting sequence of TIMER ON or TIMER OFF, either Start-Stop or Stop-Start can be achieved.

TURBO operation

When you need rapid heating or cooling, you can use this function. Press the TURBO pad, the remote control will show ↗, and then the unit starts the TURBO function.

To turn off TURBO, press again the TURBO pad.

Note: During TURBO operation, in rapid cool mode, the room could show uneven temperature distribution.

installing the batteries

1. Remove the battery cover.
2. Insert 2 "AAA" batteries as illustrated noting battery polarity.
3. Reinstall the battery cover.

Notes:

• The distance from the remote control to the receiver should be less than 7 meters with no obstructions.
• If the remote control display is weak or the operating distance has diminished, the batteries may need to be replaced.
• Remote control malfunctions can sometimes be corrected by removing the batteries from the remote for a few minutes and then reinstalling them.
• Remove the batteries from the remote control if the unit will not be in use for an extended period of time.
• If any segments of the display remain active after battery removal, press the reset button.
