Product type	Video Projector
Brand	Planar
Model	PR3020
Display technology	DLP
Native resolution	1024 x 768 (XGA)
Brightness	3000 ANSI lumens
Contrast ratio	2000:1
Lamp life (normal mode)	4000 hours
Dimensions (W x D x H)	300 x 220 x 100 mm
Weight	3.2 kg
Power consumption	300 W
Input connections	HDMI, VGA, Composite video, S-Video, USB
Audio output	3.5mm headphone jack
Built-in speaker	1 x 10 W
Keystone correction	Manual +/- 30° vertical
Zoom ratio	1.2x manual
Maintenance	Clean air filter every 500 hours; replace lamp as indicated
Safety features	Auto power off, overheat protection, Kensington lock slot
Spare parts	Replacement lamp (model PL-LAMP3020), air filter
Repairability	User-accessible lamp and filter; fan and other components serviceable by authorized technicians
General info	Supports 3D via HDMI; remote control included

Frequently Asked Questions - PR3020 Planar

How do I connect my laptop to the Planar PR3020?

Use a VGA or HDMI cable. Connect one end to your laptop’s output port and the other to the corresponding input on the projector. Then select the correct input source using the Source button on the remote or projector.

What is the native resolution of the PR3020?

The native resolution is 1024 x 768 pixels (XGA). It can accept higher resolutions and downscale them.

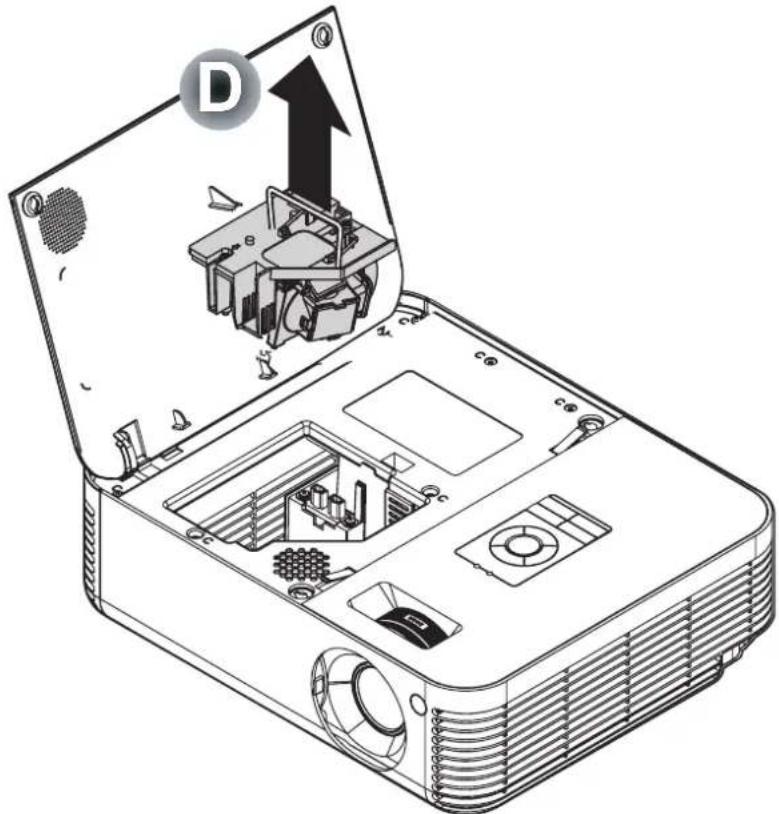

How do I replace the lamp?

Turn off and unplug the projector. Wait for it to cool. Remove the lamp cover screw, slide the lamp module out, insert the new PL-LAMP3020, and secure the cover. Reset the lamp timer in the menu.

How do I clean the air filter?

Locate the filter on the side or bottom of the projector. Use a vacuum cleaner or soft brush to gently remove dust. Do not use water or solvents. Replace the filter every 500 hours.

No picture is displayed. What should I check?

Ensure the projector is turned on and the lens cap is removed. Verify the input source matches the connected device. Check if the lamp is working; if not, it may need replacement. Also confirm all cables are securely connected.

Can I use the projector for 3D content?

Yes, the PR3020 supports 3D via HDMI. You need compatible 3D content and active shutter glasses (not included). Enable 3D mode in the projector menu.

What is the recommended projection distance?

For an image size of 60-100 inches, place the projector between 2.3 to 3.9 meters from the screen. Use the zoom and keystone correction to adjust.

The projector is overheating. What should I do?

Check that the air intake and exhaust vents are not blocked. Clean the air filter. Ensure the ambient temperature is below 35°C. If overheating persists, contact Planar service.

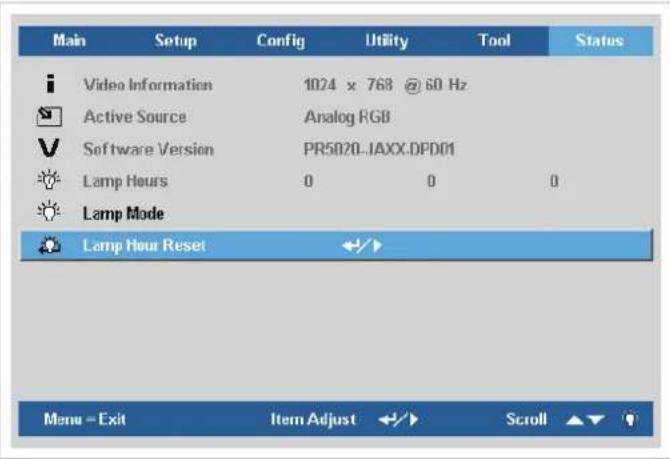

How do I reset the lamp timer?

After replacing the lamp, go to the Setup > Lamp Timer menu. Select Reset or enter the new lamp code if prompted. This ensures accurate runtime tracking.

Where can I download the user manual?

Visit notice-facile.com or the Planar support site. The manual is available in PDF format for the PR3020 model.

USER MANUAL PR3020 Planar

Planar Systems, Inc.

Corporate Headquarters

1195 NW Compton Drive

Beaverton, OR 97006-1992

Planar Customer Support

Telephone:

US: 1-866-PLANAR1 [phone]

Outside US: [phone]

E-mail: [e-mail]

Online Technical Library: http://www.planar.com/support

Hours: M-F, 8am - 8pm ET, 12pm - 12am GMT

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

© Copyright June, 2006

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending applications in other countries throughout the world.

All other product names used in this manual are the properties of their respective owners and are acknowledged.

Important Safety Information

Congratulations on purchasing the Planar DLP® projector!

Important:

It is strongly recommended that you read this section carefully before using the projector. These safety and usage instructions will ensure that you enjoy many years of safe use of the projector. Keep this manual for future reference.

Symbols Used

Warning symbols are used on the unit and in this manual to alert you of hazardous situations.

The following styles are used in this manual to alert you to important information.

Note:

Provides additional information on the topic at hand.

Important:

Provides additional information that should not be overlooked.

Caution:

Alerts you to situations that may damage the unit.

Warning:

Alerts you to situations that may damage the unit, create a hazardous environment, or cause personal injury.

Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this example:

"Push the Menu button on the remote control to open the Main menu."

Remote Control

Some remote controls have a laser for pointing out items on a screen.

DANGER: Do not point the laser in the eyes. Doing so can damage the eyes permanently.

General Safety Information

Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in the unit. For servicing, contact qualified service personnel.
➢ Follow all warnings and cautions in this manual and on the unit case.
The projection lamp is extremely bright by design. To avoid damage to eyes, do not look into the lens when the lamp is on.
Do not place the unit on an unstable surface, cart, or stand.
- Avoid using the system near water, in direct sunlight, or near a heating device.
Do not place heavy objects such as books or bags on the unit.

Power Safety

▶ Only use the supplied power cord.
Do not place anything on the power cord. Place the power cord where it will not be in the way of foot traffic.
Remove the batteries from the remote control when storing or not in use for a prolonged period.

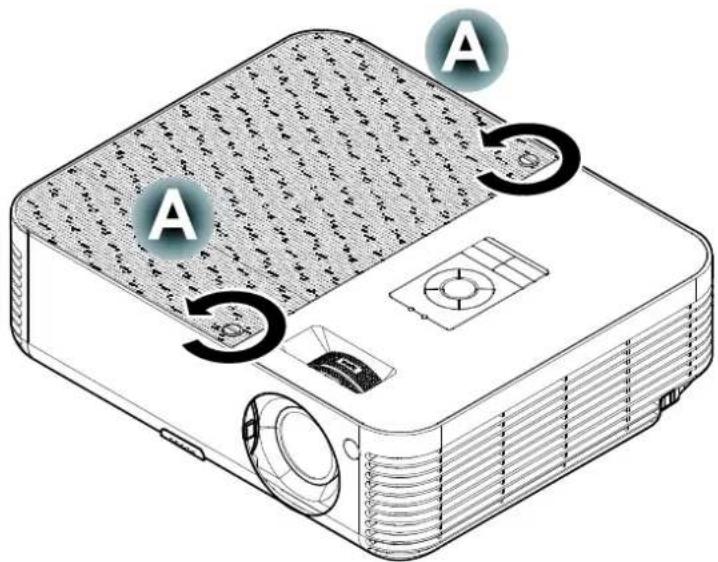

Replacing the Lamp

Replacing the lamp can be hazardous if done incorrectly. Refer to “Replacing the Projection Lamp” on page 35 for clear and safe instructions for this procedure. Before replacing the lamp:

▶ Unplug the power cord.
- Allow the lamp to cool for about one hour.

Important Recycle Instructions:

Lamp(s) inside this product contain mercury. This product may contain other electronic waste that is hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal. For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG. For lamp specific disposal information check WWW.LAMPRECYCLE.ORG.

Cleaning the Projector

➢ Unplug the power cord before cleaning. Refer to “Cleaning the Projector” on page 38.
- Allow the lamp to cool for about one hour.

Regulatory Warnings

Before installing and using the projector, read the regulatory notices in the “Regulatory Compliance” section on page 48.

Symbol Explanations

DISPOSAL: Do not use household or municipal waste collection services for disposal of electrical and electronic equipment. EU countries require the use of separate recycling collection services.

Main Features

• Lightweight unit, easy to pack away and transport
- Compatible with all major video standards including NTSC, PAL, and SECAM
- A high brightness rating allows for presentations in daylight or in lit rooms
• Supports resolutions up to SXGA+ at 16.7 million colors to deliver crisp, clear images
- Flexible setup allows for front, rear & ceiling mounted projections
• Line-of-vision projections remain square, with advanced keystone correction for angled projections
- Input source automatically detected

Register Your Planar Products Today

Thank you for choosing Planar. To assure you receive all the benefits of your Planar product and services, registryour Planar product today. Visit our website to register your product at

http://www.planar.com/support/product_registration.html

Cables, Replacement Lamps and Accessories

To find cables, replacement lamps and accessories for your Planar projector, LCD monitor, touchscreen or other Planar products visit our online store at www.PlanarOnline.com or find other stores who carry Planar products at http://www.planar.com/howtobuy

About this manual

This manual is intended for end users and describes how to install and operate the DLP® projector. Wherever possible, relevant information—such as an illustration and its description—has been kept on one page. This printer-friendly format is both for your convenience and to help save paper, thereby protecting the environment. It is suggested that you only print sections that are relevant to your needs.

Table of contents

Getting Started....1

Packing Checklist....1

Views of Projector Parts....2

Front-right View 2

Top view—On-screen Display (OSD) buttons and LEDs....3

Rear view....5

Bottom view 6

Remote Control Parts....8

Remote Control Operating Range 10

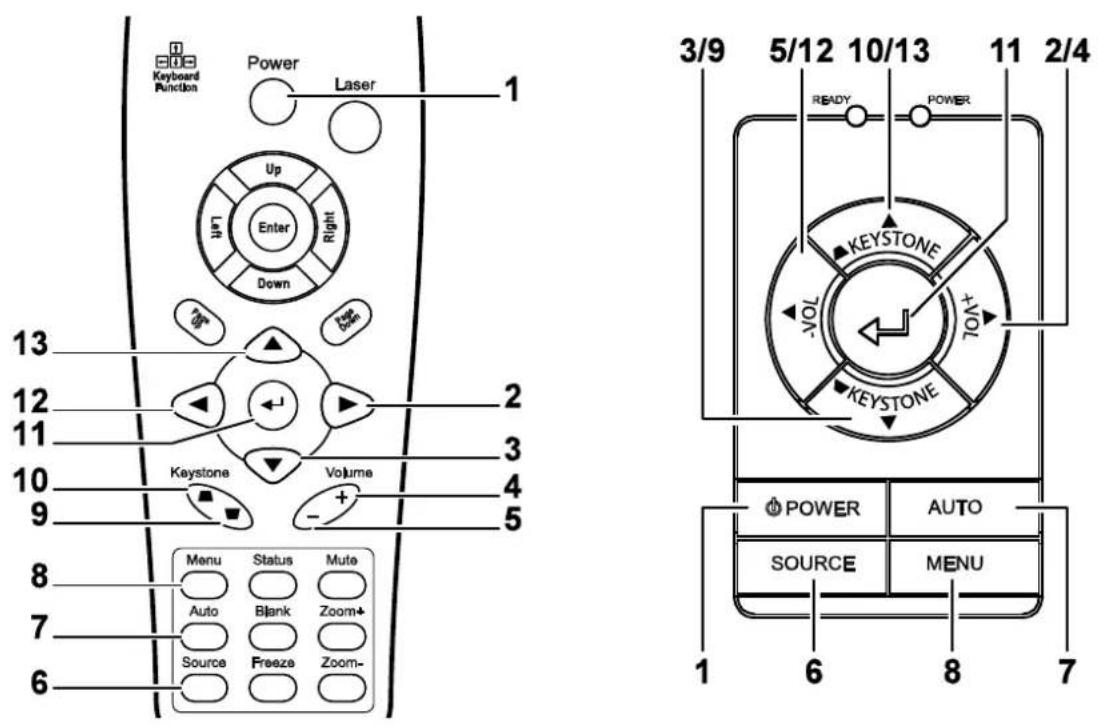

Projector and Remote Control Buttons 10

Setup and Operation 11

Inserting the Remote Control Batteries....11

Connecting Input Devices....12

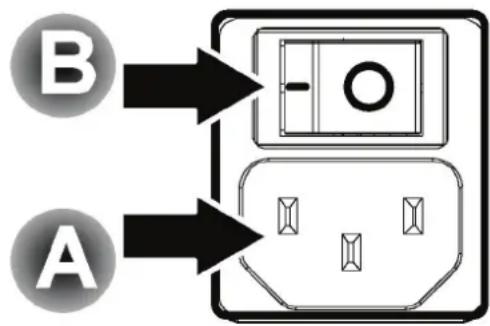

Starting and Shutting down the Projector 14

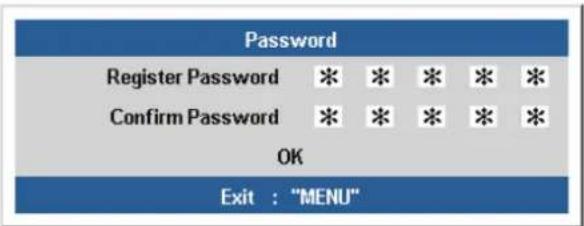

Setting an Access Password (Security Lock) 16

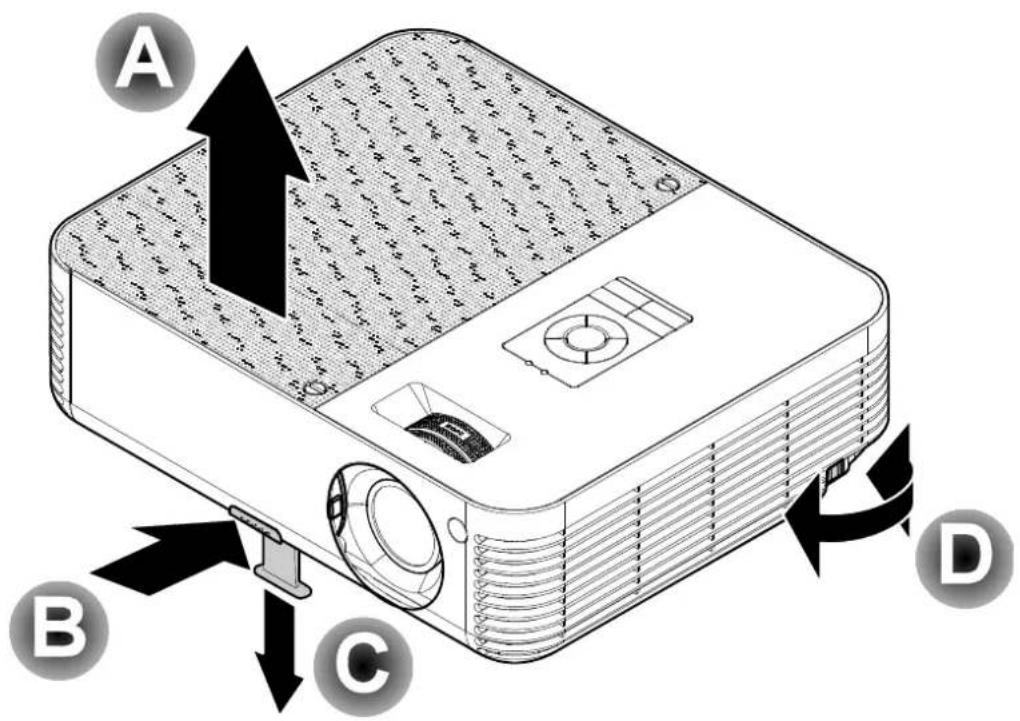

Adjusting the Projector Level 18

Adjusting the Zoom, Focus and Keystone 19

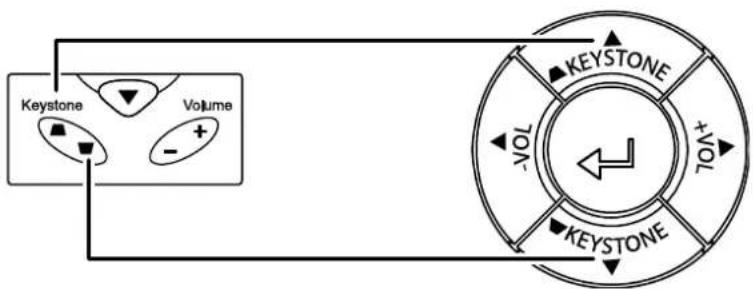

Adjusting the Volume 19

On-Screen Display (OSD) Menu Settings....21

OSD Menu Controls....21

Navigating the OSD....21

Setting the OSD Language 22

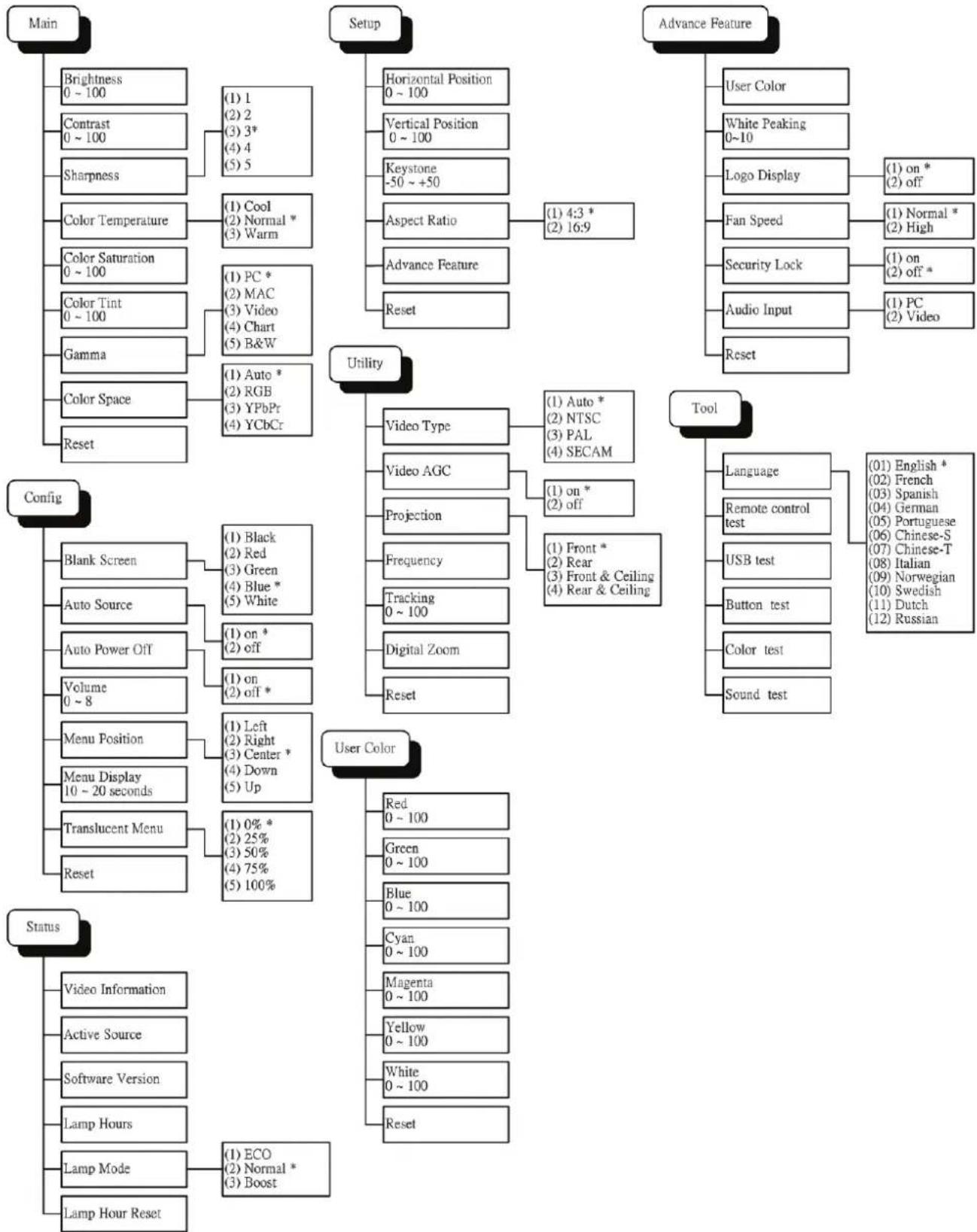

OSD Menu Overview 23

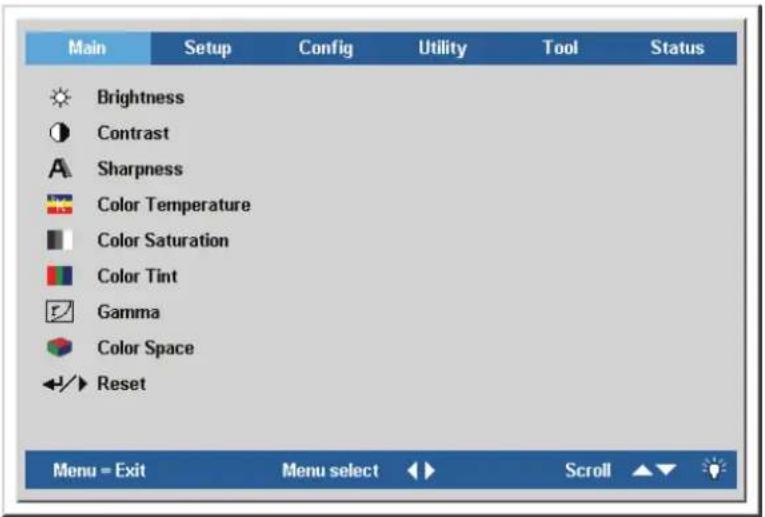

Main Menu 24

Main Menu Functions Available for Connected Source 25

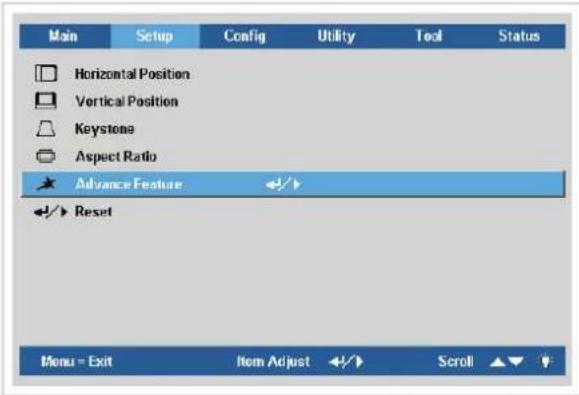

Setup Menu....26

Setup Menu Functions Available for Connected Source....26

Advance Feature 27

User Color 29

Config Menu....30

Utility Menu ....31

Utility Menu Functions Available for Connected Source 32

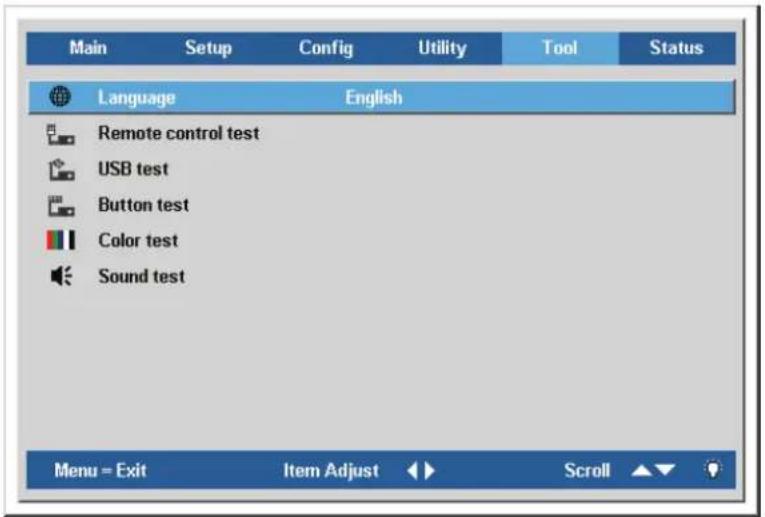

Tool Menu 33

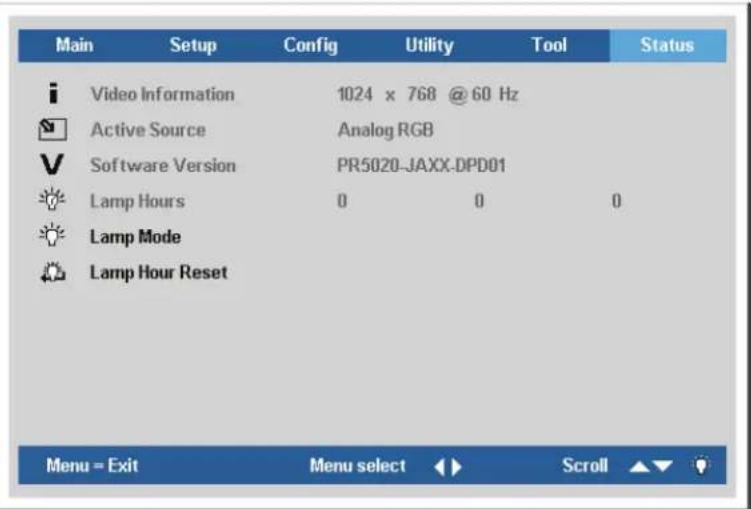

Status Menu ....34

Maintenance and Security 35

Replacing the Projection Lamp 35

Resetting the Lamp 38

Cleaning the Projector....38

Cleaning the Lens....38

Cleaning the Case....39

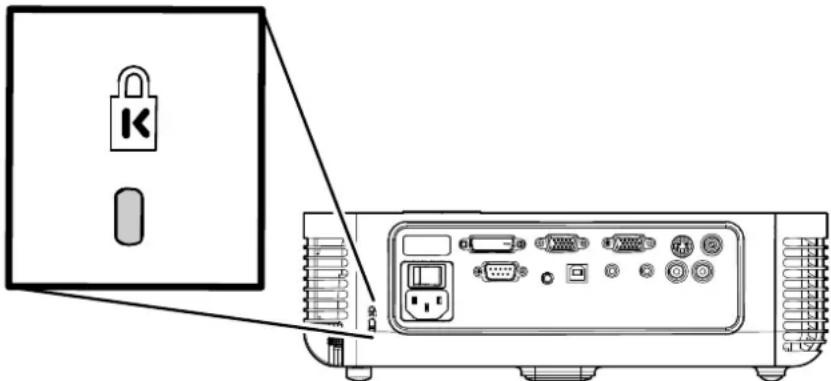

Using the Kensington® Lock....39

Troubleshooting 40

Common problems and solutions 40

Tips for Troubleshooting 40

LED Error Messages....41

Image Problems 41

Lamp Problems 42

Remote Control Problems....42

Audio Problems....42

Specifications 43

Input/output connectors....43

Projection Distance V.S. Projection Size 44

PR3020 and PR3010 Projection distance and size table....44

PR5020 Projection distance and size table....45

Timing Mode Table 46

Projector Dimensions....47

Regulatory Compliance....48

FCC Warning 48

Canada....48

Safety Certifications 48

EN 55022 Warning....48

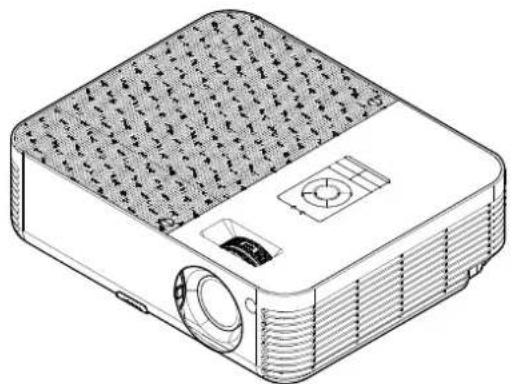

Packing Checklist

Carefully unpack the projector and check that the following items are included:

Line drawing of a projector with a textured top panel and control panel (no text or symbols)

DLP® projector Remote control

Illustration of a remote control with two batteries (no text or symbols)

(with two AAA batteries)

Power cord USB cable

Line drawing of a USB cable with multiple connectors (no text or symbols)

(USB type A-to-B USB)

Line drawing of a multi-up cable with multiple connectors (no text or symbols)

Composite video cable (RCA 3-to-RCA 3)

Computer cable (VGA-VGA)

Pure electrical connector diagram without any text, numbers, or symbols

Audio cable (mini jack-to-mini jack)

Circular optical disc with radial gradient pattern and central aperture (no text or symbols)

CD-ROM (This User's manual)

Users GUIDE

Line drawing of a rectangular electronic device case with clamps and a handle (no text or symbols)

Carrying case

Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work.

Caution:

Avoid using the projector in dusty environments.

Views of Projector Parts

Front-right View

Item Label Description See page:
1.	Focus Focuses the projected image		19
2.	Lens zoom Enlarges the projected image		19
3.	Screws Holds lamp to projector
4.	See “Top view—OSD buttons and LEDs”		3
5.	Front IR receiver Receiver for IR signal from remote control		8
6.	Lens Slide lens cap before use.
7.	Lens cover Slide across to protect lens when not in use
8.	Height-adjuster button	Push to release height adjuster	18

Important:

Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp cool. Do not obstruct any of the ventilation openings.

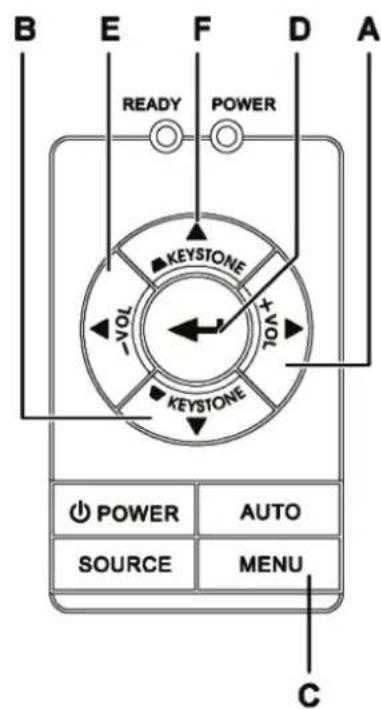

Top view—On-screen Display (OSD) buttons and LEDs

Item Label Description See page:
1.	Keystone/Down cursor	Corrects image-trapezoid (wider bottom) effectNavigates and changes settings in the OSD		21
2.	VOL-/Left cursor	Decreases volumeNavigates and changes settings in the OSD		21
3.	Ready LED	Orange Lamp ready—you can safely turn on or off the projector
		Flashing Lamp not ready—do not press the power button
4.	Keystone/UP cursor	Corrects image-trapezoid (wider top) effectNavigates and changes settings in the OSD		21
5.	Power LED	Green Unit is powered on and working correctly
		Off Unit is powered off
		Flashing Operational error code(refer to “LED Error Messages” on page 41)
6.	Enter Changes settings in the OSD		21
7.	VOL+/Right cursor	Increases volumeNavigates and changes settings in the OSD	21
8.	Auto Optimizes image size, position, and resolutionNavigates and changes settings in the OSD		14
9.	Menu Opens and exits the OSD
10.	Source Detects the input device
11.	Power Turns the projector on or off

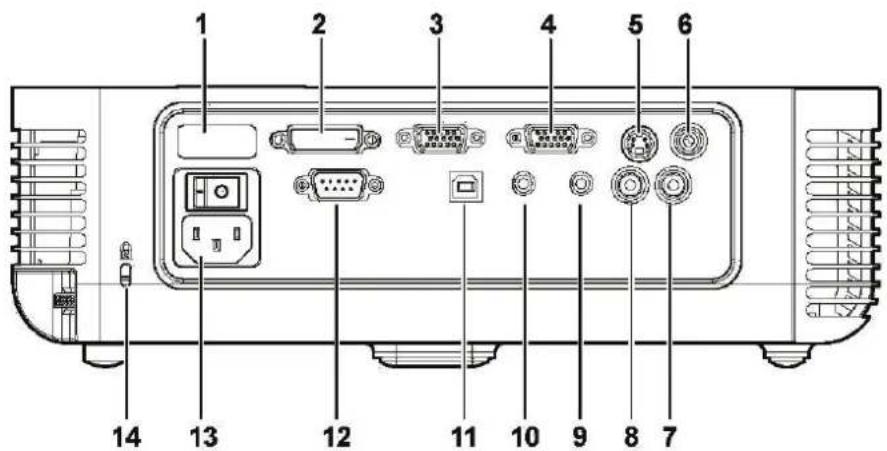

Rear view

Item Label Description		See page:
1.	Rear IR receiver	Receiver for IR signal from remote control	8
2.	DVI-D(For PR5020 only)	Connect a DVI-D cable (not supplied) from a computer	12
3.	VGA IN Connect a	VGA cable (supplied) from a computer
4.	VGA OUT Connect to a monitor (not supplied)
5.	S-video Connect the S-video cable (not supplied) from a video device
6.	Video Connect a composite video cable (supplied) from a video device.
7.	Audio in-R Connect the audio cable (supplied) from an audio input device.
8.	Audio in-L Connect the audio cable (supplied) from an audio input device.
9.	Audio-in Connect an audio cable(supplied) from the computer's audio-out connector.
10.	Audio-out	Audio loop-thru
11.	USB Connect the USB cable (supplied) from a computer
12.	RS-232(For PR5020 only)	Installation control
13.	Power Connect the power cord (supplied)		14
14.	Security Lock Secure to permanent object with a Kensington® Lock system		39

Note:

If your video equipment has both S-video and RCA jacks (composite video) connect to the S-video connector. S-video provides a better quality signal.

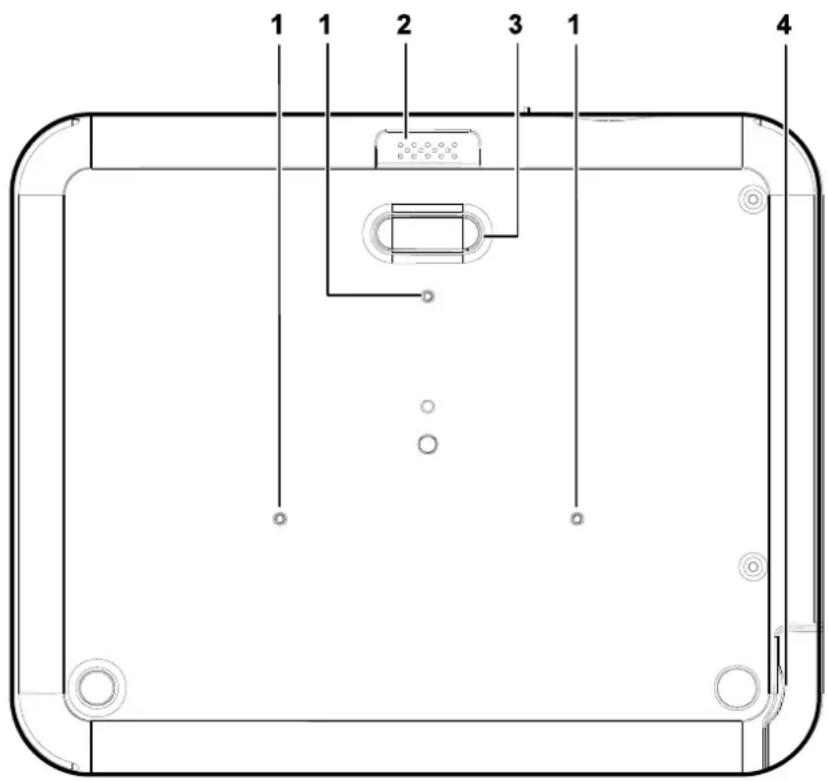

Bottom view

Item Label Description See page:
1.	Ceiling support holes	Contact your dealer for information on mounting the projector on a ceiling.
2.	Height adjuster button	Push to release height adjuster	18
3.	Height adjuster Adjuster drops down when adjuster button is pushed

4.

Tilt adjuster Adjust angle of the picture

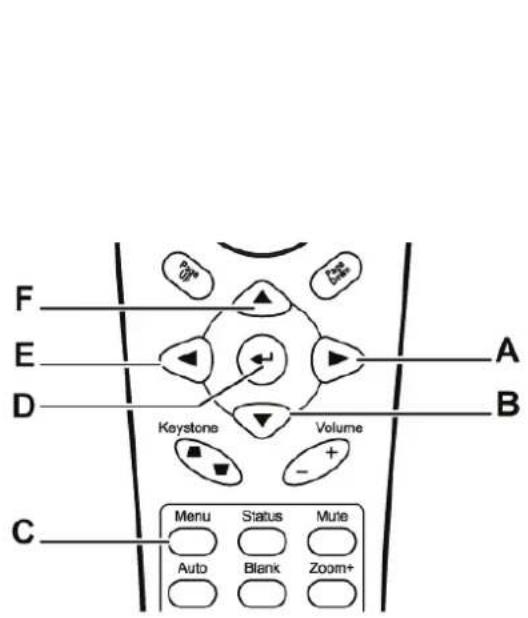

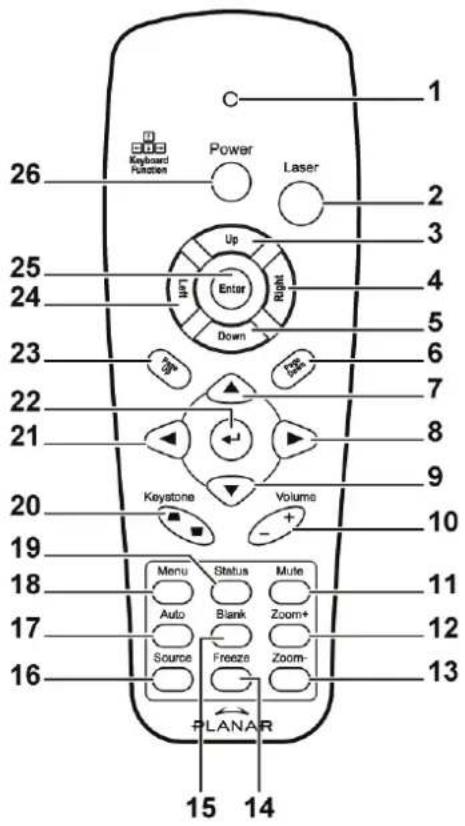

Remote Control Parts

Important:

1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluorescent lights can disrupt remote control operation.
2. Be sure nothing obstructs the path between the remote control and the projector. If the path between the remote control and the projector is obstructed, you can bounce the signal off certain reflective surfaces such as projector screens.
3. The buttons and keys on the projector have the same functions as the corresponding buttons on the remote control. This user's manual describes the functions based on the remote control.

Item Label Description		See page:
1.	Status LED Lights	when the remote control is used
2.	Laser Press to operate the on-screen pointer
3.	Up Up arrow when connected through USB to a PC
4.	Right Right arrow when connected through USB to a PC
5.	Down Down arrow when connected through USB to a PC
6.	Page Down Page down when connected through USB to a PC
7.	Up cursor	Navigates and changes settings in the OSD
8.	Right cursor	Adjusts volume	21
9.	Down cursor
10.	Volume +/-
11.	Mute Mutes the built-in speaker		20
12.	Zoom+ Zoom in
13.	Zoom-	Zoom out
14.	Freeze Freeze/unfreezes the on-screen picture
15.	Blank Makes the screen blank
16.	Source Detects the input device
17.	Auto Auto adjustment for phase, tracking, size, position
18.	Menu Opens the OSD
19.	Status Opens the	OSD Status menu (the menu only opens when an input device is detected)	21
20.	Keystone top/bottom	Corrects image-trapezoid (wider top/bottom) effect	19
21.	Left cursor Navigates and changes settings in the OSD		21
22.	Enter Changes settings in the OSD		21
23.	Page Up Page up when connected through USB to a PC
24.	Left Left arrow when connected through USB to a PC
25.	Enter Enter key when connected through USB to a PC
26.	Power Turns the projector on or off

Note:
The remote control can only interface with a computer when connected to the computer through a USB cable connection. The computer cable connects a computer to the projector for display purposes only.

Remote Control Operating Range

The remote control uses infrared transmission to control the projector. It is not necessary to point the remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or the rear of the projector, the remote will function well within a radius of about 10 meters (33 feet) and 30 degrees above or below the projector level. If the projector does not respond to the remote control, move a little closer.

Projector and Remote Control Buttons

The projector can be operated using the remote control or the buttons on the top of the projector. All operations can be carried out with the remote control; however the buttons on the projector are limited in use. The following illustration shows the corresponding buttons on the remote control and on the projector.

Some buttons on the projector have two functions. For example, item 10/13 on the projector functions both keystone button and as the up cursor key in OSD menus.

Setup and Operation

Inserting the Remote Control Batteries

1. Remove the battery compartment cover by sliding the cover in the direction of the arrow.

Technical line drawing of a mechanical component with internal structure and directional arrow (no text or symbols)

1. Insert the supplied batteries taking note of the polarity (+/-) as shown here.

Diagram of a remote control box with two batteries and arrows indicating rotation (no text or symbols)

1. Replace the cover.

Technical line drawing of a mechanical component with internal structure and highlighted section (no text or symbols)

Caution:

1. Only use AAA batteries.(Alkaline is better)
2. Dispose of used batteries according to local ordinance regulations.
3. Remove the batteries when not using the projector for prolonged periods.

Connecting Input Devices

A PC or notebook computer as well as video devices can be connected to the projector at the same time. Video devices include DVD, VCD, and VHS players, as well as movie camcorders and digital still cameras. Check the user manual of the connecting device to confirm it has the appropriate output connector.

Item Label Description
	Rear IR Receiver for IR signal from remote control.
	DVI-D(For PR5020 only)	Connect DVI-D cable (not supplied) from a computer.
	VGA in Connect a VGA cable (supplied) from a computer.
	VGA out Connect a VGA cable (not supplied) to a monitor.
	S-video Connect S-video cable (not supplied) from a video device.
	Video Connect a composite video cable (supplied) from a video device.
	Audio in-R Connect the audio cable (supplied) from an audio input device.
	Audio in-L Connect the audio cable (supplied) from an audio input device.
	Audio-in Connect an audio cable (supplied) from the computer's audio-out connector.
	Audio-out Audio loop-thru
	USB Connect the supplied USB cable (supplied) from a computer for USB mouse function and firmware upgrades.

Item Label Description

RS-232

(For PR5020 only)

Reserved for installation control.

Warning:

As a safety precaution, disconnect all power to the projector and connecting devices before making connections.

Starting and Shutting down the Projector

1. Slide the lens cover.
2. Connect the power cord to the projector [A] Connect the other end to a wall outlet. Switch [B] from on (O) to off (—)
3. The POWER and READY LEDs on the projector turn on. Turn on the connected devices.
4. Ensure the Ready LED is on a steady (not flashing) orange and then press the Power button to turn on the projector.

The projector splash screen displays and connected devices are detected. If the connected device is a PC, press the appropriate keys on the computer keyboard to switch the display output to the projector. (Check the user manual of the PC to determine the appropriate Fn key combination to change display output.)

See "Setting an Access Password (Security Lock)" on page 16 if Security Lock is enabled.

1. If more than one input device is connected, press the Source button repeatedly to switch among devices. (DVD and HDTV are supported through the VGA connector.)
2. To turn off the projector, press the Power button. The projector prepares for shutdown and a "Wait a moment please..." message appears.

1. When the "Power Off?/Press Power again" message appears, press the Power button. The projector turns off.

1. Turn off the main Power switch when the Ready LED stops flashing.

Caution:

Do not unplug the power cord until the Ready LED stops flashing, indicating the projector has cooled down.

Setting an Access Password (Security Lock)

You can use the cursor (arrow) buttons to set a password and prevent unauthorized use of the projector. When enabled, the password must be entered after you power on the projector. (See "Navigating the OSD" on page 21 and "Setting the OSD Language" on page 22 for help on using OSD menus.)

Important:

Keep the password in a safe place. Without the password, you will not be able to use the projector. If you lose the password, contact your reseller for information on clearing the password.

1. Press the Menu button to open the OSD menu.
2. Press the cursor ◀ button to move to the Setup menu.
3. Press the cursor ▲ button to select Advance Feature and press Enter or ▶.
4. Press the cursor ▲ button to select Security Lock.
5. Press the cursor Enter or ▶ button to select Enable. (White text is selected.) A password dialog box automatically appears.
   6 You can only use the following four cursor buttons: ▲ ▼ ▶ ▶
6. in the password fields. You can use any combination including the same arrow five times, but not less than six. Press the cursor buttons in any order to set the password. When you confirm the password, OK appears.

Every time you start the projector, a password dialog box appears.

Enter the password in the order you set it at step 6. (Press the Menu button to cancel if you enter the wrong password.)

Adjusting the Projector Level

Take note of the following when setting up the projector:

• The projector table or stand should be level and sturdy.
• Position the projector so that it is perpendicular to the screen.
• Be sure cables are not in the way or can cause the projector to be knocked over.

1. To raise the level of the projector, lift the projector [A] and press the height-adjuster button [B].

The height adjuster drops down [C].

1. To lower the level of the projector, press the height-adjuster button and push down on the top of the projector.
2. To adjust the angle of the picture, turn the tilt adjuster [D] right or left until desired angle has been achieved.

Adjusting the Zoom, Focus and Keystone

1. Use the Image-zoom control (on the projector only) to resize the projected image and screen size. B
2. Use the Image-focus control (on the projector only) to sharpen the projected image A.
3. Press the Keystone button on the remote control. The keystone control appears on the display.
4. Use the Keystone button to correct image distortion.

Adjusting the Volume

1. Press the Volume +/- button on the remote control. The volume control appears on the display.
2. Use the Volume +/- button to adjust the level.

1. Press the Mute button to turn off the volume. (For remote only)

Simple graphic with a red star-like symbol inside a gray rectangle (no text or symbols)

On-Screen Display (OSD) Menu Settings

OSD Menu Controls

The projector has an OSD that lets you make image adjustments and change various settings.

Navigating the OSD

You can use the remote control cursor buttons or the buttons on the top of the projector to navigate and make changes to the OSD. The following illustration shows the corresponding buttons on the remote control and on the projector.

1. To open the OSD, press the Menu button.
2. There are six menus. Press the cursor ◀▶ button to move through the menus.
3. Press the cursor ▲▼ button to move up and down in a menu.
4. Press ◀▶ to change values for settings, and then press Enter or ▶ to confirm the new setting.
5. Press Menu to close the OSD or leave a sub-menu.

Note:

Depending on the video source not all items in the OSD are available. For example, the Horizontal/Vertical Position items in the Setup menu can only be modified when connected to a PC. Items that are not available cannot be accessed and are grayed out.

Setting the OSD Language

You may want to reference the OSD on your projector while reading this section. Set the OSD language to your preference before continuing. (The default language is English.)

1. Press the Menu button. The Main menu appears.

1. Press the cursor button until Tool is highlighted.

1. Press the cursor button until Tool is highlighted.
2. Press the◀▶ button until your language is displayed.
3. Press the Menu button twice to close the OSD.

OSD Menu Overview

Use the following illustration to quickly find a setting or determine the range for a setting.

    K["Setup"] --> L["Horizontal Position 0 ~ 100"]
    K --> M["Vertical Position 0 ~ 100"]
    K --> N["Keystone -50 ~ +50"]
    K --> O["Aspect Ratio"]
    K --> P["Advance Feature"]
    K --> Q["Reset"]

    R["Advance Feature"] --> S["User Color"]
    R --> T["White Peaking 0~10"]
    R --> U["Logo Display"]
    U --> V["(1) on * (2) off"]
    U --> W["(1) Normal * (2) High"]
    U --> X["Security Lock"]
    X --> Y["(1) on (2) off *"]
    U --> Z["Audio Input"]
    Z --> AA["(1) PC (2) Video"]
    Z --> AB["Reset"]

    AC["Config"] --> AD["Blank Screen"]
    AC --> AE["Auto Source"]
    AC --> AF["Auto Power Off"]
    AC --> AG["Volume 0 ~ 8"]
    AC --> AH["Menu Position"]
    AH --> AI["Menu Display 10 ~ 20 seconds"]
    AH --> AJ["Translucent Menu"]
    AH --> AK["Reset"]

    AL["User Color"] --> AM["Red 0 ~ 100"]
    AL --> AN["Green 0 ~ 100"]
    AL --> AO["Blue 0 ~ 100"]
    AL --> AP["Cyan 0 ~ 100"]
    AL --> AQ["Magenta 0 ~ 100"]
    AL --> AR["Yellow 0 ~ 100"]
    AL --> AS["White 0 ~ 100"]
    AL --> AT["Reset"]

    AU["Status"] --> AV["Video Information"]
    AU --> AW["Active Source"]
    AU --> AX["Software Version"]
    AU --> AY["Lamp Hours"]
    AU --> AZ["Lamp Mode"]
    AU --> BA["Lamp Hour Reset"]

    BB["Setup"] --> BC["Utility"]
    BC --> BD["Video Type"]
    BC --> BE["Video AGC"]
    BC --> BF["Frequency"]
    BC --> BG["Tracking 0 ~ 100"]
    BC --> BH["Digital Zoom"]
    BC --> BI["Reset"]

    BJ["Tool"] --> BK["Language"]
    BJ --> BL["Remote control test"]
    BJ --> BM["USB test"]
    BJ --> BN["Button test"]
    BJ --> BO["Color test"]
    BJ --> BP["Sound test"]

    BQ["Setup"] --> BR["(1) Cool (2) Normal * (3) Warm"]
    BCQ --> BS["(1) PC * (2) MAC (3) Video (4) Chart (5) B&W"]
    BCQ --> BT["(1) Auto * (2) RGB (3) YPbPr (4) YCbCr"]

    CA["Utility"] --> CB["(1) Auto * (2) NTSC (3) PAL (4) SECAM"]
    CA --> CC["(1) on * (2) off"]

    CD["Setup"] --> CE["(1) Front * (2) Rear (3) Front & Ceiling (4) Rear & Ceiling"]

    CF["Tool"] --> CG["Language"]
    CF --> CH["Remote control test"]
    CF --> CI["USB test"]
    CF --> CJ["Button test"]
    CF --> CK["Color test"]
    CF --> CL["Sound test"]

    CM["Setup"] --> CN["(1) Black (2) Red (3) Green (4) Blue * (5) White"]
    CM --> CO["(1) on * (2) off"]

    CP["Utility"] --> CQ["(1) Black (2) Red (3) Green (4) Blue * (5) White"]

    CPQ["Setup"] --> CPQ["(1) Black (2) Red (3) Green (4) Blue * (5) White"]

    CPQQ["Setup"] --> CPQQ["(1) On Black (2) Red (3) Green (4) Blue * (5) White)"]

    CPQQQ["Setup"] --> CPQQQ["(1) On Black (2) Red (3) Green (4) Blue * (5) White)"]

    CPQQQQ["Setup"] --> CPQQQQ["(1) On Black (2) Red (3) Green (4) Blue * (5) White)"]

    CPQQQQ["Setup"] --> CPQQQ

Main Menu

Press the Menu button to open the OSD menu. Press the cursor ◀▶ button to move to the Main menu. Press the cursor ▲▼ button to move up and down in the Main menu. Press ◀▶ to change values for settings, and then press Enter or ▶ to confirm the new setting.

Item Description Default
Brightness Press the cursor button to adjust the brightness. (Range: 0 - 100)		50
Contrast Press the cursor button to adjust the contrast. (Range: 0 - 100) 50
Sharpness Press the cursor button to adjust the display sharpness (Range: 1-5)		3
Color Temperature Press the cursor ◀ button to adjust the color temperature. (Range: Cool/Normal/Warm)		Normal
Color Saturation Press the cursor button to adjust the video saturation. (Range: 0 - 100)		50
Color Tint Press the cursor button to adjust the video tint/hue. (Range: 0 - 100)		50
Gamma Press the cursor button to adjust the gamma correction of the display.Input GammaPC 2.2MAC 1.8Video 2.4Chart 2.2B&W 2.4		Data source: PCVideo source: Video
Color Space Press the cursor button to adjust the color space.(Range: Auto – RGB – YPbPr- YCbCr)		Auto
Reset Resets all Main settings to default values —

Main Menu Functions Available for Connected Source

Function	RGB	DVI	Component Video	Composite Video	S-video
Brightness x	x		x x	x
Contrast x	x	x	x	x
Sharpness x	x		x x	x
Color Temp x	x		x x	x
Color Saturation			x	x	x
Color Tint			x	x	x
Gamma	x	x	x	x	x
Color Space	x	x	x	x	x
Reset	x	x	x	x	x

x = available to video source

Setup Menu

Press the Menu button to open the OSD menu. Press the cursor ◀▶ button to move to the Setup menu. Press the cursor ▲▼ button to move up and down in the Setup menu. Press ◀▶ to change values for settings, and then press Enter or ▶ to confirm the new setting.

Item Description Default
Horizontal Position	Press the cursor button to move the image left or right. (Range: 0 – 100)	50
Vertical Position	Press the cursor button to move the image up or down. (Range: 0 – 100)	50
Keystone Press the cursor button to correct distortion of the projected image. (Range: -50 – +50)		0
Aspect Ratio-Press the cursor button to toggle between the 4:3 standard format and the 16:9 High Definition TV (HDTV) format.		4:3
Advance Feature	See “Advance Feature” on page 27.	—
Reset Resets Keystone and Aspect Ratio to default values —

Setup Menu Functions Available for Connected Source

Function	RGB	DVI	Component Video	Composite Video	S-video
H Position x
V Position	x
Keystone correction	x	x	x	x	x
Aspect Ratio	x	x	x	x	x
Advance Feature	x	x	x	x	x
Reset x x		x	x	x

x = available to video source

Advance Feature

Press the Menu button to open the OSD menu. Press ◀▶ to move to the Setup menu. Press ▲▼ to move to the Advance Feature menu and then press Enter or ▶. Press ▲▼ to move up and down in the Advance Feature menu. Press ◀▶ to change values for settings, and then press Enter or ▶ to confirm the new setting.

Item Description Default
User Color This feature adjusts the color balance in each color of RGB (red, green, blue), and their neutral colors (cyan, magenta, yellow, white) by using color correction adjustment. Increasing a color's setting heightens the intensity of that color on the screen, while a lower setting makes the color less intense.Press ▲▼ to select a color.Press ◀▶ to adjust the selected color. (Range: 0 – 100)	80
White Peaking	White Peaking increases the output in the brightest whites without changing the blacks and dark grays. It crushes the whites slightly, but it does not appear to clip them or seriously obscure white detail. If you prefer a stronger image, adjust toward the maximum setting. For a smoother, more natural image, adjust toward the minimum setting.Press ◀▶ to adjust the value of white peaking. (Range: 0 – 10)	Data source: 10Video source: 2
Logo Display	Press ◀▶ to enable or disable if the logo displays when the projector starts, and when no source is detected. (Range: On – Off)	On
Fan Speed Press the cursor button to toggle between normal and high fan speedSet Fan Speed toHighin altitudes over 1500 meters (5000 feet).		Normal
Security Lock	Press the cursorbutton to enable or disable Security Lock.When you enable Security Lock a Register Password dialog box appears:You can only use the following four cursor buttons,▲▼◄►in the password fields. Press the cursor buttons five times in any order and confirm to set the password. When the password is enabled, it must be entered every time after you power on the projector. See “Setting an Access Password (Security Lock)” on page 16 for steps on setting the password.	—
Audio Input	Press the cursor◄►button to toggle betweenPCandVideoinput channels.	Data Source:PCVideo source:Video
Reset	PressEnterset advance feature settings to default values	—

Note: If Security Lock is enabled, you must enter the password every time the projector is turned on. However, if the projector is already turned on, Security Lock can be disabled without knowing the current password.

User Color

Press the Menu button to open the OSD menu. Press ◀▶to move to the Setup menu. Press ▲▼ to move to the Advance Feature menu and then press Enter or ▶. Press ▲▼ to move to the User Color menu and then press Enter or ▶. Press ▲▼ to move up and down to select a color. Press ◀▶ to change values for settings, and then press Enter or ▶ to confirm the new setting.

Item Description Default
Red Press	the cursor button to adjust the red color level. (Range: 0-100)	80
Green	Press the cursor ◀▶ button to adjust the green color level. (Range: 0-100)	80
Blue	Press the cursor ◀▶ button to adjust the blue color level. (Range: 0-100)	80
Cyan	Press the cursor ◀▶ button to adjust the cyan color level. (Range: 0-100)	80
Magenta	Press the cursor ◀▶ button to adjust the magenta color level. (Range:0-100)	80
Yellow	Press the cursor ◀▶ button to adjust the yellow color level. (Range: 0-100)	80
White	Press the cursor ◀▶ button to adjust the white color level. (Range: 0-100)	80
Reset Resets all User Color settings to default values —

Config Menu

Press the Menu button to open the Main menu. Press the cursor ◀▶ button to move to the Config menu. Press the cursor ▲▼ button to move up and down in the Config menu. Press ◀▶ to change values for settings, and then press Enter or ▶ to confirm the new setting.

Item Description Default
Blank Screen	Press the cursor button to select a background color for the blank screen. (Range: Black – Red – Green – Blue – White)	Blue
Auto Source	Press the cursor button to enable or disable automatic source detection. (Range: On – Off)	On
Auto Power Off	Press the cursor button to enable or disable automatic shutdown of lamp after 10 minutes of inactivity. (Range: On – Off)	Off
Volume Press	the cursor button to adjust the audio volume level. (Range: 0 - 8)	4
Menu Position	Press the cursor button to position the OSD on screen. (Range: Left – Right – Center – Down – Up)	Center
Menu Display	Press the cursor button to determine the timeout delay of the OSD. (Range: 10 – 20 sec.)	15
Translucent Menu	Press the cursor button to set menu screen translucency. (Range: 0% – 100%)	0%
Reset Resets	all Config items to default values

Note: The Config menu functions are available to all video sources.

Utility Menu

Press the Menu button to open the Main menu. Press the cursor ◀▶ button to move to the Utility menu. Press the cursor ▲▼ button to move up and down in the Utility menu. Press ◀▶ to change values for settings, and then press Enter or ▶ to confirm the new setting.

Item Description Default
Video Type Press the cursor button to select the video standard(Range: Auto - NTSC - PAL - SECAM)		Auto
Video AGC Press the cursor button to enable or disable automatic gain control for the video source. (Range: On - Off)		On
Projection	Press the cursor button to choose from four projection methods: Desktop mount, front of screen Desktop mount, rear of screen Ceiling mount, front of screen Ceiling mount, rear of screen	Desktop frontP
Frequency Press the cursor button to adjust the A/D sampling clock. (Range: 0° - 180°)		Auto detected
Tracking Press the cursor button to adjust the A/D sampling number. (Range: 1 - 100)		Auto detected
Digital Zoom Digital	operation for zoom and pan adjustment. Press Enter or ▶. The Zoom menu appears.	—
	Press ▲ to zoom in; press ▼ to zoom out. Press Enter or ▶ to open the Pan menu. (You must zoom in be-fore you can open the Pan menu.)
	Use the cursor buttons to pan the zoomed image. Press the Menu button to exit.
Reset Resets Video	Type, Video AGC, Projection, and Digi-tal Zoom to default values	—

Utility Menu Functions Available for Connected Source

Function	RGB	DVI	Component Video	Composite Video	S-video
Video Type			x	x
Video AGC			x	x
Projection X x		x	x	x
Frequency x		x
Tracking	x
Digital Zoom	x		x	x	x
Reset	x	x	x	x	x

x = available to video source

Tool Menu

Press the Menu button to open the Main menu. Press the cursor ◀▶ button to move to the Tool menu. Press the cursor ▲▼ button to move up and down in the Tool menu. Press Enter or ▶ to confirm the new setting.

Item Description Default
Language	Press the cursor ◀▶ to select the desired language	English
Remote control test	Follow on-screen prompts to carry out the remote control test. You are returned to the Tool menu at the end or by pressing the Menu button.
USB test	Follow on-screen prompts to carry out the USB test. You are returned to the Tool menu at the end or by pressing the Menu button.
Button test	Follow on-screen prompts to carry out the button test. You are returned to the Tool menu at the end or by pressing the Menu button.
Color test	Follow on-screen prompts to carry out the color test. You are returned to the Tool menu at the end or by pressing the Menu button.
Sound test	Follow on-screen prompts to carry out the sound test. You are returned to the Tool menu at the end or by pressing the Menu button.

Status Menu

Press the Menu button to open the Main menu. Press the cursor ◀▶ button to move to the Status menu. Press the cursor ▲▼ button to move up and down in the Status menu.

Item Description Default
Video Information	Displays the resolution and refresh rate for RGB/DVI mode.Displays the color standard for video mode.	These items are display only.
Active Source	Displays the active source.
Software Version	Displays information about the software version.
Lamp Hours	Shows the number of hours lamp has been in use for Eco , Normal and Boost modes.
Lamp Mode Press	Press the cursor button to choose the lamp mode.Range: Eco , Normal and Boost.Eco mode uses less power and extends lamp life, but decreases lamp brightness.Boost mode uses more power and reduces lamp life, but increases lamp brightness.	Normal
Lamp Hour Reset	After replacing the lamp, this item should be reset. Refer to “Replacing the Projection Lamp” on page 35.	—

Maintenance and Security

Replacing the Projection Lamp

The projection lamp should be replaced when it burns out. It should only be replaced with a certified replacement part, which you can order from your local dealer.

Important:

1. The lamp contains a certain amount of mercury and should be disposed of according to local ordinance regulations.
2. Avoid touching the glass surface of the new lamp: Doing so may shorten its operation life.

Warning:

Be sure to turn off and unplug the projector at least an hour before replacing the lamp. Failure to do so could result in a severe burn.

Note:

Safety glasses should be worn when replacing the lamp while the projector is ceiling mounted.

1. Loosen the two captive screws on the lamp compartment cover (A).

1. Open the lamp compartment cover (B).

Diagram of an open projector with labeled component (no text or symbols beyond label)

1. Remove the two screws from the lamp module (C).

1. Lift the module handle up (D).

2. Pull firmly on the module handle to remove the lamp module (D)

Diagram of an open projector with internal components and a labeled component (D), showing no text or symbols beyond the label.

1. Reverse steps 1 to 5 to install the new lamp module.

Resetting the Lamp

After replacing the lamp, you should reset the lamp hour counter to zero. Refer to the following:

1. Press the Menu button to open the Main menu.
2. Press the cursor button to move to the Status menu.
3. Press the cursor ▲ button to move down to Lamp Hour Reset.
4. Press the cursor ▶ or Enter button.

A message screen appears.

1. Press the cursor buttons in this order: ▼; ▲; ◀▶ The Status menu appears again showing the Lamp Hours reset to zero.

Cleaning the Projector

Cleaning the projector to remove dust and grime will help ensure trouble-free operation.

Warning:

1. Be sure to turn off and unplug the projector at least an hour before cleaning. Failure to do so could result in a severe burn.
2. Use only a dampened cloth when cleaning. Do not allow water to enter the ventilation openings on the projector.
3. If a little water gets into the projector interior while cleaning, leave unplugged in a well-ventilated room for several hours before using.
4. If a lot of water gets into the projector interior when cleaning, have the projector serviced.

Cleaning the Lens

You can purchase optic lens cleaner from most camera stores. Refer to the following to clean the projector lens.

1. Apply a little optic lens cleaner to a clean soft cloth. (Do not apply the cleaner directly to the lens.)
2. Lightly wipe the lens in a circular motion.

Caution:

1. Do not use abrasive cleaners or solvents.
2. To prevent discoloration or fading, avoid getting cleaner on the projector case.

Cleaning the Case

Refer to the following to clean the projector case.

1. Wipe off dust with a clean dampened cloth.
2. Moisten the cloth with warm water and mild detergent (such as used to wash dishes), and then wipe the case.
3. Rinse all detergent from the cloth and wipe the projector again.

Caution:

To prevent discoloration or fading of the case, do not use abrasive alcohol-based cleaners.

Using the Kensington® Lock

If you are concerned about security, attach the projector to a permanent object with the Kensington slot and a security cable.

Note:

Contact your vendor for details on purchasing a suitable Kensington security cable.

The security lock corresponds to Kensington's MicroSaver Security System. If you have any comment, contact: Kensington, 2853 Campus Drive, San Mateo, CA94403, U.S.A. Tel: [phone], http://www.Kensington.com.

Common problems and solutions

These guidelines provide tips to deal with problems you may encounter while using the projector. If the problem remains unsolved, contact your dealer for assistance.

Often after time spent troubleshooting, the problem is traced to something as simple as a loose connection. Check the following before proceeding to the problem-specific solutions.

• Use some other electrical device to confirm that the electrical outlet is working.
• Ensure the projector is turned on.
• Ensure all connections are securely attached.
• Ensure the attached device is turned on.
• Ensure a connected PC is not in suspend mode.
• Ensure a connected notebook computer is configured for an external display. (This is usually done by pressing an Fn-key combination on the notebook.)

Tips for Troubleshooting

In each problem-specific section, try the steps in the order suggested. This may help you to solve the problem more quickly.

Try to pin point the problem and thus avoid replacing non-defective parts.

For example, if you replace batteries and the problem remains, put the original batteries back and go to the next step.

Keep a record of the steps you take when troubleshooting: The information may be useful when calling for technical support or for passing on to service personnel.

LED Error Messages

Error code message Power LED/flashes Ready LED/flashes
Lamp usage task created error 2 1
Environment usage task created error 2 2
Thermal break status error 3 0
T1 temperature over temperature 3 1
T1 sensor status fail 4 1
Lamp lit error 5 1
Ballast SCI error 5 2
Ballast UART error 5 3
Fan1 error (Lamp) 6 1
Fan2 error (Ballast) 6 2
Fan3 error (Burner) 6 3
Fan4 error (Power) 6 4
Lamp door sensor detect high 7 0
DMD error 8 0
Color wheel error	9 0

Image Problems

Problem: No image appears on the screen

1. Verify the settings on your notebook or desktop PC.
2. Turn off all equipment and power up again in the correct order.

Problem: The image is blurred

1. Adjust the Focus on the projector.
2. Press the Auto button on the remote control or projector.
3. Ensure the projector-to-screen distance is within the 10-meter (33-feet) specified range.
4. Check that the projector lens is clean.

Problem: The image is wider at the top or bottom (trapezoid effect)

1. Position the projector so it is as perpendicular to the screen as possible.
2. Use the Keystone button on the remote control or projector to correct the problem.

Problem: The image is reversed or upside down

Check the Projection setting on the Utility menu of the OSD.

Problem: The image is streaked

1. Set the Frequency and Tracking settings on the Utility menu of the OSD to the default settings.

2. To ensure the problem is not caused by a connected PC's video card, connect to another computer.

Problem: The image is flat with no contrast

Adjust the Contrast setting on the Main menu of the OSD.

Problem: The color of the projected image does not match the source image.

Adjust the Color Temperature and Gamma settings on the Main menu of the OSD.

Lamp Problems

Problem: There is no light from the projector

1. Check that the power cable is securely connected.
2. Ensure the power source is good by testing with another electrical device.
3. Restart the projector in the correct order and check that the Power LED is green.
4. If you have replaced the lamp recently, try resetting the lamp connections.
5. Replace the lamp module.
6. Put the old lamp back in the projector and have the projector serviced.

Problem: The lamp goes off

1. Power surges can cause the lamp to turn off. Press the power button twice to turn off the projector. When the Ready LED is on, press the power button.
2. Replace the lamp module.
3. Put the old lamp back in the projector and have the projector serviced.

Remote Control Problems

Problem: The projector does not respond to the remote control

1. Direct the remote control towards remote sensor on the projector.
2. Ensure the path between remote and sensor is not obstructed.
3. Turn off any fluorescent lights in the room.
4. Check the battery polarity.
5. Replace the batteries.
6. Turn off other Infrared-enabled devices in the vicinity.
7. Have the remote control serviced.

Audio Problems

Problem: There is no sound

1. Adjust the volume on the remote control.
2. Adjust the volume of the audio source.
3. Check the audio cable connection.
4. Test the source audio output with other speakers.
5. Have the projector serviced.

Problem: The sound is distorted

1. Check the audio cable connection.
2. Test the source audio output with other speakers.
3. Have the projector serviced.

Input/output connectors

	PR3010	PR3020	PR5020
	×	×	DVI-D
	RGB HD-15
Data out RGB HD-15
	composite video (RCAx1) Video
	S-video
	Stereo RCAx2 (L+R) Audio in
	Stereo Mini-jack
Audio out Stereo Mini-jack
	×	×	RS-232
	USB
Security	Kensington

lock

Projection Distance V.S. Projection Size

PR3020 and PR3010 Projection distance and size table

Max. Screen Size(Wide)			1.89	Max. Screen Size(Tele)		2.18
ProjectionDistance L	Diagonal	WidthA	HeightC	Diagonal	WidthB	HeightD
1.00 m 0.66 m 0.53 m 0.40 m 0.57 m 0.46 m 0.34 m
3.28'	26.04"	20.83"	15.62"	22.57"	18.06"	13.54"
1.50 m 0.99 m 0.79 m 0.60 m 0.86 m 0.69 m 0.52 m
4.92'	39.06"	31.25"	23.43"	33.86"	27.09"	20.32"
2.40 m 1.59 m 1.27 m 0.95 m 1.38 m 1.10 m 0.83 m
7.87'	62.49"	49.99"	37.50"	54.18"	43.34"	32.51"
2.80 m 1.85 m 1.48 m 1.11 m 1.61 m 1.28 m 0.96 m
9.18'	72.91"	58.33"	43.74"	63.21"	50.57"	37.93"
3.20 m 2.12 m 1.69 m 1.27 m 1.83 m 1.47 m 1.10 m
10.50'	83.32"	66.66"	49.99"	72.24"	57.79"	43.34"
3.60 m 2.38 m 1.90 m 1.43 m 2.06 m 1.65 m 1.24 m
11.81'	93.74"	74.99"	56.24"	81.27"	65.01"	48.76"
4.00 m 2.65 m 2.12 m 1.59 m 2.29 m 1.83 m 1.38 m
13.12'	104.15"	83.32"	62.49"	90.30"	72.24"	54.18"
4.40 m 2.91 m 2.33 m 1.75 m 2.52 m 2.02 m 1.51 m
14.43'	114.57"	91.66"	68.74"	99.33"	79.46"	59.60"
4.80 m 3.17 m 2.54 m 1.90 m 2.75 m 2.20 m 1.65 m
15.74'	124.98"	99.99"	74.99"	108.36"	86.69"	65.01"
5.20 m 3.44 m 2.75 m 2.06 m 2.98 m 2.39 m 1.79 m
17.06'	135.40"	108.32"	81.24"	117.39"	93.91"	70.43"
5.60 m 3.70 m 2.96 m 2.22 m 3.21 m 2.57 m 1.93 m
18.37'	145.82"	116.65"	87.49"	126.42"	101.13"	75.85"
7.00 m 4.63 m 3.70 m 2.78 m 4.01 m 3.21 m 2.41 m
22.96'	182.27"	145.82"	109.36"	158.02"	126.42"	94.81"
10.00 m 6.61 m 5.29 m 3.97 m 5.73 m 4.59 m 3.44 m
32.80'	260.38"	208.31"	156.23"	225.75"	180.60"	135.45"

PR5020 Projection distance and size table

Projection Distance L		Max. Screen Size (Wide)		1.8	Max. Screen Size (Tele)		2.1
		Diagonal	Width A	Height C	Diagonal	Width B	Height D
1.00 m	0.69 m	0.56 m	0.42 m	0.60 m	0.48 m	0.36 m
3.28'		27.34"	21.87"	16.40"	23.43"	18.75"	14.06"
1.50 m	1.04 m	0.83 m	0.63 m	0.89 m	0.71 m	0.54 m
4.92'		41.01"	32.81"	24.61"	35.15"	28.12"	21.09"
2.40 m	1.67 m	1.33 m	1.00 m	1.43 m	1.14 m	0.86 m
7.87'		65.62"	52.49"	39.37"	56.24"	44.99"	33.75"
2.80 m	1.94 m	1.56 m	1.17 m	1.67 m	1.33 m	1.00 m
9.18'		76.55"	61.24"	45.93"	65.62"	52.49"	39.37"
3.20 m	2.22 m	1.78 m	1.33 m	1.90 m	1.52 m	1.14 m
10.50'		87.49"	69.99"	52.49"	74.99"	59.99"	44.99"
3.60 m	2.50 m	2.00 m	1.50 m	2.14 m	1.71 m	1.29 m
11.81'		98.43"	78.74"	59.06"	84.36"	67.49"	50.62"
4.00 m	2.78 m	2.22 m	1.67 m	2.38 m	1.90 m	1.43 m
13.12'		109.36"	87.49"	65.62"	93.74"	74.99"	56.24"
4.40 m	3.06 m	2.44 m	1.83 m	2.62 m	2.10 m	1.57 m
14.43'		120.30"	96.24"	72.18"	103.11"	82.49"	61.87"
4.80 m	3.33 m	2.67 m	2.00 m	2.86 m	2.29 m	1.71 m
15.74'		131.23"	104.99"	78.74"	112.49"	89.99"	67.49"
5.20 m	3.61 m	2.89 m	2.17 m	3.10 m	2.48 m	1.86 m
17.06'		142.17"	113.74"	85.30"	121.86"	97.49"	73.12"
5.60 m	3.89 m	3.11 m	2.33 m	3.33 m	2.67 m	2.00 m
18.37'		153.11"	122.48"	91.86"	131.23"	104.99"	78.74"
7.00 m	4.86 m	3.89 m	2.92 m	4.17 m	3.33 m	2.50 m
22.96'		191.38"	153.11"	114.83"	164.04"	131.23"	98.43"
10.00 m	6.94 m	5.56 m	4.17 m	5.95 m	4.76 m	3.57 m
32.80'		273.40"	218.72"	164.04"	234.35"	187.48"	140.61"

Shaded rows are equivalent measurement in feet and inches

Timing Mode Table

The projector can display several resolutions. The following table outlines the resolutions that can be displayed by the projector.

Signal Resolution		Frequency H. (KHz)	Frequency V. (Hz)	Video Digital Analog
NTSC	-	15.734	60.0		O - -
PAL/SECAM	-	15.625	50.0		O - -
VESA	640 x 350 37.9	85.1		-	O O
	720 x 400 31.5	70.0		-	O O
	720 x 400 37.9	85.0		-	O O
	640 x 480 31.5	60.0		-	O O
	640 x 480 37.9	72.8		-	O O
	640 x 480 37.5	75.0		-	O O
	640 x 480 43.3	85.0		-	O O
	800 x 600 37.9	60.3		-	O O
	800 x 600 46.9	75.0		-	O O
	800 x 600 48.1	72.2		-	O O
	800 x 600 53.7	85.1		-	O O
	1024 x 768 48.4	60.0		-	O O
	1024 x 768 56.5	70.1		-	O O
	1024 x 768 60.0	75.0		-	O O
	1024 x 768 68.7	85.0		-	O O
	1280 x 1024 64.0	60.0		-	O O
	1600 x 1200**	75.0	60.0	- -
Apple Macintosh	640 x 480 35.0	66.7		-	O O
	832 x 624 49.7	74.5		-	O O
	1024 x 768 60.2	74.9		-	O O
	1152 x 870 68.7	75.1		-	O O
SDTV	480i	31.5	30.0	- - -
	576i	31.3	25.0	- - -
	480p	31.5		60.0 - - -
HDTV	576p	31.3		50.0 - - -
	720p	45.0		60.0 - - -

O: Frequency supported - : Frequency not supported
The native resolution for the PR5020 and PR3020 is 1024 × 768 . The native resolution for the PR3010 is 800 × 600 . Resolution other than native mode may be displayed with uneven size of text or lines.
UXGA resolution with half-sampling
Digital Timing is only for PR5020

Projector Dimensions

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Changes or modifications not expressly approved by the parties responsible for compliance could void the user's authority to operate the equipment.

Canada

This class B digital apparatus complies with Canadian ICES-003.

Safety Certifications

FCC Class B, UL, C-UL, CE, CB, TUV-GS, CCC, ICES-003(Class B)

EN 55022 Warning

This is a Class B product. In a domestic environment, it may cause radio interference, in which case the user may be required to take adequate measures. The typical use is in a conference room, meeting room, or auditorium.

Planar Systems, Inc.

Corporate Headquarters

1195 NW Compton Drive

Beaverton, OR 97006-1992

Planar Customer Support

Telephone:

US: 1-866-PLANAR1 [phone]

Outside US: [phone]

E-mail: [e-mail]

Online Technical Library: http://www.planar.com/support

Hours: M-F, 8am - 8pm ET, 12pm - 12am GMT

© 2006 Planar Systems, Inc. Planar is a registered trademark of Planar Systems, Inc.

Other brands and names are the property of their respective owners.

Technical information in this document is subject to change without notice
