DH150 - Dishwasher Tricity Bendix - Free user manual and instructions

Product Type	Dishwasher
Brand	Tricity Bendix
Model	DH150
Dimensions (HxWxD)	85 cm x 60 cm x 60 cm
Height without worktop	82 cm
Depth with door open	115.2 cm
Weight	Approx. 50 kg
Electrical Connection	220-240 V ~ 50 Hz
Motor Power	200 W
Heating Element Power	2100 W
Total Power	2300 W
Water Pressure (min/max)	50 kPa (0.5 bar) / 800 kPa (8 bar)
Capacity	12 place settings
Wash Programmes	Rinse & Hold, Power Wash 65°C, Normal Wash 65°C, Eco Wash 65°C
Water Softener	Adjustable (5 levels + off)
Rinse Aid Dispenser	Yes, adjustable dosage (6 positions)
Salt Container	Yes, with refill indicator
Filter System	Central filter, large filter, drain filter
Spray Arms	Upper and lower spray arms
Safety Features	Child lock (door ajar hazard prevention), automatic stop when door opened
Materials	Stainless steel interior, plastic exterior
Guarantee	12 months standard

Frequently Asked Questions - DH150 Tricity Bendix

How do I adjust the water softener on my Tricity Bendix DH150 dishwasher?

The water softener can be adjusted using a screwdriver to turn the selector on the upper front corner of the machine. Refer to the hardness of your water supply (in Clarke, French degrees, or PPM) and set the level accordingly. The factory default is level 2. If your water is very soft (level 0), set it to level 1 and do not use salt.

What detergent should I use in my DH150 dishwasher?

Only use detergents specifically designed for dishwashers, such as Finish products (tablets, powder, or liquid gel). Follow the dosage instructions on the packet. For tablet detergents, place one tablet inside the detergent dispenser; if the programme has a prewash, place a portion of a second tablet on the lid of the dispenser.

How do I clean the filters in the DH150 dishwasher?

After each wash, rinse the central filter (drain filter) under running water. Every month, clean the large filter on both sides with a brush. To remove the large filter, pull the spray arm upwards, turn the column anticlockwise by 90°, and slide out the filter. Ensure filters are correctly repositioned before use.

Why are my dishes not drying properly?

Check the rinse aid level and increase the dosage if necessary (adjust the selector on the rinse aid dispenser from position 3 upward). Also, leave the dishwasher door ajar for 15-30 minutes after the programme finishes to improve drying. Ensure the rinse aid compartment is filled and the lid is closed tightly.

What should I do if the dishwasher won't start?

Ensure the door is properly closed, the plug is fully inserted into the power socket, and there is no power failure. Check that the mains water supply is turned on and the inlet hose is not kinked or blocked. If the issue persists, consult the 'Something Not Working' section in the manual.

How do I set the rinse aid dosage on the DH150?

The rinse aid dispenser has a 6-position selector (C). Start at position 3. If there are water drops or lime spots on dishes, increase the dose. If there are sticky white streaks, decrease the dose. Fill the dispenser until full; the indicator (B) turns dark when full and clear when empty.

Can I install the DH150 dishwasher under a counter?

Yes, you can remove the worktop by unscrewing the two rear retaining screws, then pulling and sliding it out. Adjust the height with the levelling feet before sliding the machine into the recess. Ensure the water inlet and drain hoses are not kinked or squashed.

What items should not be washed in the DH150 dishwasher?

Do not wash items contaminated with petrol, paint, steel/iron debris, corrosive, acidic, or alkaline chemicals. Also avoid wooden or horn-handled cutlery, bronze cutlery, wooden-handled saucepans, aluminium ware, crystal, leaded glass, plastic items not labelled dishwasher-safe, and antique china with delicate decorations.

How do I add salt to the water softener?

Unscrew the cap of the salt container. Before first use, pour 1 litre of water inside. Then fill with dishwasher salt using the funnel provided. Replace the cap tightly, ensuring no salt on the thread or gasket. Refill when the green float in the cap indicator disappears. Only fill before starting a full wash programme (not the Rinse & Hold programme).

What is the capacity of the Tricity Bendix DH150 dishwasher?

The dishwasher has a capacity of 12 standard place settings, suitable for a typical household. The upper basket can hold plates up to 24 cm in diameter (or 20 cm when in the higher position), and the lower basket can accommodate larger items up to 31 cm when the upper basket is raised.

USER MANUAL DH150 Tricity Bendix

Abstract green brushstroke design with a white curved shape and scattered dots, resembling a stylized human figure or logo (no text or symbols)

Dishwasher

DH 105

Contents

For the user

Important safety information 3

Description of the appliance 4

The control panel 4

Before use 5

Setting the water softener 5

Rinse aid 7

Using your appliance 8

Loading your appliance 8

Adjusting the height of the upper basket 9

Use of detergent 10

Hints and tips 11

Washing programmes 12

Operating sequence 13

Maintenance and cleaning 14

Internal cleaning 14

Cleaning the filter 14

External cleaning 15

Prolonged periods of non-operation 15

Frost precautions 15

Moving the machine 15

Something not working 16

Service and spare parts 17

Customer Care Department 17

Guarantee conditions 18

Hints for test centres 19

Technical specifications 19

Tricity Bendix Service Force 24

For the installer

Installation instructions 20

Water supply connections 20

Water outlet hose connection 21

Electrical connection 22

Adjusting the worktop 23

Fitting under a counter 23

Levelling 23

Guide to use the instruction book

The following symbols will be found in the text to guide you throughout the instructions:

Safety instructions

1.2.3.

Step by step

Hints and tips

Environmental information

Important safety information

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information.

This information has been provided in the interest of your safety. You MUST read it carefully before installing or using the appliance.

Installation

• This appliance is heavy. Care should be taken when moving it.
• It is dangerous to alter the specifications or attempt to modify this product in any way.
• Care must be taken to ensure that the appliance does not stand on the electrical supply cable.
• Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
• Any plumbing work required to install this appliance should be carried out by a qualified plumber or competent person.

Child Safety

• This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the product.
• Keep all packaging well away from children.
• Keep all detergents in a safe place out of children's reach.

During Use

• Items that are contaminated by petrol, paint, steel or iron debris, corrosive, acidic or alkaline chemicals must not be washed in this dishwasher.
• Under no circumstances should you open the door whilst the appliance is in operation. Always turn off the appliance before opening the door.
• Only use detergent specifically designed for use in dishwashers.
• Long bladed knives stored in an upright position are a potential hazard.
• Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.

• When finishing loading or unloading close the door, as an open door can be a hazard.

• Do not sit or stand on the open door.

• Isolate the appliance from the power supply and turn off the water supply after use.
• Care should be taken when cleaning the bottom door seal and hinge area as any exposed metal edges may cut if care is not taken.
• This product should be serviced by an authorised Service engineer, and only genuine spare parts should be used.
• Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine spare parts.

Conservation

In the interest of the environment:

- Materials marked with the symbol are recyclable.

- Check with your local Council or Environmental Health Office to see if there are facilities in your area for re-cycling this appliance.

- When the appliance is to be scrapped, cut off the power supply cable and make the door closing device unusable to prevent young children from being trapped inside.

- Help to keep your country tidy - use authorised disposal sites for your old appliance.

Description of the appliance

1. Water hardness adjustment
2. Levelling spacers
3. Upper basket stop
4. Salt container
5. Large filter
6. Detergent dispenser
7. Control panel
8. Rating plate
9. Rinse aid dispenser
10. Central filter
11. Lower spray arm
12. Upper spray arm
13. Upper basket
14. Worktop

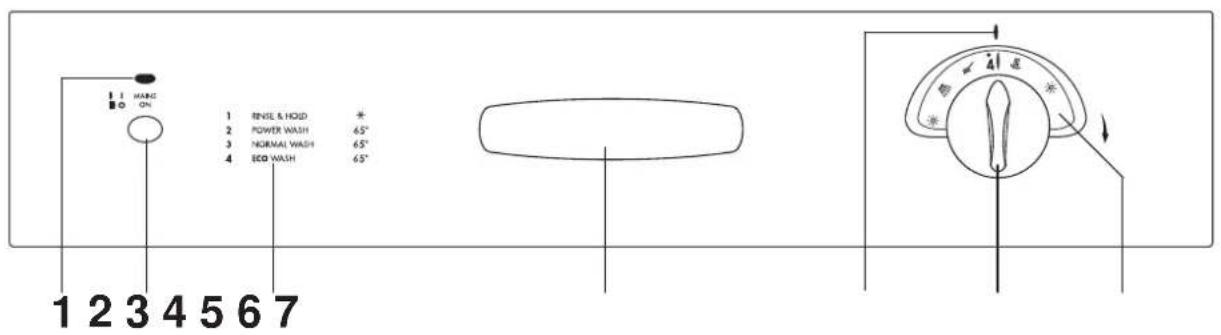

The control panel

1. Mains On indicator light
2. On/Off pushbutton
3. Programme guide
4. Door handle
5. Programme marker
6. Programme selector dial

7. Programme sequence indicator

As the programme progresses, the programme selector dial turns, to show the phase in the wash programme the appliance has reached.

Prewash /Rinse and hold

Wash

Cold rinse

Hot rinse

Drying

Before use

Before using your dishwasher for the first time:

1. Ensure that the electrical and water connections comply with the installation instructions
2. Remove all packaging from inside the appliance
3. Set the water softener
4. Pour 1 litre of water inside the salt container and then fill with salt
5. Fill the rinse aid dispenser.

Setting the water softener

The dishwasher is equipped with a water softener designed to remove minerals and salts from the water supply, which would have a detrimental or adverse effect on the operation of the appliance.

The higher the content of these salts, the harder your water is.

Water hardness is measured in equivalent scales, Clarke, French degrees and PPM (parts per Million).

The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

The dishwasher is factory set at level 2.

If this level is not suitable for your area the softener should be adjusted.

To adjust the water softener

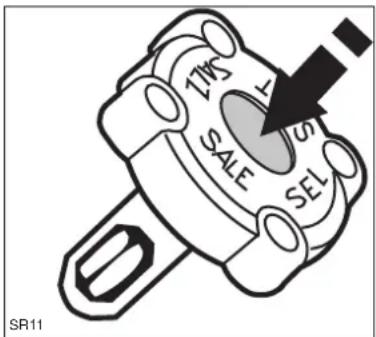

With a screwdriver turn the selector on the upper front corner of the machine until the level required corresponds with the marker.

Water hardness			Level	Use of salt
Clarke degrees	French degrees (°TH)	PPM (Parts per Million)
0 - 6	0 - 8	0 - 80	0	NO
7 - 17	9 - 20	81 - 200	1	YES
18 - 28	21 - 40	201 - 400	2	YES
29 - 42	41 - 60	401 - 600	3	YES
43 - 63	61 - 90	601 - 900	4	YES
64 - 84	91 - 120	901 - 1200	5	YES

If your water is level 0 it is already soft and therefore there is no need to use salt. In this case adjust the water softener to level 1 without using salt.

Filling with salt

Only use salt specifically designed for use in dishwashers.

All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener.

Only fill with salt just before starting one of the complete washing programmes (not the Rinse and Hold programme). This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

To fill:

1. To fill with salt, unscrew the cap of the salt container.
2. Pour 1 litre of water inside the container (this is necessary only before filling with salt for the first time).
3. Using the funnel provided, pour in the salt until the container is full. Do not worry if water over flows from the unit when filling with salt, this is quite normal.
4. Replace the cap making sure that there is no trace of salt on the screw thread or on the gasket.
5. Screw on the cap tightly.

The salt container will require topping up periodically.

The salt cap has a refill indicator window in the centre. A green float is clearly visible when there is salt inside the container, and almost disappears when the salt has finished reminding you to add salt.

Rinse aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying. The dispenser, which is positioned inside the door, holds about 110 ml of rinse aid, which is sufficient for 16 - 40 dishwashing programmes, depending upon the dosage setting.

Filling with rinse aid

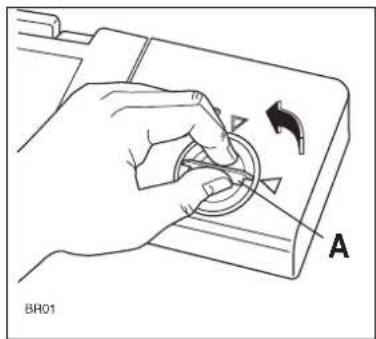

1. Open the container by turning the lid (A) anticlockwise.
2. Add the rinse aid until the container is completely full. The indicator (B) will be completely dark.
3. Top up the rinse aid when the indicator (B) becomes clear.

Ensure that the lid is closed after every refill.

Do not put liquid detergent in the rinse aid compartment. Clean up any rinse aid spilt during filling with an absorbent cloth to avoid excess foaming during the next wash.

Adjusting the dose

According to the finish and drying results obtained, adjust the dose of rinse aid by means of the 6 position selector (C) (position 1 minimum dosage, position 6 maximum dosage).

Start from position 3.

Gradually increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish streaks on the dishes.

Using your appliance

Loading your appliance

Before placing dishes in the machine, remove any scraps of food, to avoid clogging the filters and consequently reducing the performance.

Do not load very small items which can fall through the baskets.

The lower basket

The lower basket is designed to take saucepans, lids, plates, salad bowls, cutlery etc.

Serving dishes and large lids should be arranged around the edge of the basket, ensuring that the upper spray arm can turn freely.

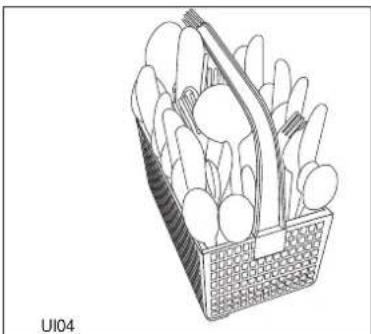

The cutlery basket

Long bladed knives stored in an upright position are a potential hazard. Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. Take care when loading or unloading sharp items such as knives.

Cutlery should be placed in the removable cutlery basket with the handles facing downwards.

If the handles protrude from the bottom of the basket, obstructing the lower spray arm, load the cutlery with the handles facing upwards.

Mix spoons with other cutlery to prevent them from sticking together.

Technical line drawing of a multi-layered industrial machine or processing unit (no text or symbols visible)

Line drawing of a multi-compartment kitchen appliance with cutlery and a handle (no text or symbols)

Line drawing of a woven basket filled with leafy vegetables (no text or symbols)

The upper basket

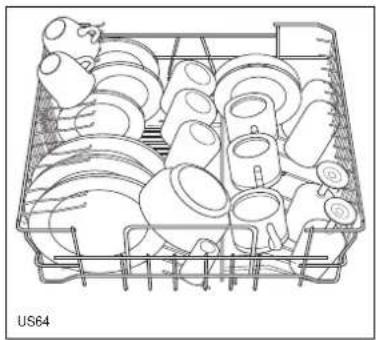

The upper basket is designed for plates (dessert plates, saucers, dinner plates of up to 24 cm in diameter), salad bowls, cups and glasses.

Arrange items on and underneath the fold-down cup racks so that water can reach all surfaces.

Light items (plastic bowls etc.) should be loaded in the upper basket and arranged so they do not move.

Before closing the door, ensure that the spray arms can rotate freely.

Adjusting the height of the upper basket

If washing very large plates (over 27 cm and up to 31 cm in diameter) you can load them in the lower basket after moving the upper basket to the higher position.

To move to the higher position proceed as follows:

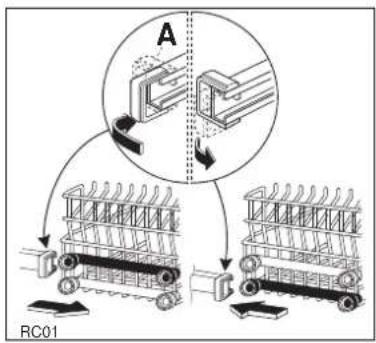

1. Move the front runner stops (A) of the upper basket outward and slide the basket out.

2. Refit the basket in the higher position and replace the stops (A) in their original position.

When the top basket is in the higher position it will only take plates up to 20 cm in diameter and you will not be able to use the raised cup racks.

After loading your machine always close the door, as an open door can be a hazard.

Line drawing of a crate filled with various items, no text or symbols present

Use of detergent

Only use detergents specifically designed for use in dishwashers.

We recommend the use of Finish detergents which are available in the following options:

Finish Double Action Tablets. Each tablet has the exact amount of detergent required, simply place in the dispenser.

Finish Powder recommended for every day use.

Finish Liquid Gel ideal for more delicate items such as fine bone china.

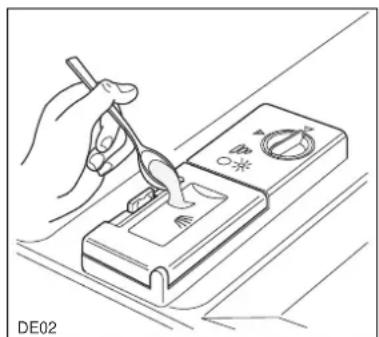

If using powder detergents proceed as follows:

1. Open the dispenser lid by pulling the catch (D).
2. Add the detergent according to the instructions given on the packet.
3. Always close the lid.
4. If the programme has a prewash add the required detergent over the lid of the dispenser.

If using detergent in tablets proceed as follows:

1. For all programmes; place 1 tablet inside the detergent dispenser.
2. Always close the lid.
3. For all programmes with prewash; place a portion of a further tablet on the lid of the detergent dispenser.

Line drawing of a hand using a tool to adjust or install a device with a dial (no text or symbols visible)

Insufficient quantities of detergent will produce poor washing results, whereas an excessive amount of detergent will not improve washing results and is also wasteful.

Using no more than the correct amount also contributes to reducing pollution.

Hints and tips

To save energy

Place dishes in the machine immediately after every meal and wait until the dishwasher is full before washing.

If necessary run the Rinse and Hold programme (see "Washing Programmes" chart) so that any food scraps do not become caked on the dishes while you are waiting to run the complete wash programme.

Do not prewash dishes under running water.

For best washing and drying results

Before loading, remove all scraps of food and soak very heavily soiled pots and pans.

Arrange saucepans, cups and glasses etc. upside-down.

Tilt items with convex or concave surfaces so that the water drains off easily.

Avoid contact between the dishes as far as possible.

Wait a few minutes before removing the dishes; in this way they will be cooler and the drying will be improved.

Empty the lower basket first and then the upper one; this will avoid water dripping from the upper basket onto the dishes in the lower one.

You will improve drying results by leaving the dishwasher door ajar for at least 15-30 minutes as soon as the programme finishes.

Items not suitable for dishwashers

The following items should not be washed in the dishwasher (unless they are sold as dishwasher proof):

• Cutlery with wooden or horn handles or glued parts
• bronze cutlery
• saucepans with wooden handles
• aluminium ware
• crystal ware
• leaded glass
• plastic items
• antique or fine decorated china

Certain types of decoration can discolour when washed in a dishwasher.

Crystal-ware and plastic objects, if not guaranteed dishwasher proof should be washed by hand.

Certain types of glass can also become opaque after being washed several times in a dishwasher.

A chemical reaction can occur between silver cutlery and stainless steel cutlery. As a precaution, do not wash together.

Iron and cast iron objects can rust and stain other items.

Aluminium tends to go black, copper, pewter and brass tend to stain.

If in doubt check with manufacturer of the item.

When buying new dishes, ensure that they are dishwasher proof.

For best results we recommend the use of Finish detergents, rinse aid and salt.

DE15

Washing programmes

Programme	Degree of soil Starting positionof theprogrammer		Requiredpush buttons	Cycledescription
RINSE ANDHOLD	Any.Partial load (to becompleted later in theday).	1	On/Off	1 cold rinse, (to avoid foodscraps from stickingtogether).
POWER WASH65°C	Heavy soil.Crockery, cutlery, potsand pans	2	On/Off	Cold prewashMain wash up to 65°C2 cold rinses1 hot rinseDrying
NORMAL WASH65°C	Normal soil.Crockery and cutlery	3	On/Off	Main wash up to 65°C2 cold rinses1 hot rinseDrying
* ECO WASH65°C	Light soil.Crockery and cutlery	4	On/Off	Main wash up to 65°C1 cold rinse1 hot rinse

* This is a special programme for quick washing a full load of lightly soiled dishes, glasses and crockery (except pots) so that you may re-use them promptly.

Operating sequence

1. Check the filters

Ensure they are clean and properly positioned (see "Maintenance and cleaning").

2. Check that there is rinse aid and salt

3. Load the dishes

Remove any scraps of food.

Pull the lower basket out and arrange the saucepans, plates and cutlery in it.

Pull the upper basket out and arrange the plates, saucers, glasses and cups etc. in it.

Slide the baskets back into the machine.

4. Ensure that the spray arms can rotate freely.

5. Measure out detergent

Add the detergent into the dispenser. Consult the instructions on the packet.

Close the detergent dispenser lid.

6. Close the dishwasher door

7. Set the programme

Turn the programme selector dial clockwise until the number of the programme you wish to select corresponds with the programme marker on the control panel.

8. Start the programme

Depress the On/Off push button.

The "Mains On" indicator light will come on and the machine will start.

If you wish to interrupt the washing programme at any time press this button again.

9. At the end of the washing programme

At the end of the programme the dishwasher will automatically stop.

The "Mains On" indicator light remains on until the On/Off push button is depressed.

10. Switch off the dishwasher

Switch off the dishwasher by pressing the On/Off push button and open the door.

When the washing programme has finished, it is recommended that the dishwasher is unplugged and the water tap turned off.

In general it is not advisable to open the door while the machine is working; if the door is opened however, a safety device ensures that the machine stops.

Important! Care must be taken if the door is opened during the hot phase or immediately after a programme has finished, as steam may escape.

Maintenance and cleaning

Internal cleaning

Ensure that the seals around the door, the detergent and rinse aid dispensers are cleaned regularly with a damp cloth.

We recommend the use of Finish Dishwasher Cleaner every 3 months or run a 65°C wash without dishes using detergent. Regular use of Finish Dishwasher Cleaner cleans inaccessible parts, eliminates unpleasant food odours and helps prevent the build-up of limescale.

Cleaning the central filter

(After each wash)

Scraps of food may accumulate in the drain filter (A) and should be removed by rinsing the filter under running water.

To remove the drain filter

- simply pull it out by the handle.

Once cleaned, refit the filter by pushing it back to its original position until it engages.

Illustration of a hand using a tool to clean or wash a surface, with no text or symbols present.

Cleaning the large filter

(Every month)

If necessary clean the large filter (B) on both sides under running water, using a brush.

To remove the large filter

1. Remove the spray arm by pulling it upwards on one side.

2. Turn the column (C) anticlockwise by 90^ and then slide out the filter.

3. Once cleaned refit it following the above instructions in reverse order.

4. Ensure the filter is in its original position, the handle of the drain filter should be pointing towards the front of the appliance.

Line drawing of a hand cleaning a drain with a brush and surface finish (no text or symbols)

Line drawing of a hand cleaning a showerhead with a filter, no text or symbols present

Diagram of a hand washing a car tire with a hose, showing mechanical components and spray (no text or symbols)

The dishwasher must not be used without filters.

Incorrect repositioning and fitting of the filters will produce poor washing results. Cleaning the filters is vital to ensure correct operation of the machine.

External cleaning

Clean the external surfaces of the machine and control panel with a damp soft cloth. If necessary use only neutral detergents. Never use abrasive products, scouring pads or solvent (acetone, trichloroethylene etc....).

Prolonged periods of non-operation

If you are not using the machine for any period of time you are advised to:

1. Unplug the appliance and then turn off the water.
2. Fill the rinse aid dispenser.
3. Leave the door ajar to prevent the formation of any unpleasant smells.
4. Leave the inside of the machine clean.

Frost precautions

Avoid placing the machine in a location where the temperature is below 0^ C. If this is unavoidable, empty the machine, close the appliance door, disconnect the water inlet pipe and empty it.

Moving the machine

If you have to move the machine (moving house etc....):

1. Unplug it.
2. Turn the water tap off.
3. Remove the water inlet and discharge hoses.
4. Pull the machine out together with the hoses.
   Avoid over tilting the machine during transportation.

Something not working

Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer.

Before contacting your local Service Force Centre, please carry out the checks listed below.

Important: If you call out an engineer to a fault listed below or to repair a fault caused by incorrect use or installation a charge will be made even if the appliance is in guarantee.

Symptom Solution
The machine will not start	The door has not been properly closed.The plug is not properly inserted in the power socket.There is a power failure.
The machine does not fill • Ensure the water tap is open.with water • Ensure the mains water supply has not been cut off.	The inlet hose may be squashed or bent. Reposition the hose.The inlet hose may be blocked. Switch off the water supply and clean the filter.
The filters are blocked	Clean the filters (refer to "Maintenance and cleaning").
The spray arms are not rotating	Ensure the crockery is loaded correctly.
The dishwasher will not drain	The drain hose may be squashed or bent.Reposition the hose.The sink may be blocked. Clear any blockages.The drain hose extension is not correct. Follow the instructions for connecting to the waste.There is no vent in the end of the drain hose.
The machine is noisy	Dishes are rattling against each other, refer to “Loading your machine”.The spray arms are knocking against the dishes. Refer to "Loading your machine".
The door is difficult to close	The dishwasher is not level, or not properly built-in.
Visible lime deposits or white film on the dishes	Check that there is salt and that the salt cap is tight.Check that the right level of the water softener is set.
The dishes are not quite dry	The rinse aid has run out or too little is being used.
The dishes are not clean (poor wash)	The baskets are too full.The dishes have not been arranged properly.The spray arms do not rotateThe spray arms are clogged.The filters are clogged.The filters are not in the correct position.Not enough detergent has been used or it is unsuitable.The detergent is old or has gone hard.The salt container cap is not properly closed.The washing programme selected is too gentle.

If after all these checks, the problem persists, contact your local Service Force Centre, quoting the model and serial number. This information can be found on the rating plate located on the right hand side of the dishwasher door (see picture).

Service and spare parts

In the event of your appliance requiring service, or if you wish to purchase spare parts please contact your local Tricity Bendix Service Centre by telephoning:

08705 929 929

The addresses of Tricity Bendix Service Force Centres can be found at the back of this instruction book.

Before calling out an engineer, please ensure you have read the details under the heading "Something Not Working" and have the model number and purchase date to hand.

In-guarantee customers should ensure that the checks under the heading "Something Not Working" have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown. Please note that it will be necessary to provide proof of purchase for any in-guarantee service calls.

Customer Care Department

For general enquiries concerning your Tricity Bendix appliance or for further information on Tricity Bendix products please contact our Customer Care Department by letter or telephone as follows:

Customer Care Department

Tricity Bendix

55-77 High Street

Slough

Berkshire

SL1 1DZ

Tel: [phone]

Guarantee conditions

Standard guarantee conditions

We, Tricity Bendix Limited, undertake that if within 12 months of the date of purchase this Tricity Bendix appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:

• The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's instructions.
• The appliance has not been serviced, maintained repaired, taken apart or tampered with by any person not authorised by us.
• All service work under this guarantee must be undertaken by a Tricity Bendix Service Force Centre.
• Any appliance or defective part replaced shall become the Company's property.
• This guarantee is in addition to your statutory and other legal rights.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a premium will be charged.

Exclusions

This guarantee does not cover:

• Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.
• Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the United Kingdom.
• Appliances found to be in use within a commercial environment, plus those which are subject to rental agreements.
• Products of Tricity Bendix manufacture which are not marketed by Tricity Bendix Limited.

European Guarantee

If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:

• The guarantee starts from the date you first purchased your product.
- The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use for this brand or range of products.
- This guarantee relates to you and cannot be transferred to another user.
- Your new home is within the European Community (EC) or European free Trade Area.
- The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household.
- The product is installed taking into account regulations in your new country.

Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new home. They will then ensure that the local service Organisation is aware of your move and able to look after you and your appliances.

France Senlis [phone]

Germany Nurnberg [phone]

Italy Pordenone [phone]

Sweden Stockholm [phone]

UK Slough [phone]

Hints for test centres

Before starting any test it is necessary to fill completely with salt the salt container and with rinse aid the rinse aid dispenser.

Test standard EN 50242
Reference programme: Power wash 65°C
Load: 12 standard place settings
Rinse aid selector: position 5
Detergent dosage : 25 g in the dispenser5 g on the dispenser lid

Line drawing of a shopping basket filled with various items (no text or symbols)

Arrangement upper basket

Technical line drawing of a mechanical component with layered internal structure (no text or symbols)

Arrangement lower basket

Technical specifications

DIMENSIONS Width 60 cm	Height with worktop 85 cmHeight without worktop 82 cmMax depth 60 cmMax depth with open door 115.2 cm
ELECTRICAL CONNECTION VoltageMOTOR RATING DURING WASHPOWER OF HEATING ELEMENTOVERALL POWER	220/240 V - 50 Hz	200 W2100 W2300 W
WATER SUPPLY PRESSURE	MinimumMaximum	50 kPa (0.5 bar)800 kPa (8 bar)
CAPACITY		12 place settings

Installation instructions

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

Any plumbing work required to install this appliance should be carried out by a qualified plumber or competent person.

Remove all packaging before positioning the machine.

If possible, position the machine next to a water tap and a drain.

Water supply connections

This dishwasher must be plumbed into a cold water supply.

The water pressure must be within the limits given in the technical specifications.

Your local Water Authority will advise you on the average mains pressure in your area.

The dishwasher features fill and drain hoses which can be turned either to the left or the right to suit the installation.

The locknut must be correctly fitted to avoid water leaks.

Avoid bends or kinks in the hose which could prevent or slow down the water supply.

If the machine is connected to new pipes or pipes which have not been used for a long time, you should run the water for a few minutes before connecting the inlet hose. This will prevent deposits of sand or rust clogging the inlet hose filter.

Water outlet hose connection

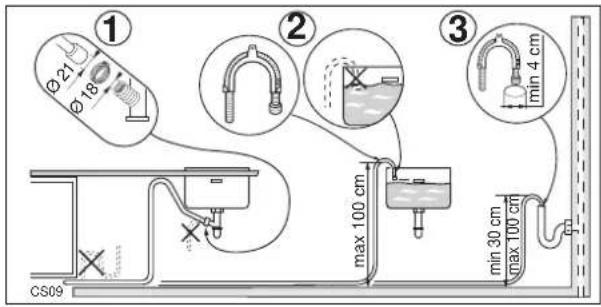

The end of the drain hose can be connected in the following ways:

1. To the sink outlet siphon, securing it if necessary with a clip.
2. Hooked over the edge of the sink using the special curved plastic guide provided.
3. To a stand pipe provided with vent-hole, minimum internal diameter 4 cm.

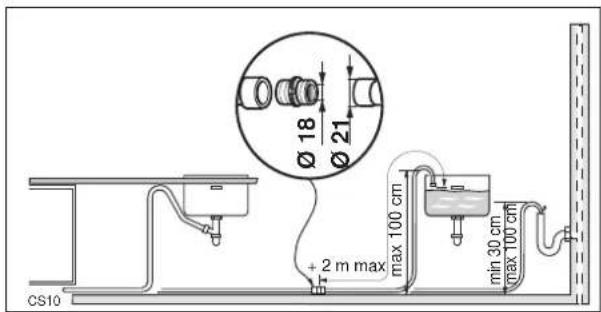

The waste connection must be at a height of between 30 cm (minimum) and 100 cm (maximum) from the bottom of the dishwasher.

The drain hose can face either to the right or left of the dishwasher

Ensure the hose is not bent or squashed as this could prevent or slow down the discharge of water.

If you use a drain hose extension it must be no longer than 2 metres and its internal diameter must be no smaller than the diameter of the hose provided.

Likewise the internal diameter of the couplings used for connections to the waste outlet must be no smaller than the diameter of the hose provided.

The sink plug must not be in place when the machine is draining as this could cause the water to siphon back into the machine.

Electrical connection

This appliance must be earthed. The manufacturer declines any responsibility should this safety measure not be observed.

If the plug that is fitted to your appliance is not suitable for the socket, it must be cut off and the appropriate plug fitted.

Important

The wires on the mains lead are coloured in accordance with the following code:

Green and Yellow -Earth

Blue -Neutral

Brown -Live

If you fit your own plug, the colours of the wires in the mains lead of your appliance may not correspond with the markings identifying the terminals in your plug.

Proceed as follows:

1. Connect the Green and Yellow (earth) wire to the terminal in the plug which is marked with the letter "E" or the earth symbol or coloured green and yellow.
2. Connect the Blue (neutral) wire to the terminal in the plug which is marked with the letter "N" or coloured black.
3. Connect the Brown (live) wire to the terminal in the plug which is marked with the letter "L" or coloured red.

The plug moulded onto the lead incorporates a 13amp BSI362 fuse. Only ASTA or BSI fuses should be used.

The plug must not be used if the fuse cover/carrier is lost. The cover/carrier is indicated by the coloured insert at the base of the product.

A replacement cover/carrier must be obtained from your local Service Force Centre.

This appliance complies with the following E.E.C. Directives:

• 73/23 or 19.2.73 (Low Voltage Directive) and subsequent modifications;
• 89/336 or 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

Adjusting the worktop

You can move the worktop forward or backward by 25 mm in order to align the machine with other kitchen units.

Simply unscrew the two rear retaining screws, move the top to the required position and then retighten the screws.

Fitting under a counter (kitchen worktop or sink)

By removing the machine's worktop, you can install it under a close fitting sink unit or a pre-existing top, providing the dimensions of the recess correspond to those shown in the picture.

Proceed as follows:

- Remove the machine's worktop by unscrewing the two rear retaining screws, pull from the front and slide out the rear slots, lifting the worktop.

Insert the machine after adjusting height and levelling with the adjustable feet. When inserting the machine, ensure that the water inlet and drain hoses are not kinked or squashed.

Levelling

Good levelling is essential for correct closure and sealing of the door.

When the appliance is correctly levelled, the door will not catch on the levelling spacers on either side of the cabinet.

If the door does not close correctly, loosen or tighten the adjustable feet until the machine is perfectly level.

Technical line drawing of a box with arrows indicating direction, no text or symbols present

To contact your local Tricity Bendix Service Centre telephone [phone]

CHANNEL ISLANDS		ORKNEY (M65) 7 King Street	Corsie Domestics Kirkwall Orkney KW15	NORTH EAST
GUERNSEY Guernsey Electricity PO Box 4Vale, Guernsey Channel Islands				GATESHEAD Unit 356a(M39) Dukesway Court	Unit 356a
		PERTH	Hydro Electrical Inveralmond House Ruthervenfield Road Perth PH1 3AQ		Dukesway Team Valley Gateshead NE11 0BH
JERSEY Jersey Electricity Company PO Box 45Queens RoadSt HelierJerseyChannel IslandsJE4 8NY		PERTH	Graham Begg Unit 4 Airport Industrial Estate(OWN SALES) Wick KW1 4QS	GRIMSBY (M42) Grimsby	15 Hainton Avenue South Humberside DN32 9AS
SCOTLAND		SHETLAND	Tait Electronic Systems Ltd. Holmsgarth Road Lerwick(OWN SALES) Shetland ZE1 0PW	HULL (M41) Boulevard Industrial Estate Hull HU3 4AY	Unit 1
ABERDEEN 54 Claremont Street (M05) Aberdeen AB10 6RA		SHETLAND	Bolts Shetland Ltd. 26 North Road Lerwick(OWN SALES) Shetland ZE1 0PE	LEEDS (M37) Leeds	64-66 Cross Gates Road LS15 7NN
AUCHTERMUCHY 33A (M03) Auchtermuchy Fife KY14 7AJ		WHALSAY	Leask Electrical Harlsdale Symbister, Whalsay(OWN SALES) Shetland ZE2 9AA	NEWTON AYCLIFFE (M45) Gurney Way	Unit 16 Aycliffe Ind Estate Newton Aycliffe DL5 6UJ
BLANTYRE Unit 5 (M07) Block 2	Auchenraith Ind Estate Rosendale Way Blantyre G72 0NJ	NORTHERN IRELAND		SHEFFIELD Pennine House (M38) Roman Ridge Ind. Roman Ridge Road Sheffield S9 1GB
DUMFRIES 93 Irish Street (M01) Dumfries Scotland DG1 2PQ		BELFAST (M27) Kilwee Buisness Park Upper Dunmury Lane Belfast BT17 0HD		NORTH WEST
DUNOON Brair Hill (M67) 7 Hill Street, Dunoon Argyll PA23 7AL		WALES		BIRKENHEAD 1 Kelvin Park Birkenhead L41 1LT
GLASGOW 20 Cunningham Road (M04) Clyde Estate Rutherglen, Glasgow G73 1PP		CARDIFF (M28) Clydesmuir Road Tremorfa, Cardiff CF2 2QS		CARLISLE (M10) James Street Workshops James Street Carlisle Cumbria CA2 5AH
INVERNESS Unit 3B (M06) Smithton Indust. Est. Smithton Inverness IV1 AJ		CLYWD (M14) Abergele Road Rhuddlan Clwyd Wales LL18 5UG		ISLE OF MAN (M64) Douglas Isle of Man South Quay Ind Estate
ISLE OF ARRAN Arran Domestics Unit 4 The Douglas Centre Brodick (OWN SALES) Isle of Arran KA27 8AJ		DYFED (M77) High Mead	Maes Y Coen Llanybydder Dyfed SA40 9UL	LIVERPOOL (M15) Honeys Green Precinct Honeys Green Lane Liverpool L12 9JH
ISLE OF BARRA J Zerfah 244 Bruernish Isle of Barra (OWN SALES) Western Islands HS9 5QY		HAVERFORDWEST (M75) Ameriston	Cromlech Lodge Haverfordwest SA62 5DS	MANCHESTER (M09) Central Industrial Estate St Marks Street Bolton BL3 6NR
ISLE OF BUTE	Walker Engineering Glenmhor Upper Serpentine Road Rothesay Isle of Bute PA 20 9EH	OSWESTRY (M17) Warehouse	Plas Flynnon Middleton Road Oswestry SY11 2PP	PRESTON (M13) Dawson Place Walton Summit Bamber Bridge Preston Lancashire PR5 8AL
ISLE OF LEWIS (M69) 16 James Street	ND Macleod Stornoway Isle of Lewis PA87 2QW			STOCKPORT (M16) Haigh Avenue Stockport SK4 1QR
KELSO (M08) Kelso	2-8 Wood Market Borders TD5 7AX

To contact your local Tricity Bendix Service Centre telephone [phone]

MIDLANDS		LONDON & EAST ANGLIA		SOUTH EAST
BIRMINGHAM 66 Birch Road East, (M18) Wyrley Road	Industrial EstateWittonBirminghamB6 7DB	BECKENHAM(M79) Kent House Lane	11 a Gardener Indust EstateBeckenhamKent BR3 1QZ	ASHFORD Unit 2(M58) Bridge Road BuisnessEstateBridge RoadAshfordKentTN2 1BB
		CHELMSFORD(M47) Widford Ind Estate	Hanbury Road
BOURNE Manning Road Ind Estate(M44) Pinfold Road	BournePE10 9HT	COLINDALE Unit 14(M53) Capitol Park	ChelmsfordEssexCM12 3AE	FLEET(M59) Redsfield Industrial EstateChurch CrookhamFleetHampshireGU13 0RD
BRIDGNORTH 1 Underhill Street(M72) Bridgnorth	SalopWV16 4BB	ELTHAM(M78) Mottingham	Capitol WayColindaleLondon NW9 0EQ	HAYWARDS HEATH(M55) Haywards HeathSussexRH16 1UA
GLOUCESTER 101 Rycroft Street(M23) Gloucester	GL1 4NB	ENFIELD(M49) Enfield	194 Court RoadElthamLondon SE9 4EW	SOUTH WEST
HEREFORD Unit 3(M31) Bank Buildings	Cattle marketHarefordHE4 9HX	GRAVESEND Unit B4,(M57) Imperial Buisness EstateGravesendKentDA11 0DL	284 Alma RoadLondonEN3 7BB	BARNSTAPLE P.O. Box 12(M30) BarnstapleNorth DevonEX31 2YB
HIGHAM FERRERS 30 High Street(M51) Higham Ferrers	NorthantsNN10 8BB	HARPENDEN(M46) Riverside Estate	Unit 4Coldharbour LaneHarpendenAL5 4UN	BOURNEMOUTH(M26) BournemouthDorsetBH1 4PW
ILKESTON Unit 2(M43) Furnace Road	IlkestonDE7 5EP	LETCHWORTH(M50) Works Road	16-17 Woodside Ind Est.LetchworthHertsSG6 1LA	BRIDGEWATER(M35) BridgewaterSomersetTA6 3NT
LEICESTER Unit 7(M22) Oaks Industrial Estate	Coventry RoadNarboroughLeicestershireLEO 5GF	LONDON 2/4 Royal Lane(M76) Yiewsley	West DraytonMiddlesexUB7 8DL	BRISTOL(M25) Eldonwall TradingBristolAvonBS4 3QQ
LINCOLN Unit 8 Stonefield Park(M40) Clifton Street	LincolnLN5 8AA	MAIDENHEAD(M60) Maidenhead	Reform RoadBerkshireSL6 8BY	EMSWORTH(M33) SouthbourneEmsworthPO10 8JL
NEWCASTLE 18-21 Croft RoadUNDER LYME Brampton Industrial Estate(M12) Newcastle under LymeStaffordshireST5 0TW	NuneatonCV11 6RX	MOLESEY(M61) West Molesey	10 Island Farm AvenueSurreyKT8 2UZ	ISLE OF WIGHT(M34) Enterprise CourtRyde Buisness ParkRydeIsle of WightPO33 1DB
NUNEATON 19 Ptarmigan Place(M21) Townsend Drive	NuneatonCV11 6RX	NEWBURY(M24) Newbury	PO Box 5627BerkshireRG14 5GF	NEWTON ABBOT(M29) EstateKingstelgntonNewton AbbotS. DevonTQ12 3TD
REDDITCH(M20) North Moons Moat	13 Thornhill RoadRedditchWorcestershireB98 9ND	IPSWICH Unit 2B(M48) Elton Park Buisness CentreHadleigh RoadIpswichIP2 0DD	Unit 2 Zealley Industrial
TAMWORTH(M19) Sterling Park	Unit 3ClaymoreTamworthB77 5DO	NORWICH 2b Trafalgar Street(M52) Norwich	NR1 3HN	PLYMOUTH(M32) CattledownPlymouthPL4 0ST
WORCESTER Unit 1(M73) Northbrook Close	Gregorys Mill Ind EstateWorcesterWR3 8BP	SUNBURY(M63) The Summit	Unit 1 aHanworth RoadHanworth Ind EstateSunbury on ThamesTW16 5D	REDRUTH(M36) Pool Industrial EstateWilson Way,Redruth,CornwallTR15 3QW

Customer care telephone number...

08705 950 950
