USER MANUAL SVAN121IN SVAN

natural_image Diagram showing two connected electronic devices with a close-up of the internal components (no text or symbols)

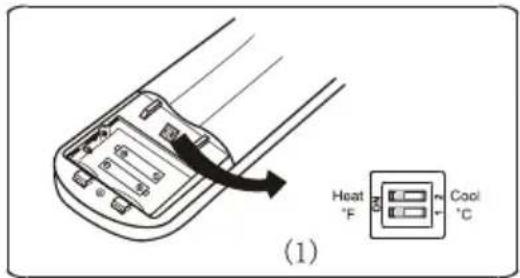

Heat °F Cool °C (1)

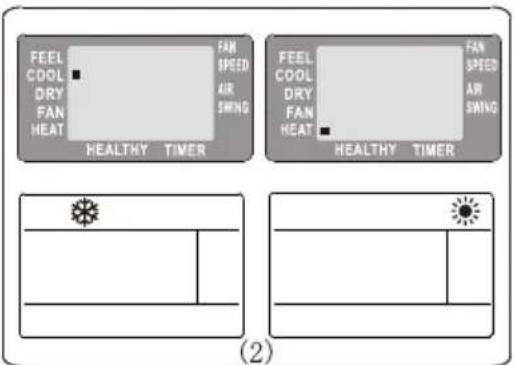

FEEL COOL DRY FAN HEAT HEALTHY TIMER FAN SPEED AIR SWING FEEL COOL DRY FAN HEAT HEALTHY TIMER FAN SPEED AIR SWING (2)

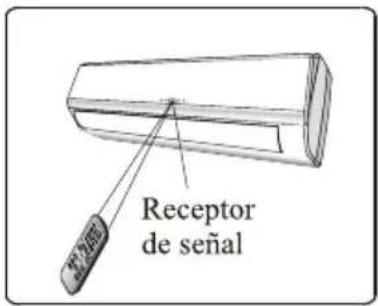

Technical diagram showing structural components with labeled dimensions and light paths, including a cross-section view and a dimension annotation φ50.

Interior Exterior 5mm

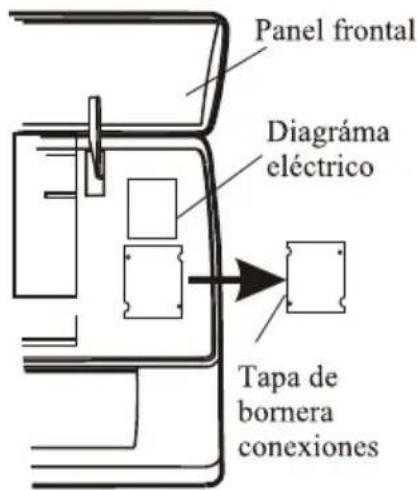

SVAN SVAN121IN - 5

natural_image Diagram of a brick wall joint with a tool, showing no text or symbols
MODELO capacidad (Btu/h)5k7k9k12k15/18k22/24k28/30k/36k
Sección del cable
Cable de alimentaciónN 1.0mm^2 AWG18 1.0mm^2 AWG18 1.0mm^2 AWG18 1.0mm^2(1.5mm^3) AWG18(AWG16) 1.5mm^2 AWG16 2.5mm^2 AWG14 4.0mm^2 AWG12
L 1.0mm^2 AWG18 1.0mm^2 AWG18 1.0mm^2 AWG18 1.0mm^2(1.5mm^3) AWG18(AWG16) 1.5mm^2 AWG16 2.5mm^2 AWG14 4.0mm^2 AWG12
E 1.0mm^2 AWG18 1.0mm^2 AWG18 1.0mm^2 AWG18 1.0mm^2(1.5mm^3) AWG18(AWG16) 1.5mm^2 AWG16 2.5mm^2 AWG14 4.0mm^2 AWG12
Cable de interconexiónN 1.0mm^2 1.0mm^2 1.0mm^2 1.0mm^2(1.5mm^3) 1.5mm^2 0.75mm^2 0.75mm^2
L 1.0mm^2 1.0mm^2 1.0mm^2 1.0mm^2(1.5mm^3) 1.5mm^2 0.75mm^2 0.75mm^2
1 1.0mm^2 1.0mm^2 1.0mm^2 1.0mm^2(1.5mm^3) 1.5mm^2 0.75mm^2 0.75mm^2
2 0.75mm^2 0.75mm^2 0.75mm^2 0.75mm^2 0.75mm^2 0.75mm^2 0.75mm^2
3 0.75mm^2 0.75mm^2 0.75mm^2 0.75mm^2 0.75mm^2 0.75mm^2 0.75mm^2
⊕ 0.75mm^2 0.75mm^2 0.75mm^2 0.75mm^2 0.75mm^2 0.75mm^2 0.75mm^2
UNIDADES INVERTER MODELO capacidad (Btu/h)9k12k18/22k24k
Sección del cable
Cable de alimentaciónN 1.0mm^2(1.5mm) AWG18(AWG16) 1.0mm^2(1.5mm) AWG18(AWG16) 1.5mm^2 AWG16 2.5mm^2 AWG14
L 1.0mm^2(1.5mm) AWG18(AWG16) 1.0mm^2(1.5mm) AWG18(AWG16) 1.5mm^2 AWG16 2.5mm^2 AWG14
E 1.0mm^2(1.5mm) AWG18(AWG16) 1.0mm^2(1.5mm) AWG18(AWG16) 1.5mm^2 AWG16 2.5mm^2 AWG14 1.0mm^2(1.5mm) AWG18(AWG16)
Cable de interconexiónN 1.0mm^2(1.5mm) 1.0mm^2(1.5mm) 1.5mm^2 0.75mm^2
L 1.0mm^2(1.5mm) 1.0mm^2(1.5mm) 1.5mm^2 0.75mm^2
I 1.0mm^2(1.5mm) 1.0mm^2(1.5mm) 1.5mm^2 0.75mm^2
① 1.0mm^2(1.5mm) 1.0mm^2(1.5mm) 1.5mm^2 0.75mm^2
natural_image Technical line drawing of a cylindrical mechanical component with directional arrows indicating force or movement (no text or symbols)

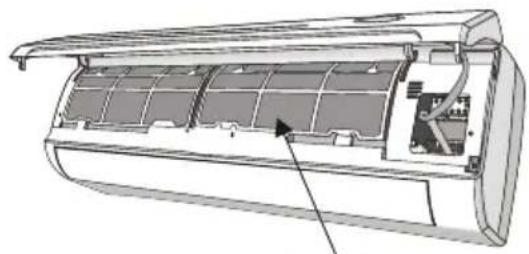

SVAN SVAN121IN - 6

natural_image Technical illustration of an air conditioner unit showing internal compartments and ventilation duct (no text or symbols)

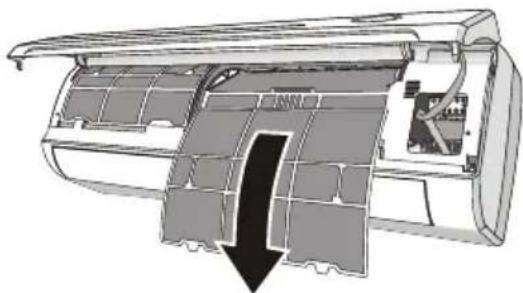

Filtro de aire

SVAN SVAN121IN - 7

natural_image Cross-sectional diagram of an air conditioner unit showing internal structure and airflow direction (no text or labels)

AL FINALIZAR LA TEMPORADA
