Product Type	Juicer
Brand	Campomatic
Model	JS700
Juicing Type	Centrifugal
Power Consumption	700 W
Voltage	220-240 V, 50/60 Hz
Dimensions (W x D x H)	25 x 20 x 35 cm
Weight	3.5 kg
Feeding Chute Diameter	5.5 cm
Jug Capacity	1.2 L
Pulp Container Capacity	1.0 L
Speed Settings	2 speeds
Main Material	Plastic body, stainless steel blade
Safety Features	Safety locking arm, overload protection
Cleaning	Washable parts; pulp filter brush included
Anti-Drip System	Yes
Detachable Parts	Yes, dishwasher safe (except motor base)
Cord Storage	Yes, built-in cord wrap
Noise Level	Approx. 85 dB
Warranty	2 years

Frequently Asked Questions - JS700 Campomatic

How do I assemble the Campomatic JS700 juicer?

Place the motor base on a flat surface. Insert the pulp container, then the filter basket. Lock the arm into place. Attach the jug and lid. Ensure the feeding chute is aligned.

Can I juice whole fruits without cutting?

The feeding chute has a diameter of 5.5 cm, so small fruits like grapes or berries can be fed whole. Larger fruits like apples should be cut into pieces to fit.

How do I switch between speeds?

Use the speed selector switch. The low speed is for soft fruits like berries, and high speed for hard fruits like carrots or beets.

What is the maximum operating time?

The juicer should not run continuously for more than 2 minutes. After that, let it cool for at least 2 minutes to prevent overheating.

How do I clean the filter basket?

Rinse immediately after use. Use the included brush to clean the fine mesh under running water. All detachable parts (except motor base) are dishwasher safe.

Why is the juicer not working?

Check that the locking arm is properly closed and the jug is correctly positioned. The safety lock prevents operation if not assembled correctly. Also ensure it is plugged in.

Can I juice leafy greens like spinach?

Yes, you can juice leafy greens, but they should be fed slowly and in combination with other fruits for best results. Use the low speed setting.

Is the pulp container reusable?

Yes, the pulp container collects separated pulp. You can use it in compost or for cooking. Clean it thoroughly after each use.

What does the overload protection do?

If the motor gets too hot, the overload protection will automatically shut off the juicer. Unplug it and let it cool for 15 minutes before resuming.

Where can I find replacement parts?

Replacement parts such as filter baskets and jugs can be ordered from Campomatic customer service or authorized dealers. Check the user manual for part numbers.

USER MANUAL JS700 Campomatic

Made in China

Important Safeguards

1. This appliance is intended for household use only.
2. Read all instructions before use, and see all diagrams, and keep these instructions for further reference.
3. Don't operate the appliance for more than 40 seconds at a time when juicing heavy loads and let it cool down sufficiently afterwards.
4. Check if the voltage indicated on the base of the appliance corresponds to the local mains voltage before you connect the appliance.
5. Don't let cord hang over edge of table or counter, do not let cord contact hot surface, including the stove.
6. Never use accessories or parts made by other manufactures not recommended or sold; may cause a risk of injury to persons.
7. Do not use the appliance if it's power cord, plug, blade device or other part the leveraged of any damage to the power cord or blade device of this product, it can only be replaced with a special one for use with this product or Midea special servicing agency.
8. Only use the appliance when handle is locked, never reach into the feeding tube with your fingers of an object while the appliance is running.
9. Don't remove the pulp container when the appliance is in operation.
10. Make sure all parts are correctly mounted before you switch on the appliance.
11. The appliance is not intended for use by young children or infirm persons without supervision.
12. Make sure the motor and blade have completely stopped before disassembling and cleaning.
13. Avoid touching the sharp blades, especially when the appliance is plugged in.
14. Don't immerse the motor base, plug or cord in water or any other liquid.
    Please follow the above safety precautions

Technical Data

Product name				PowerFreq	QcapayVoltageModel
Juicer	JS700	230-240 ~V	50Hz	700-760W	1250ml

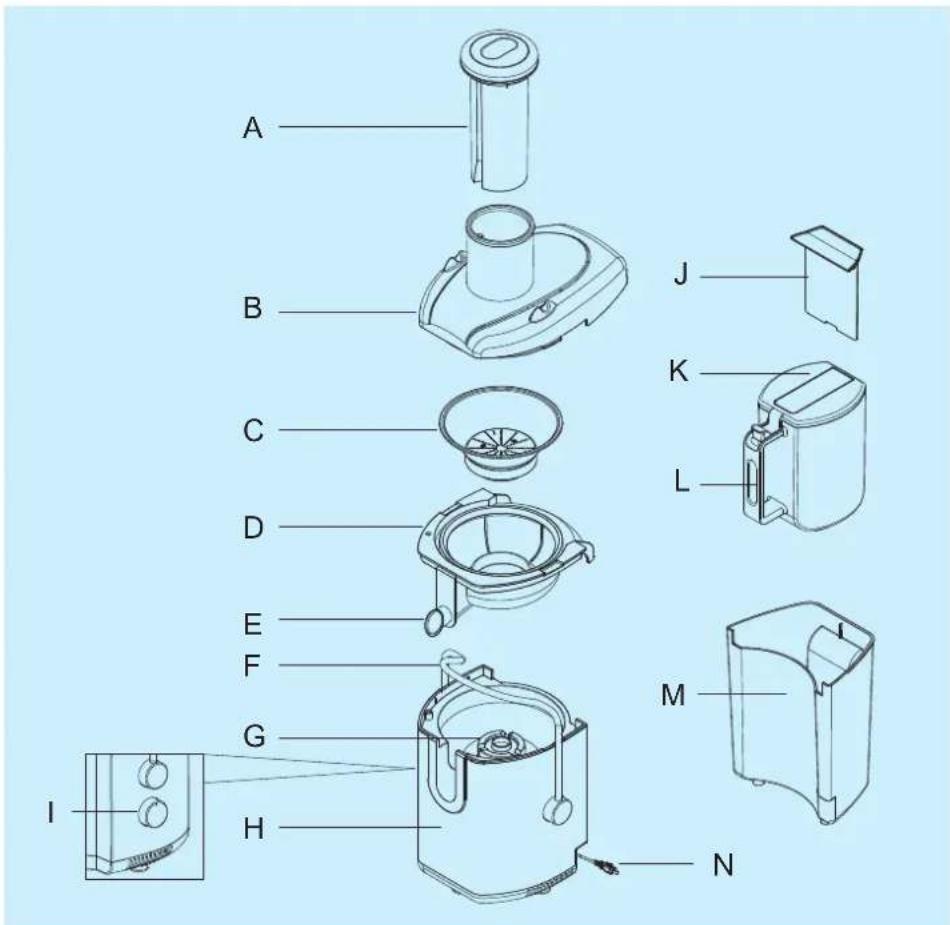

General Description

A、 Pusher B、 Lid

D、Juice collector

G、Clutch

J、 Foam separator

M、Pulp container

E、Spout

H、Motor base

K、 Jug lid

N、Power cord

C、Filter

F、Handle

I、Control knob

L、Juice jug

Using your Product

Preparing for use:

1. Wash all detachable parts (see chapter cleaning)
2. Set the control knob to position 0 to switch the appliance off.

Using the juicer:

Line drawing of a hand holding a small container with a handle, showing a right-hand rule (no text or symbols)

Line drawing of a hand holding a small object above a device with handles and buttons (no text or symbols)

Line drawing of a hand pouring liquid into a kitchen grater (no text or symbols)

Line drawing of two kitchen appliances, one with a handle and the other with a handle (no text or symbols)

Line drawing of a kitchen appliance with a fan and handle (no text or symbols)

1. Pull the power cord out of the cord storage compartment at the back of the appliance.

2. Place the juice collector into the appliance.

3. Put the filter in the juice collector, make sure the filter is fitted securely onto the clutch("click") Always check the filter before use, if you detect any cracks or damage do not use the appliance and contact the nearest appliance center or take the appliance to your dealer.

4. Place the pu lp container into the appliance by tilting it forwards slightly. Insert the top and first and then push home the bottom end. While you are preparing juice, you can empty the pulp container by switching the appliance off and carefully removing the pulp container. Reassemble the empty pulp container before you continue juicing.

5. Hold the lid over the filter and lower it into position, snap the handle onto the lid to lock it into place ("click"). Make sure the handle is locked into position on either side of the lid.

Line drawing of a blender with a side panel and handle, no text or symbols present

1. Slide the pusher into the feeding tube by aligning the groove in the pusher with the small protrusion on the inside of the feeding tube.

Line drawing of a blender and mug (no text or symbols)

1. Place the juice jug under the spout. Place the lid on the juice jug to avoid splattering or if you want to store the juice in the refrigerator.

2. To separate the foam from the juice when pouring the juice into a glass, insert the foam separator by sliding it into the juice jug.

Attention: If you want your drink to have a foamy layer, do not use the foam separator!

1. The appliance will only function if all parts have been properly assembled and the lid has been properly locked in place with the handle.

---Wash the fruit /vegetables well and cut them into picecs that fit into the feeding tube without forcing.

---Make sure the juice jug has been placed under spout.

1. Plug cord plug into the power socket, switch the appliance on by turning the control knob to setting "I" (lower speed) or "II" (normal speed).

---Speed I is especially suitable for soft fruits and vegetables. Such as watermelons, grapes, tomatoes, cucumbers and raspberries.

---Speed II is suitable for all kinds of fruits and vegetables.

Line drawing of a kitchen juicer with handle and lid (no text or symbols)

1. Put the pre-cut pieces in the feeding tube.

Line drawing of a juice maker with a handle and control knob, labeled '12' (no text or symbols on the device itself)

1. Gently press them down towards the rotating filter by means of the pusher.

No tic e : do not exert too much pressure on the pusher, as this could affect the quality of the end result and it could even cause the filter to come to a halt, never insert your fingers or an object into feeding.

Line drawing of a pair of juicer machines, one with lid and one with handle, shown without any text or symbols.

Line drawing of a juice maker with three glasses (no text or symbols)

1. After you have processed all ingredients and the juice flow has stopped, switch the appliance off and wait till the filter has stopped rotating.

2. If the motor base starts to vibrate violently and produce less juice, switch it off, then remove and clean the filter.

TIP FORUSE:

1. Use only good quality, fruit and vegetables, preferably fresh vegetables and ripe fruits, as they contain more juice.
2. Pineapples, beetroots, celery stalks, cucumbers, carrots, spinach, melons, tomatoes, pomegranates, oranges and grapes are particularly suitable for processing in the juicer extractor.
3. To extract the maximum amount of juice, always press the pusher down slowly.
4. The juicer is not suitable for processing very hard and/or fibrous/starchy fruits or vegetables such as sugar cane.
5. Apple juice may turn brown quickly. A few drop of lemon juice will slow down the process.
6. Fruits that contain starch, such as bananas, papayer, avocados, figs and mangoes are not suitable for processing in the juice extractor, use a food processor, blender or bar blender to process these fruits.
7. Drink the juice immediately after you have extracted it, if it is exposed to air for some time, the juice will lose its taste and nutritional value.

Cleaning and Caring

The appliance is easier to clean if you do so immediately after use.

1. Switch the appliance off, remove the plug from the wall socket and wait until the filter has stopped rotating.

2. Remove the dirty parts from the motor unit.

---Remove the pusher.

---open the handle.

---Remove the lid.

---Remove the pulp container.

---Remove the juice collector together with the

Three technical line drawings of mechanical components with curved arms and internal structures (no text or symbols)

1. Clean these parts with the cleaning brush in warm water with some washing-up liquid and rinse them under the tap.

Illustration showing a hand using a tool to cut a circular object with a pointer, and a close-up of the object's center with a ring (no text or symbols)

1. Clean the motor base with a damp cloth, never immerse the motor base in water nor rinse it under the tap caring.

2. Avoid touching the sharp blades, especially when the appliance is plugged in.

Caring :

1. Please store the appliance on dry entironment.
2. Never put the filter, or any other parts, in a microwave oven.
3. Never store foods or drinks in the jug.

Troubleshooting

1. If, during use, the product is subjected to such abnormality as noise, smell, smog and increased temperature, disconnect the power supply and stop the use.

2. In case the appliance fails to work, please check whether the power supply is properly connected, whether the switch is rotated to the on position and whether the fittings are in place.

3. If the appliance can not still function well after the above inspections, consult the designated servicing agency.

Special Announcement

All the items on the instruction book have been checked carefully. About any printing fault or misunderstand, the company reserves the right to explain. And any improvement in product will be added into the instruction book of new edition, there is no extra information. The company reserves the right to change the specification of its models at any time.
