Product Type	Soundbar
Model	NHS-2012A
Brand	Naxa
Dimensions (W x H x D)	90 x 6 x 8 cm
Weight	2.5 kg
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	30 W
Audio Output (RMS)	2 x 20 W (40 W total)
Frequency Response	20 Hz - 20 kHz
Bluetooth Version	5.0
Connectivity Inputs	Bluetooth, USB, AUX (3.5mm), HDMI ARC, Optical
Remote Control	Included (CR2025 battery)
Mounting Options	Wall-mountable (brackets included) or tabletop
Built-in Subwoofer	Dual bass ports
Audio Modes	Music, Movie, News, Bass Boost
USB Playback Formats	MP3, WMA, WAV
Material	Plastic with mesh grille
Color	Black
Cleaning Instructions	Wipe with a dry, soft cloth
Safety Precautions	Do not expose to water or moisture; keep away from heat sources
Repairability	No user-serviceable parts; refer to qualified service
Warranty	1 year limited
Package Contents	Soundbar, remote control, wall mounting kit, power cord, user manual

Frequently Asked Questions - NHS-2012A Naxa

How do I connect the soundbar to my TV via Bluetooth?

On the soundbar, press the Source button until Bluetooth appears. On your TV, go to Bluetooth settings and select Naxa NHS-2012A. Confirm pairing if asked.

Why is there no sound from the soundbar?

Check that the soundbar is powered on and the volume is not muted. Ensure the correct input source is selected (e.g., Bluetooth, AUX, HDMI). Verify the cable connections are secure. Try increasing the volume on both the soundbar and your connected device.

Can I use the remote control from my TV to control the soundbar?

The soundbar remote is required for full control. However, if your TV supports HDMI-CEC, you may be able to control power and volume using your TV remote when connected via HDMI ARC. Enable CEC on both devices.

How do I mount the soundbar on the wall?

Use the included wall bracket template to mark screw positions. Drill holes, insert wall anchors (if needed), and attach the bracket. Securely hang the soundbar onto the bracket. Ensure the wall can support the soundbar's weight.

The soundbar keeps disconnecting from Bluetooth. What should I do?

Move the soundbar closer to your device to reduce interference. Avoid obstacles like walls or other electronic devices. Reset the soundbar by unplugging it for 30 seconds. Forget the device in your Bluetooth settings and pair again.

How do I clean the soundbar?

Unplug the soundbar. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or spray directly onto the speaker grille. For stubborn dirt, slightly dampen the cloth with water and wring well.

What audio formats are supported via USB?

The USB port supports MP3, WMA, and WAV files. Files must be formatted in FAT32. The maximum USB capacity is typically 32 GB.

How do I reset the soundbar to factory settings?

While the soundbar is on, press and hold the Source button for about 10 seconds until the display shows RESET. The soundbar will restart. Alternatively, unplug it for 5 minutes.

Can I use the soundbar with a non-Bluetooth device?

Yes, you can connect via the AUX (3.5mm) or Optical input. Use the included cable or a compatible one. For devices with HDMI, use the HDMI ARC port.

What do the different audio modes do?

Press the Mode button to cycle through presets: Music for balanced sound, Movie for enhanced dialogue and effects, News for clear speech, and Bass Boost for deeper low frequencies.

USER MANUAL NHS-2012A Naxa

32" Soundbar with Bluetooth®

MODEL:NHS-2012A

PLEASE READ CAREFULLY BEFORE OPERATING THIS EQUIPMENT KEEP IT IN A SAFE PLACE FOR FUTURE REFERENCE

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER SERVICEABLE PART INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

DANGEROUS VOLTAGE:The lighting flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

ATTENTION: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

WARNING: USE UNDER SUPERVISION OF AN ADULT DUE TO LONG

CORD This unit has a long cord that can be easily tripped on or pulled on, causing injury. Please make sure it is arranged so that it will not drape over a tabletop, etc. Where it can be pulled on by children or tripped over accidentally

FCC NOTICE:

This equipment has been tested and found to comply with the limits for a Cla B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more the following measures:

● Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

FCC STATEMENT:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

FCC WARNING:

To assure continued operation, follow the attached installation instructions and use only shield cables when connecting to other devices. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

WARNING:

Cancer and Reproductive Harm-www.P65Warnings.ca.gov

IMPORTANT SAFETY INSTRUCTIONS

Before using the unit, be sure to read all operating instruction carefully, please note that these are general precautions and may not pertain to your unit. For example, this unit may not have the capability to be connected to an outdoor antenna.

(1) Read these instructions
All the safety and operating instructions should be read before the appliance is operated.
(2) Keep these instructions
The safety and operating instructions should be kept for future reference.
(3) Heed all warnings
All warnings on the appliance and in the operating instructions should be adhered to.
(4) Follow all instructions
All operation and use instructions should be followed.
(5) Do not use this apparatus near water
The appliance should not be used near water; for example, near a bath tub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

(6) Clean only with dry cloth

The appliance should be cleaned only as recommended by the manufacturer.

(7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

Slots and openings in the cabinet and in the back or bottom are provided for ventilation, to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or similar surface. This product should never be placed near or over a radiator or heat source. This product should not be placed in a built-in installation, such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

(8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

(9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

(10) Product the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

(11) Only use attachments / accessories specified by the manufacturer.

(12) Use only with a cart, stand, tripod, bracket, or specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution n

moving the cart/apparatus combination to avoid injury from tip-over.

An appliance and cart combination should be moved with care. Quick stop, excessive force and uneven surfaces may cause the appliance and cart combination to overturn.

(13) Unplug this apparatus during lightning storms or when unused for long periods of time.

To protect your product from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

(14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

(15) Power source

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For products intended to operate from battery power, or other source, refer to the operation instructions.

(16) Power lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

(17) Overloading

Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

(18) Object and liquid entry

Never push objects of any kind into the product through openings as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid on the product.

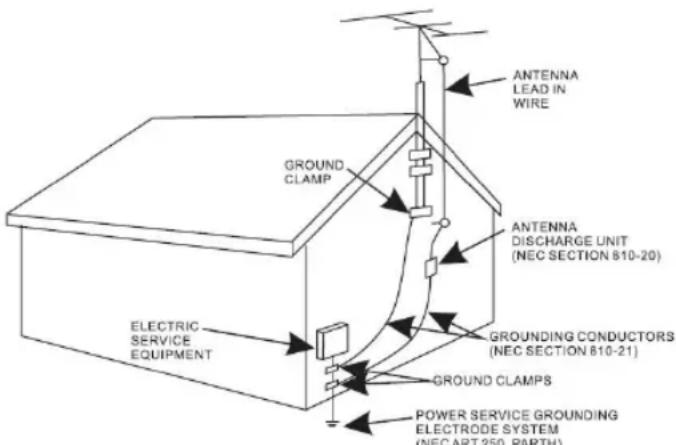

(19) Outdoor antenna grounding

If an outside antenna is connected to the product, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electric Code ANSI/ NFPA 70 provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead- in wire to an antenna discharge product, size of grounding conductors, location of antenna- discharge product, connection to grounding electrodes and requirements for the grounding electrodes.

(20) Service

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

(21) Replacement parts

When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original parts. Unauthorized substitutions may result in fire or electric shock or other hazards.

(22) Safety check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

(23) Wall or ceiling mounting

The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

(24) Damage requiring service

Unplug this product from the wall outlet and refer service to qualified service personnel under the following conditions.

a) When the power-supply cord or plug is damaged.
b) If liquid has been spilled or objects have fallen into the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an adjustment of other controls may result in damage and will require extensive work by a qualified technician to restore the product to its normal operation.
e) If the product has been dropped or the cabinet has been damaged.
f) When the product exhibits a distinct change in performance- this indicates a need for service.

(25) Note to CATV system installer

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

NOTE: Refer all servicing to qualified service personnel. Servicing is required when the unit has been damaged in any way such as the following: the power-supply cord or plug has been damaged, liquid has been spilled into unit, the unit has been exposed to rain or moisture, the unit has been dropped or the unit does not operate normally.

PLACEMENT AND MOUNTING

1. Placing the device on a Ventilation

WhenplacingtheSoundBaronanentertainmentcenter,bookshelf,oranytypeofenclosedspace,besuretoallowatleast2-3inchesofspacearoundtheSoundBarforventilation.IftheSoundBarisenclosedinatightspace,withoutventilation,heatgeneratedfromtheSoundBarcouldproduceapotentialheathazard.

2.1 Mountingtoawoodenwall

(screws not included)

A.Markthepositionofthemountingscrewsonthewallusingapencil.
B. Drill the screws directly into the marks that you have made on the wall and leave approx. 0.3 inches length to hook the sound bar.
C. Putthesoundbarontothemountingscrews. Makesuretheyarefirmandstable.

2.2Mountingtoabrickwall

(screws and plastic fixing plugs are not included)

A.Markthepositionofthemountingscrewsonthewallusingapencil.
B. Drill 2 holes on wall with a powerful electric drill.
C. Insert the fixing plug and hammer into the holes.
D. Secure the screws into the fixing plug and leave approx. 0.3 inches length to hook the sound bar.
E.Putthesoundbarontothemountingscrews.Makesuretheyarefirmandstable.

LOCATION OF CONTROLS

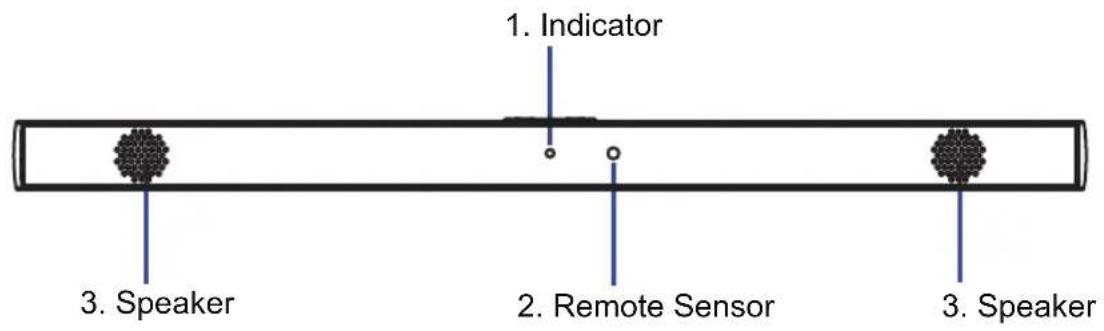

Front View

Rear View

Top View

REMOTE CONTROL

1. ⏻ STANDBY Button
2. VOL - (Volume Down) Button
3. SOURCE Button

4. (Previous) Button

5. ▶ (Play/Pause) Button

6. (Mute) Button
7. VOL + (Volume Up) Button
8. ▶▶ (Next) Button

BATTERY INSTALLATION OF REMOTE CONTROL

USING AT FIRST TIME

- Remove and discard the insulation as figure on the right.

REPLACING BATTERY

1. Push and slide out the battery holder as figure 1 below.
2. Replace the battery with a new CR2025 buttothecpolaristy markings on the rear of the Remote Control.
3. Close the battery holder.

Simple line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Simple line drawing of a magnifying glass over a document, labeled Fig.2 (no text or symbols on the diagram itself)

Simple line drawing of a mechanical component with a plus symbol, labeled Fig.3 (no text or symbols on the diagram itself)

BATTERY PRECAUTIONS

Follow these precautions when using a battery in this device:

1. Use only the size and type of battery specified.
2. Be sure to follow the correct polarity when installing the battery indicated in the battery compartment, a reserved battery may cause damage device.
3. Do not mix different types of batteries together (e.g: AlkalineCarbon-zinc) or old batteries with fresh ones.
4. If the batteries in the device are consumed or the device is not to be repeated for time, remove the batteries to prevent damage or injury possible leakage.
5. Do not try to recharge the battery not intended to be recharged; overheat and rupture. (Follow battery manufacturer's instructions.)
6. The batteries shall not be exposed to excessive heat such as sunshine, like

7. Clean the battery contacts and also those of the device prior to installation.

8. The remote control supplied with a coin/button cell battery. If the coin button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used battery away from children. If the Battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed any part of the body, seek immediate medical attention.

CAUTION

• Danger of explosion if the battery is incorrectly replaced.
  -Replace only with the same or equivalent type.

• When there is an obstacle between the transmitter and the unit, the unit may not operate.
• When direct sunlight, an incandescent lamp, fluorescent lamp or any other strong light shines on the REMOTE SENSOR of the unit, the operation of the remote may be unstable.

GENERAL OPERATION

1. Connect the AC/DC adapter to the unit and wall outlet. The red indicator will light and the unit is in standby mode.

2. Press and hold the Standby/Source button on the unit or press the ⏻ STANDBY button on remote control to turn on the unit. Press the Standby/Source button on the unit or press the SOURCE button on remote control repeatedly to switch to desired mode. The color of indicator will turn to :

Blue......Bluetooth Mode

Violet (blue+red)....AUX Mode

1. During Playback:

\~ Press the Vol- or Vol+ button on unit or remote control to adjust the volume.

\~ Press the ⚙( Mute ) button on the Remote Control to turn off the sound. Press again to resume.

1. When finishing listening, press and hold the Standby/Source button on the unit or press the ⏻STANDBY button on remote control to put the unit in standby mode.

BLUETOOTH PAIRING AND CONNECTION

For first time use or re-pairing, pair the unit to an external Bluetooth (BT) device as below:

1. Power on the unit as previously explained.
2. Press the Standby/Source button on the unit or press the SOURCE button on remote control repeatedly until the indicator turns Blue, and a voice tone sounds "Bluetooth Mode".

3. Power on the external Bluetooth device and set Bluetooth to searching mode. When "NAXA NHS-2012A" appears, select it and start pairing.
   After paired, the indicator will stop blinking and a voice tone sounds "Paired". (For details on pairing procedures, please refer to the user's manual of your Bluetooth device.)

4. During playing:

\~ Press the ▶ or ◀ button on remote control to skip tracks.
\~ Press the ▶ button on remote control or the Play/Pause button on the unit to pause. Press again to resume normal playing.
\~ Press the Vol- or Vol + button to adjust volume level.

Normal operation after first pairing:time

1. Power on the unit and select the Bluetooth mode, as stated above.
2. Activate the Bluetooth function on external Bluetooth device.
3. Wait a few seconds until the unit automatically connected to the external Bluetooth device.
4. Play the music, as stated above.

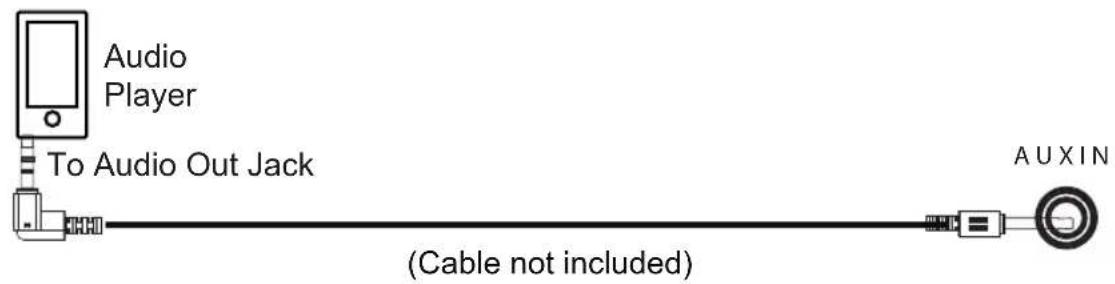

LISTEN THROUGH AUX IN

An external (Auxiliary) audio source (ie., personal CD player or MP3 player) can be connected to this unit and heard through the speakers.

1. Plug one end of the Aux In cable into the AUX IN jack on the rear of the unit.
2. Plug the otehr end of the Aux In cable into the AUX OUT or LINE OUT jack of the external audio source.

1. Power on the unit, as previously explained.

2. Press the Standby/Source button on the unit or press the SOURCE button on the Remote Control repeatedly until the color of Indicator turns to Violet (blue + red), and a voice tone sounds "AUX Mode".

3. Power on the connected external player and start playing as usual.

TROUBLESHOOTING

SYMPTOM	POSSIBLE CAUSE	POSSIBLE SOLUTION
No power	Power AC/DC Adapter notconnected	ConnectthepowerAC/DCadapter totheunitorwalloutlet.
	The unit is in standby mode	Press and hold Standby/Source button on the unit or press ⏻ button on remote control to turn on the unit from Standbymode.
No sound	Volume in minimum position	Raise volume by pressing the Vol+ button.
	Thepaired/connecteddeviceisnotinPlaym playing mode	music/movieinthepaired/ connecteddeviceasusualandmake surethevolumelevelofitisinhigh level.
	Input source incorrect	Press the Standby/Source button ontheunitorSOURCEbuttononthe RemoteControlrepeatedlytosetthe inputsourcetothedesiredmode.
Sound distortion	Volume level too high	Reduce the volume level by pressing the Vol- button.Reducethevolumelevelofthe paired/connecteddevice.
Remote control not working	The battery is weak	Replace with new battery
Bluetooth receptionfailure	Theexternaldeviceistoofarfromthe unit	PuttheexternalBTdeviceclosetothe unit.
	HavenotpairedPairtheunitwiththeBTDev ceasthe proceduresstatedinthismanual.

SPECIFICATIONS

Power Source.....DC9V --- 1300mA ⊖●⊕

Audio Power....2X3W

Bluetooth Effective Range in Open Area.....Up to 32 feet

Remote Effective Range.....Up to 16 feet

ACCESSORIES

1 x AC/DC Adapter
1 x Remote Control
1 x User's Manual
1 x 3.5mm AUX to RCA Cable

SPECIFICATIONSANDACCESSORIESARESUBJECTTOCHANGE WITHOUTNOTICE

Bluetooth®

is a trademark on a registered trademark of Bluetooth SIG Inc. All other trademarks and trade names are those of their respective owners.
