CA200P4/24V - Receiver CALIBER - Free user manual and instructions

Brand	CALIBER
Model	CA200P4/24V
Type	Receiver
Voltage	24V DC
Power Consumption	5W (typical)
Frequency	433.92 MHz
Number of Channels	4
Range	Up to 100 meters (open space)
Dimensions (L x W x H)	85 x 55 x 25 mm
Weight	60 g
Operating Temperature	-10°C to +50°C
Protection Rating	IP54 (splash-proof)
Mounting	Wall or surface mount
Material	ABS plastic
Wiring	4-channel relay output (NO/COM/NC)
Functions	Remote control for gates, doors, lights, etc.
Compatible Transmitters	CALIBER rolling code remotes
Memory Capacity	Up to 50 transmitters
Cleaning	Wipe with dry cloth; no solvents
Safety	Low voltage; safe for indoor use
Spare Parts	Available from CALIBER distributor
Warranty	2 years

Frequently Asked Questions - CA200P4/24V CALIBER

How do I install the CA200P4/24V receiver?

Connect the 24V power supply to the receiver terminals. Wire the output channels to your devices (e.g., gate motor, lights). Ensure proper polarity and use suitable gauge wire.

How do I pair a remote with the CA200P4/24V?

Press and hold the learning button on the receiver until the LED blinks. Press a button on the remote. The LED will stay on to confirm pairing. Repeat for additional remotes.

What is the maximum range of the receiver?

The maximum range is up to 100 meters in open space. Walls and obstacles can reduce the range.

Can I use other brand remotes with this receiver?

The receiver is designed for CALIBER rolling code remotes. Using other brands may not work reliably. For best performance, use genuine CALIBER transmitters.

How many channels does the CA200P4/24V have?

It has 4 channels, allowing independent control of up to 4 different devices or functions.

What is the output type of each channel?

Each channel provides a relay output with Normally Open (NO), Common (COM), and Normally Closed (NC) terminals, rated for up to 10A/24V DC.

How do I reset the receiver to factory settings?

Press and hold the learning button for about 10 seconds until the LED flashes rapidly. This clears all paired remotes.

What should I do if the receiver does not respond?

Check the power supply (24V DC). Ensure remotes have working batteries. Verify wiring connections. If still not working, reset the receiver as described.

Can I mount the receiver outdoors?

The receiver has an IP54 rating, meaning it is splash-proof. However, it is best to install it in a sheltered location away from direct rain.

Where can I find spare parts or additional transmitters?

Spare parts and compatible transmitters are available from CALIBER authorized distributors or online stores. Use the model number CA200P4/24V for reference.

USER MANUAL CA200P4/24V CALIBER

Max power output at 24V: 4x 300W/4Ω or 2x 1000W/4Ω (bridged)

RMS output at 24V: 4x 100W/4Ω or 2x 320W/4Ω (bridged)

Frequency response 5Hz-51kHz

Input Sensitivity RCA input 0.2 - 3V

Low/high pass filter 50 - 250Hz

Total Harmonic Distortion <0.5%

Signal to noise ratio (A-Weighted) >76dB

Output Impedance 2 - 16Ω

Bass Boost 0-6-12dB · 45Hz

Fuses 2x 20A (internal)

Dimensions heatsink: 380(W) x 151(D) x 50(H) mm

Total dimensions: 407(W) x 151(D) x 52(H) mm (Mounting feet and connectors)

OPTION I
(by RCA output)

FEATURES

• Stereo output.
• Pulse Width Modulated (PWM) MOSFET Power Supply.
  • Variable input sensitivity: RCA input 0.2V to 3V.
  • Thermal-, Overload- and Shortcircuit protection.
• Excellent muting circuitry assures no turn on/off 'pops'.
  • Built-in High / Low Pass Filter
  • Gold plated power connectors for optimal power distribution.
  • European design and engineering.
  • Gold plated speaker connectors for optimal signal output.

MOUNTING

The amplifier has to have at least 5 cm (2") ventilation space at all sides, to allow the heat to rise away from the amplifier. Be sure that the power and signal cables can enter and leave the amplifier in a straight line, to avoid the risk of malfunction. Always place the power- and signalcables at opposite sides of the vehicle to reduce any noises.

The amplifier should be protected from exposure to moisture and direct sunlight.

Mark the mounting surface using the amplifier as a template, then drill 2.5 mm (1/8") diameter holes at the marked locations and mount the amplifier using the supplied self-tapping screws.

INSTALLATION

Remember to always disconnect battery ground before working on a vehicle's electrical system! Always place a fuse or circuit breaker no more than 30 cm (12") from the battery, no greater than the fuse(s) of your amplifier for optimal protection.

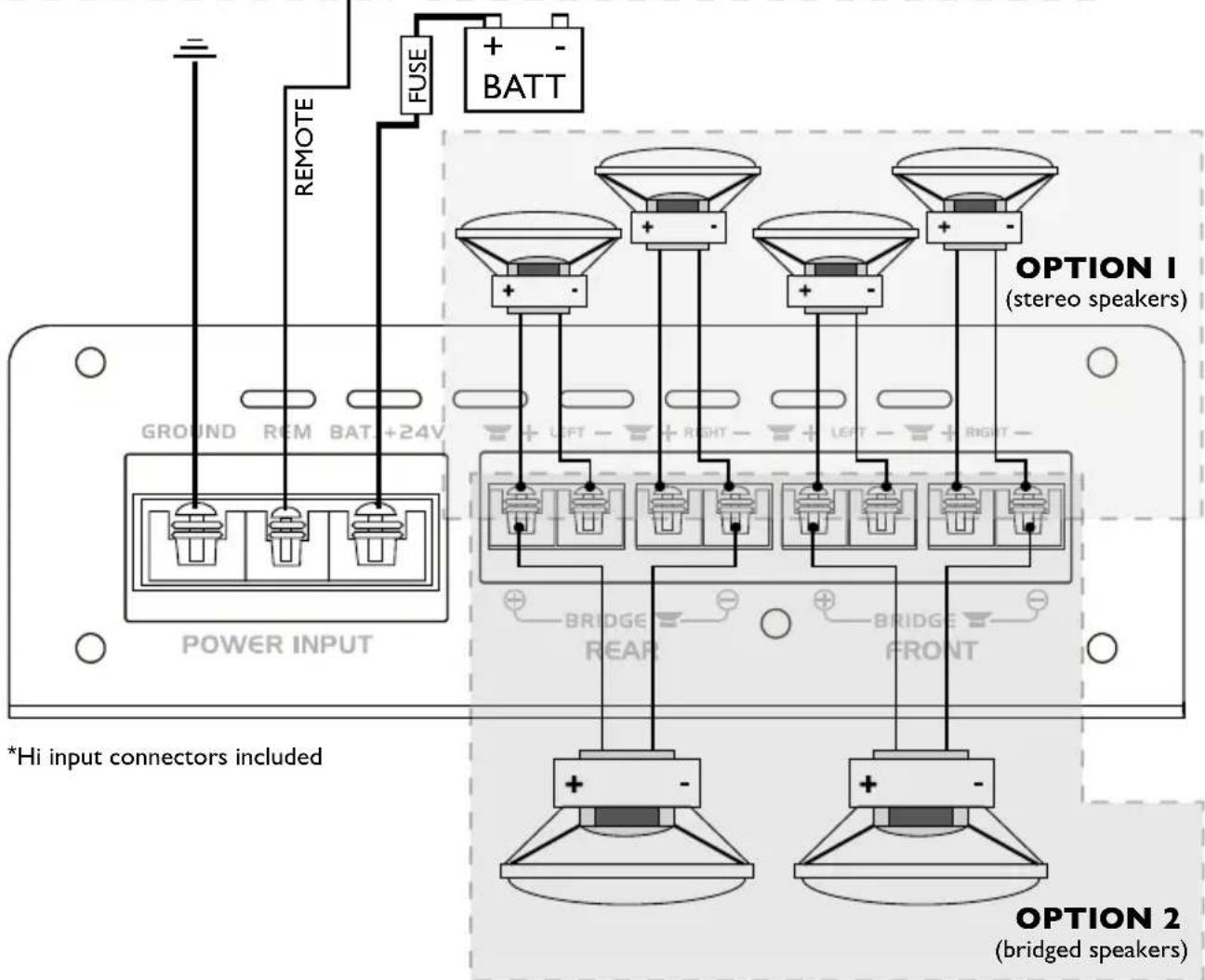

GETTING YOUR POWER STARTED

• First, the +24V terminal is connected directly to the battery of your car. Use a cable of at least 15 mm ^2 , and make sure that the connectors are of the same value.
• Don't forget the extra "Vehicle protection" fuse.
• The +24V terminal should NOT be connected to the car fuse box.
• Second, the ground terminal (GND) must be fastened securely to the chassis of the vehicle with the same mm ^2 cable as the positive cable (the same amount of power has to run through it). Ensure that all paint, undercoating or any other insulation is removed from the area where you want to make your ground connection to.
• Third, the last cable to connect is your remote turn-on (REM). Many radio-cassette and CD-players have an output terminal for connection of the REM of an amplifier. If you don't have such an output, a separate switch must be installed to control your amplifiers on/off function.

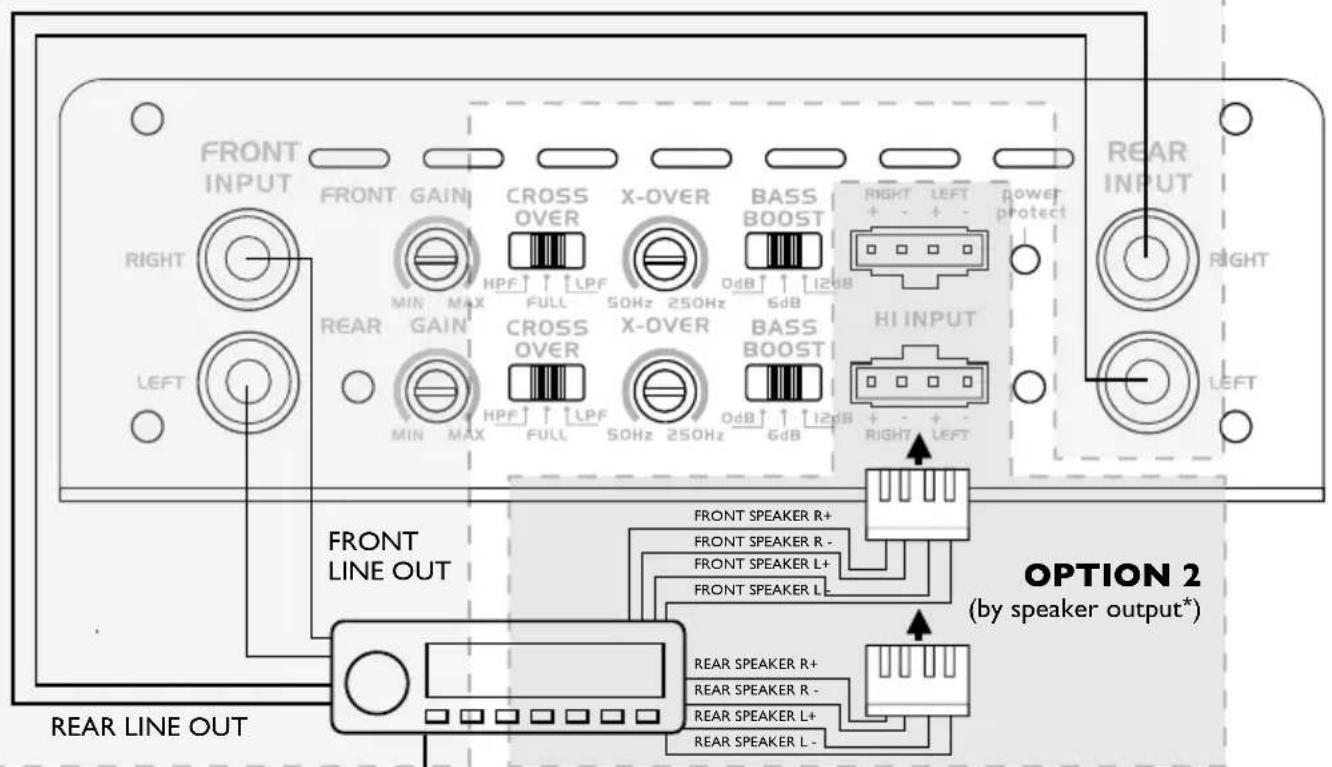

SIGNAL INPUT

The Caliber Amplifiers offer you two possibilities for your signal input.

• A High Level input, using the loudspeaker output from your radio and the special High Level inputplug you found in the box.
• Signal input by using a RCA cable from your radio's RCA outputs to the amplifiers signal input RCA's.

NEVER USE THE HI INPUT AND RCA INPUT AT THE SAME TIME!

RCA INPUT

- Connect the RCA-outputs of your radio to the RCA input terminals of the amplifier. Take good care that you connect the Right output of your radio to a Right input of your amplifier, and that you connect the Left output of your radio to a Left input of your amplifier.

AMPLIFIER ADJUSTMENTS

• Put the input level adjustment knob to the minimum.
• Put the volume of your radio to 3/4 of the maximum.
• Adjust the Bass Boost to your personal sound.
• Now adjust the input level of the front channel. Slowly turn up the input level and listen carefully until you hear the amplifier begin to distort. A Caliber Amplifier "clips" very softly, so this can sometimes be a difficult adjustment. If you have turned up the Bass Boost to much, the amplifier will start clipping immediately. In that case you must turn back the Bass Boost and start adjusting the inputlevel again. You will hear that the Bass you wanted can be required in this way.

CALIBER WARRANTY

Due to the complexity of our products, we strongly recommend that this amplifier is installed by your authorized Caliber dealer. If properly installed by your dealer we provide a warranty for 12 months from the date of purchase. If you install this amplifier yourself, we wish you lots of fun and succes in doing so. If you follow our guidelines, you'll get the best result. Our warranty, however, will be limited to and not exceed 30 days from the date of purchase.

WARNING

Points to observe for safe usage

Read this manual carefully before using this item and its components. They contain instructions on how to use this product in a safe and effective manner. Caliber Europe BV cannot be responsible for problems resulting from failure to observe the instructions in this manual.

Turn off the device immediately in case of a problem.

Failure to do so may cause personal injury or damage to the product. Return it to your authorized Caliber Europe BV dealer for repairing.

Product cleaning.

Use a soft dry cloth for periodic cleaning of the product. For more severe stains, please dampen the cloth with water only. Anything else has the chance of dissolving the paint or damaging the plastic.

Temperature.

Be sure the temperature inside the room/vehicle is between +45°C (+113°F) and 0°C (+32°F) before turning your unit on.

Maintenance.

If you have problems, do not attempt to repair the unit yourself. Return it to your Caliber Europe BV dealer for servicing.

Placement.

Place the product on a flat surface. Provide enough space around the product for sufficient ventilation.

Heat.

Do not locate the appliance in the vicinity of a heat surface or in direct sunlight.

Accessories.

Use only supplied accessories

PARTICULARITÉS

MAI USARE INPUT HI E INGRESSO RCA ALLO STESSO TEMPO!

INGRESSO RCA

GB Caliber hereby declares that the item CA200P4 is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC (CE) and 2011/65/EU (Rohs)
