Product Type	Built-in Microwave
Brand	Neff
Model	H5474A0
Dimensions (H x W x D)	382 x 594 x 318 mm
Cavity Dimensions (H x W x D)	210 x 340 x 340 mm
Net Weight	Approx. 18 kg
Power Supply	230 V, 50 Hz, 10 A
Microwave Power	900 W
Grill Power	1000 W
Combined Power (Microwave + Grill)	900 W + 1000 W
Functions	Microwave, Grill, Combi, Defrost, Auto Menus
Control Type	Touch control with display
Door Opening	Drop-down door
Cavity Material	Stainless steel
Cleaning	EasyClean enamel interior
Safety Features	Child lock, Automatic switch-off
Energy Efficiency Class	A+
Noise Level	48 dB
Spare Parts Availability	Available for 10 years
Warranty	2 years
Included Accessories	Glass turntable, Grill rack, User manual

Frequently Asked Questions - H5474A0 NEFF

How do I set the microwave timer?

Press the Time button, then use the + and - buttons to set desired time, then press Start.

Can I use metal cookware in this microwave?

No, metal should not be used as it can cause sparks. Use microwave-safe glass, ceramic, or plastic containers.

How do I clean the interior?

Wipe with a damp cloth after use. For stubborn residues, use a mild detergent. Avoid abrasive cleaners. The EasyClean enamel makes cleaning easier.

What does the 'Combi' mode do?

Combi mode combines microwave and grill functions for cooking foods like pizza or gratin.

How do I defrost food?

Select the Defrost function, enter the weight, and the microwave will automatically set time and power.

Is there a child lock?

Yes, press and hold the Lock button for 3 seconds to activate. Repeat to deactivate.

Why is the microwave not heating?

Check if the door is fully closed, if the timer is set, and if the power supply is working. If issue persists, contact Neff service.

Can I use the grill without microwave?

Yes, select Grill function alone for browning or crisping.

What are the dimensions for built-in installation?

The niche must be at least 382 x 594 x 318 mm (HxWxD). Ensure proper ventilation.

How do I reset the microwave?

Unplug the microwave for 1 minute, then plug it back in. This resets the electronics.

USER MANUAL H5474A0 NEFF

Makingcookingasmuchfunaseating

Pleasereadthisinstructionmanual. Thiswillensurethatyou makefulluseofallthetechnicalbenefitsthemicrowaveoven hastooffer.

Itwillprovideyouwithimportantsafetyinformation.Youwill befamiliarisedwiththeindividualcomponentsofyournew microwave.Andwewillshowyouhowtomakesettingsstep bystep.Itisquitesimple.

Thetableslisttheadjustmentvaluesfornumerous well-knowndishes.Allthesedishesaretestedinourcooking studio.

Intheunlikelyeventofamalfunction, lookherefor informationonhowtorectifyminorfaultsyourself.

Adetailedtableofcontentswillhelpyoutofindyourway aroundquickly.

Enjoyyourmeal.

Instructionmanual1-36......

Instruccionesparaeluso37-73......

Installationandconnection5......

Importantinformation6......

Safetyprecautions6......

Safetyinformationformicrowaveoperation7

Your new appliance 10

Control panel 10

Buttons for selecting the microwave wattage ..... 10

Rotary knob 11

Operating switches and display panel 11

Main switch 12

Accessories 12

Before using for the first time 12

Set the time 12

Pre-cleaningtheaccessories 13......

The microwave 13

Ovenware 13

Microwave power settings 14

Setting procedure 15

3-stage operation 16

Automatic programming 18

Setting procedure 18

Memory 20

Storing memory settings 20

Startingthememoryfunction 21......

Tableofcontents

Changingthesignalduration22......

Care and cleaning 23

Cleaningagents23......

Troubleshooting24......

After-salesservice25......

Technicaldata26......

Tables and tips 27

Defrosting, heatingupandcooking with the microwave 27

Microwave tips 32

Notes on automatic programming 33

Test dishes in accordance with EN 60705 ..... 36

Importantinformation

Important safety instructions

Read this instruction manual carefully. Only then will you be able to operate your appliances safely and correctly.

Please keep the instruction and installation manual in asafeplace. Please pass on these instructions manual to thenew owner if you sell the appliance.

Beforeinstallation

Disposinginan environmentally-responsible manner

Unpacktheapplianceanddisposeofthepackaging inanenvironmentally-responsiblemanner.

This appliance is labelled in accordance with the European Directive 2002/96/EC concerning used electrical and electronic appliances (wasteelectrical and electronic equipment – WEEE).

Theguidelinedeterminestheframeworkforthereturn andrecyclingofusedappliancesasapplicable.

Transportdamage

Checktheappliancefordamageafterunpackingit. Donotconnecttheapplianceifithasbeendamaged intransport.

If the supply cord is damaged, it must only be replaced by the manufacturer or its service personnel or similarly qualified person in order to avoid a hazard.

Electricalconnection

If the powercable is damaged, it must bere placed by aspecialist trained by the manufacturer in order to prevent hazards.

Installationandconnection

This appliance is only intended for domestic use.

Thisovenisintendedforbuilt-inuseonly.Itisnot intendedforcounter-topuseorforuseinsidea cupboard.

Pleaseobservethespecialinstallationinstructions.

The appliance can be installed in 60cm wide wall-mounted cupboard (at least 30cm deep and 85 cm off the floor).

The appliance is fitted with a plug and must only be connected to a properly installed earthed socket. The fuse protection must be rated at 10 amperes (automatic circuit breaker with trigger characteristic or B). Themains voltage must correspond to the voltages specified on the rating plate.

Thesocketmustonlybeinstalledandtheconnecting cablemustonlybereplacedbyaqualifiedelectrician. Iftheplugisnolongeraccessiblefollowing installation,anall-poledisconnectingdevicemustbe presentontheinstallationsidewithacontactgapof atleast3 mm.

Adapters, multiwaystripsandextensionleadsmust notbeused. Overloadingcanresultinariskoffire.

Importantinformation

Safetyprecautions

This appliance is intended only for domestic use.

Onlyusetheapplianceforpreparingfoodstuffs.

Adultsandchildrenmustnotoperatetheappliance withoutsupervision

-iftheyarephysically,sensoriallyormentally incapableofdoingso

-oriftheylacktheknowledgeandexperience requiredtooperatetheappliancecorrectly and safely.

Childrenandthe microwave

Childrenmayonlypreparemealswiththesolo microwaveiftheyhavebeenproperlyinstructed.

They must be able to operate the appliance correctly. They must understand the hazards indicated in the instruction manual.

Whenchildrenusetheappliance,theymustbe

supervisedtopreventthemfromplayingwithit.

Incombinedoperationmode, children may only use the appliance if they are supervised by adults. There is ariskofburning.

Hotcooking compartment

Opentheappliancedoorcarefully. Hotsteammay escape. Thereisariskofburning.

Childrenmustbekeptatasafedistancefromthe appliance.

Neverstorecombustibleitemsintheappliance.Risk offire.

Neveropentheappliancedoorifthereissmoke

inside.Thereisariskofburning.Switchoffthe appliance.Switchoffthecircuitbreakerinthefuse box.

Nevertrapcablesofelectricalappliancesinthehot appliancedoor. Thecableinsulationcouldmelt. There isariskofshort-circuiting.

		Becarefulwithfoodthatispreparedwithdrinkswitha highalcoholcontent(e.g.cognac,rum).Alcohol evaporatesathightemperatures.Inunfavourable circumstances,thealcoholvapourscouldcatchfirein theappliance.Thereisariskofburning.Useonly smallquantitiesofdrinkswithahighalcoholcontent andopentheappliancedoorcarefully.
Damagedappliance doorordoorseal	⚠️	Neverusethemicrowaveiftheappliancedoorisopen orifthedoorsealisdamaged.Otherwisemicrowave energymayescape.Donotusethemicrowaveagain untilithasbeenrepaired.
Environment	⚠️	Neverexposetheappliancetoexcessiveheator moisture.Thereisariskofshort-circuiting.
Inadequatecleaning	⚠️	Cleantheapplianceonaregularbasisandremove anyfooddeposits.Thesurfaceoftheapplianccould bedestroyedandtheapplianccouldcorrodeover timeifitisnotcleanedwithsufficientcare.Microwave energycouldescape.
Repairs	⚠️	Incorrectrepairsaredangerous.Thereisariskof electrocution.Repairsmayonlybecarriedoutbyone ofourexperiencedafter-salesengineers.Iftheapplianceisfaulty,switchitoffbythefuseinthe fuseboxordisconnecttheapplianceatthemains.Calltheafter-salesservice.Youmustnotopenthecasingwhichgivesprotection againstexposuretomicrowaveenergy.Theappliance isahighvoltageappliance.Riskofelectrocution.
Safetyinformation formicrowave operation
Foodpreparation	⚠️	Useofthemicrowaveisintendedexclusivelyforthe preparationoffood.Usingthemicrowaveforother purposesmaybedangerousandmayresultin damage,e.g.heatedgrainorcerealpillowscould catchfire,evenseveralhourslater.Riskoffire.

Microwavepowerandtime

Donotselectamicrowavepowerortimesettingthat ishigherthannecessary. The food could catch fire.

The appliance could bed damaged.

Riskoffire.

Followtheinformationprovidedintheinstruction manual.

Ovenware

Onlyuseovenwarethatissuitableforuseina microwave.

Porcelainorceramicovenwarecanhavesmallperforationsinthehandlesorlid.Theseperforationsconcealacavitybelow.Anyliquidthatpenetratesthiscavitycouldcausetheovenwaretocrack.

Thereisariskofinjury.

Mealsheatedinthemicrowaveovengiveoffheat. The ovenwarecanbecomehot.

Thereisariskofburning.

Alwaysuseanovenclothorovenglovestoremove ovenwareandaccessoriesfromthemicrowave.

Packaging

Neverheatmealsinheat-retainingpackages.

Riskoffire.

Donotleavefoodheatingunattendedincontainers madeofplastic,paperorothercombustiblematerials.

Airtightpackagingmayburstwhenfoodisheated. Thereisariskofburning.

Followtheinformationprovidedonthepackaging. Alwaysuseanovenclothorovenglovestoremove meals.

Drinks

Two glass glasses, one with a spoon and the other with a black X symbol (no text or labels)

Thereisapossibilityofdelayedboilingwhenaliquidis heated. Thismeansthattheliquidreachesboiling temperaturewithouttheusualsteambubblesrisingto thesurface.Evenifthecontaineronlyvibratesalittle, thehotliquidcansuddenlyboiloverorspatter.

Thereisariskofburning.

When heating liquids, always place as soon in the container. This will prevent delayed boiling.

Neverheatdrinksorotherfoodsincontainersthat havebeenightlysealed.

Thereisariskofexplosion.

Babyfood

Neveroverheatalcoholicdrinks.

Thereisariskofexplosion.

Neverheatbabyfoodinclosedcontainers.Always removethelidorteat.

Stirorshakewellafterthefoodhasbeenheated. This istheonlywaytoensureevenheatdistribution.

Check the temperature of the food before it is given to the child.

Thereisariskofburning.

Foodswithshellsorskin

Nevercookeggsintheirshells. Neverreheat hard-boiledeggsastheymaycrackoreexplodeeven afterthemicrowaveheatinghasended. Thesame appliestoshellfishandcrustaceans.

Thereisariskofburning.

Alwayspricktheyolkewhenfryingorpoachingeggs.

Alwaysprickfoodstuffswithapeelorskinsuchas apples,tomatoes,potatoesandsausagesbefore cookingtopreventthepeelorskinfrombursting.

Dryingfood

Neverusethemicrowavetodryfood.

Riskoffire

Foodwithalowwater content

Donotdefrostorheatfoodattoohighapowerorfor toolongifthefoodhasalowwatercontent,e.g. bread.

Riskoffire

Cookingoil

Neverusethemicrowavetoheatcookingoilonits own.

Riskoffire

Yournewappliance

Usethissectiontofamiliariseyourselfwithyournew appliance.Thecontrolpanelanditsswitchesare explainedhere.

Controlpanel

Buttonsfor selectingthe microwavewattage

Usethesebuttonstoselectthemicrowavewattage required.

90Wfordefrostingdelicatefoods

180Wfordefrostingandcontinuedcooking

360Wforcookingmeatandheatingdelicatefoods

600Wforheatingandcookingfood

900Wforheatingliquids

Rotaryknob

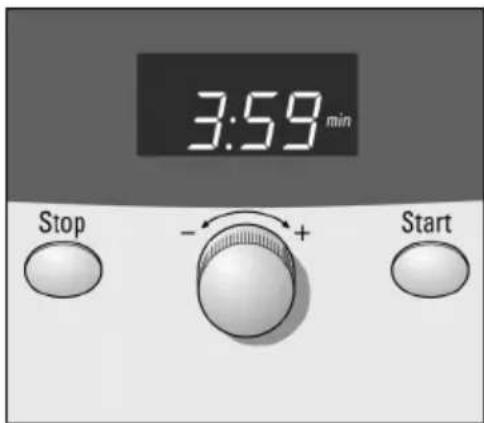

Youusetherotaryknobtosetthetime,programme number,cookingtimeandweightfortheautomatic programs.

Therotaryknobcanbepushedininanyposition. Pressthecontrolknobtopopitinandpushitaway. Therotaryknobcanbeturnedclockwiseor anti-clockwise.

Circular dial indicator with tick marks and plus/minus symbols (no text or numbers)

Ranges

1sec-1.30hMicrowaveduration Exception:900W=1sec-30min

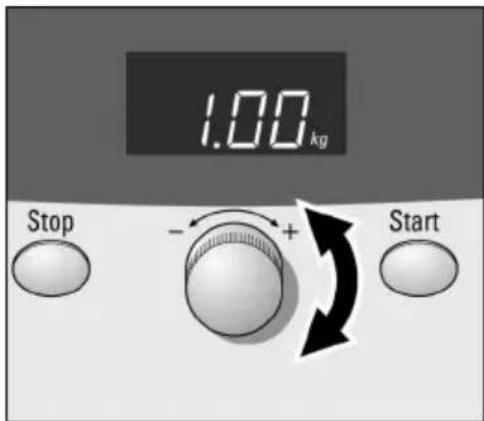

WeightDependingontheprogramme

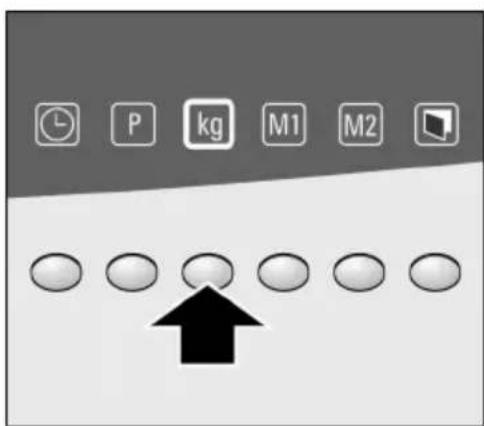

Operatingswitches anddisplaypanel

①buttonMainswitch Toswitchthemicrowaveovenon/off.

buttonToopentheappliancedoor.

clockbuttonTosetthetime.

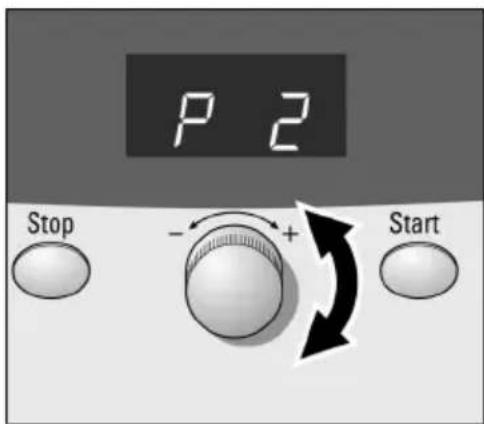

PbuttonTosettheautomaticprogramming.

kgbuttonTosettheweightforautomatic programming.

M1 and M2 buttons Toselectamemory function.

■button Tostoreuptothreedifferentsettings 3-stageoperation oneaftertheother.

StopbuttonThisbuttonstopsmicrowave operationorcancelsthesetting.

StartbuttonTostartmicrowaveoperation.

Youcanreadthevaluesthatyouhavesetonthe displaypanel.

Mainswitch

Switchyourmicrowaveovenonandoffusingthe Ⓓ mainswitch.

Switchingon

Pressthe①button. Thesymbollightsupinthedisplay.

Switchingoff

Pressthe①button. Yourmicrowaveovenswitchesoff.

Accessories

Simple line drawing of a metal grate or rack structure with four legs and a central vertical bar (no text or symbols)

Wirerack

Usethewireracktoplacetheovenwareon.

Beforeusingforthefirsttime

Setthetime

1. Pressthe①button. Thesymbollightsup.
2. Pressthe②clockbutton. 12:00appearsinthedisplay.
3. Set the time using therotary knob.
4. Confirmwiththeclockbutton.

Hidingtheclock

Presstheclockbuttonuntiltheclockdisplayis blank.

Resettingtheclock

Presstheclockbuttonuntil12:00appearsinthe display.

Makethesettingsasdescribedinsteps3and4.

Notes

Theclockdisplaydoesnotlightuptofullbrightness between22:00and06:00.

If you have hidden the clock, your appliance runs in low standby operation.

Pre-cleaningthe accessories

Please wash the accessories thoroughly with soapy water and cleaning cloth before using them.

Themicrowave

Hereyouwillfindinformationaboutovenwareand howtosethemicrowave.

Tablesandtips

Lotsofexamplesofdefrosting, heatingandcooking aregiveninthe"Tablesandtips"section.

Ovenware

Suitableovenware

Suitabledishesareheat-resistantovenware madeofglass, glassceramic, porcelain, ceramicor heat-resistantplastic. These materials donot reflect microwaves.

Youcanalsouseservingdishes. This saves you having to transfer food from one of the food. You should only use ovenware with decorative gold or silver trimifth manufacurierung guarantee that they are suitable for use in microwaves.

Unsuitableovenware

Neveruseovenwaremadeofmetal. Metalreflectsmicrowaves.

Caution.Metal-e.g.aspooninaglass-mustbeat least2cmawayfromthewallsofthecooking compartmentandinsideofthedoor.Sparkscould destroytheglassontheinsideofthedoor.

Ovenwaretest

Donotswitchonthemicrowaveunlesssthereisfood inside.

The followingovenwaretestistheonlyexceptionto thisrule.

Perform the following testify you are unsure whether youovenware issuitable for use in themicrowave: Heat the empty ovenware at maximum power for between 30 and 60 seconds. Check the temperature of the ovenware during this period. The ovenware should still be cold or warm to the touch. The ovenware is unsuitable if it becomes hotors parks are generated.

Microwavepower settings

Microwavepower setting	suitablefor
900wattsHeatingliquids
600wattsHeatingandcookingfood
360wattsCookingmeatandheatingdelicate foods
180wattsDefrostingandcontinuedcooking
90wattsDefrostingdelicatefoods

Settingprocedure

Themicrowavepowercanbesetto900wattsfora maximumof30minutes.Acookingtimeof 90 minutesispossiblewithallotherpowersettings.

Example: Microwavepower600W, 3 minutes

1. Pressthebuttonforthemicrowavepowersetting yourequire.
   1:00minappearsinthedisplay.

1. Set the cooking time using therotary knob.

3.PresstheStartbutton. Thecookingtimecountsdowninthedisplay.

Thecookingtimehas elapsed

Asignalsounds.Theapplianceswitchesoff.The clockreappearsinthedisplayifyoupresstheStop buttonandopentheappliancedoor.

Changingthecookingtime

Youmaychangethecookingtimeatanytime.

Pausing

Opentheappliancedoor. Theprogrammeis interrupted. PresstheStartbuttonagainonceyou haveclosedthedoor. Theprogrammewillthen continue.

Cancellingthesetting

PresstheStopbutton.

Notes

Youcanalsosetthecookingtimefirstandthenthe microwavepower.

If you open the appliance, while the appliance is in operation, the fan may continuetorun.

3-stageoperation

Youcansetupto3microwavesettingsoneafterthe other.

Youcanusethesesettingsfore.g.easydefrosting.

Alwaysuseheat-resistantovenwarewhichissuitable formicrowaves.

Example:

1.600W/2minutes

2.180W/5minutes

3.90W/10minutes

1.Pressthe!button. 1appearsinthedisplay.
2. Presstherequiredmicrowavepowersetting. Theselectedmicrowavepowersettinglightsupin thedisplayand1:00minuteappears.
3. Set the cooking time using therotary knob.
4. Pressthe button. 2appearsinthedisplay.
5. Presstherequiredmicrowavepowersetting Theselectedmicrowavepowersettinglightsupin thedisplayand1:00minuteappears.
6. Set the cooking time using therotary knob.
7. Pressthe button. 3appearsinthedisplay.

	8.PresstherequiredmicrowavepowersettingTheselectedmicrowavepowersettinglightsupinthedisplayand1:00minuteappears.9.Setthecookingtimeusingtherotaryknob.10.PresstheStartbutton.Thetotalcookingtimewillappearinthedisplay.Itcountsbacktozero.Theactivemicrowavepowersettinglightsupbrighter.
Thecookingtimehas elapsed	Asignalsounds.Theapplianceswitchesoff.TheclockisdisplayedoncemorewhenyoupresstheStopbuttonandopentheapplancedoor.
Pausing	Opentheapplancedoor.Theprogrammeisinterrupted.PresstheStartbuttonagainonceyouhaveclosedthedoor.Theprogrammewillthencontinue.
Cancellingthesetting	PresstheStopbutton.
Notes	Thesamemicrowavepowersettingcannotbeselectedtwiceinsuccession.The900Wpowersettingcanonlybeselectedonce.Youcanalsosetthecookingtimefirststandthenthemicrowavepowersetting.Changingastagebeforestarting:Pressthe!buttonrepeatedlyuntilthestageisdisplayedandchangethesetting.Ifyouopentheappliancedoorduringcooking,thefanmaycontinuetorun.

Automaticprogramming

Settingprocedure

Youcanusetheautomaticprogrammingtodefrost foodwiththegreatestofeaseandprepareavarietyof dishesquicklyandeasily.

Example: P2,1.0kg

1. Pressthe "P" button. P1 appears in the display.

1. Usetherotaryknobtoselecttherequired programme.

3.Pressthe"kg"button. Thedefaultweightappearsinthedisplay.

4.Turntherotaryknobtosettheweight.

5.PresstheStartbutton. Thecookingtimecountsdowninthedisplay.

Thecookingtimehas elapsed

Asignalsounds.Theapplianceswitchesoff.Open theappliancedoororpresstheStopbutton.

Pausing

Opentheappliancedoor.PresstheStartbuttonagain onceyouhaveclosedthedoor.Theprogrammewill thencontinue.

Cancelling

PresstheStopbuttontwiceoropentheappliance doorandpresstheStopbuttononce.

Notes

The cooking time cannot be changed.

Someprogrammescallforthefoodtobeturnedor stirred.Asignalsounds.

If you open the appliance, while the appliance is in operation, the fan may continuetorun.

If you press the "P" programme button or the weight button in automatic mode, the programme number or weight selected is displayed for approximately 3 seconds respectively.

If the kg button flashes after the appliance has been started, a weight was not entered. Set the weight and press the Start button.

Memory

Youcanusethememorytocreateprogrammes.You canstorethesettingsandretrievethematanytime.

Thememoryisusefulifyourequireseveraldifferent settingsinordertopprepareyourdishorifyoucooka dishparticularlyfrequently.

Storingmemory settings

Example: 600 W, M1, 4 minutes

1. Pressthebuttonforthemicrowavepowersetting yourequire.

1:00minappearsinthedisplay.

2.Setthecookingtimeusingtherotaryknob.

Reallocatememory

1. Pressthe "M1" or "M2" memorybutton until "M1" or "M2" flashes and asignalsounds.

Thesettingisstored.

Thetimereappearsinthedisplay.

If you want to allocate memory, select the memory button. The old settings are displayed. Enter new settings.

Starting the memoryfunction

Thestoredsettingsforyourdishcaneasilybecalled up.

Placethedishinthecookingcompartment.

Example:

600 W,M1,4 minutes

1. Pressthe "M1" or "M2" button.

Thestoredsettingsappearinthedisplay.

2.PresstheStartbutton.

The cookingtimecountsdowninthedisplay.

Thecookingtimehas elapsed

Asignalsounds. Open the appliance door or press the Stop button.

Pausing

Opentheappliancedoor.Thecoolingfanmay continuetorun.PresstheStartbuttonagainonceyou haveclosedthedoor.Theprogrammewillthen continue.

Cancellingthesetting

PresstheStopbuttontwiceoropentheappliance doorandpresstheStopbuttononce.

Notes

Oncetheappliancehasbeenstarted, youcanno longerchangethememorylocation.

Youcanonlychangethecookingtimeafterthe appliancehasbeenstarted.

Thesetprogrammesalsoremainstoredifthereisa powercut.

Changingthesignalduration

Asignalsoundsafterthesetdurationhasexpired. Youcanchangethedurationoftheacousticsignal.

Shortsignalduration=S:5 Mediumsignalduration=S:30initialsetting Longsignalduration=S:50

Example: 5signals

1. PressthekgbuttonuntilS:30appearsinthe display.
2. Usetherotarybuttontoselectthedesiredsignal duration.
3. Pressandholdthekgbuttonuntilkgflashesinthe displayandasignalsounds. Thesettingisstored andthetimeappearsagain.

Careandcleaning

Donotusehigh-pressurecleanersorsteamjets. Thereisadangerofshort-circuiting.

Donotusecausticorabrasivecleaningagentsor sharpmetalscraperstocleantheovendoorglass. Thesurfacecouldbedamagedwhichmayresultin shatteringoftheglass.Ifanabrasivesubstance comesintocontactwiththefrontage,washitoff immediatelywithwater.

Cleaningagents

Applianceexterior	Usesoapywateranddrywithasoftcloth
withaluminiumfront	Gentlewindow-cleaningagent.Usingasoftwindowclothora non-fluffingmicrofibrecloth,wipeoverthesurfaceslightlyina horizontaldirection.
withstainlesssteelfront	Useasoftclothtosubsequentlydryoffanysoapywater.Alwaysremovelimescale,fat,eggwhitemarksandstarchy residueimmediately.Specialstainlesssteelcleaningagentscanbeobtainedfromthe after-salesserviceorfromspecialistshops.
Cookingcompartment	Usehotsoapywateroravinegarsolution,thendrythoroughly withasoftcloth.
SealHotsoapywater
DoorpanelGlasscleaner
Accessories	Soakinhotsoapywater.Cleanwithabrushorsponge.

Troubleshooting

Malfunctionsoftenhavesimpleexplanations.Please readthefollowinginstructionsbeforecallingthe after-salesservice:

ProblemPossiblecauseNotes/remedialaction
Theappliancedoesnotwork.Theplugisnotpluggedintothemains.		Plugitin.
		PowercutCheckwhetherthekitchenlightswitcheson.
		BlownfuseLookinthefuseboxtomakesurethatthefusefortheapplianceisOK.
		FaultyoperationSwitchoffthefuseinthefusebox.Waitapproximately10seconds.Switchonthefusesagain.
Theapplianceisnotinoperation.Acookingtimeappearsinthedisplay.		Therotaryknobwasaccidentallyrotated.
		Thestartbuttonwasnotpressedafterthesettinghadbeenmade.
Themicrowavedoesnotswitchon.		Thedoorisnotproperlyclosed.
		Thestartbuttonwasnotpressed.
Thefoodtakeslongerthanusualtoheatup.		Themicrowavepowersettingistoolow.
		Youhaveplacedlargeramountoffoodthannormalintheappliance.
Applianceswitchesoffshortlyafterstarting.		Doorisnotclosedcorrectly.Openthedooragainandcloseitcorrectly,andifthisdoesn'thelp,contacttheafter-salesservice.

ProblemNotes/remedialactionPossiblecause

Errormessage“Er1”appearsin thedisplay.	Thetemperaturesensoris faulty.	Calltheafter-salesservice.
Errormessage“Er11”appearsin thedisplay.	Thebuttonsaredirtyorthe mechanicshavejammed.	Pressallbuttonsseveraltimes, andifthisdoesn’thelp,contact theafter-salesservice.
Errormessage“Er4”appearsin thedisplay.	Thereisextremeoverheating (possiblyafireinside). Microwavepowersettingtoo high.	Donotopenthedor,disconnect fromthemainsorswitchoffthe fuseinthefuseboxandallowto cooldown.
Errormessage“Er18”appearin thedisplay.	Technicalfault.Calltheafter-salesservice.

Repairsmayonlybecarriedoutbyfullytrained after-salesservicetechnicians.

Incorrectrepairsmayresultinseriousinjurytothe user.

After-salesservice

EnumerandFDnumber

Ourafter-salesserviceisthereforyouifyour applianceshouldneedtoberepaired.Youwillfindthe addressandtelephonenumberofyournearest after-salesservicecentreinthephonebook.The after-salesservicecentreslistedwillalsobehappyto adviseyouofaservicepointinyourlocalarea.

Whencontactingtheafter-salesservice,always specify the product number(Eno.) and the production number(FDno.) of your appliance. Therating plate bearing these numbers can be found on their right handside by opening the appliance door. Make a note of these numbers in the space below to save time in the event of your appliance malfunctioning.

Eno.FDno.

After-salesservice

Technicaldata

Powersupply230V,50Hz
Totalconnectedload1,220watts
Microwavepoweroutput900watts(IEC60705)
Microwavefrequency2,450MHz
Dimensions(HxWxD)
-Appliance38.2x59.4x31.9cm
-Cavity22.0x35.0x27.0cm
Weight16,2kg
VDEapprovedYes
CEmarkYes

This appliance complies with standard EN55011 or CISPR 11.

Itisagroup2,classBproduct.

Group2meansthatmicrowavesaregeneratedforthe purposeofheatingfood.

ClassBindicatesthattheapplianceissuitablefor domesticuse.

Tablesandtips

Hereyouwillfindaselectionofdishesandtheideal settingsforthem. Thissectiondescribeswhich microwavepowersettingisbestforyourdishorwhich accessoriesyoushoulduse.Youwillreceivemany tipsontheovenwareandpreparation,and informationonwhattodoifsomethinggoeswrong.

Defrosting, heating upandcooking withthemicrowave

The following tables provide you with numerous options and settings forthemicrowave.

Thetimesspecifiedinthetablesareonlyguidelines. Theymayvaryaccordingtotheovenwareused,the quality,temperatureandconsistencyofthefood.

Timerangesareoftenspecifiedinthetables.Setthe shortesttimefirststandthenextendthetimeif necessary.

It may be that you have different quantities from those specified in the tables. Arule of thumb can be applied: Double amount – just under double cooking time, half amount – half the cooking time.

Stirorturnthefoodseveraltimesduringtheheating time.Checkthetemperature.

Defrosting

Placethefrozenfoodinanopencontaineronthe cookingcompartmentfloor.

Turnorstirthefoodonceortwiceduringthe defrostingtime.Largepiecesoffoodshouldbeturned severaltimes.

Liquidwillbeproducedwhendefrostingmeat,poultry orfish.Drainoffthisliquidwhenturningandunderno circumstancesshoulditbeusedforotherpurposesor beallowedtocomeintocontactwithotherfoods.

Leavedefrosteditemstostandatroomtemperature forafurther10to30minutessothatthetemperature canstabilise. Thegibletscanberemovedfrompoultry atthispoint.

	AmountMicrowavesettinginwattsTimeinminutes		Notes
Wholejointsofmeate.g.beef,porkorveal(withorwithoutbones)	800g1,000g1,500g	180W,15min.+90W,15-25min.180W,20min.+90W,20-30min.180W,25min.+90W,25-35min.	Turnseveraltimes.
Dicedorslicedbeef,porkandveal	200g500g800g	180W,5-8min.+90W,5-10min.180W,8-11min.+90W,10-15min.180W,12-15min.+90W,15-20min.	Separatethepartswhenturning.
Mixedmincedmeat200g		180W,2min.+90W,5-10min.180W,6min.+90W,8-13min.180W,10min.+90W,15-20min.	Freezeflatifpossible.Turnseveraltimesduringdefrostingandremovemeatwhichhasalreadybeendefrosted.
	500g800g
Poultryorpoultryportions	600g1,200g	180W,8min.+90W,10-15min.180W,15min.+90W,20-25min.	Turnseveraltimes.
Fishfillet,fishsteak,slices	400g180W,5min.+90W,10-15min.Separatedefrosteditments.
Wholefish300g		180W,3min.+90W,10-15min.180W,8min.+90W,15-25min.	Turnhalfwaythrough.
	600g
Vegetablese.g.peas300g180W,10-15min.
Fruite.g.raspberries	300g500g	180W,6-9min.180W,8min.+90W,5-10min.	Stircarefullyduringdefrostingandseparatethedefrostedparts.
Butter125g		180W,1min.+90W,1-2min.180W,1min.+90W,2-4min.	Removeallthepackaging.
	250g
Wholeloaf500g		180W,8min.+90W,5-10min.180W,12min.+90W,10-20min.	Turnhalfwaythrough.
	1,000g
Drycakese.g.creamingmethodcakes	500g750g	90W,10-15min.180W,5min.+90W,10-15min.	Separatethepiecesofcakewhenturningthem.Onlyforcakeswithouticing,creamorcremepâtissière.
Juicycakese.g.fruitcakeandquarkcake	500g750g	180W,5min.+90W,15-20min.180W,7min.+90W,15-20min.	Onlyforcakeswithouticingorgelatine.

Defrosting, heating up or cooking frozen food

Always placetheovenware on the cooking compartment floor.

Alwayscoverthefood. If you donothave as suitable cover for your container, use a plate or special microwave foil.

Takereadymealsoutofthepackaging. They will heat up more quickly and evenly in microwaveable ovenware.

The different component of theme may not require the same amount of time to heat up.

Foodwhichliesflatwillcookmorequicklythanfood whichispiledhigh.Youshouldthereforedistributethe foodsothatitisasflataspossibleinthecontainer.

Stirorturnthefoodtwoorthreetimesduringthe defrosting,heatingorcookingtime.

Afterheating, allow the food to rest for further 2 - 5 minutes until it reaches an event temperature.

This will help the food retain its own distinct taste, so it will require less seasoning.

	AmountMicrowavesettingin watts Timeinminutes		Notes
Menu,platedmeal, ready-mademealsin 2to3parts	300-400g600W,8-13min.
Soups400g600W,8-12min.
Stews500g600W,10-15min.
Meatinsaucee.g.goulash500g600W,10-15min.Separatethepiecesofmeat whenstirring.
Fish,e.g.fillets400g600W,10-15min.Youmayaddwater,lemonjuice orwine.
Bakes e.g.lasagneandcannelloni	450g600W,10-15min.Usethewirerack toplacethe ovenwareon.
Sidedishes riceandpasta	250g 500gAmount	600W,3-7min. 600W,8-12min.wattsTimeinminutes	Addalittleliquid.NotesMicrowavesettingin
Vegetablese.g.peas,broccoli andcarrots	300g600g	600W,7-11min.600W,14-17min.	Addwatertocoverthebaseofthedish.
Creamedspinach450g600W,10-15min.Cookwithoutaddinganywater.

Heatingfood

Always placetheovenware on the cooking compartment floor.

Alwayscoverthefood. If you donothave as suitable cover for your container, use a plate or special microwave foil.

Takeready-to-eatmealsoutofthepackaging. They willheatupmorequicklyandevenlyinmicrowaveable ovenware. Thedifferentcomponentsofthemealmay notrequirethesameamountoftimetoheatup.

Whenheatingliquids,alwaysplaceaspooninthe containertopreventdelayedboiling.Whendelayed boilingoccurs,thismeansthattheliquidreaches boilingtemperaturewithouttheusualsteambubbles risingtothesurface.Evenifthecontaineronlyvibrates alittle,thehotliquidcansuddenlyboiloverorspatter. Thiscancauseinjuriesandburns.

Stirorturnthefoodseveraltimesduringtheheating time.Checkthetemperature.

Afterheating, allow the food to rest for further 2 to 5 minutes until it reaches an event temperature.

	AmountMicrowavesettingsin watts Timeinminutes		Notes
Menu,platedmeal, ready-mademealsintwo tothreeparts		600W,5-8min.
Drinks125ml		900W,1⁄2-1min.	Placeaspooninthecontainer.
	200ml	900W,1-2min.	Donotoverheatalcoholic drinks.Checkduringheating.
	500ml	900W,3-4min.
	Amount	wattsTimeinminutes	NotesMicrowavesettingsin
Babyfoode.g.baby'sbottles	50ml	360W,1⁄2min.	Withoutthelidorteat.Alwaysshakewellafterheating.Youmustcheckthetemperature.
	100ml	360W,1⁄2-1min.
	200ml	360W,1-2min.
Soup1bowl2bowls	175g	600W,1-2min.
	350g	600W,2-3min.
Meatinsauce500g600W,7-10min.Separateslicesofmeat.
Stew400g		600W,5-7min.
	800g	600W,7-8min.
Vegetables1portion2portions	150g	600W,2-3min.
	300g	600W,3-5min.

Cookingfood

Foodwhichliesflatwillcookmorequicklythanfood whichispiledhigh. Youshouldthereforedistributethe foodsothatitisasflataspossibleinthecontainer.

Cookthefoodincoveredovenware.Foodshouldbe stirredorturnedduringcooking.

This will help the food retain its own distinct taste, so it will require less seasoning.

Aftercooking, allow the food to rest for further 2 to 5 minutes until it reaches an event temperature.

Usethewireracktoplacedisheson:

-ifthemealrequiresmorethan20minutes cookingtime

-ifthemealdoesnotneedtobestirred.

	AmountMicrowavesettingsinwattsTimeinminutes	Notes
Freshwhole chickenwithout giblets	1.2kg600W,22-25min.Turnhalfwaythroughthe	cookingtime.
Freshfishfillet	400g600W,7-12min.

	Amount	Timeinminutes	NotesMicrowavesettingsinwatts
Fresh vegetables	250g	600W,5-10min.	Cutvegetablesintopiecesof equalsize.Add1to2table-spoonsofwaterper100 gof vegetables.
	500g	600W,10-15min.
Sidedishese.g. potatoes	250g	600W,8-10min.	Cutpotatoesintopiecesof equalsize.Add1to2tablespoonsofwaterper 100 gandstir.
	500g	600W,12-15min.
	750g	600W,15-22min.
Rice	125g	600W,4-6+180W14-16min.	Adddoubletheamountof liquid.
	250g	600W,6-8+180W14-16min.
Sweetse.g. pudding (instant), fruit,compote	500ml	600W,5-7min.	Stirthepuddingthoroughly usinganeggwhisk2to 3 timesduringthecooking.
	500g	600W,9-12min.

Microwavetips

Youcannotfindanyinformation aboutthesettingsforthequantity offoodyouhaveprepared.	Increaseorreducethecookingtimesusingthefollowingruleof thumb:Doubleamount=doublecookingtimehalfamount=halfthecookingtime
The food has become too dry.	Next time, set a shorter cooking time or select a lower microwavepowersetting.Coverthefoodandaddmoreliquid.
Whenthetimehaselapsed,the foodisnotdefrosted,hotor cooked.	Setalongertime.Largequantitiesandfoodwhichispiledhigh requirelongertimes.
Whenthetimehaselapsed,the foodisoverheatedattheedge butnotdoneinthemiddle.	Stiritduringthecookingtimeandnexttime,selectalower microwavepowersettingandalongercookingtime.
Afterdefrosting,thepoultryor meatisdefrostedontheoutside butnotdefrostedinthemiddle.	Nexttime,selectalowermicrowavepowersetting.Ifyouare defrostingalargequantity,turnitseveraltimes.

Note

Condensation may appear on the door panel, interior walls and floor. This is normal and does not affect the operation of the microwave. Please wipe away the condensation after cooking.

Notesonautomatic programming

Takethefoodoutofitspackagingandweighit. Ifitis notpossibletoentertheexactweight, you should rounditupordown.

Placethefoodinashallow, microwaveabledish, e.g. aglassorchinaplate. Donotcoverthedish.

Placethefoodinthecoldappliance.

Atableofsuitablefoodwithweightrangesand accessoriesrequiredcanbefoundafterthetips.

It is not possible to set a weight outside the weight range.

Withmanydishes, asignalsoundsafteracertain time. Turnorstirthefood.

Defrosting

If possible, freeze and store food flat and in portions at -18 °C.

Putthefrozenfoodonaflatdish, e.g. aglassor porcelainplate.

Afterdefrosting, allow the food to defrost for further 10 to 30 minutes until it reaches room temperature.

Liquidwillbeproducedwhendefrostingmeat,poultry orfish.Drainoffthisliquidwhenturningandunderno circumstancesshoulditbeusedforotherpurposesor beallowedtocomeintocontactwithotherfoods.

Placebeef, lambandporkonthedishfatty-sidedown first. Alwaysputmeatonasaucer.

Breadshouldonlybedefrostedintherequired amounts, asitquicklybecomesstale.

Afterturning, remove anymincedmeatthathas already defrosted.

Wholepoultryshouldbeplacedinthedish breast-sidedownandpoultrypiecesskin-sidedown.

Potatoes

Boiledpotatoes:cutintopiecesofauniformsize.Add 2tablespoonsofwaterper100gpotatoes,andadd salttotaste.

Jacketpotatoes:usepotatoesofequalsize.Washthe potatoesandprickthemallover.Placethewet potatoesinadish.Donotaddwater.

Rice

Ricefoamsalotduringcooking.Therefore,usea high-sideddishwithalid.Entertheuncookedweight (withoutliquid).

Addtwototwoandahalftimestheamountofliquid totherice.

Donotuseboil-in-the-bagrice.

Vegetables

Vegetables, fresh: cut intopieces of equal size. Add twotablespoon sof waterforevery 100 gvegetables.

Vegetables, deep-frozen: this program is only suitable for blanched, not pre-cooked vegetables. The program is not suitable for frozen vegetables in cream sauce. Add 1 to 2 tablespoons of water per 100 g. Do not add watertospinachorred cabbage.

Standing time

Somedishesneedsomecoolingdowntimeinthe cookingcompartmentaftertheprogramhasended.

Meal	Standing
Vegetables	approx.
Potatoes	approx.Strain	the
Rice	5-10	minut

Food		Program number	Weight		range accessories
Defrosting
Meat	and	P1	poultry	0.2	lid.
-	Roasts
-	Flat		pieces		of
-	Mince
-	Chicken,		poulard,		duck
Fish		P2		0.1
Whole	fish,		fish	lid.	fillet,

Food	number	WeightrangeProgram	Ovenware/accessories
Breadandcake*	P30.2-1.5 kgFlatdishwithout
Bread,whole,roundorlong,breadin slices,spongecake,yeastcake,fruitpie			lid.
Cooking
Potatoes Boiledpotatoes,jacketpotatoes	P40.2-1.0kgDishwithlid.
RiceP50.05-0.3kgTalldishwithlid.
Freshvegetables Cauliflower,broccoli,carrot,kohlrabi, leek,pepper,courgette	P60.15-1.0kgDishwithlid.
Frozenvegetables Cauliflower,broccoli,carrot,kohlrabi, redcabbage,spinach	P70.15-1.0kgDishwithlid.
*Creamcakes,buttercreamcakes,cakeswithfrosting,icingorgelatineareunsuitable.

Testdishesinaccordancewith EN 60705

The quality and function of microwave appliances is tested by testing institutes using the following dishes.

Solomicrowave cooking

Meal	MicrowavepowersettinginW, cookingtimeinminutes	Notes
Custard,565g600 W,8	mins+180 W,15-20 minsPyrex,22x17 cm
Sponge,475g600watts,8-10 minsPyrex,22 cmdiameter
Meatloaf,900g600watts,25-30 minsPyrexcaketin*,28 cmlong
*Usethewireracktoplacetheovenwareon.

Solomicrowavedefrosting

Meal	MicrowavepowersettinginW, cookingtimeinminutes	Notes
Meat,500gProgramme1,500gor180 W,6mins+90W9 mins		Pyrexno.218,24 cm diameter

Paraquecocinarseatandivertidocomocomer,

Interruptor principal 48

Accesorios 48

Two glass glasses with different shapes: a spoon inside and a black X symbol crossed out (no text or symbols present)

Circular dial indicator with tick marks and plus/minus symbols (no text or numbers)

Zonas

Interruptorprincipal

Elinterruptorprincipal ^1 sirveparaencenderyapagar elaparatomicroondas.

Conexión

Pulsarlatecla①.

Simple line drawing of a metal rack with four legs and a central vertical rod (no text or symbols)

Parrilla

2.PulsarlateclaStart.

Two glass glasses, one with a spoon and the other with a black X symbol (no text or labels)

Circular dial indicator with tick marks and plus/minus symbols (no text or numbers)

Περιοχές

Line drawing of a metal rack with four legs and a central vertical rod (no text or symbols)

Σχάρα

Two glass glasses, one with a spoon and the other with a black X symbol (no text or labels)

Circular mechanical knob with tick marks and a plus/minus symbol (no text or numbers)

Диапазоны

Simple line drawing of a metal grate or rack structure with four legs and a central vertical bar (no text or symbols)

Решетка
