Product Type	Built-in Microwave Oven
Brand	Neff
Model	H5470A0
Dimensions (W x H x D)	592 mm x 382 mm x 318 mm
Cavity Capacity	21 Liters
Weight	Approx. 20 kg
Power Supply	220-240 V, 50 Hz
Microwave Power	900 W
Grill Power	1000 W
Functions	Microwave, Grill, Combination, Defrost, Auto Programs
Control Type	Touch Control with TFT Display
Door Opening	Drop-down door
Interior Material	Stainless Steel with Easy-clean Enamel
Safety Features	Child Lock, Door Safety Switch, Overheat Protection
Cleaning	Wipe with damp cloth, avoid abrasive cleaners
Spare Parts Availability	Yes, via Neff service centers
Colour	Stainless Steel
Energy Efficiency Class	A+
Installation Type	Built-in (requires cabinet)
Warranty	2 years (manufacturer)

Frequently Asked Questions - H5470A0 NEFF

How do I set the microwave power level?

Press the Microwave button repeatedly to cycle through power levels (e.g., 900W, 600W, etc.). Then set the time using the +/- buttons and press Start.

Can I use metal containers in this microwave?

No, do not use metal containers or aluminum foil unless specifically designed for microwave use. They can cause sparks and damage the appliance.

How do I clean the microwave interior?

Wipe the interior with a soft, damp cloth and mild detergent. For stubborn stains, use a vinegar solution or a dedicated microwave cleaner. Avoid abrasive sponges.

What is the child lock feature and how to activate it?

The child lock prevents accidental operation. To activate, press and hold the Stop button for 3 seconds until a lock icon appears. Repeat to deactivate.

Why is the microwave not heating?

Check if the door is fully closed. Ensure the power cord is plugged in and the circuit breaker is on. If the problem persists, a faulty magnetron or capacitor may require professional repair.

How do I use the grill function?

Place food on the high rack (if provided) and select Grill mode. Set the cooking time and press Start. The grill element will heat up. For best results, preheat for 2-3 minutes.

Can I bake or roast in this microwave?

Yes, using the Combination mode that combines microwave and grill/heat. It is suitable for dishes like cakes, roasted chicken, and gratin. Use microwave-safe bakeware.

What are the recommended safety distances for installation?

Ensure at least 10 cm of clearance above the appliance, 5 cm on each side, and no obstruction at the rear for proper ventilation. Refer to the installation manual for exact requirements.

How do I defrost food quickly?

Select the Defrost function. Enter the weight of the food (e.g., 1.5 lbs). The microwave will automatically set the time and power. Turn food over midway if prompted.

What should I do if the display shows an error code?

Note the error code and restart the microwave. If it persists, consult the user manual for troubleshooting. Common codes like E-01 indicate door latch issues. Contact Neff service if needed.

USER MANUAL H5470A0 NEFF

Eine Störung, was tun? 33

Kundendienst 34

Technische Daten 34

Two glass glasses, one with a spoon and the other with a black X symbol (no text or labels)

Illustration of a microwave oven with a circular vent and lid (no text or symbols)

Illustration of a microwave oven with control panel and display (no text or symbols)

Hinweise

Using this microwav will make cooking are all pleasure.

Pleasereadtheinstructionmanualtoensurethatyoumake useofallthetechnicaladvantagestheappliancehastooffer.

The start of the instruction manual contains an number of important notes relating to safety. You will then be introduced to the individual component so your new appliance. This section explains all the function so your new appliance and how to operate it.

Thetableshavebeenstructuredinsuchawayastoprovide astep-by-stepguidetothecookersettings. Theycontain informationonsimplerecipes,appropriateovenwareandthe idealsettings,allofwhichhaveofcoursebeencarefully testedinourcookingstudio.

Italsocontainsanumberoftipsoncareandcleaningto ensurethatyourappliancecontinuestolookgoodforalong time.Intheunlikelyeventofamalfunction,thelastfew pagescontaininformationonhowtorectifyminorfaults yourself.

Should you have any questions, always referto the detailed table of contents first. This will help you find the right section quickly.

We hopethatyouwillenjoycookingwithyournew microwave.

Tableofcontents

Beforeconnectingyournewappliance38......

Beforeinstallation38......

Installationandconnection39......

Importantinformation40......

Safetyinformation40......

Safety information for cooking with the microwave . 43

Your new appliance 45

Accessories 46

Before using for the first time 47

Setting the clock 47

The microwave 48

Microwave settings 48

Setting procedure 49

Ovenware 50

Defrosting, heatingupandcooking with the microwave 51

Notes on the tables 51

Defrosting 52

Defrosting, heating up or cooking frozen foods .... 53

Heating food 54

Cooking food 55

Advice on microwave operation 56

Automatic defrost 57

Defrostingprogrammes57......

Setting procedure 58

Tableofcontents

Memory59......

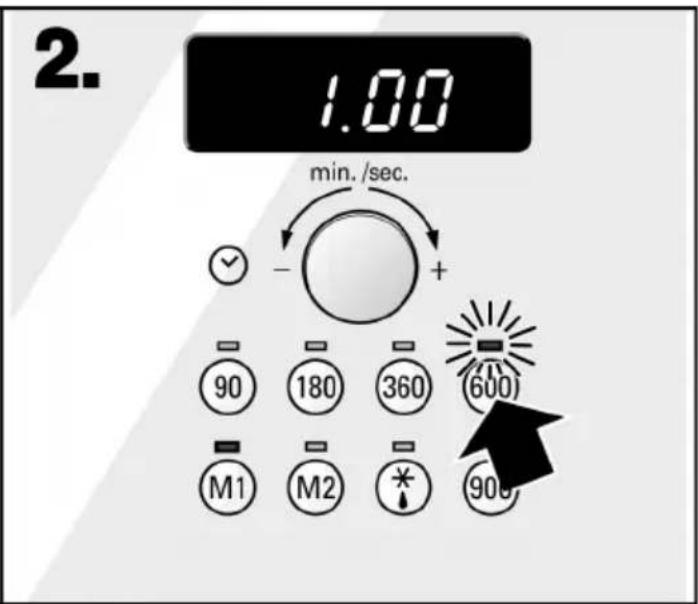

Storingsettings60......

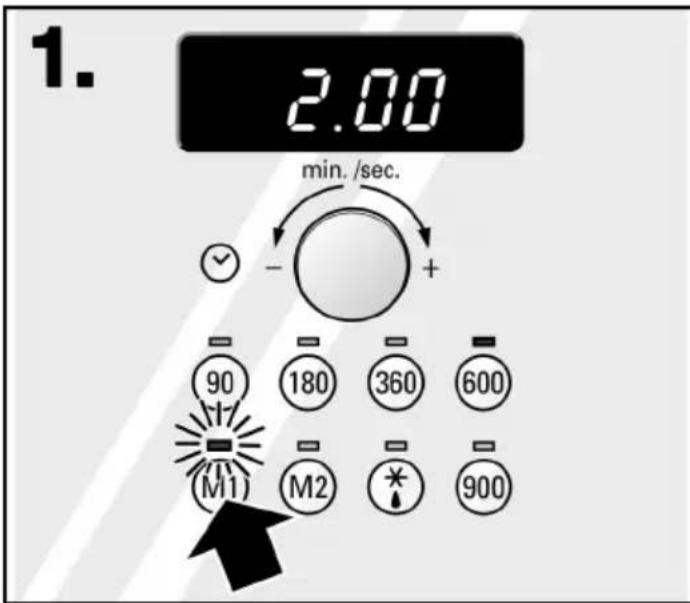

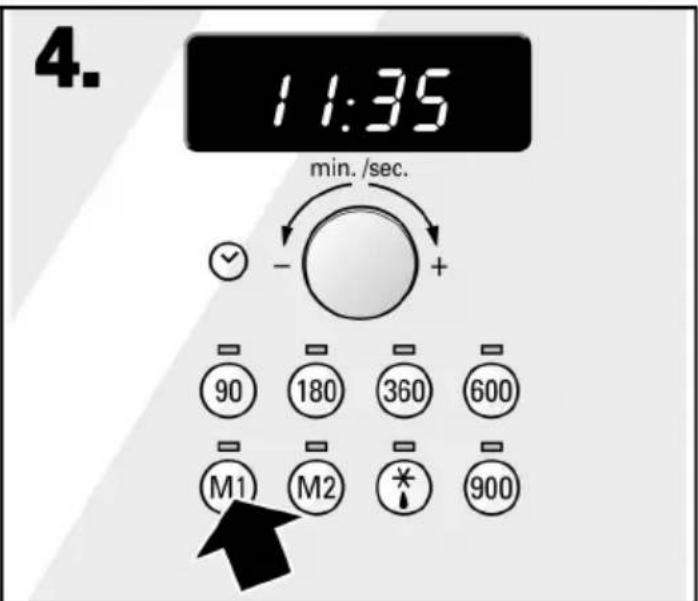

Startingthememoryfunction61......

Changingthesignalduration62......

TestdishesinaccordancewithEN6070563.....

Care and cleaning 64

Oven exterior 64

Oven interior 65

Turntable 65

Troubleshooting 65

After-sales service 66

Technical data 67

Beforeconnectingyournew appliance

Importantsafety precautions

☐Pleasereadthisinstructionmanualcarefully.Only thenwillyoubeabletooperateyourappliance safelyandcorrectly.

☐ Please keep the instruction and installation manual in asafeplace. Pass on the instruction manual to thenewownerify you sell the appliance.

Beforeinstallation

Disposinginan environmentally-responsible manner

□Unpackovenandremoveallpackingmaterial.

☐Thisapplianceislabelledinaccordancewiththe EuropeanDirective2002/96/ECconcerningused electricalandelectronicappliances(waste electricalandelectronicequipment-WEEE).

☐Theguidelinedeterminestheframeworkforthe returnandrecyclingofusedappliancesas applicable.

Transportdamage

☐ Check the appliance for damage after unpacking it. Donot connect the appliance ifithas been damaged in transport.

□Ifthesupplycordisdamaged,itmustonlybe replacedbythemanufactureroritisservice personnelorsimilarlyqualifiedpersoninorderto acoidahazard.

Installationandconnection

☐Pleaseobservethespecialinstallationinstructions.
☐Thisovenisintendedforbuilt-inuseonly.Itisnot intendedforcounter-topuseorforuseinsidea cupboard.
☐Theappliancecanbeinstalledinhighcabinet whichis50or60cmwide(atleast30cmdeep and85cmabovethefloor).
☐The appliance is fitted with a plug and must only be connected to a properly installed earthed socket. The fuse protection must be rated at 10 amperes (automatic circuit breaker with trigger characteristic LorB). Themains voltage must correspond to the voltages specified on the rating plate.
☐ Thesocketmustonlybeinstalledandthe connectingcablemustonlybereplacedbya qualifiedelectrician.Iftheplugisnolonger accessiblefollowinginstallation,anall-pole disconnectingdevicemustbepresentonthe installationsidewithacontactgapofatleast 3 mm.
□Adapters, multiwaystripsandextensionleads mustnotbeused. Overloadingcanresultinarisk offire.

Importantinformation

Safetyinformation

This appliance complies with the safety regulations for electrical appliances. Repairs must only be carried out by after-sales service engineers who have been trained by the manufacturer. Repair that are carried out incorrectly may constitute a serious hazard to the user.

The appliance is intended only for domestic use. Use it only for the preparation of food.

Adultsandchildrenmustnotoperatetheappliance withoutsupervision

-iftheyarephysicallyormentallyincapable ofdoingso

-oriftheylacktheknowledgeandexperience requiredtooperatetheappliancecorrectly and safely.

Childrenandmicrowaves

Childrenmustonlybeallowedtousemicrowave ovensiftheyhavebeenproperlyinstructed.They mustbeabletooperatetheappliancecorrectlyand understandtherisksoutlinedinthisinstruction manual.

Childrenmustbesupervisedwhenusingthe appliance,toensurethattheydonotplaywithit.

Hotsurfaces

Nevertouchthesurfacesofheatingandcooking appliances. Theywillbecomehotduringoperation. Keepchildrenatasafedistance.Thereisariskof burning.

Nevertrapcablesofelectricalappliancesinthe appliancedoor. Theinsulationcouldbedamaged. Shortcircuit, riskofelectrocution.

Neverusethetopoftheapplianceasaworktop. Thereisariskoffire.

Cookingcompartment

Neverstorecombustibleitemsinthecooking compartment. Theycouldcatchfireiftheapplianceis switchedon.

Thereisariskofburning.

Neveropentheappliancedoorifthereissmokeinthe cookingcompartment.Pullouttheapplianceplug.

Neverswitchontheapplianceunlesssthereisfoodin thecookingcompartment.Itcouldbeoverloaded.An exceptiontothisruleisforshort-termtestingof ovenware(seetheMicrowave,ovenwaresection).

Neverusethemicrowaveovenwithouttheturntable.

Neverplacefooddirectlyontheturntable.Alwaysuse adish.

Liquidthathasboiledovermustnotbeallowedtorun throughtheturntabledriveintotheinteriorofthe appliance. Observetheprocedure. Useashort cookingtimeandresetifnecessary.

Becarefulwithfoodthatispreparedwithdrinkswitha highalcoholcontent(e.g.cognac,rum).

Alcoholevaporatesathightemperatures. In unfavourablecircumstances, thealcoholvapours couldcatchfireinthecookingcompartment. Thereis ariskofburning.

Useonlysmallquantitiesofdrinkswithahighalcohol contentandopenthecookingcompartmentdoor carefully.

Appliancedoorandseal

Neveroperatetheapplianceiftheappliancedooris damaged. Otherwisemicrowaveenergymayescape. Calltheafter-salesservice.

Theappliancedoormustcloseproperly. Ifthesealisverydirty,theappliancedoorwillno longercloseproperlyduringoperation.Thefrontsof adjacentunitscouldbedamaged.Alwayskeepthe sealclean.

Environment

Neverexposethemicrowaveoventoexcessiveheat ormoisture.

Cleaningmethod

Donotusehigh-pressurecleanersorsteamjet cleaners.

Shortcircuit, riskofelectrocution.

Cleantheapplianceonaregularbasis. Thesurface of the appliance could be destroyed and the appliance could corrode overtime if it is not cleaned with sufficient care. Microwave energy could escape.

Repairs

⚠️ Repairsmustbecarriedoutonlybyafter-salesservice engineerswhohavebeentrainedbythe manufacturer.Repairsthatarecarriedoutincorrectly mayconstituteaserioushazardtotheuser.

Nevercarryoutrepairormaintenanceworkwhich requiresyoutoremovethecoverthatprotectsagainst microwaveenergy.Calltheafter-salesservice.

You must not openthecasing. The appliance is a high-voltage appliance.

Neverswitchonadefectiveappliance.Pulloutthe applianceplug.Calltheafter-salesservice.

Neverreplacethecookingcompartmentlightyourself. Calltheafter-salesservice.

CAUTION: Repair and maintenance work in which the cover that protects against microwave energy must be removed must only be carried out by a specialist personnel, duet other risks involved.

Safetyinformation forcookingwiththe microwave

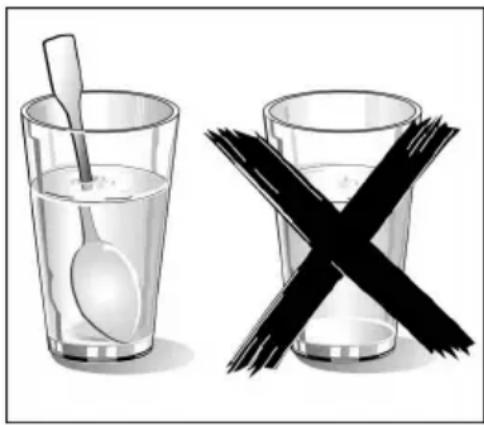

Two glass glasses, one with a spoon and the other with a black X symbol (no text or labels)

☐ Themicrowavemustonlybeswitchedonwhen thereisfoodinthecookingcompartment.

□Alwaysusethemicrowavesettingsandcooking timesspecifiedintheinstructionmanual.Ifyou selectaheatsettingthatistoohighoracooking timethatistoolong,thismaycausethefoodto igniteandtheappliancetobedamaged.Riskof fire.

☐ Themicrowaveshouldonlybeusedforheating mealsanddrinks. Usingthemicrowaveforother purposesmaybedangerousandmayresultin damagee.g.grainsorcerealscouldcatchfire whenheated.

Thereisariskofburning.

Whenheatingupliquids,alwaysplaceateaspoon inthecontainertopreventdelayedboiling.Ifit doesboiloveritmeansthattheliquidhascometo theboilwithoutthesteambubblesbeingableto escape.Evenifthecontaineronlyvibratesalittle, thehotliquidcansuddenlyboiloverorspatter. Thiscancauseinjuriesandscalding.

Babyfood:

Alwaysheatupbabyfoodinaglassorbottle withoutthelidorteat.Onceheated,thebabyfood shouldbestirredorshakenthoroughlytodistribute theheatevenly.Alwayscheckthetemperature beforegivingthefoodtoyourbaby.Thereisarisk ofburning.

□Neverheatupfoodordrinksintightlysealed containers.Thereisariskofexplosion.

☐Alcoholicdrinksmustnotbeoverheated.Thereis ariskofexplosion.

☐Donotheatanymealsinheat-retainingpackages astheycouldignite.Foodincontainersmadeof plastic,paperorothercombustiblematerialsmust bemonitoredduringheating.Airtightpackaging mayburstwhenfoodisheated.

☐Not: Nevercookeggsintheirshellsnorheatup hard-boiledeggs,astheymaycrackorexplode evenafterthemicrowaveheatinghasended.The sameappliestoshelfishandcrustaceans.Always pricktheyolkfirstforfriedorpoachedeggs.

□Alwayspricktheskinoffoodstuffswithhardcrusts orskinssuchasapples,tomatoes,potatoesand sausagesbeforecookingtopreventtheskinfrom bursting.

□Keepaneyontheovenwhenyouaredefrosting orheatingfoodssuchasherbs,fruitor mushroomsorfoodswithalowwatercontent suchasbreadasoverdryingcanresultinafire hazard.

☐Neverheatupcookingoilinamicrowaveasit couldignite.

□Useonlymicrowavablecontainers.

□Porcelainorceramicovenwarecanhavesmall perforationsinthehandlesorlid. These perforationsconcealacavitybelow.Anyliquidthat penetratesthiscavitymaycausetheovenwareto crack.

□Alwaysusethemicrowavesettingsandcooking timesspecifiedintheinstructionmanual.Ifyou selectaheatsettingthatistoohighoracooking timethatistoolong,thismaycausethefoodto igniteandtheappliancetobedamaged.

□Mealsheatedintheovengiveoffheat.The ovenwarecanbecomehot.Alwaysuseoven gloveswhentakingovenwareoutoftheoven.

Yournewappliance

Accessories

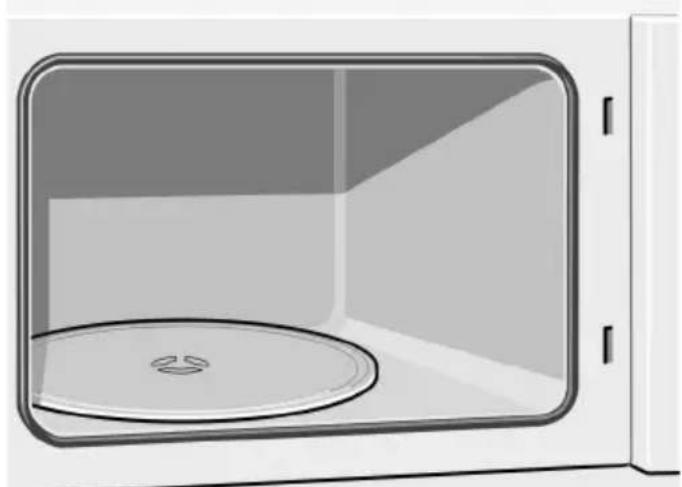

Theturntable

Toinserttheturntable:

1. Placethesupportring(a)inthe drive (c)inthecentreofthecooking compartmentbase.
2. Place the turntable (b) on the support ring(a).

Illustration of a microwave oven with a circular vent and lid (no text or symbols)

Youshouldonlyusetheappliancewith theturntableinplace.Ensurethatthe supportringisproperlyfitted.The turntablecanturnanti-clockwiseor clockwise.

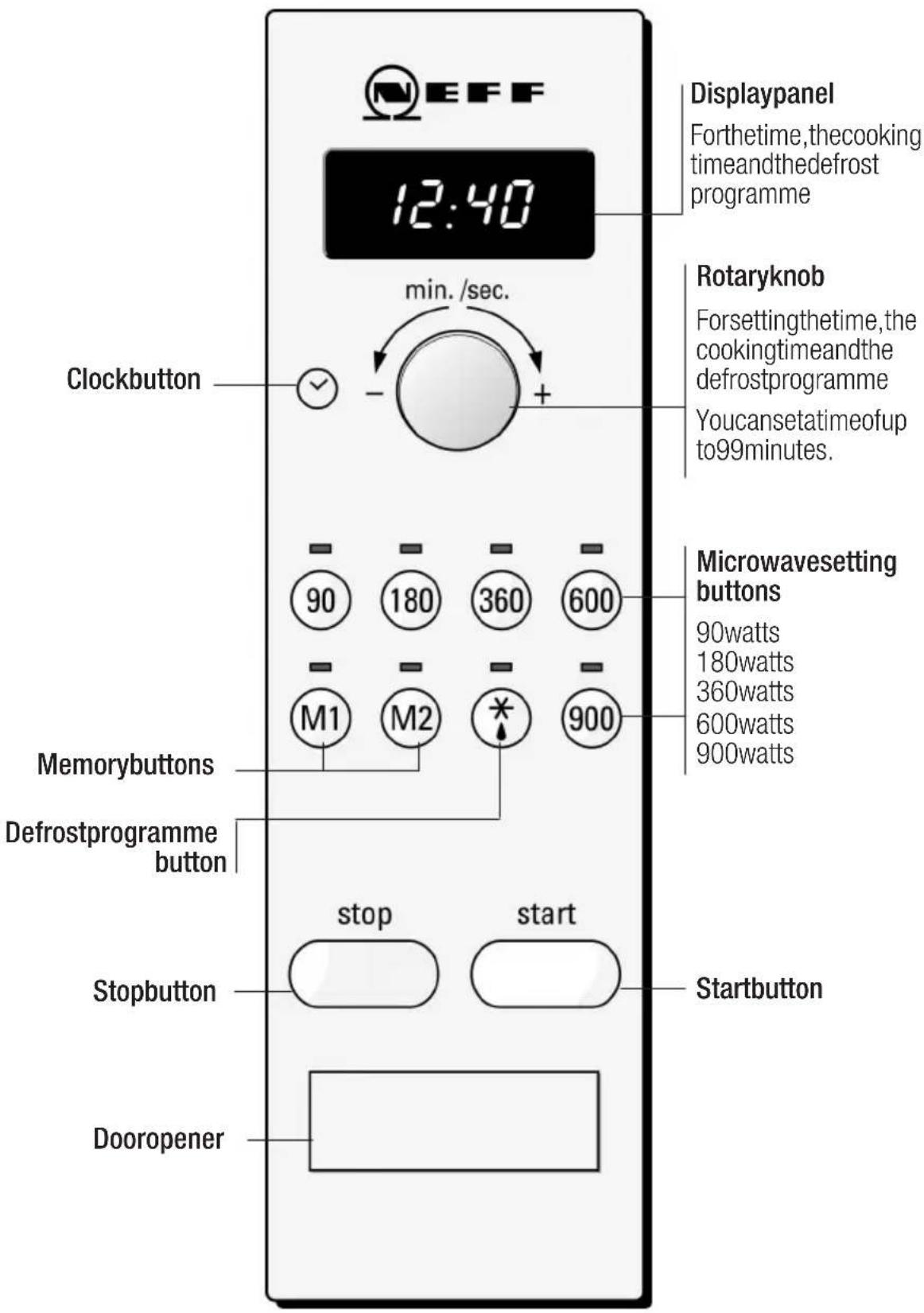

Illustration of a microwave oven with control panel and display (no text or symbols)

Notes

The appliance is fitted with a cooling fan. The fan may continue to operate after the oven has been switched off.

Condensation may appear on the door panel, interior walls and floor. This is normal and does not affect the operation of the microwave. Please wipe away the condensation after cooking.

Push-incontrolknobs

Therotaryknobcanbepushedin.

Simplypressthecontrolknobtoreleaseitorpushit in. Theknobcanbeturnedtotherightorleft.

Beforeusingforthefirsttime

Settingtheclock

Threezerosappearinthedisplaypanelwhenthe ovenisfirstconnectedoriftherehasbeenapower failure.12:00appearsafterafewseconds,withthe colonflashing.

Setthetime.

1. Setthetimeusingtherotaryknob.
2. Presstheclockbutton. Thetimeisnowset.

Hidingthetime	PresstheclockbuttonandthenpresstheStop button. Thedisplayisblank.
Toresetthetime	Presstheclockbutton. 12:00appearsinthedisplay.Makesettingsas describedinpoints1 and2.
Changingthetime fromsummertowinter time	1 Presstheclockbutton. 2. Changethetimeusingtherotaryknob. 3. Presstheclockbutton. Thetimeischanged.
Note	□Ifacookingtimesuddenlyappearsinthedisplay, theknobhasbeenturnedbyaccident.Pressthe Stopbutton Theclockreappearsinthedisplay.

Themicrowave

Microwavesareconvertedtoheatwhentheycome intocontactwithfood. Themicrowaveisidealfor rapiddefrosting, heatingup, meltingandcooking.

Whynottryouthemicrowave straightaway? You could heat up acup of water for your tea, fore example.

Usealargecupwithoutadecorativegoldorsilverrim andplaceateaspooninit.

1. Pressthe900wattmicrowavesettingbutton.
2. Usetherotaryknobtosetto1 minute and 30 seconds.
   3.PresstheStartbutton.

Anacousticsignalsoundsafter1minute and 30 seconds. Youcanswitchthisoffprematurely by pressingtheStopbutton.

Pleasereadthesafetyinstructionsatthefrontofthe instructionmanualoncemorewhileyouaredrinking yourcupoftea.Theyareveryimportant.

Microwavesettings

900 wattsforheatingupliquids.
600wattsforheatingupandcookingfood.
360 watts for cooking meat and heating up delicate foods.
180wattsfordefrostingandcontinuedcooking.
90wattsfordefrostingdelicatefoods.

Settingprocedure

Example:600W, 15-minutes

1. Pressthebuttonforthe microwavesettingyourequire. Theindicatorlightabovethe buttonflashes.

2. Set the cooking time using theknob.

3. Press the Start button.

	Theindicatorlightabovethemicrowavesettinglights up. Thetimecountsdowninthedisplay.
Whenthetimehaselapsed	Asignalsoundswhenthetimehaselapsed.The applianceswitchesoff.Oappearsinthedisplay.OpentheovendoororpresstheStopbutton.
Correction	Ifyouhaveonlymadeonemicrowavesetting,youcan changethecookingtimeatanytime.Ifyouhave madeseveralmicrowavepowerandtimesettings,the cookingtimecanonlybechangedbeforethe microwaveisstarted.
Pausing	PresstheStopbuttononceoropentheovendoor.PresstheStartbuttonafterclosingthedoor.
Cancelling	PresstheStopbuttontwiceoropenthedoorand presstheStopbuttononce.
Settingseveralmicrowave settingsoneafteranother.	Proceedasdescribedinpoints1and2.Thensetthe secondmicrowavesettingandtime.Youcansetup to3microwavesettingsoneaftertheother.Whenyou havefinishedthesettings,presstheStartbutton.

Notes

☐Youcanalsosetamicrowavesettingtwice:e.g. 600watts-360watts-600watts. 900wattscanonlybesetonce.
☐Thecookingtimecannotbechanged.
☐The900wattsettingcanbesetforamaximumof 30minutes, allothersettingscanbesetforupto 99minutes.
☐Setthetime: upto1Minuteinonesecondincrements upto5Minutesin10secondincrements upto30Minutesinincrementsofoneminute upto99Minutesin5minuteincrements.
☐Youcansetthemicrowavesettingfirstandthen thetime,orvisaversa.

Ovenware

Useheatresistantovenwaremadeofglass, glassand ceramic, porcelain, ceramicorheat-resistantplastic. These materials donotblock themicrowaves.

Thisisnotthecasewithovenwaremadeofmetal. The microwavesareobstructedwhichmeansthatthe foodinclosedmetalcontainersremainscold. Makesurethatthereisagapofatleast2cmbetween metalitemssuchasspoonsandthewallsandthe insideofthedoor. Theglassontheinsideofthedoor couldbedamagedbysparks.

Youcanoftenuseservingdishesforcookingfood. Thissavesyoufromhavingtotransferthefoodand meansthereislesswashingup.

Youshouldonlyuseovenwarewithgoldorsilverrims iftheovenwaremanufacturerguaranteesthattheyare suitableforuseinthemicrowave.

Alwaysplacetheovenwaredirectlyontheturntable.

Ovenwaretest:

Carryoutthefollowingtestifyouareunsurewhether yourovenwareissuitableforuseinthemicrowave: Placetheemptydishintheovenfor 1 / 2 to 1 minuteat fullpower. Checkthetemperatureduringthisperiod. Thedishshouldstillbecoldorhand-hot. Thedishis unsuitableifitbecomeshotorsparksaregenerated. N.B. Themicrowavemustonlybeswitchedonwhen thereisfoodinthecookingcompartment. Theonly exceptiontothisruleisthisovenwaretest.

Defrosting, heatingupand cookingwiththemicrowave

Notesonthetables

The following tables provide you with numerous options and settings forthemicrowave.

Thetimesspecifiedinthetablesareonlyguidelines. Theymayvaryaccordingtotheovenwareused,the quality,temperatureandconsistencyofthefood.

Timerangesareoftenspecifiedinthetables.Setthe shortesttimefirststandthenextendthetimeif necessary.

It may be that you have different quantities from those specified in the tables.

Aruleofthumbcanbeapplied: Doubletheamount-almostdoublethetime Halftheamount-halfthetime.

Alwaysplacetheovenwareontheturntable.

Defrosting

☐ Placethefrozenfoodinanopencontaineronthe turntable.
☐Delicatepartssuchasthelegsandwingsof chickenorfattyouterlayersofroastscanbe coveredwithsmallpiecesofaluminiumfoil. Thefoil mustnotcomeintocontactwiththeovenwalls. Youcanremovethefoilhalfwaythroughthe defrostingtime.
☐Turnorstirthefoodonceortwiceduringthe defrostingtime.Largepiecesoffoodshouldbe turnedseveraltimes.
☐Leavedefrosteditemstostandatroomtemperatureforafurther10to20minutessothatthe temperaturecanstabilize.Withpoultry,thegiblets canberemovedatthispoint.Meatcanstillbe preparedevenifitisfrozeninthecentre.

	AmountMicrowavesettinginwattsTimeinminutes		Notes
Wholejointsofmeate.g.beef,porkorveal(withorwithoutbones)	800g1,000g1,500g	180W,15min.+90W,15-25min.180W,20min.+90W,20-30min.180W,30min.+90W,25-35min.	Coverdelicatepartswithaluminiumfoil.
Dicedorslicedbeef,porkandveal	200g500g800g	180W,5-8min.+90W,5-10min.180W,10-13min.+90W,10-15min.180W,12-15min.+90W,15-20min.	Coverdelicatepartswithaluminiumfoil.Separatethepartswhenturning.
Mixedmincedmeat200g		90W,15-20min.	Freezeflatifpossible.Turnseveraltimesduringdefrostingandremovemeatwhichhasalreadybeendefrosted.
	500g800g	180W,10min.+90W,10-15min.180W,15min.+90W,15-20min.
Poultryorpoultryportions	600g1,200g	180W,8min.+90W,10-15min.180W,15min.+90W,20-25min.	Wraplegsandwingsinaluminiumfoil.
Fishfillet,fishsteak,slices	400g180W,5min.+90W,10-15min.Separatedefrosteditments.
Wholefish300g		180W,3min.+90W,10-15min.	Coverdelicatepartswithsmallpiecesofaluminiumfoil.
	600g	180W,8min.+90W,20-30min.
Vegetablese.g.peas300g	180W,10-15min.
Fruite.g.raspberries	300g500gAmount	180W,7-10min.180W,8min.+90W,5-10min.Timeinminutes	Stircarefullyduringdefrostingandseparatethedefrostedparts.NotesMicrowavesettinginwatts
Butter125g	250g	180W,2min.+90W,2-3min.180W,2min.+90W,3-5min.	Removeallthepackaging.
Wholeloaf500g	1,000g	180W,8min.+90W,5-10min.180W,12min.+90W,10-20min.
Drycakes e.g.creamingmethod cakes	500g750g	90W,10-15min.180W,5min.+90W,10-15min.	Separatethepiecesofcake whenturningthem.Onlyfor cakeswithouticing,creamor crèmepâtissière.
Juicycakes e.g.fruitcakeandquark cake	500g750g	180W,5min.+90W,15-20min.180W,7min.+90W,15-20min.	Onlyforcakeswithouticingor gelatine.

Defrosting, heating uporcooking frozenfoods

☐Takeready-mademealsoutoftheirpackaging. Theywillheatupmorequicklyandevenlyifyou placetheminmicrowavabledishes.Differentparts ofthemealmayheatupatdifferentrates.
☐Foodwhichislaidflatheatsupquickerthanifitis piledhigh.Thereforeitisbesttospreadoutthe foodsothatitiesflatinthecontainer.Youshould notplacelayersoffoodontopofeachother.
□Alwayscoverthefood.Ifyoudonothavea suitablelidforyourdish,useaplateorspecial microwavefoil.
☐You should stirorturn the food twoto threetimes during heating.
Once you have heated up themeals, leavethem to stand for another 2 to 5 minutes that the temperature can stabilize.
☐Theindividualtasteofthefoodisretainedtoa largedegree.Youcanthereforegoeasyonsalt andspices.

	AmountMicrowavesettingin watts,Timeinminutes		Notes
Menu,platedmeal,ready-made mealsin2to3parts	300-400g600W,8-13min.
Soups400g600W,8-12min.
Stews500g600W,10-15min.
Meatinsaucee.g.goulash500g600W,12-17min.Separatethepiecesofmeatwhen			stirring.
Fish,e.g.fillets400g600W,10-15min.Youmayaddwater,lemonjuiceor			wine.
Bakes e.g.lasagneandcannelloni	450g600W,10-15min.
Sidedishes riceandpasta	250g 500g	600W,3-7min. 600W,8-12min.	Addalittleliquid.
Vegetablese.g.peas,broccoliand carrots	300g 600g	600W,8-12min. 600W,15-20min.	Addwatertocoverthebaseofthe dish.

Creamedspinach450g600W,15-17min.Cookwithoutaddinganywater.

Heating food

☐Takeready-mademealsoutoftheirpackaging. Theywillheatupmorequicklyandevenlyifyou placetheminmicrowavable dishes.Differentparts ofthemealmayheatupatdifferentrates.
□Whenheatingliquids,alwaysplacea teaspoonin thecontainertostoptheliquidfromboilingover. Whenboilingisdelayed,theliquidcomestothe boilwithoutthecustomarysteambubbles.Evenif thecontaineronlyvibratesalittle,theliquidcan boiloveralotorspatter.Thiscancauseinjuries and scalding.
□Alwayscoverthefood.Ifyoudonothavea suitablelidforyourdish,useaplateorspecial microwavefoil.
☐Youshouldstirorturnthefoodseveraltimes duringheating.Monitor thetemperature.
Once you have heated up themeals, leavethem to stand for another 2 to 5 minutes that the temperature can stabilize.

	AmountMicrowavesettingsin watts Timeinminutes		Notes
Menu, platedmeal, ready-mademealsintwoto threeparts		600W,5-8min.
Drinks125ml	200ml	900W, 12 - 112 min.	Placeaspooninthecontainer.Do notoverheatalcoholicdrinks. Checkduringheating.
	500ml	900W, 112 - 212 min.
Babyfoode.g.baby'sbottles50ml	100ml	360W, 12 min.	Withoutthelidorteat.Always shakewellafterheating.Youmust checkthetemperature.
	200ml	360W, 12 -1min.
Soup1bowl	175g	600W,1-2min.
2bowls	350g	600W,2-3min.
Meatinsauce500g600W,8-11min.Separateslicesofmeat.
Stew400g	800g	600W,6-8min.
		600W,8-11min.
Vegetables1portion	150g	600W,2-3min.
2portions	300g	600W,3-5min.

Cooking food

□Alwayscookfoodincovereddishes.Youshould stirorturnthe food duringcooking.
☐ The individual taste of the food is retained to a large degree. You can therefore go easy on salt and spices.
☐Foodwhichislaidflatheatsupquickerthanifitis piled high. Therefore it is best to spread out the food sothatitiesflat inthecontainer.Ifpossible, you should not place layers of food on top of each other.
Once you have cooked themeals, leavethem to stand for another 2 to 5 minutes so that the temperature can stabilize.

	AmountMicrowavesettingsinwattsTimeinminutes		Notes
Freshwholechicken withoutgiblets	1.2 kg	600 W, 22 - 25 min.	Turn half way through the cookingtime.
Freshfishfillet	400g600W,7-12min.
	Amount	Timeinminutes	NotesMicrowavesettingsinwatts
Freshvegetables250g	500g	600W,6-10min.600W,10-15min.	Cutvegetablesintopiecesof equalsize.Add1to2table-spoonsofwaterper100 gof vegetables.
Sidedishese.g. potatoes	250g	600W,8-10min.	Cutpotatoesintopiecesofequal size.Pourwaterintothe containerertoadepthofabout 1 cm,andstir.
	500g	600W,12-15min.
	750g	600W,15-22min.
Rice	125g	600W,4-6+180W15-18min.	Adddoubletheamountofliquid.
	250g	600W,6-8+180W15-18min.
Sweetse.g.pudding (instant),	500ml	600W,6-8min.	Stirthepuddingthoroughlyusing aneggwhisk2to 3 timesduringthecooking.
fruit,compote	500g	600W,9-12min.

Adviceon microwave operation

Thereisnosetting specifiedfortherespective amountoffood.

Thefoodhasbeencooked toodry.

Oncompletionofthe cookingtime,thefoodhas notbeendefrosted,heated orcooked.

Oncompletionofthe cookingtime,thefoodhas beenovercookedonthe edgesyetundercookedon theinside.

Extendorshortenthecookingtimeaccordingtothe followingruleofthumb:

Doubletheamount=doublethetime

Halftheamount=halfthetime

Selectashortercookingtimeorlowermicrowave setting.Addmoreliquidandcoverthefood.

Selectalongercookingtimeandahighermicrowave settingthanisspecified.Largeamountsoffoodwill takelongertocook.Takeintoconsiderationthedepth ofthefood,as"deep"foodwillalsotakelonger.

Stirthefoodfromtimetotimeandselectalowerheat settingandlongerdurationnexttime.

Automaticdefrost

Yourmicrowaveovenhastwoautomaticprogramsfor defrostingusingthemicrowave.Youneedonlyenter theprogramnumberandtheweight.Everythingelse isdoneelectronically.

Youwillfinddetailsofsuitablefoodandaweight rangeforeachprograminthetables.Youcansetany weightwithintheweightrange.

Defrosting programmes

Youcanusethe2defrostprogrammestodefrost meat, poultry, fish, bread and cakes.

Preparingfood

Usefoodwhichhasisthinlycutandproperly portioned,andwhichhasbeenfrozenandstored at-18 °C.

Remove all packaging from the food to be defrosted, and weigh the food. You will need to know the weight in order the set the programme.

Delicateparts,suchasthelegsandwingsofchickens orfishtailscanbecoveredwithsmallpiecesof aluminiumfoil.Thispreventsthefoodfromcooking tooquickly.Ensurethatthefoildoesnottouchthe ovenwalls.

Ovenware

Placethefoodinashallow, microwaveabledish, e.g. aglassorchinaplate. Donotcoverthedish.

Standingtime

Thedefrostedfoodshouldbelefttostandfor 10-30 minutestoallowthetemperaturetostabilise. Largepiecesofmeatneedtostandforlongerthan smallones. Thinlycutpiecesofmeatandmince shouldbeseparatedbeforebeinglefttostand.

The food can then be prepared further, even though thick pieces of meat may still be frozen in the middle. With poultry, the gible t scan beremoved at this point.

Warning!

Liquidwillbeproducedwhendefrostingmeat,poultry orfish.Undernocircumstancesshouldthisliquidbe usedorbeallowedtocomeintocontactwithother foods.

Food	ProgrammenumberWeightrange
Meatandpoultry	P01
-roasts		0.2-1.5 kg
-thinpiecesofmeat		0.2-1.5 kg
-mince		0.2-1.0 kg
-chicken,poularde,duck		0.7-2.0 kg
Fish		0.1-0.8 kg
wholefish,fillet,steak
Breadandcakes*	P020.2-1.5 kg
-wholeloaf,roundorlong,slicesofbread, spongecakes,yeastcakes,fruitcakes

*Creamgateaux, creamcakes and cakes with icing, frosting orgelatine are not suitable.

Settingprocedure

Example: Programnumber1, 1.00kg.

1. Pressthe*automatic defrostbutton. Programnumber1 and the basic setting for the particular weight appear in the display.

2. Usetheknobtosettheweight required.

3. PresstheStartbutton. The programwillstartafterafew seconds. Thetimecountdowninthe display.

Note

☐Forprogramnumber2, suggestedvalue0.50 kg, pressthe*buttontwice.

☐Youcancalluptheweightenteredduringthe program.Pressthe*button.Theweightis displayedfor3seconds.

□Withprogram1,atweightsfrom510g,asignal soundsafteracertainlengthoftime.Openthe ovendoorandturnthemeatorpoultry.Simply presstheStartbuttonagainonceyouhaveclosed thedoor.

Whenthetimehaselapsed

Asignalsoundswhenthetimehaselapsed. The applianceswitchesoff.

0appearsinthedisplay. OpentheovendoororpresstheStopbutton.

Correction

PresstheStopbuttontwiceandresettheoven.

Cancelling

PresstheStopbuttontwice.

Memory

Youcanusethememoryfunctiontostoretwo settingswhichyouusefrequently.Thesecanbe calledupatanytime. MemorylocationsM1andM2areavailabletoyou.

Storingsettings

Example: Toheatup1bowlofsoupfor2minutesat600W usingmemorylocationM1.

1. PresstheM1 button. The indicatorlightabovethebuttonflashes.

2. Pressthe600wattmicrowavesettingbutton.

1. Set the cooking time using the knob.

2. Press the M1 button again. Thesettingissaved. Thetimereappearsorthedisplayremainsdark.

Notes

☐Youcanonlystoreonemicrowavesetting.You cannotstoreseveralpowersettingsoneafter another.
☐Youcanchangeastoredsettingatanytime.Set asdescribedinpoints1and4.
☐Defrostprogramscannotbestoredinthememory.

Starting the memory function

Youmaycallupthesettingsyouhavestoredinthe memoryatanytime.

Changingthesignalduration

Asignalsoundsforoneminuteafterthesetduration hasexpiredortheprogrammehasended.

Youcanchangethedurationofthesignalfrom oneminuteto6seconds.

Method

☐Theappliancemustbeswitchedoff.
☐PresstheStartbuttonfor6secondsuntilyouhearasignal.3appearsinthedisplay.

Thechangehasbeenentered.

Youcanresetthesignaldurationtooneminuteby followingthesameprocedure.30appearsinthe display.

Testdishesinaccordancewith EN60705

These meals are used by testing institution to test the quality and function of microwave appliances.

Cookingwithmicrowave only

Meal	Microwavesettinginwattsandcookingtimein minutes	Notes
Eggandmilkmixture, 565g	600 watts,8 mins.+180 watts,15-20 mins.Pyrex,22x17 cm
Sponge,475g600 watts,8-10 mins.Pyrex,22 cmdiameter
Meatloaf,900g900 watts,approximately13mins.+360watts, approximately25 mins.		Pyrexcaketin, 28 cm long

Defrostingwithmicrowave only

Meal	Microwavesettinginwattsandcookingtimein minutes	Notes
Meat,500gProgramme1,500g16mins.180 watts,9 mins.+90 watts,15-20 mins.		Pyrexno.218,24 cm diameter

Careandcleaning

Donotunderanycircumstancesuseahighpressure orsteamcleaner.

Donotusecausticorabrasivecleaningagentsor sharpmetalscraperstocleantheovendoorglass. Thesurfacecouldbedamagedwhichmayresultin shatteringoftheglass.Ifanabrasivesubstance comesintocontactwiththefrontage,washitoff immediatelywithwater.

Ovenexterior

Simplywipetheappliancewithadampcloth.Adda fewdropsofwashing-upliquidtothewaterifthedirt ismoredifficulttoremove.Wipeitdrywithadrycloth.

Neverusestrongorabrasivecleaningagentsasthese canleavepartsofthesurfaceslookingdull.Ifyouspill acleaningagentonthecasing,wipeitawaywithwater immediately.

Stainlesssteelappliances

Removelimescale, fat, cornflourandeggwhitemarks as soon as possible. Corrosioncanbuildupunder such layers of dirt.

Commercialstainlesssteelcleaningproductsshould beused. Takegoodnoteoftheclaimsmadebyeach manufacturer, and alsotesttheproductonasmallarea beforeusetheproductonthewholeappliance.

Applianceswithaluminiumfront

Useamildwindow-cleaningagentandasoftclothor fluff-freemicrofibrecloth.Wipetheclothhorizontally overthesurfaceandwithoutapplyingpressure.

Donotuseanyaggressivecleaningagents, scratchingspongesorroughcleaningcloths. Clean thealuminiumsurfacewithadrycloth.

Oveninterior

Itisusually sufficient to wipe the oven interior with a damp cloth. Use mild cleaning agents if the dirt is difficult to remove. Donot use ovenspray.

Unpleasantsmellssuchasfishareeasilyremoved.

Pourafewdropsoflemonjuiceinacupofwater.

Placeaspooninthecup.Heatthewateratfullpower for1to2minutes.Thenwipetheinsideofthecooker.

Turntable

Cleantheturntableandtherollerringwithwashing-up liquid.Wipetherecessinthecookerwithadamp cloth.Ensurethatwaterdoesnotleakthroughthe turntabledriveintotheinsideoftheappliance.The supportringmustslotintoplaceproperlywhenyou re-insertit.

Troubleshooting

Malfunctionsoftenhavesimpleexplanations.Please readthefollowinginstructionsbeforecallingthe after-salesservice:

Problem	PossiblecauseComments/remedy
Theovendoesnotwork.Notpluggedin.Plugintheoven.
	Powerfailure.Checkwhetherthekitchenlightswitcheson.
12:00lightsupinthedisplay.Therehasbeenapowerfailure.Resetthetime.
Themicrowavedoesnot switchon.	Thedoorisnotclosedproperly.Checkwhetherleft-overfoodoraforeignobjectistrappedinthedoor.Thesealsurfacesmustbeclean.
	TheStartbuttonwasnotpressed.	PresstheStartbutton.
Theovenisnotworking.A cookingtimetimeappearsin thedisplay.	Therotaryknobwas accidentallypressed.	PresstheStopbutton.
Problem		Comments/remedyPossiblecause
Thefoodtakeslongerthan usualtoheatup.	Themicrowavesettingselected wastoolow.	Selectahighersetting.
	Agreateramountthanusual wasplacedinthemicrowave.	Doubletheamount=almostdouble thecookingtime.
	Thefoodwascolderthanusual.Stirorturnthefoodduringcooking.
Theturntablemakesa scrapingorgrindingnoise.	Dirtorforeignbodyispresent aroundtheturntabledrive.	Cleantherollerringandtherecess.

Repairsmayonlybecarriedoutbyfullytrained after-salesservicetechnicians.

Incorrectrepairsmayresultinseriousinjurytothe user.

After-salesservice

	Ourafter-salesserviceisthereforyouintheeventthat yourapplianceneedstoberepaired.Youwillfindthe addressandtelephonumberofyournearest after-salesservicecentreinthephonebook.The after-salesservicecentreslistedwillalsobehappyto adviseyouofaservicepointinyourlocalarea.
EnumerandFDnumber	Whencontactingtheafter-salesservice,always specifytheproductnumber(Eno.)andtheproduction number(FDno.)ofyourappliance.Youwillseethe ratingplatecontainingthesenumbersonthe right-handsidewhenyouopentheovendoor.Makea noteofthesenumbersinthespacebelowtosave timeintheeventofyourappliancemalfunctioning.

Eno.FDno.

After-salesservice

Technicaldata

Powersupply:230V,50Hz

Totalconnectedload:1.170W

Microwavesetting:900W

Frequency:2.450MHz

Dimensions(HxWxD)

-cookingcompartment22x30x30cm

Weight10kg

VDEtested:Yes

CEmark:Yes

This appliance correspond to the EN55011 Standard or CISPR11.

ItisaproductinGroup2,ClassB.

Group2meansthatthemicrowavecanbeusedto heatfood.

ClassBsignifiesthattheapplianceissuitablefor privatedomesticuse.

Two glass glasses, one with a spoon and the other with a black X symbol (no text or labels)

Illustration of a microwave oven with a circular vent and lid (no text or symbols)

Illustration of a microwave oven with control panel and display (no text or symbols)

Remarques

Leboutonrotatifestescamotable.

Two glass glasses, one with a spoon and the other with a black X symbol (no text or labels)

Illustration of a microwave oven with a circular vent and lid (no text or symbols)

Illustration of a microwave oven with control panel and display (no text or symbols)

Opmerkingen
